What's in the box:
FNIRSI-1C15 2.4 Inch Screen Handheld Portable Digital Oscilloscope 500MS/S Sampling Rate with 110MHz Bandwidth 1KHz/3.3V Calibration Square Wave Multipurpose Measuring Oscilloscopes (Standard)
FNIRSI-1C15 is a fully functional, strong practicality, for maintenance, a cost-effective oscilloscope for R&D and education industries. Made of fine quality material, practical, easy to operate and use, has a long service life. Come on and try it.
Features:
Light and small, small waist shell design, excellent hand feeling, easy to carry and simple operation.
With 110MHz brandwidth, 500MS/S sampling rate and 400w measuring voltage.
Just connect the probe to the calibration terminal to see this waveform on the screen, and calibrate the oscilloscope or probe based on this waveform parameter.
Fine end quality hard core material: It adopts eight-way stick-style game rocker, waterproof conductive silicone buttons, anti-skid, drop-proof and shock absorbing silicone cover, which can hide the bracket, and truly achieve long service life.
Stable performance tough: wave form move, wave form expand, waveform save, waveform view, waveform lock, reference waveform.
Infinite persistence mode: through the persistence mode, you can capture occasional waveforms. Use persistence to measure noise and jitter, view the worst-case conditions of changing waveforms, find timing violations or capture rare events.
Comprehensive trigger mode: Auto trigger will automatically trigger periodic signals, such as sine waves, normal trigger can test digital logic signals, such as infrared remote control signals, single trigger can test unexpected non-periodic signals, such as car ignition signals.
One key automatic regulation: after pressing the "AUTO" key, the oscilloscope will automatically measure the amplitude and frequency of the waveform, and automatically adjust the horizontal scale and vertical scale so that the waveform is displayed in the middle of screen.
The design scheme is more reasonable and the equipment performance is more stable: It adpots FFGA+ADC(MCU) design scheme, which has more stable performance and higher accurancy.
14 kinds of waveform measurement, measurement response freely: sine wave, square wave, triangle wave, CMOS wave, half wave, full wave, step wave, trapezoidal wave, noise wave, exponential rise and fall, logarithmic rise and fall, cinke pulse wave, multi-audio, lorentz.
Small and exquisite, shockproof and drop-proof.
Wide range of applications: home applicance testing, car diagnosis, research education, product development, mains measurement.
Specifications:
Material: ABS
Color: blue+white
Model: FNIRSI-1C15
Channel coupling: AC/DC
Time base range: 5ns-10s
Single trigger: support
Numbers of channels: 1
One key automatic: support
Vertical sensetivity: 20mV/div-100V/div
50%/back to middle: support
Screen size: 2.4inch
Waveform measurement: 14 types
Trigger mode: auto/normal/single
Operation mode: button+joystick
Screen resolution: 320 * 240
Measurement accurancy: 2%
Trigger type: rising edge/falling edge
Waveform analysis: support drag/expand
Analog brandwidth: 110M
Reference waveform: support
Display mode: YT/scroll
Language: Chinese/English
Sampling rate: 500M
Waveform save: support
Afterglow time: none/1s/
Rise time: <3ns> Frequency accurancy: 0.01%
Charging method: 5V/800mA
Battery: 1 * lithium battery,3000mAh
Storage depth: 12kpts
Input resistance: 1MO
Voltage measurement range: 40V(*1 file), 400V(*10 file)
Item size: 130 * 76 * 27mm / 5.1 * 3.0 * 1.1in
Package size: 134 * 94 * 56mm / 5.3 * 3.7 * 2.2in
Package weight: 340g / 12.0ounce

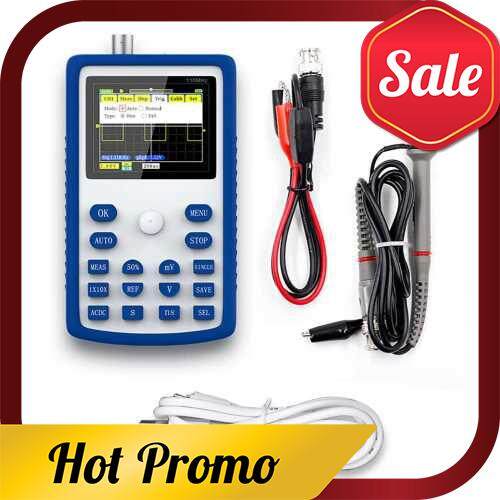

Packing List:
1 * Oscilloscope
1 * High Voltage Probe
1 * Allgator Clip Probe
1 * Data Cable
1 * User Manual
