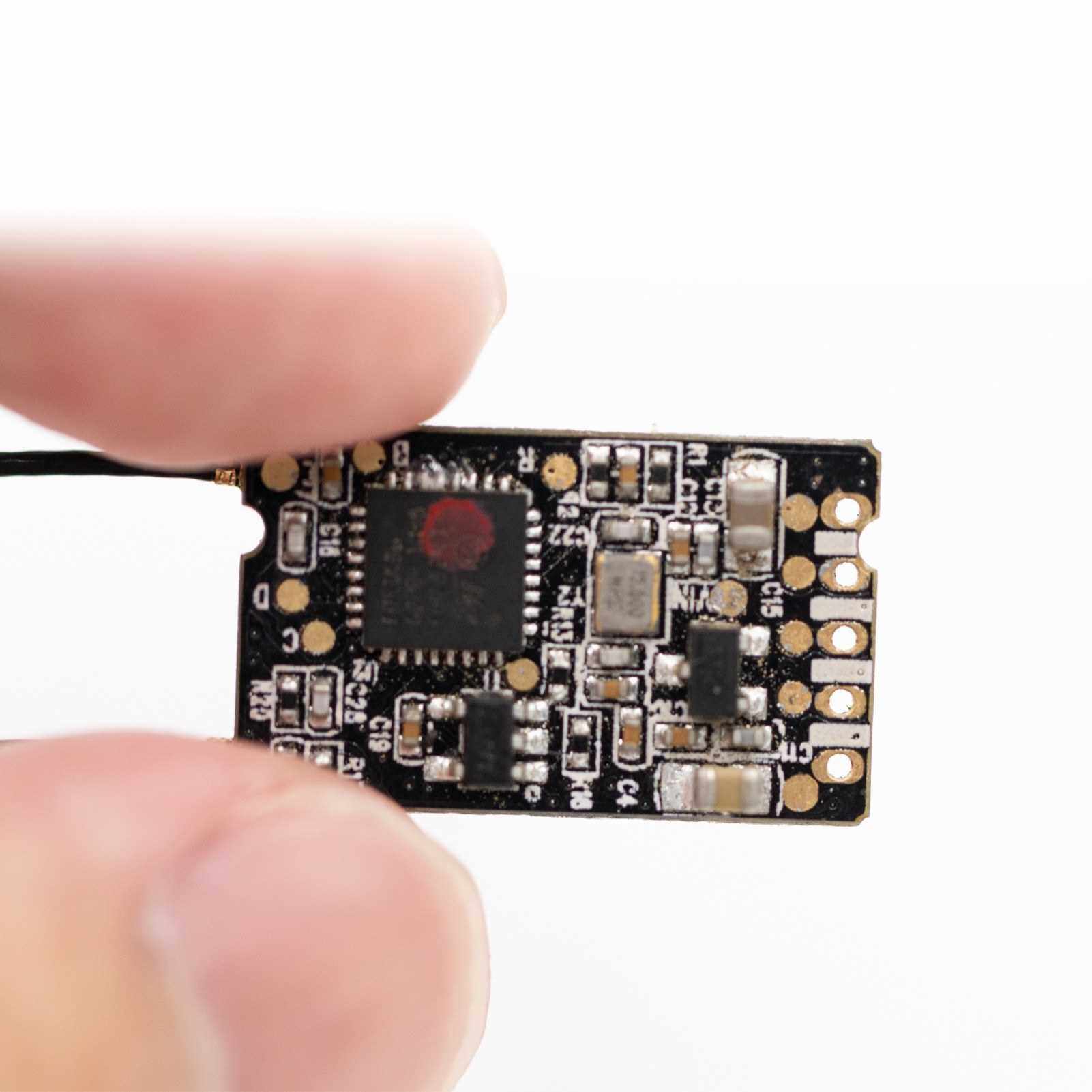

The FTr16S is a double antenna bidirectional receiver using the AFHDS 3 protocol. It's compact, easy to install, and can output using a standard PPM or i-bus/s.bus signal.

Features:
The FTr16s is a double antenna bidirectional receiver using the AFHDS 3 protocol.
It's compact, easy to install, and can output using a standard PPM, I-BUS/S. BUS signal.
The FTr16S receiver is compatible with the PL18 transmitter and all AFHDS 3 transmitters and FRM302 RF modules.
With a compact size and light-weight, no worry to give any burden to your RC drone.
Warranty: If there are any problems, please contact our store in time. We will give you a satisfactory solution.

Specification:
Product Model: FTr16S
PWM channel: None
Wireless frequency: 2.4GHz
Wireless protocol: AFHDS 3
Range: 3500m (air)
Antenna type: dual antenna (92.5mm * 2)
Power: 3.5-8.4V
RSSI: Supported
Data port: i.bus / s.bus / PPM
Temperature range: -10 + 60
Humidity range: 20% -95%
Online Update: Yes
Dimensions: 20 x 12 x 3.1mm
Weight: 2g

Package Information:
Size: 8 x 4 x 2 cm
Weight: 3g

Package List:
1 x Receiver
