Product Information
Product Benefits
- Position LCD screens for maximum ergonomic comfort with unparalleled range of motion—promotes wellness in any work area
- Free up your desktop to increase your workspace
- 13-inch (33 cm) height range meets the ergonomic needs of more than nine out of ten adults
- Extends LCDs out up to 25" (64 cm) with an extension range of 18" (46 cm); push your displays out of the way when not in use
- Easily turn one or both screens from landscape mode to portrait mode—view entire pages without scrolling
- Cable management feature routes cables under the arm, out of the way
- Easy to use—simple installation and effortless operation
- Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free height adjustment
- Patented Constant Force™ lift-and-pivot motion technology
Tech Specs
- Part Number: 45-245-026

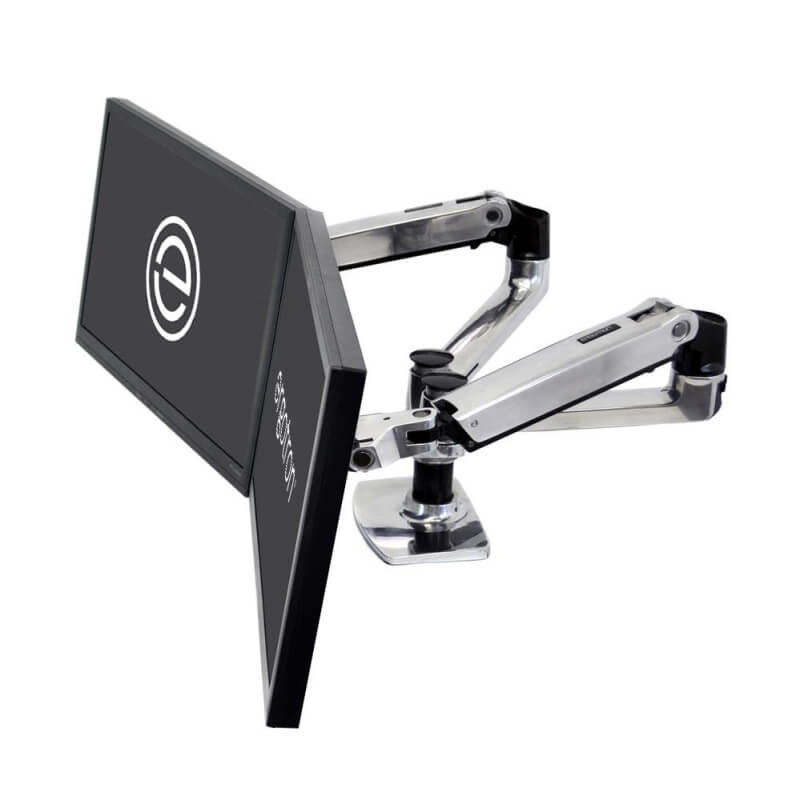

- Description: LX Dual Monitor Arm, Side-by-Side (polished aluminum)
- Includes two (2) LCD arms and extensions, pole, t-bracket, desk clamp and grommet mount
- Can be configured to hold a laptop instead of an LCD display; also order the LX Notebook Tray (50-193-200)
- Quality Tested: 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
Improved LX Arm Features & Benefits
- Polished aluminum construction offers greater durability and enhanced aesthetics
- Snap-fit cap secures interface of arms to extensions for greater stability
- † Larger displays (e.g. 23" to 27" screen sizes) cannot be positioned in a stacked orientation; larger displays can only be placed side by side
- * Weight Capacity: Individual monitor weight = 7–20 lbs (3.2–9.1 kg); maximum combined weight = 40 lbs (18.1 kg)
- Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
- Desk clamp attaches to edge up to 2.6" (66 mm) thick; grommet mount attaches through hole 5/16" to 2" (7–51 mm) wide and up to 3" (80 mm) thick
-
This product is certified in
compliance with indoor air quality standards defined by ANSI/BIFMA
pertaining to emissions of VOC (volatile organic compounds) - Product Weight: 13.9 lbs (6.3 kg)
- Shipping Dimensions: 19.25" x 17.75" x 6.25" (49 x 45 x 16 cm)
- Shipping Weight: 17.3 lbs (7.9 kg)
- Warranty: Ten (10) years
