Features:
Made of solid nylon and flame retardant material for excellent strength and durability even in the harshest of environments.
Low resistance ,maximum conductivity and protect against corrosion.
Continuous Ratin: 130A AC/150A DC; Max Voltage is 300V AC/48V DC; Terminal Screw: M4 x 24; Terminal Stud: M6 x 4.
Stainless steel stud screw, with good rust resistance.
This product can be used in 300V AC AC and 48V DC system, with a wide range of applications to meet the needs of customers.
It is usually used in the collection harness of negative circuit in the power supply system of your Car Boat Marine caravan RV.

Specifications:

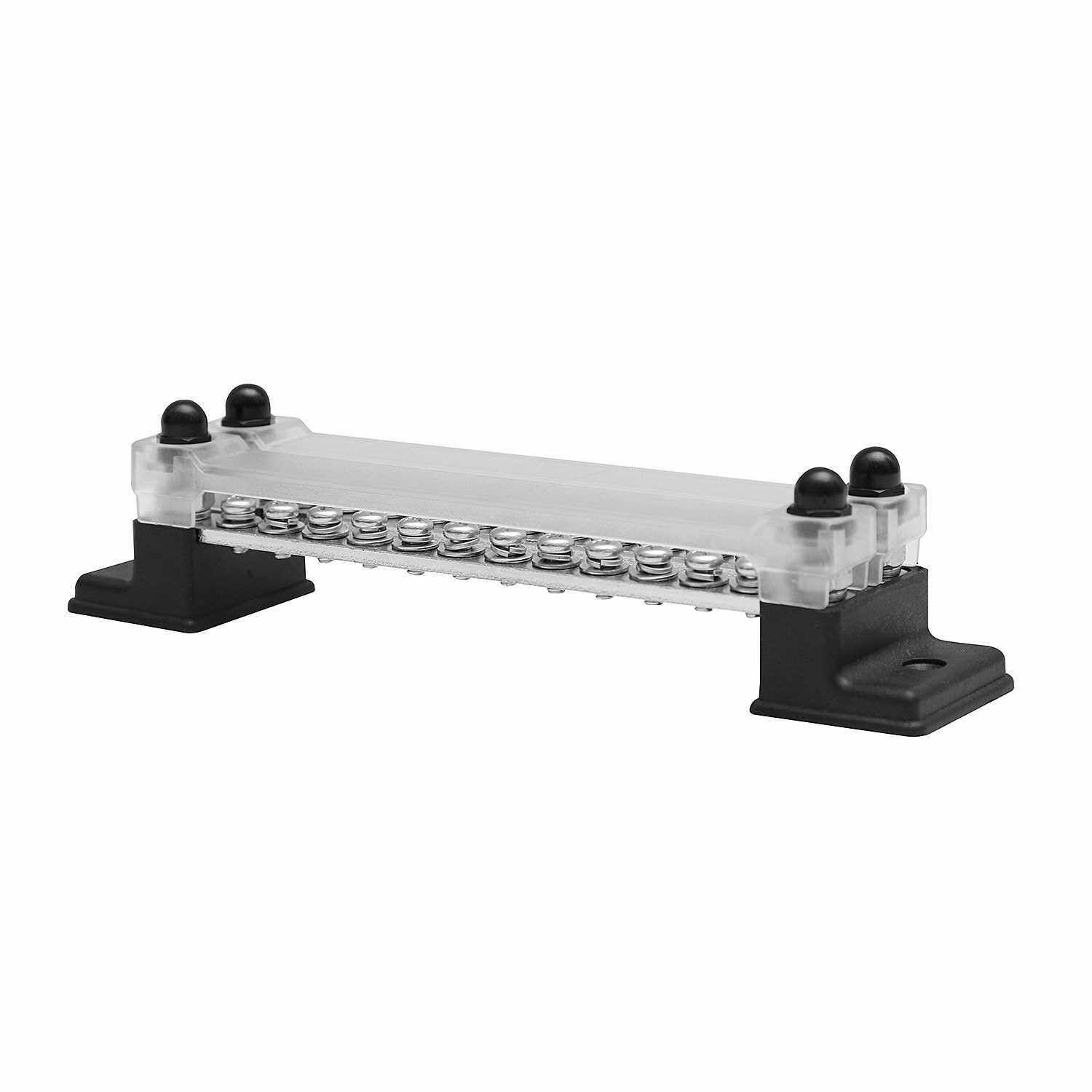

Product model: XF-BB102C-12P
Maximum voltage: 300V AC / 48V DC
Rated current: 130A AC / 150A DC
Product material: Nylon + transparent PC
Terminal screw: M4 * 24 (M4 stainless steel screw)
Terminal stud: M6 * 4 (M6 stainless steel screw)
Connecting bar material: copper bar

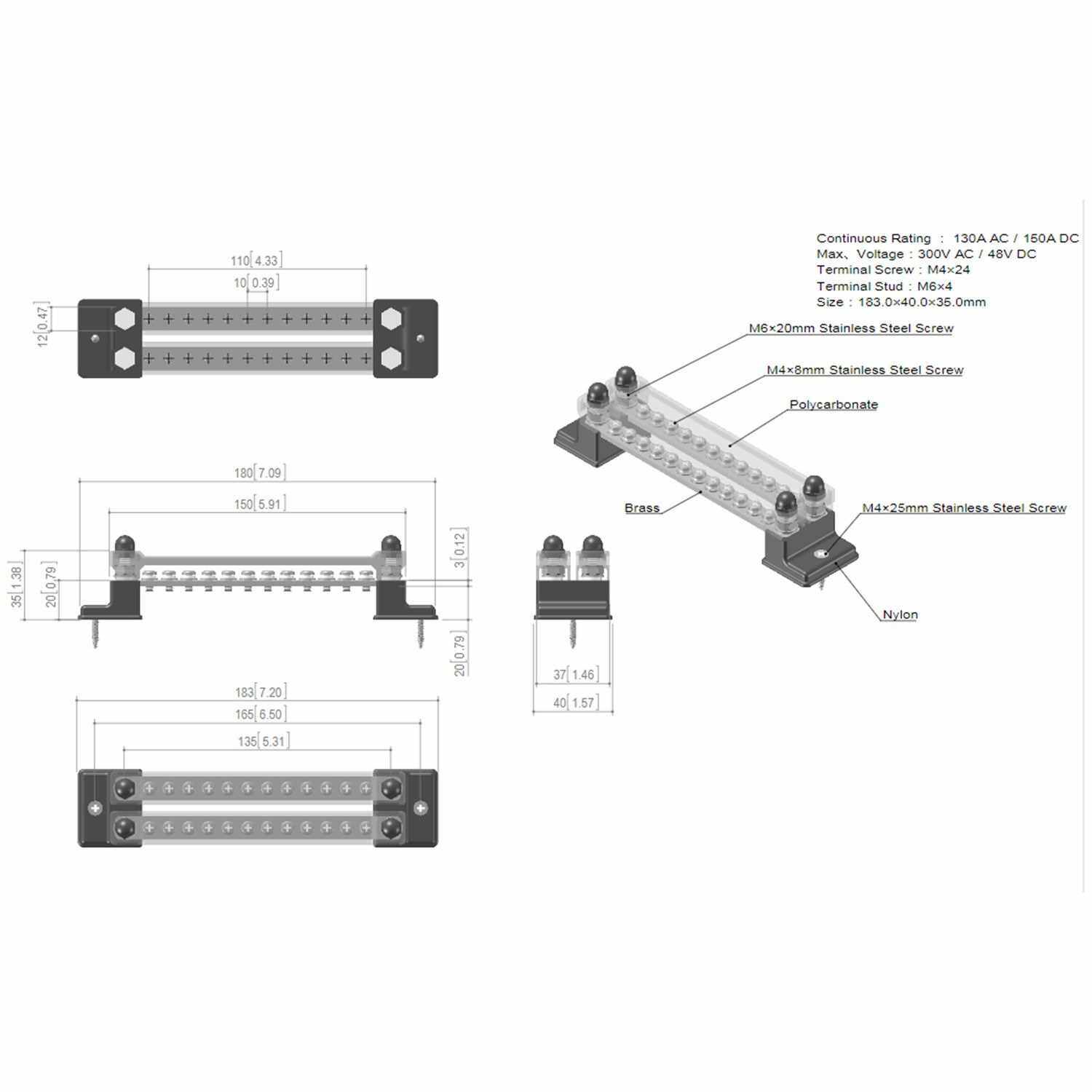

Product size: 183*40*35MM
Package size: 20*8*5cm
Package weight: 200g

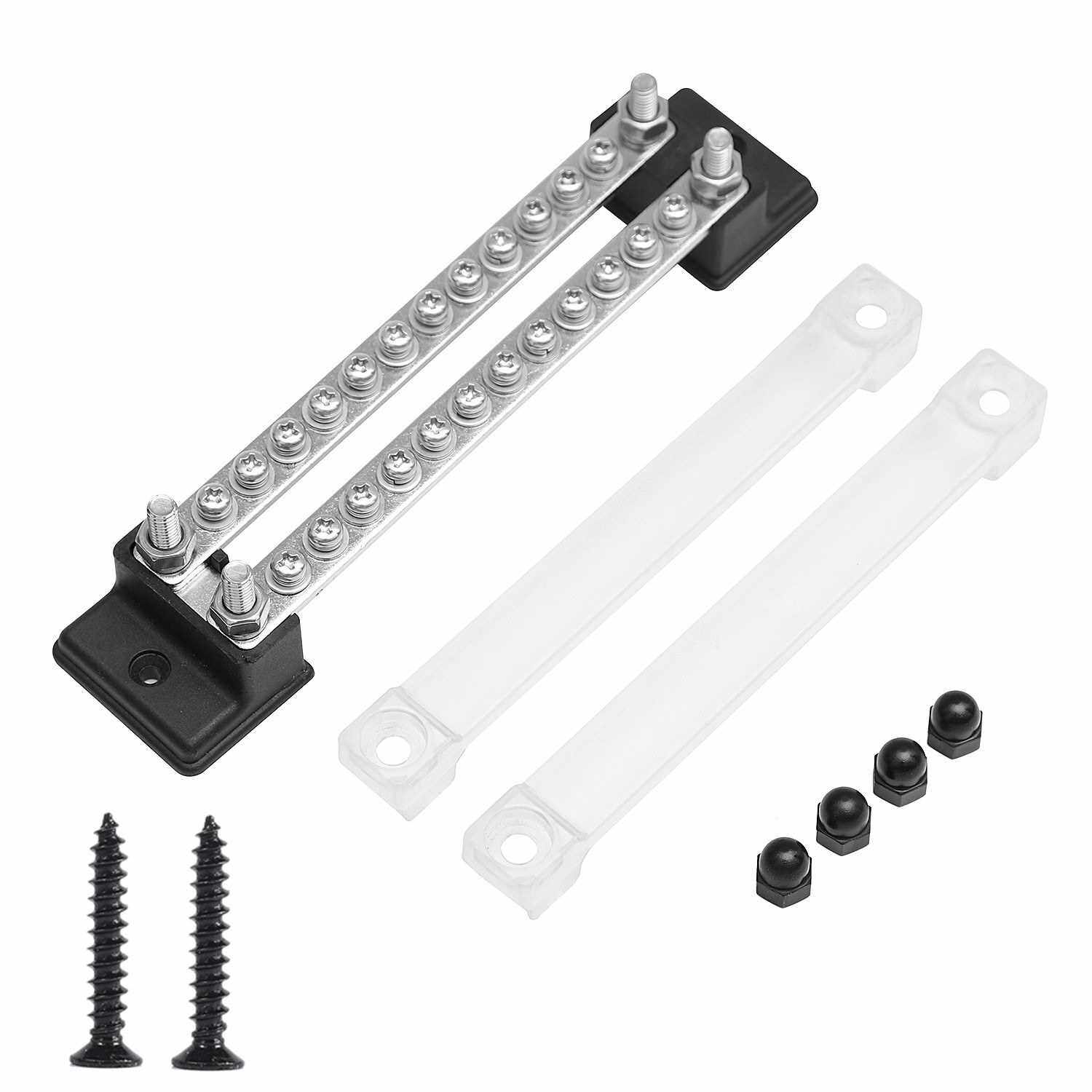

Package list:
1 x Dual Rows 12P Terminal 130A/150A BusBar
2 x stainless steel screws
