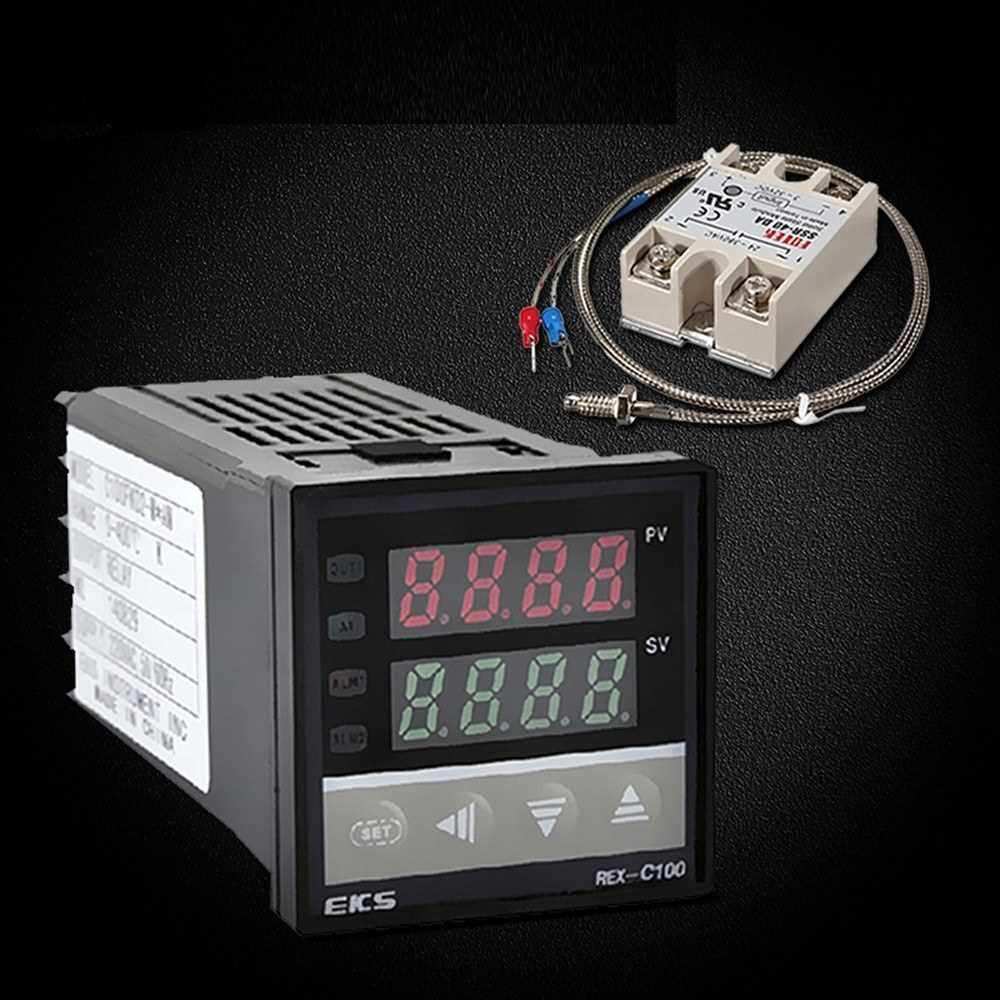

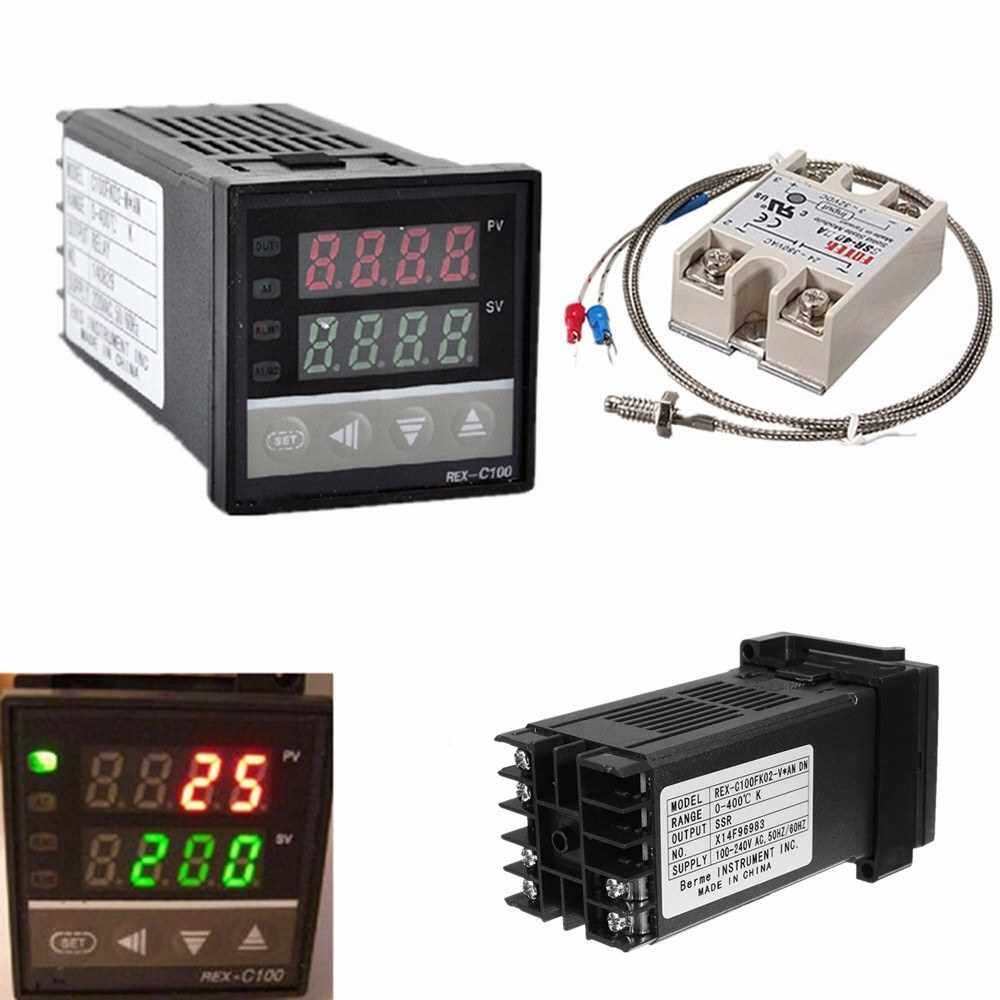

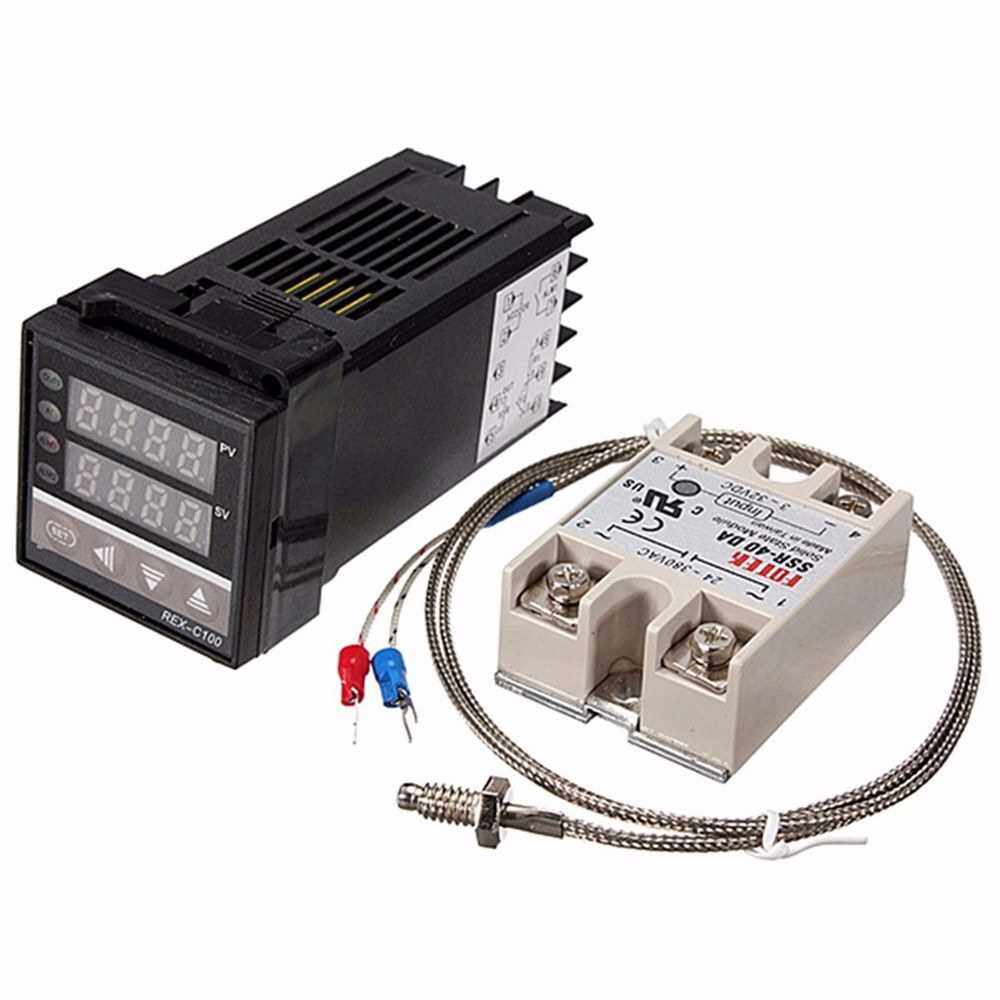

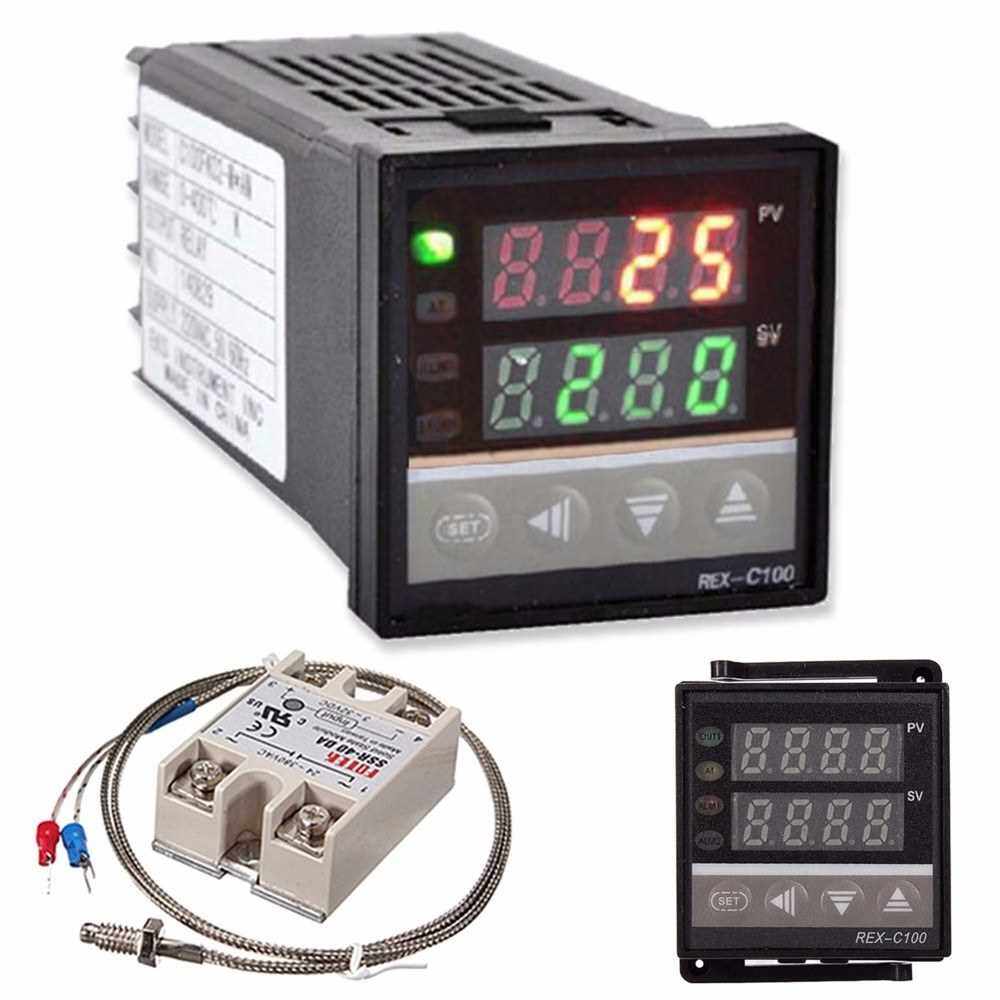

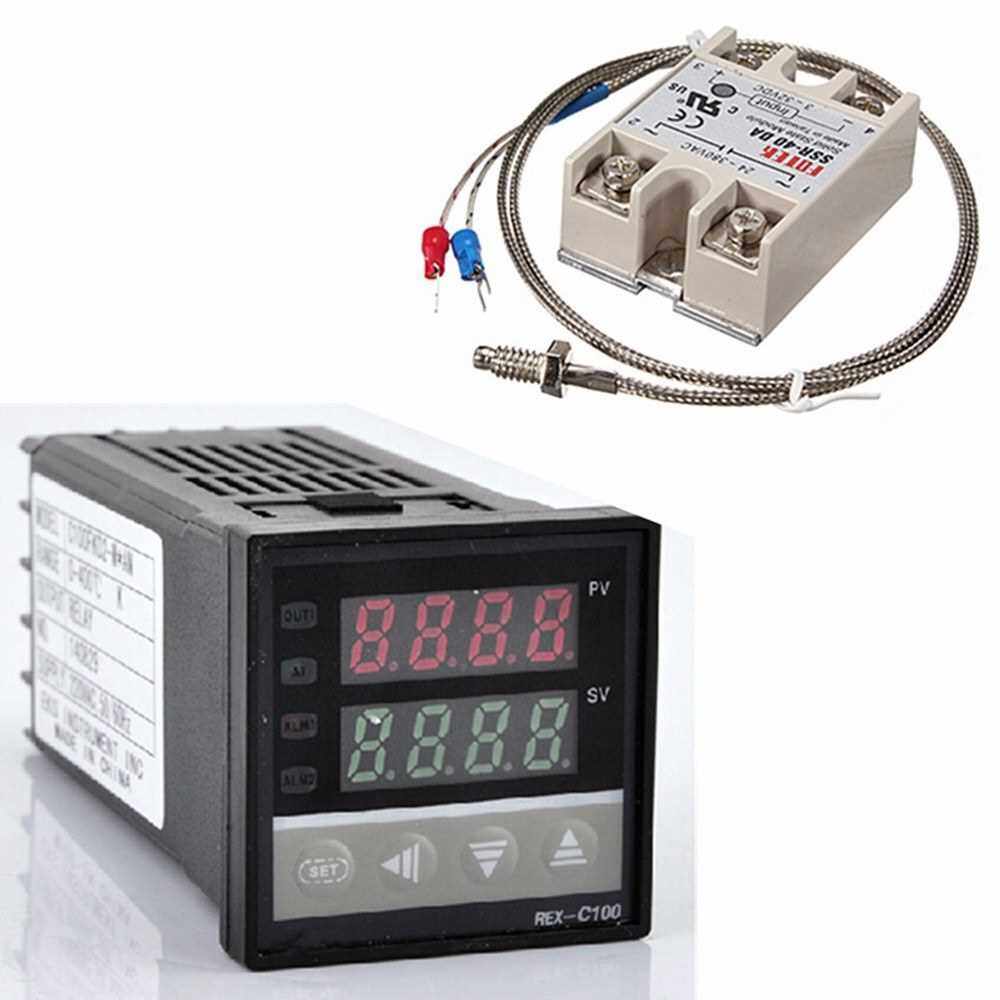

The PID temperature controller kit is for variety of industries or home projects heating or cooling applications. It comes with dual digital PID REX-C100 Temperature Controller + max.40A SSR + K Thermocouple for your use.

Features:
PID controller set comes with digital PID REX-C100 temperature controller + max.40A SSR + K Thermocouple for your use.
This PID temp control is specially designed for one phase solid state relay.
Proportional Band (P): 0~full r-ange (ON/OFF control when set to 0).
Integral t-ime (I): 0~3600 sec (no integral action when set to 0), derivative t-ime (D): 0~3600 sec (no derivative action when set to 0).
Setting value (SV) is identical to measuring r-ange (PV).

Specifications:

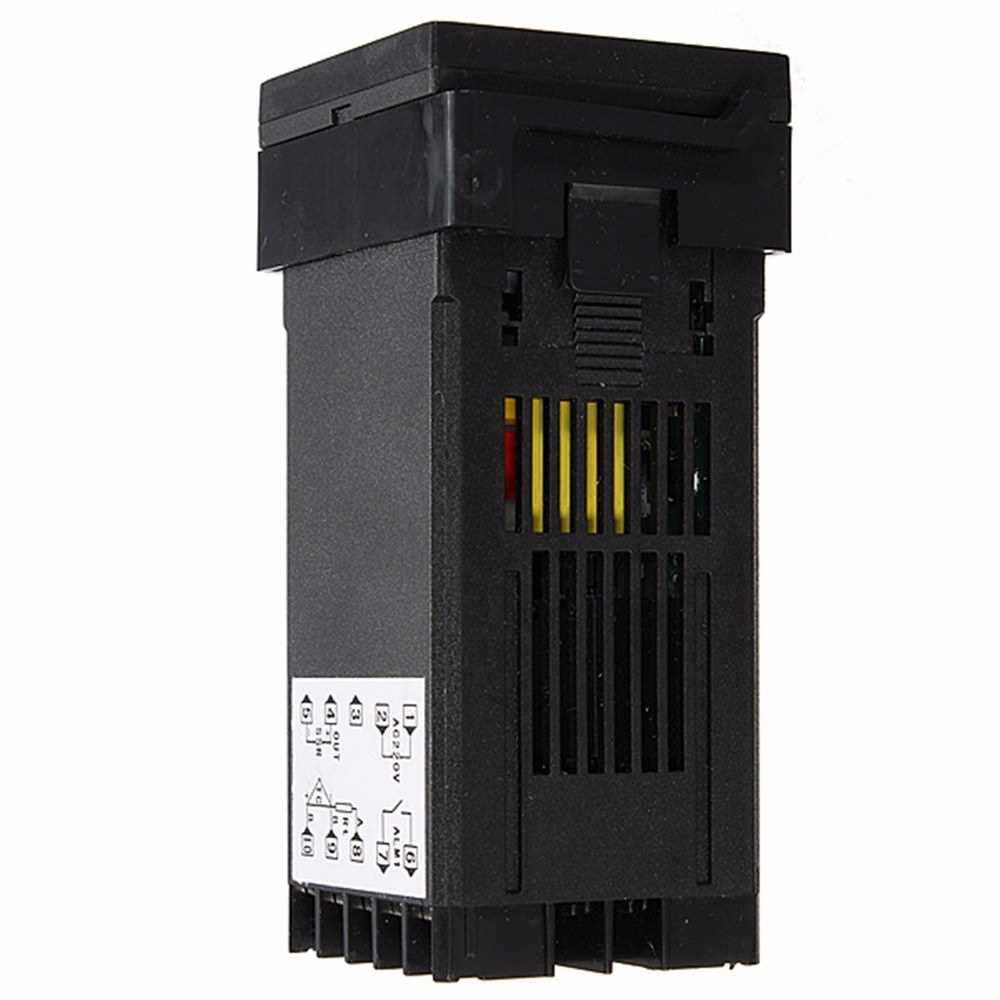

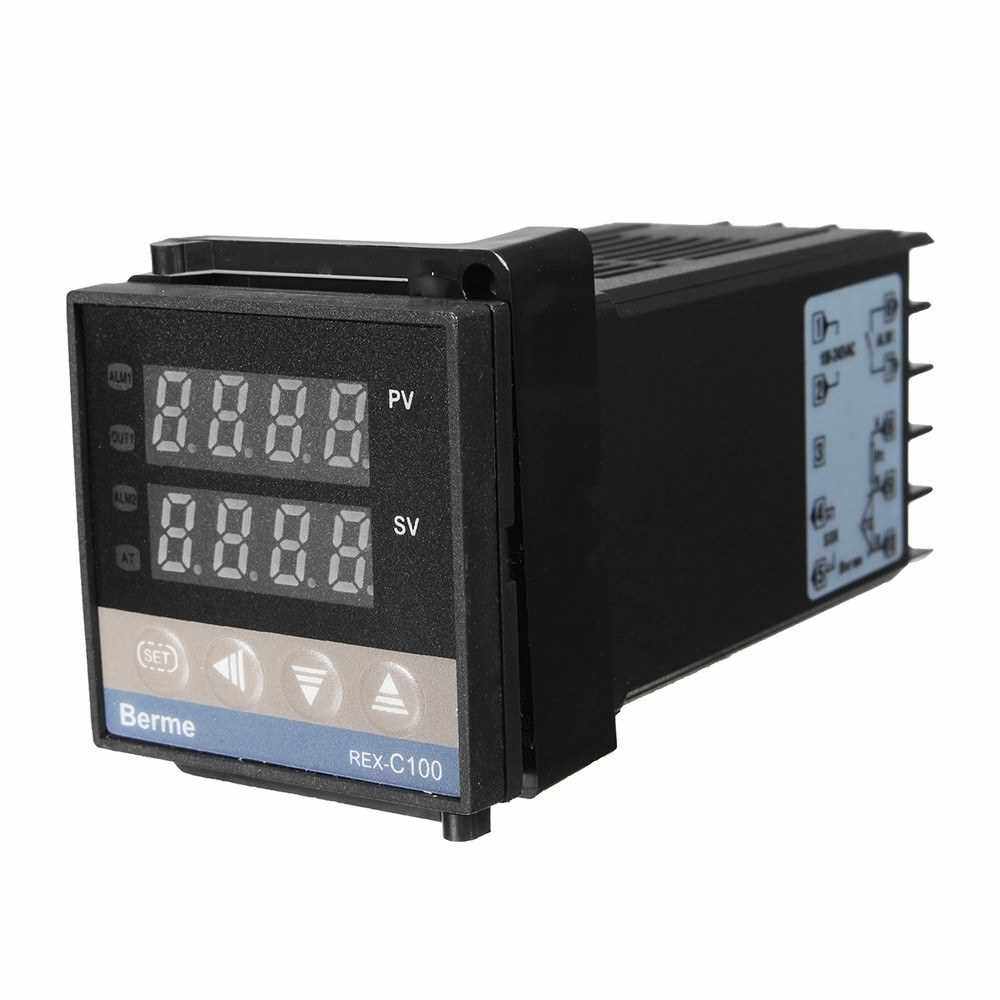

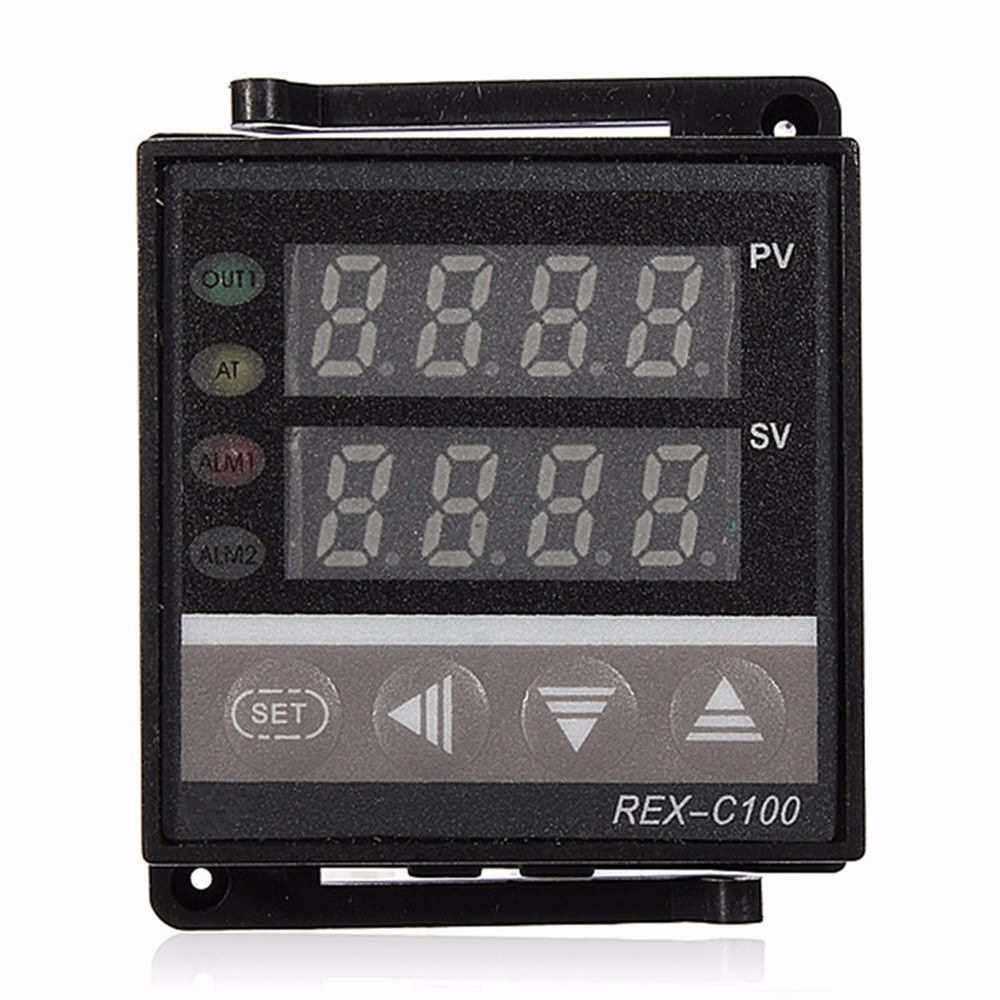

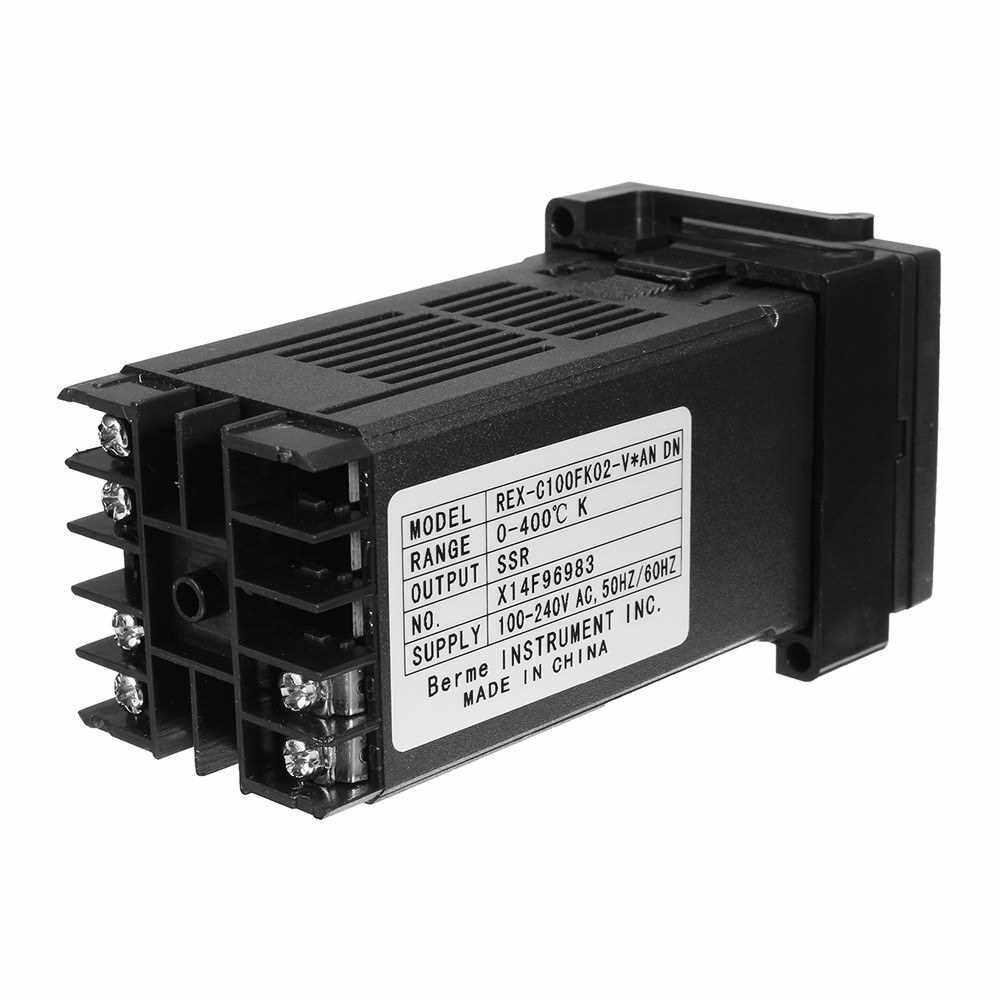

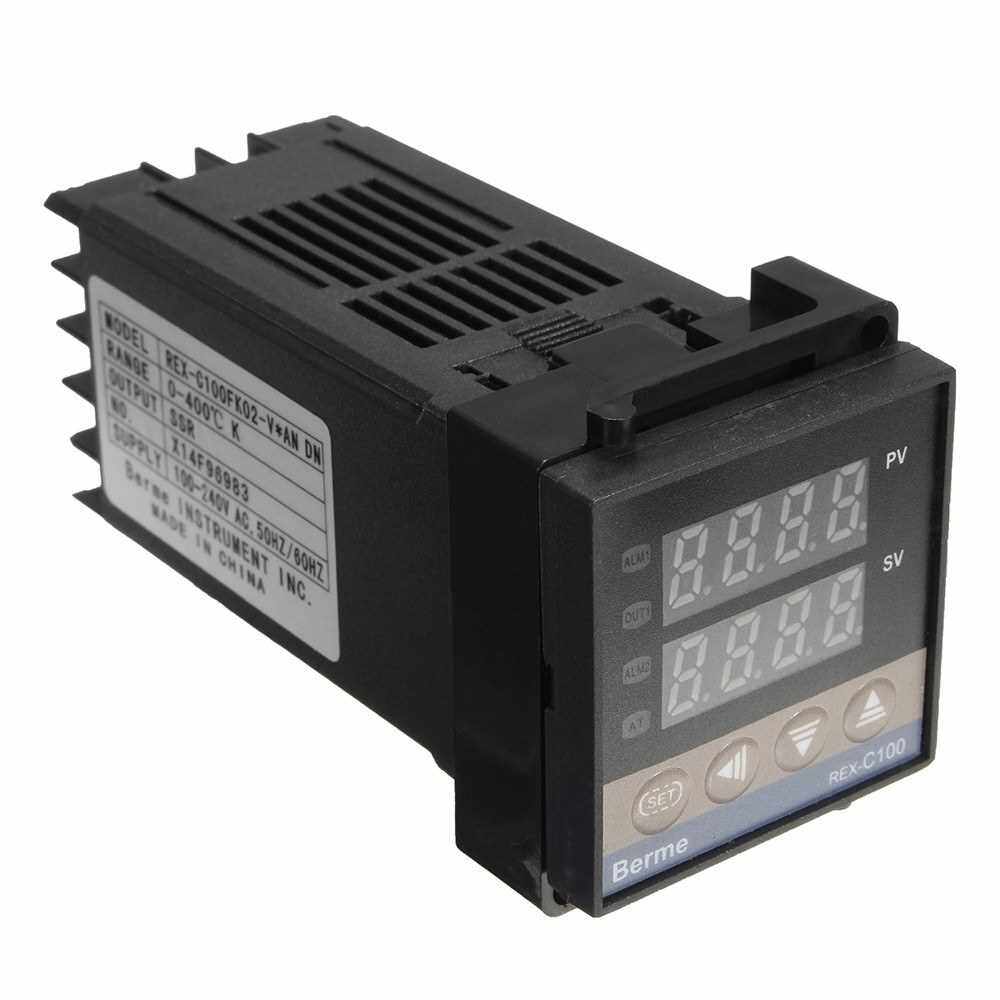

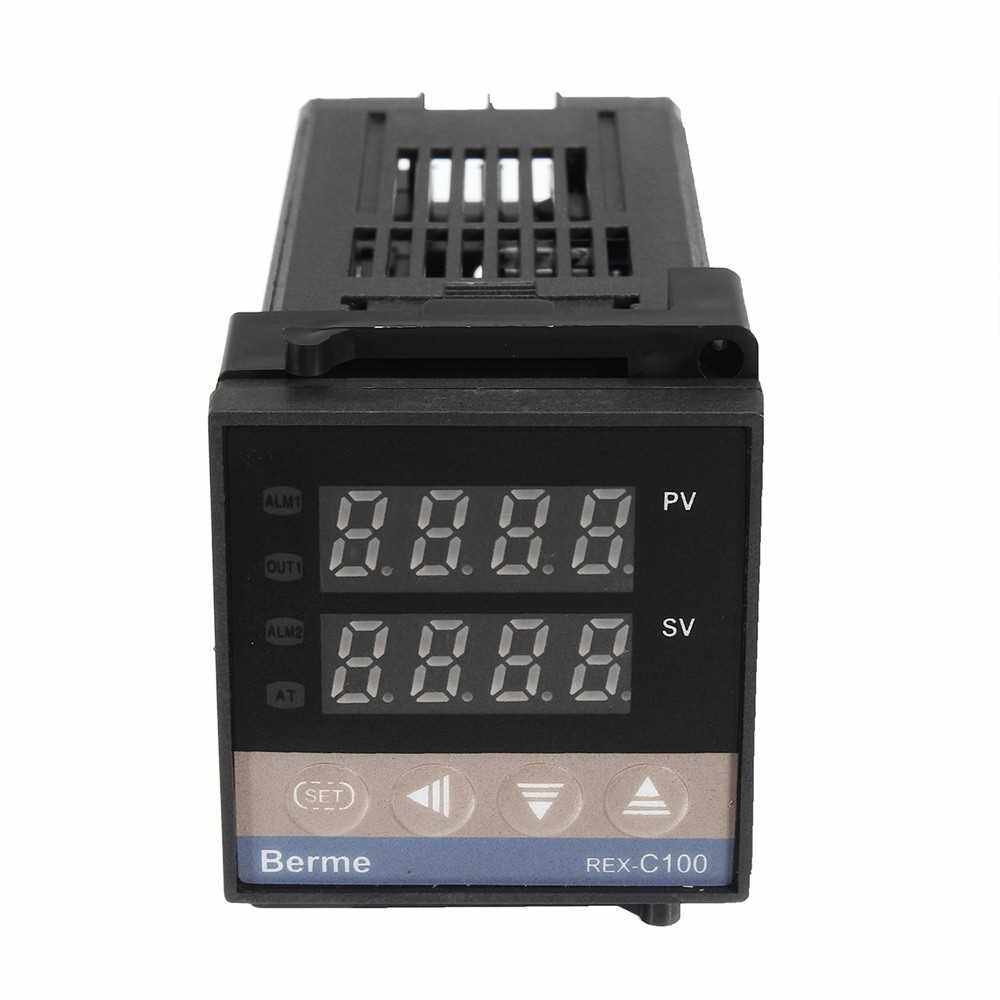

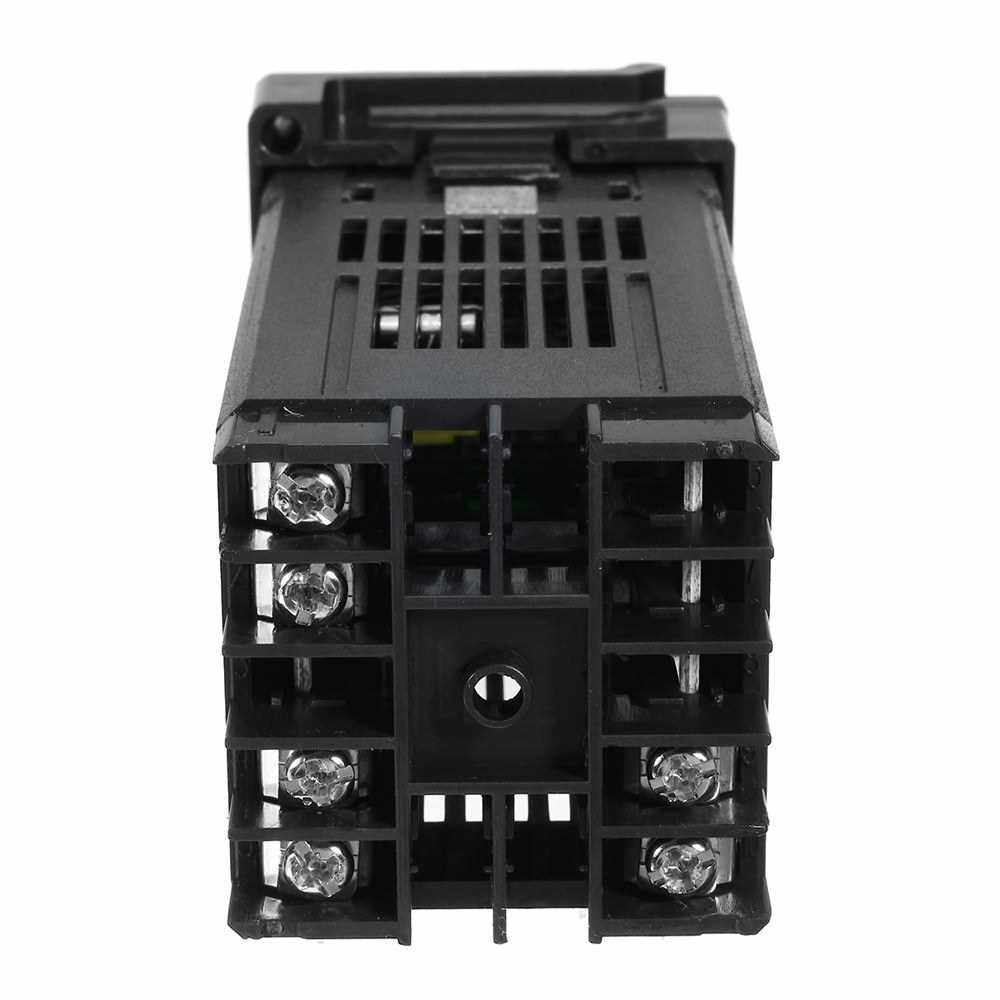

REX-C100 Temperature Controller
1.3 Digit setup values
2.Measuring accuracy: 0.5%FS
3.Cold-end compensation tolerance: 2?(can be modified by software in 0~50?)
4.Resolution: 14 bit
5.Sampling cycle: 0.5 Sec
6.P-ower: AC 100-240-V 50/60HZ
7.Process value (PV), Setting value (SV)
8.Output, and self-tuning can be indicated by: L-ED
9.PIN control (including ON/OFF, step-type PID and continuous PID)
10.Self-tuning control
11.Relay output: contact capacity 250-V AC 3A (resistive load)
12.Proportional band (P): 0~full r-ange (ON/OFF control when set to 0)
13.Detective temperature r-ange: 0 to 400?
14.Insulation resistance: >50M ohm(500V D-C)
15.Insulation resistance: 1500V AC/min
16.Insulation resistance: P-ower Consumption < 10> 17.Service environment: 0~50?
18.Environment with no corrosive g-as 30~85% RH

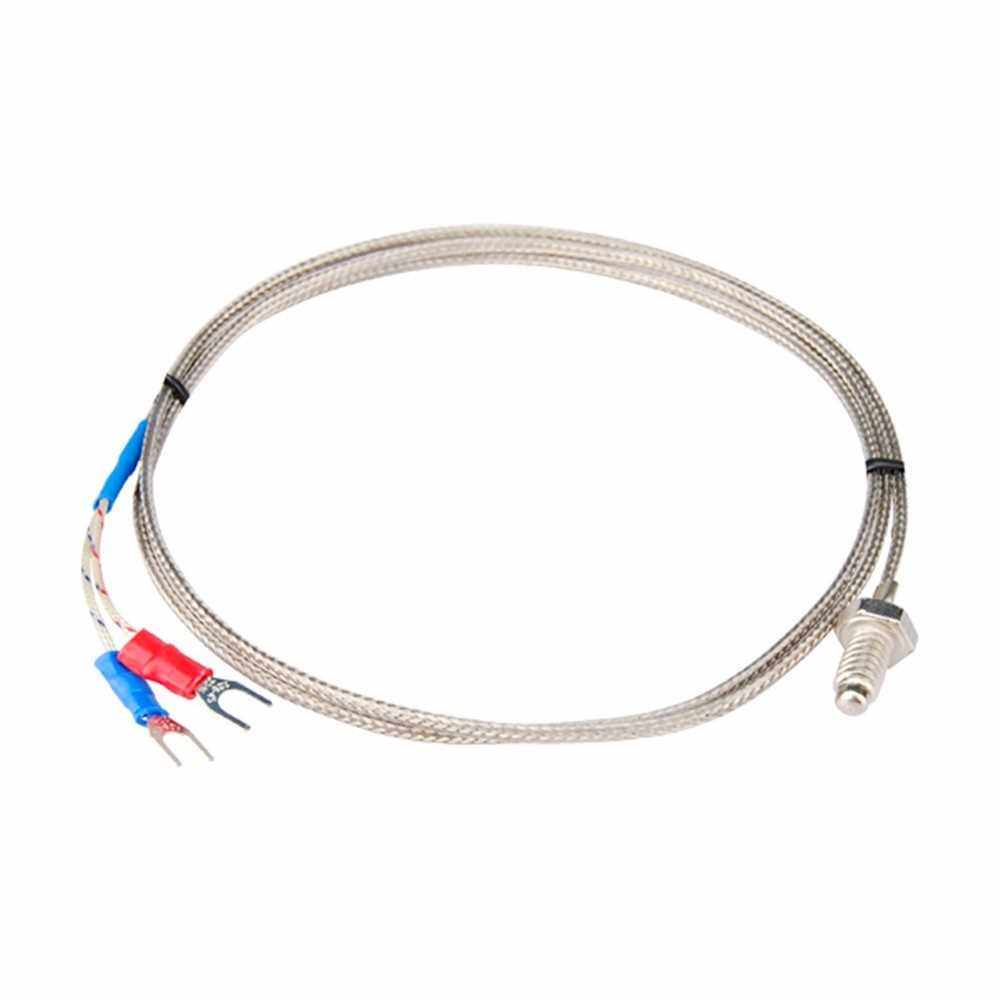

K Thermocouple Probe Cable
1.Length: 1M
2.Sensor diameter: 4.5mm
3.Temperature r-ang :0~400?
4.Internal Insulation: Fiberglass
5.External Shielding: Insulated Shielding

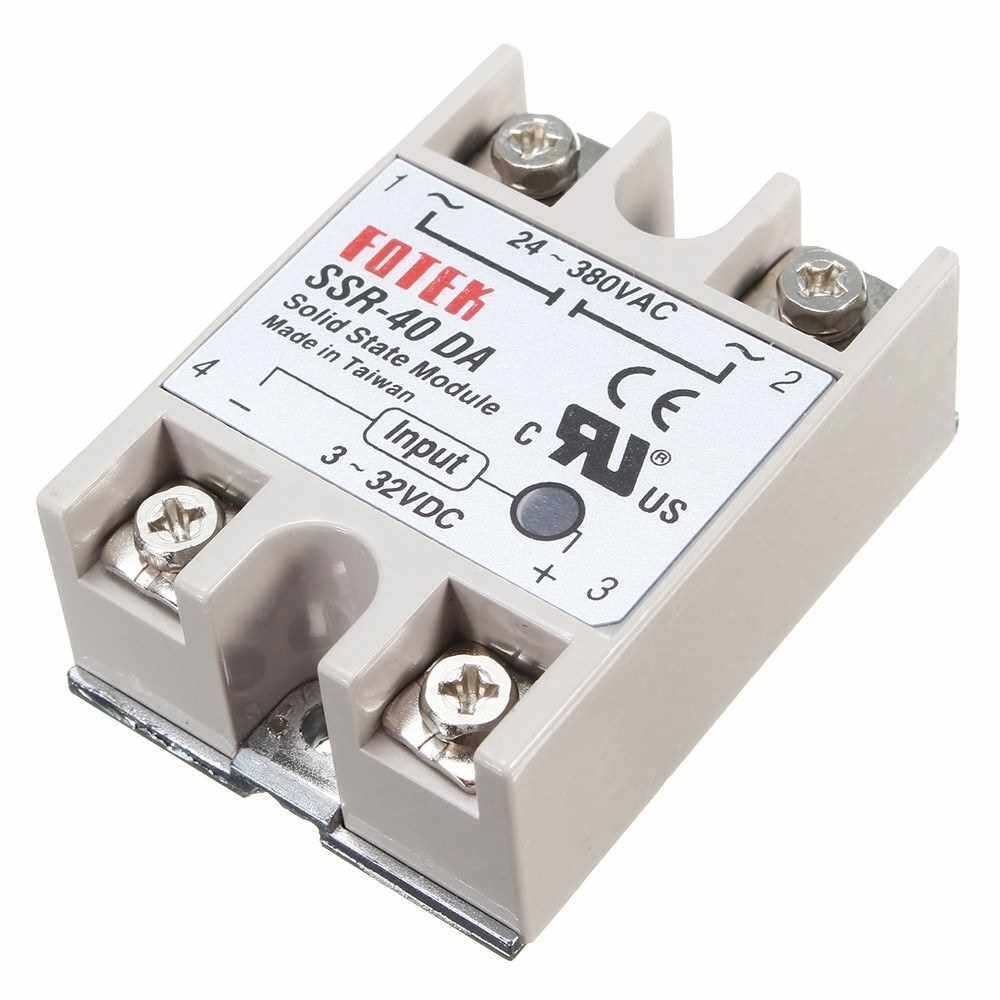

Max.40A SSR
1.Output Current: 40A
2.Input Voltage: D-C 3-32V
3.Output Voltage: 24-380V AC
4.Output Voltage R-ange: Standard Type
Item Size: 48 * 12 * 12mm / 1.89 * 0.47 * 0.47in
Package Weight: 276g / 9.74ounces
Package Size: 80 * 62 * 40mm / 3.15 * 2.44 * 1.57in

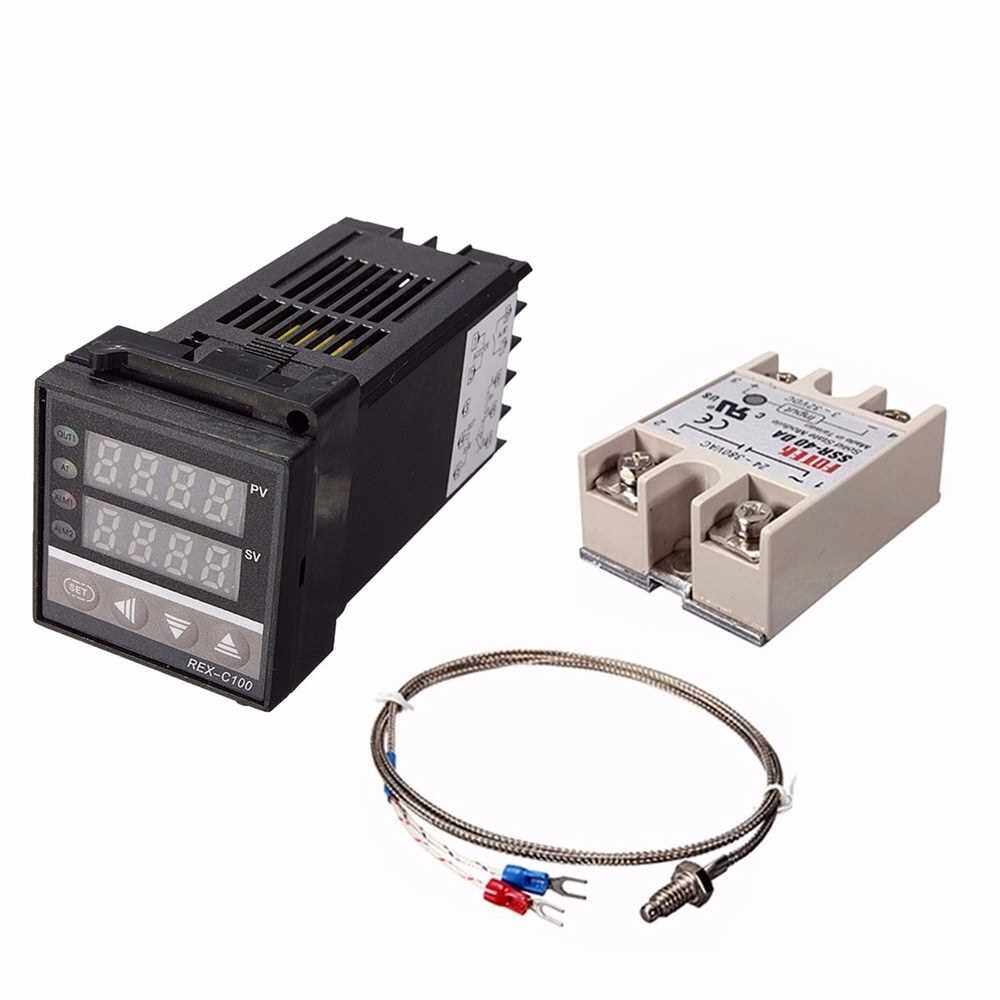

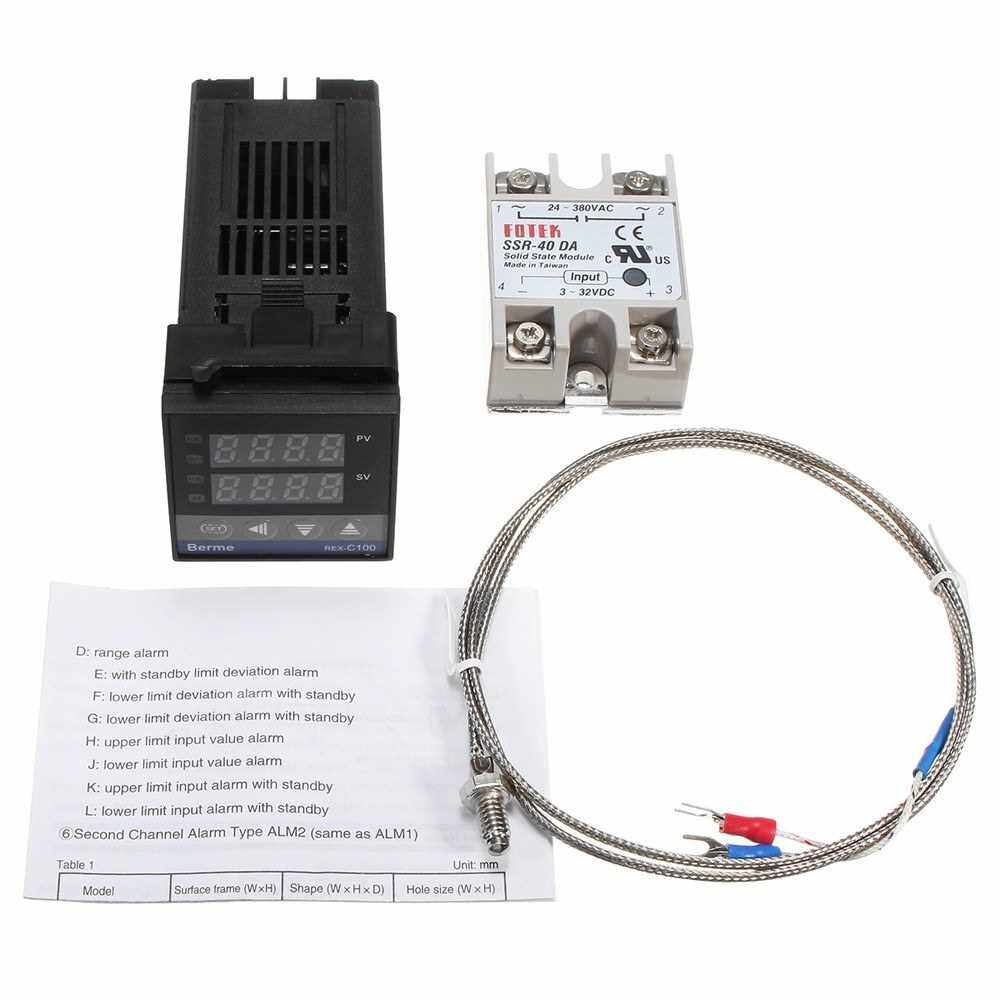

Packing List:
1 * PID Temperature Controller
1 * K Type Probe Sensor
1 * Max.40A SSR
