What's in the box:

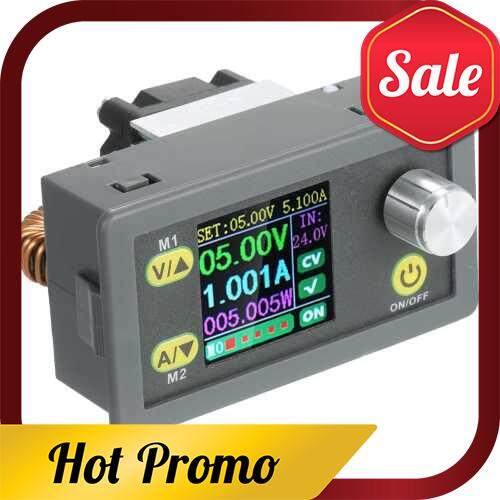

Digital Control Module 5A 80W Constant Voltage Current Programmable Power Supply Module Adjustable Voltage Regulator Data Storage DC Power Module (Standard)
With multiple protection mechanisms, this 80W DC programmable power module in small size features high power, high efficiency and stable performance. Equipped with 1.44-inch LED display screen, it can display the voltage, current, power, capacity, time and other parameters in real time.
Features:
[Advanced Microprocessor] Precisely regulate output voltage and current (Voltage Display Resolution: 0.01V; Current Display Resolution: 0.001A).
[Numerical Control Adjustment] The module can be set to boost and depressurize. The output voltage and limited current can be regulated at will between 0.6 ~ 36V / 0 ~ 5A.
[Clear LED Display] Capable of displaying input voltage, output voltage, output current, output power, output capacity and time.
[Intelligent Temperature Control Fan] ON/OFF automatically. When the temperature is higher than 50? or the current is greater than 1A, the fan will start automatically to cool the module, good for stable and long-term work.
[Thickened Heat Sink] Large heat dissipation space, two-way ventilation, good heat dissipation effect.
[Multiple Protection Mechanisms] Input under-voltage protection, output over-voltage protection, output over-current protection, output over-power protection, timeout protection, over capacity protection and over energy protection, preventing the module from burning.
[Data Storage] Capable of storing 10 groups of data, convenient to view and compare data.
Specifications:
Material: Electronic components
Color: Grey
Control Method: Digital Control + 1.44-inch LED Display
Screen Brightness: 0 ~ 6 (7 levels in total)
Voltage Display Resolution: 0.01V
Current Display Resolution: 0.001A
Input Voltage Range: 6.00 ~ 36.00V
Input Voltage Accuracy: (1.0%+5)
Output Voltage Range: 0.60 ~ 36.00V
Output Voltage Accuracy: (0.3%+3)
Output Current Range: Max. 0 ~ 5.000A
Output Current Accuracy: (0.5%+5)
Output Power Range: 0 ~ 80.000W
Energy Measurement Range: 0 ~ 99999.999WH
Capacity Measurement Range: 0 ~ 99999.999AH
Capacity Accuracy: 2%
Working Environment: -10 ~ 60?
Protection Mechanism:
Input under-voltage protection; output over-voltage protection; output over-current protection; output over-power protection; timeout protection; over capacity protection; over energy protection.
Item Size: Approx. 7.9*4.3*6cm / 3.11*1.69*2.36in
Item Weight: Approx. 93g / 3.28oz
Package Size: Approx. 11.1*6.7*5cm / 4.37*2.64*1.97in
Package Weight: Approx. 118g / 4.16oz
Packing List:
1 * 80W Digital Boost Module
