What's in the box:

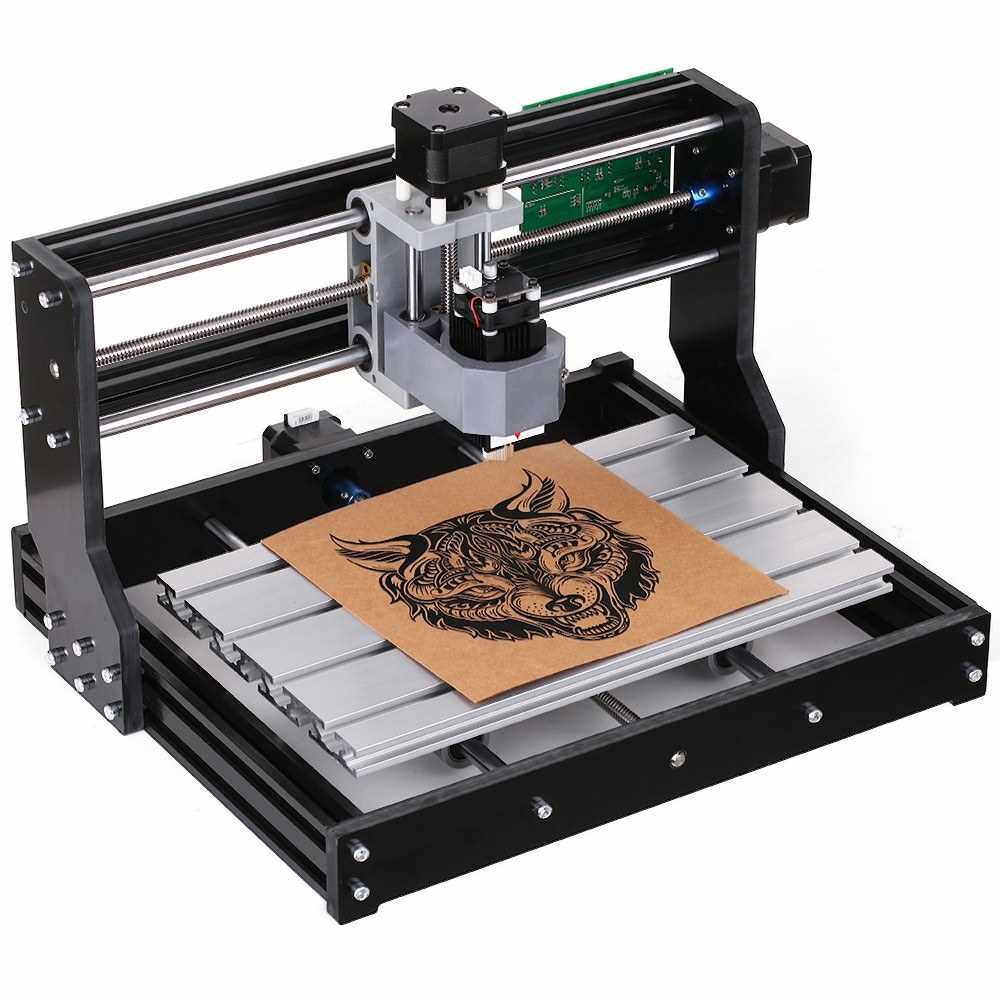

CNC3018 DIY CNC Router Kit 2-in-1 Mini Laser Engraving Machine GRBL Control 3 Axis for PCB PVC Plastic Acrylic Wood Carving Milling Engraving Machine with ER11 Collet and Protective Glasses XYZ Working Area 300x180x45mm 100-240V (Silver7)

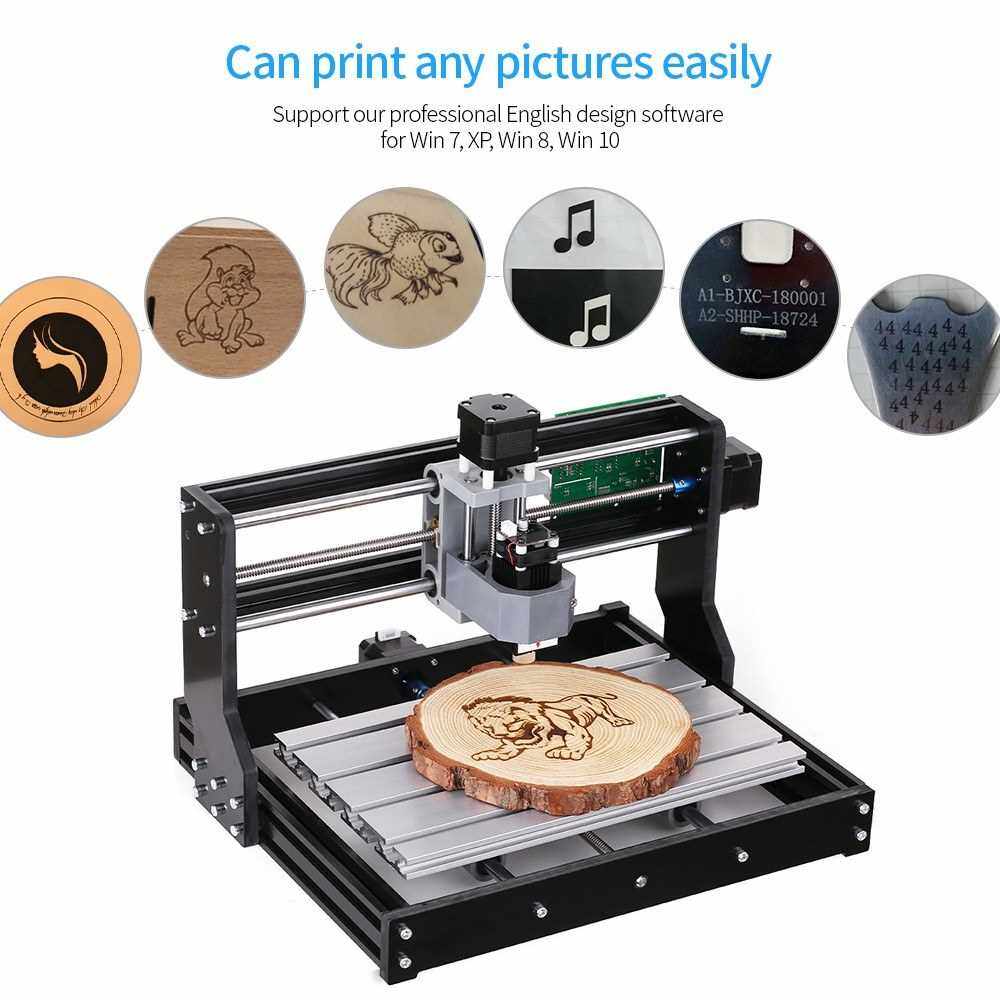

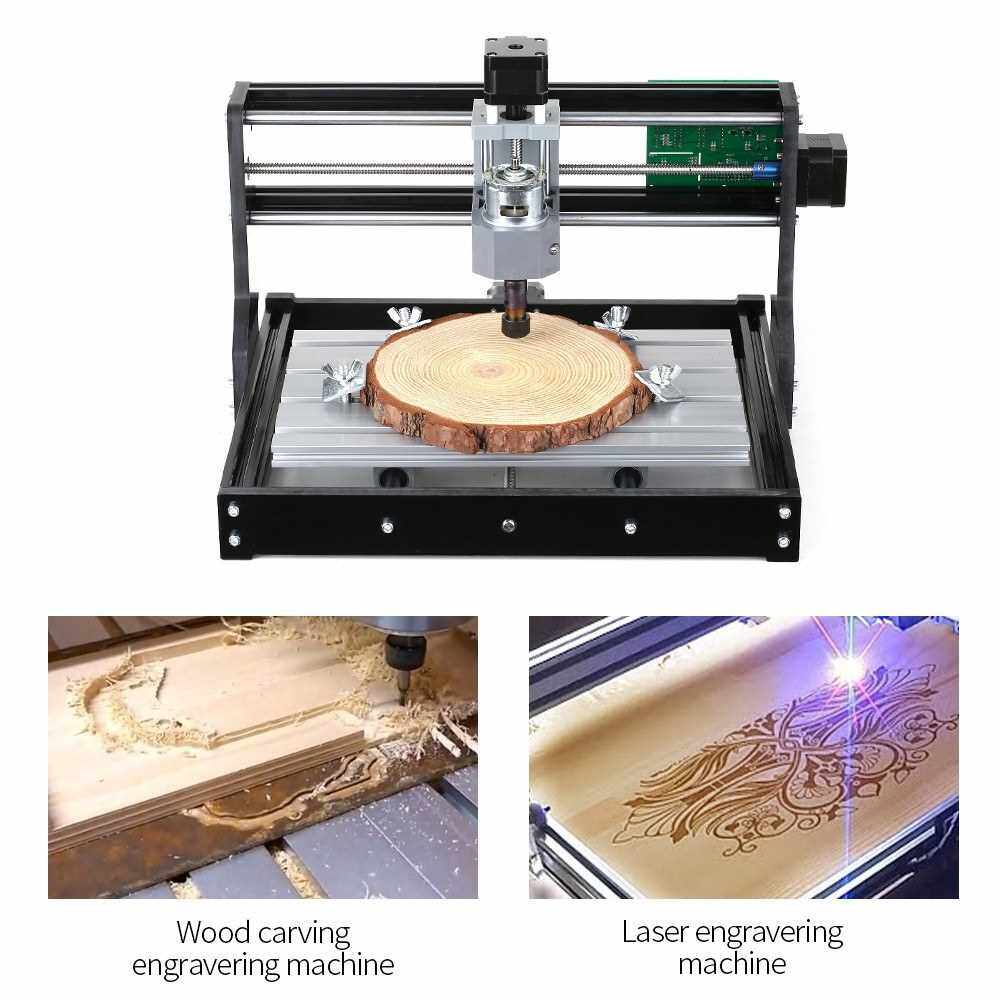

This DIY CNC engraving machine is especial designed for DIY fun, study and research with professional GRBL control software, giving you extreme portable experience. This CNC engraving machine features the function of engraving, carving & milling. This carving machine can be engraved plastic, wood, acrylic, pvc, pcb, wood or the like material. Drill bit can not engrave hard metal, jade or other hard materials.
NOTE:
1. The machine is DIY Kit, Need To Assemble By Yourself.
2. Materials can be engraved: wood, bamboo, paper, plastics, leather, rubber, horn, sponge sheet or other flammable plastic (such as phone case, mouse, pencil, name card, wallet, plastic comb).
3. Materials cant be engraved: metals, glass, stone, ceramics, jewelry, silver, reflective material, translucent & transparent material.
Specifications:
Model: CNC3018PRO
Material: Aluminum Alloy + Phenolic Resin
Main Color: Black + Silver
Power Supply: AC 100-240V Output 24V 5.6A
Plug Type: EU
Supported OS: Windows XP / Win 7 / Win 8 / Win 10 (32/64)
Supported Formats: jpg / bmp / png
Communication Port: Micro USB
Engraving Area: 300 x 180 x 45mm

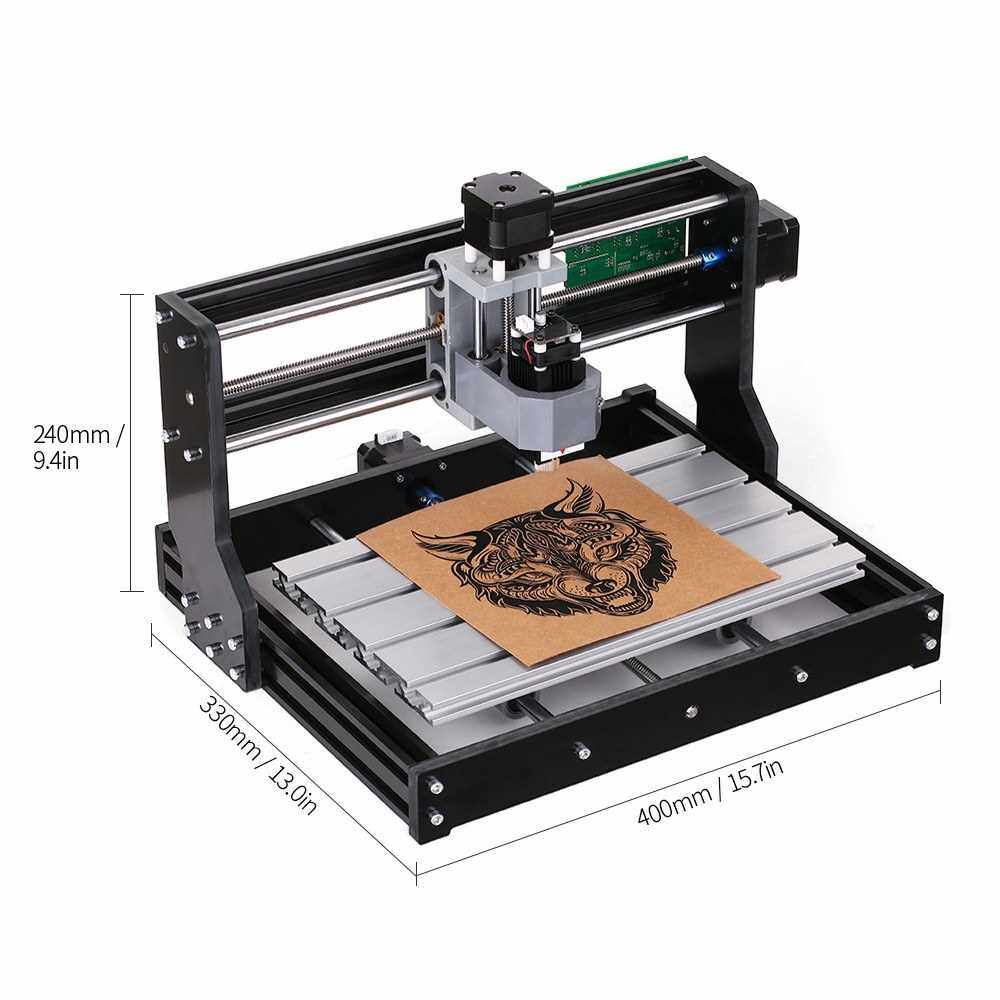

Frame Size: 400 x 330 x 240mm(Not include the motor protrusion part)
Table-board Size: 300 x 180mm
Spindle: 775 Spindle Motor 24V: 8000r/min
Spindle Chuck: ER11
Step Motor: Fuselage length 34mm, Current 1.33A, 12v. Torque 0.25N/M
Drill Bits: Tip 0.1mm, 20 degree, diameter 3.175mm (Contains 10 pcs)
Software: GRBL Control
Engrave Mode: Image Engraving, Text Carving, Scanning Carving, Contour Carving, Pixel Carving
Can Not Carve Objects: All metals, glass, stone, ceramics, jewelry, silver, reflective material, translucent & transparent material.
Can Carve Objects: All wood, bamboo, paper, plastics, leather, rubber, horn, sponge sheet, etc.
Package Size: 45 * 23 * 17cm / 17.7 * 9.1 * 6.7in
Package Weight: E5244US: 6650g E5244US-1: 7000g E5244US-500: 6810g E5244US-2500: 6850g E5244US-5500: 6940g

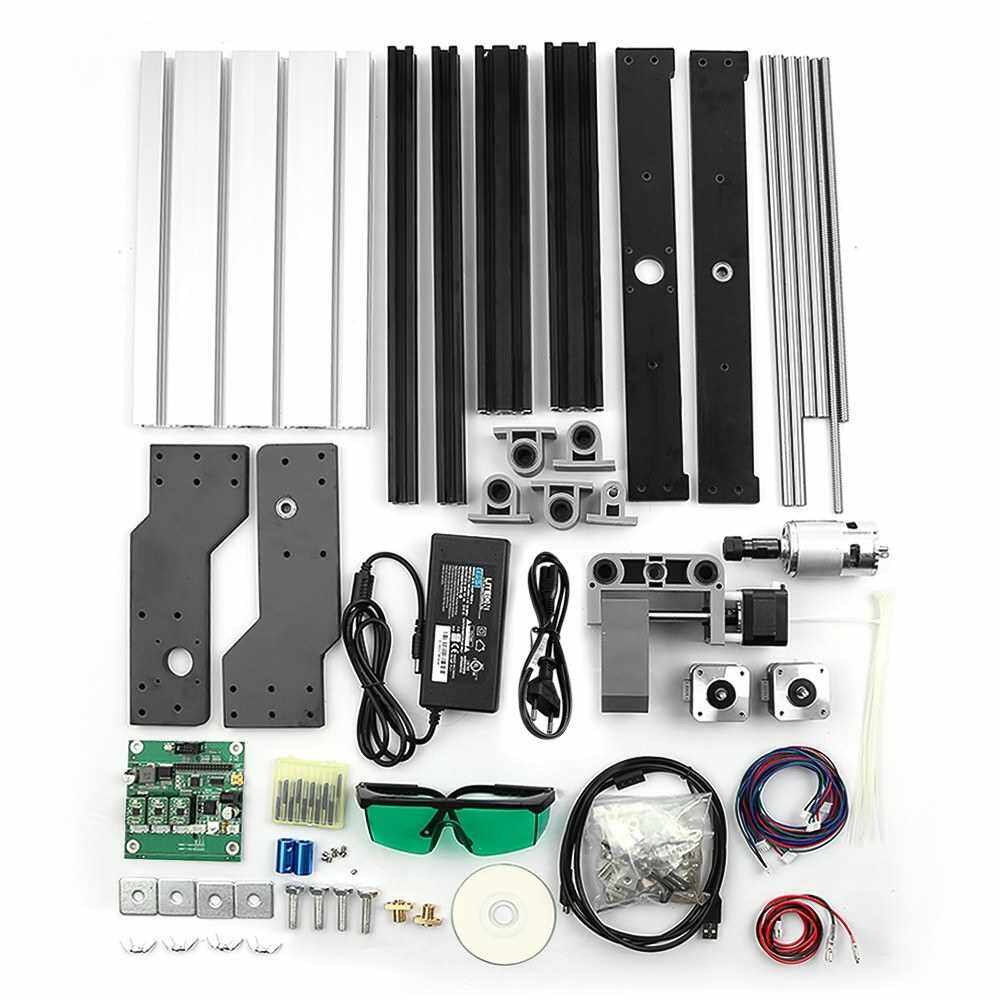

Package List: (DIY Kit, Need To Assemble By Yourself.)
1 * DIY CNC Engraving Machine Kit
10 * Drill Bits
1 * ER11 Spindle Chuck
