Product Information
What's in the box:

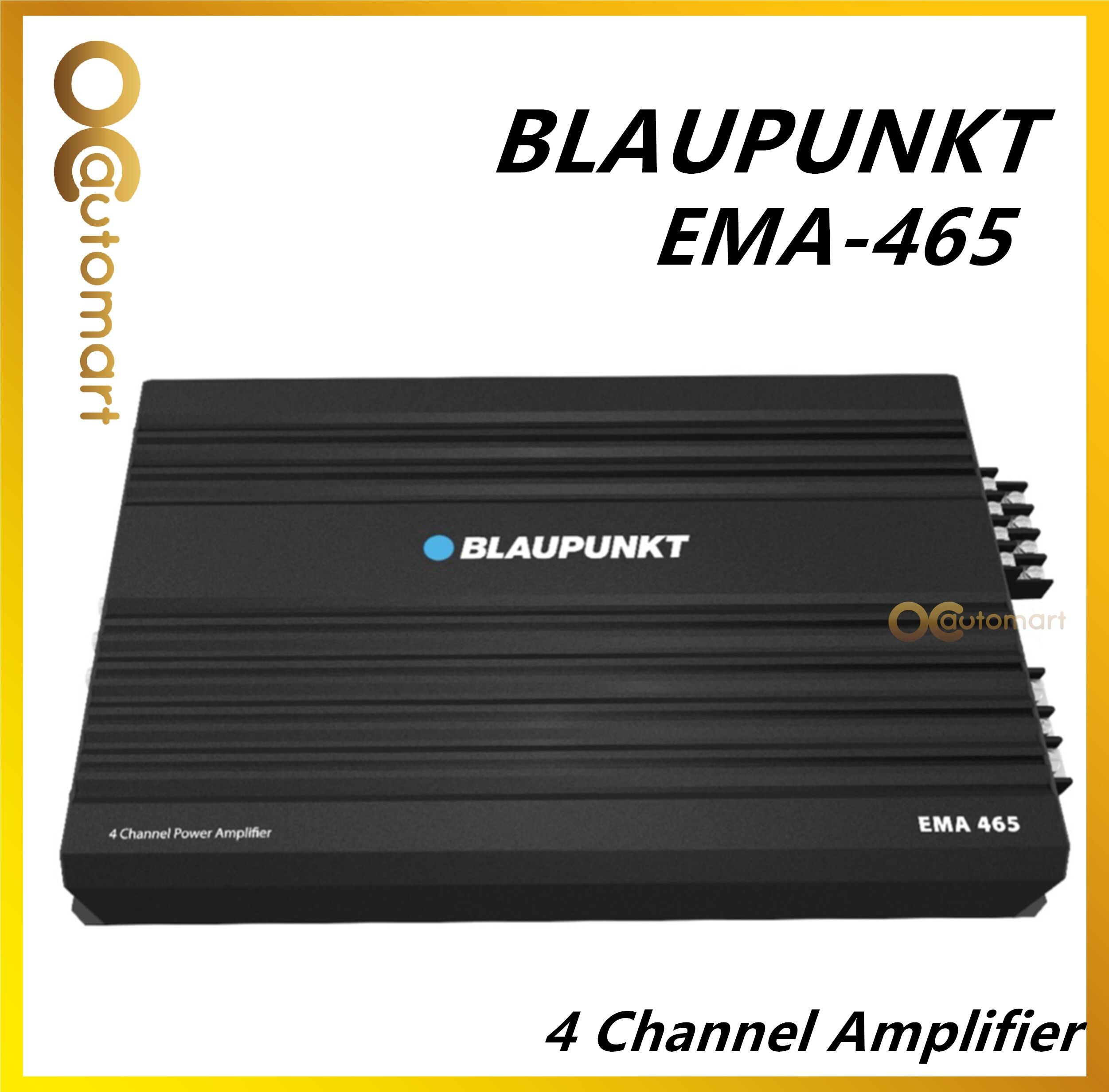

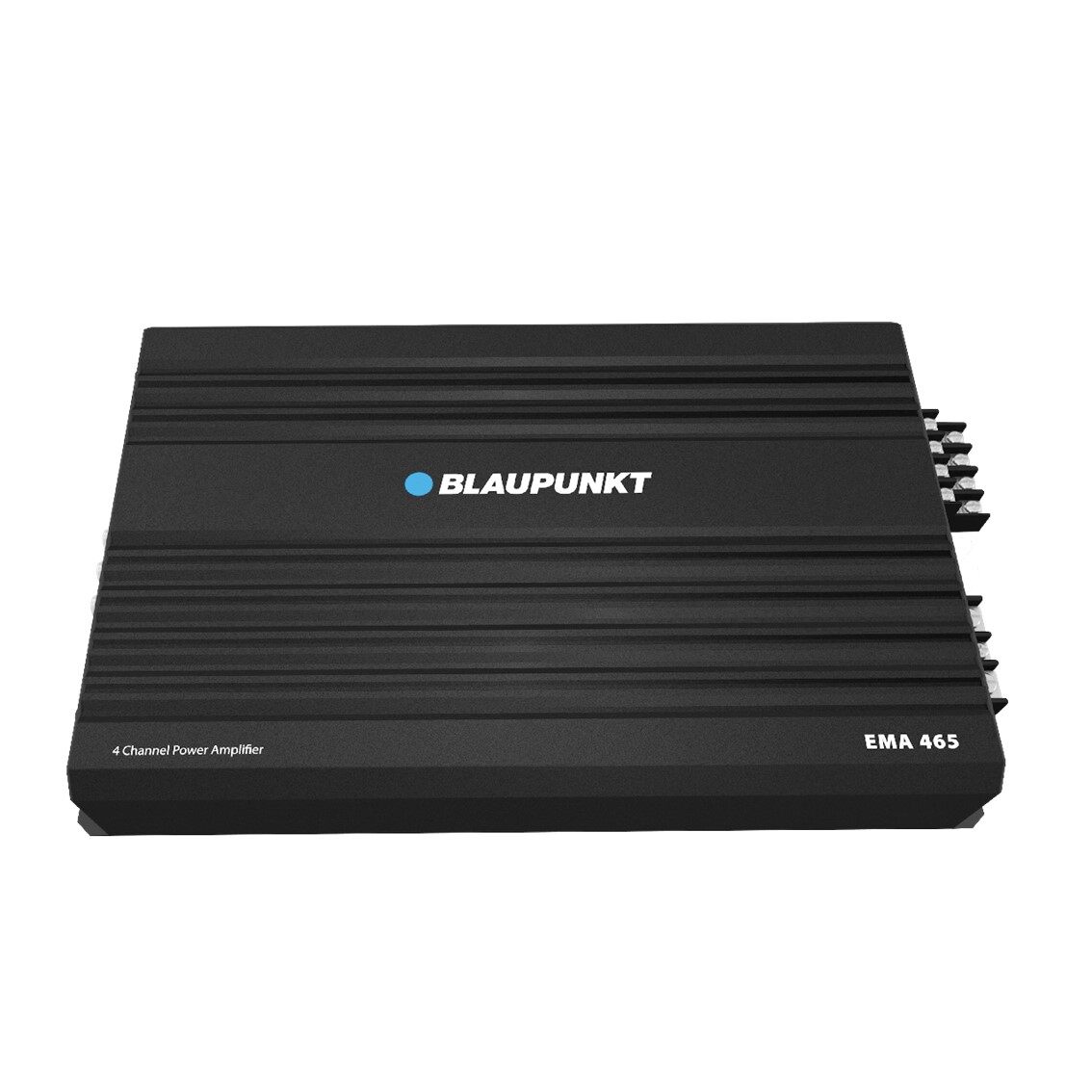

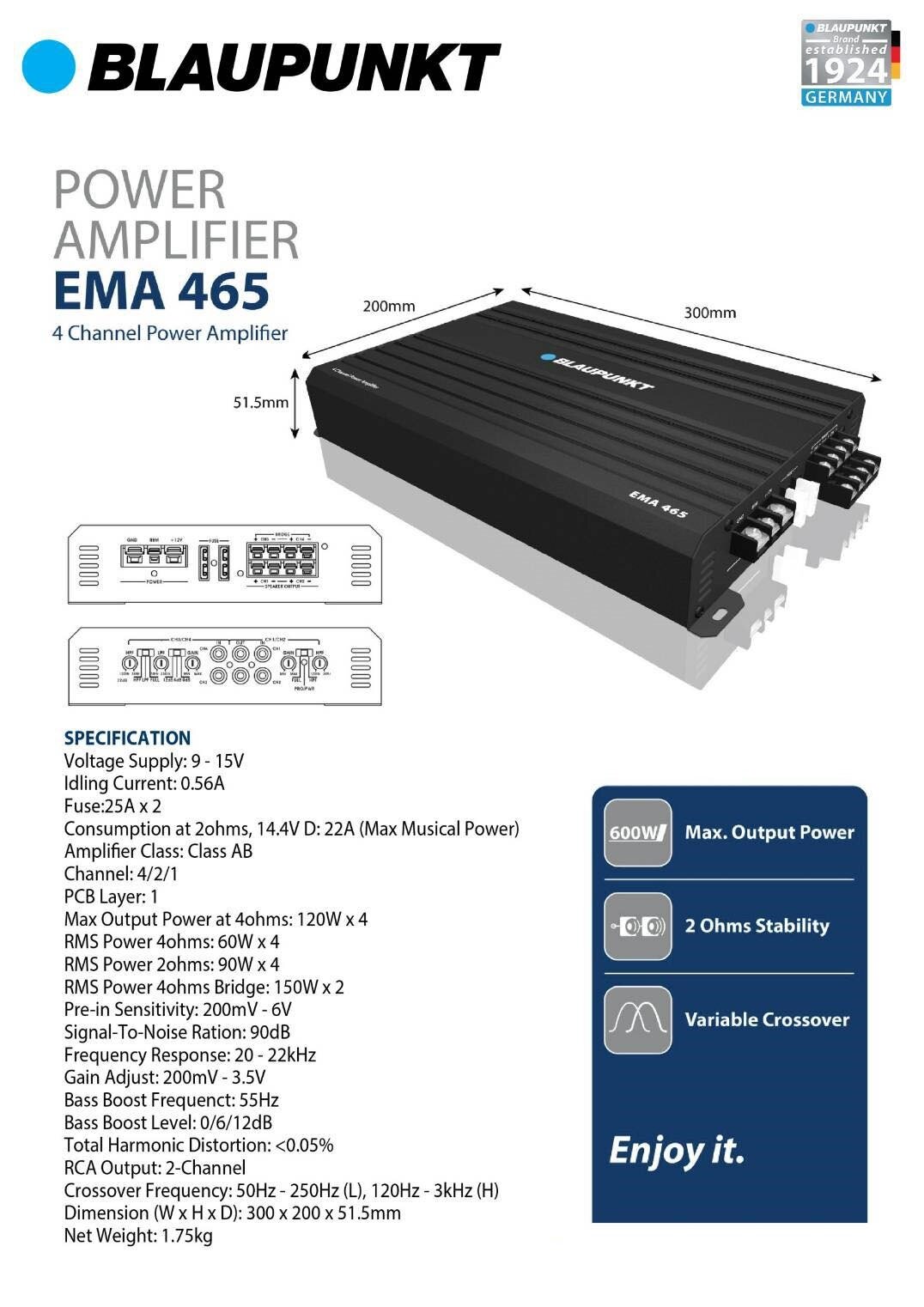

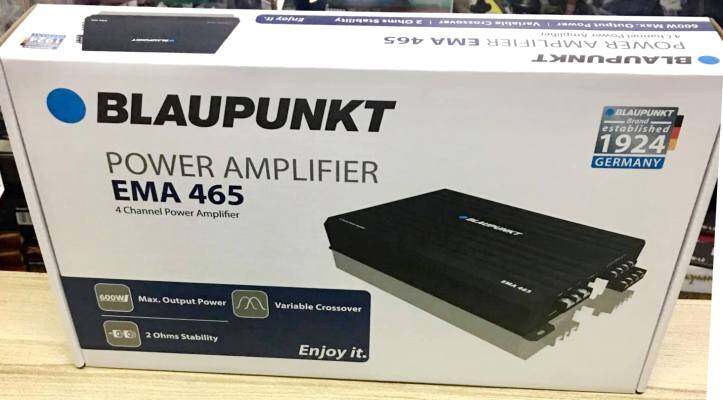

Blaupunkt EMA465 4/3/2 Channel Power Amplifier
- Amplifier Class:AB
- No. of channel:4/3/2 Channel
- Max Output: 150Wx4
- RMS power(4 ohms) 60W X 4
- RMS power(2 ohms) 90W X 4
- Max Total Power Bridged (4 ohms) : 180W X 2
- Frequency Response: 10 Hz - 30kHz
- Signal-To Noise Ratio: => 96dB
- Voltage Supply: 11-16V DC
- Idling Current: 0.6A
- Gain Adjust: 200mV - 6V
- Bass Boost Frequency: 55Hz
- Bass Boost level: 0/6/12dB
- Crossover Type: Variable LPF/ HPF
- Crossover Frequency(Low Pass Filter): 32Hz-250Hz
- Crossover Frequency(High Pass Filter): 32Hz-250Hz
- Crossover slope: -12dB/oct
- Lo-Volt Input level control: 200mV- 6V
- Total Harmonic Distortion: <= 0.05%
- RCA Input: 4 channel
- Speaker Input: Yes
- Fuse: 30A X 1
- Power/ Ground Terminal: Screw - Type
- Speaker Terminal: Screw-Type
