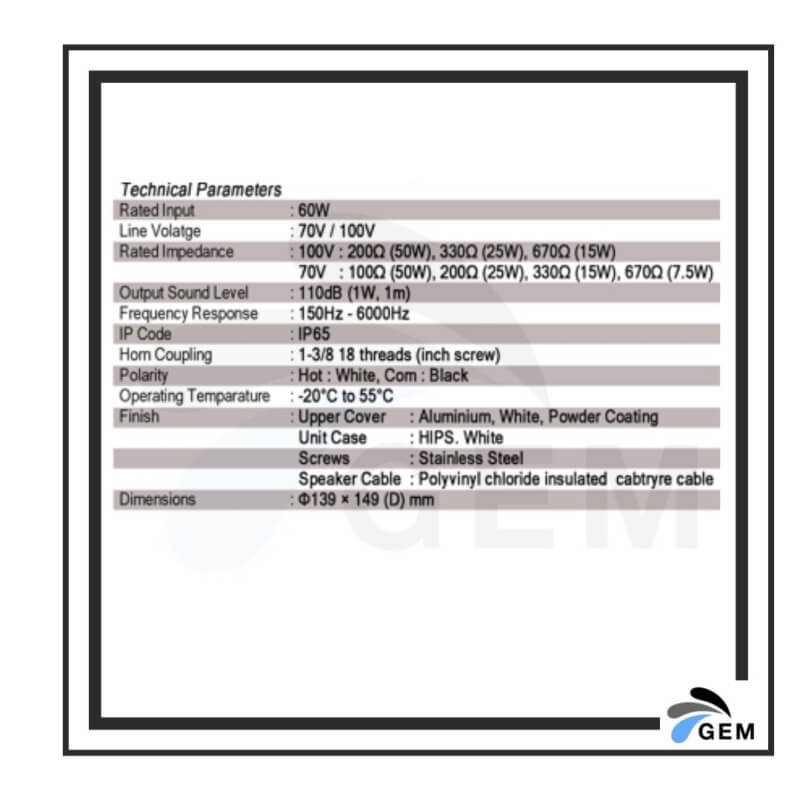

~TECHNICAL PARAMETERS

RATED INPUT: 60WLINE VOLTAGE: 70V/100VRATED

IMPEDANCE: 100V:200(50W),330(25W),670(15W) 70V:100(50W),200(25W),330(15W)670(7.5W)OUTPUT SOUND LEVEL: 110dB (1W,1m)FREQUENCY RESPONSE : 150Hz-6000HzIP CODE: IP65HORN COUPLING: 1-3/8 18THREADS (Inch SCREW)POLARITY : HOT: WHITE,COM: BLACKOPERATING TEMPERATURE : 20'C TO 55'CFINISH: UPPER COVER : ALUMINIUM ,WHITE,POWDER COATING UNIT CASE: HIPS.WHITE SCREWS: STAINLESS STEEL SPEAKER CABLE: POLYVINYL CHLORIDE INSULATED CABTRYRE CABLEDIMENSION: 139 x 149 (D) MM
