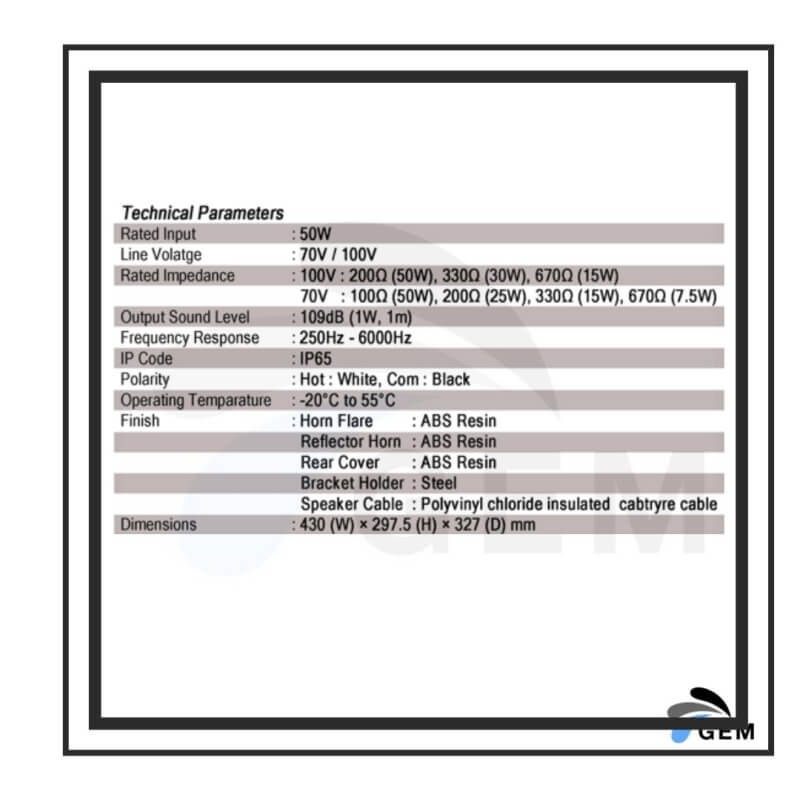

TECHNICAL PARAMETERS

RATED INPUT : 50W

LINE VOLTAGE : 70V/100V

RATED IMPEDANCE : 100V:200Ω (50W),330Ω (30W),670Ω(15W)

: 70V : 100Ω (50W),200Ω (25W),330Ω (15W),670Ω (7.5W)

OUTPUT SOUND LEVEL: 109dB (1W,1m)

FREQUENCY RESPONSE: 250Hz-6000Hz

IP CODE: IP65

POLARITY:HOT : WHITE,COM : BLACK

OPERATING TEMPERATURE: -20'C TO 55'C

FINISH : HORN FLARE : ABS RESIN

: REFLECTOR HORN : ABS RESIN

: REAR COVER : ABS RESIN

: BRACKET HOLDER : STEEL

: SPEAKER CABLE: POLYVINYL CHLORIDE INSULATED CABTRYRE CABLE

DIMENSIONS : 430 (W) x 297.5 (H) x 327 (D) mm
