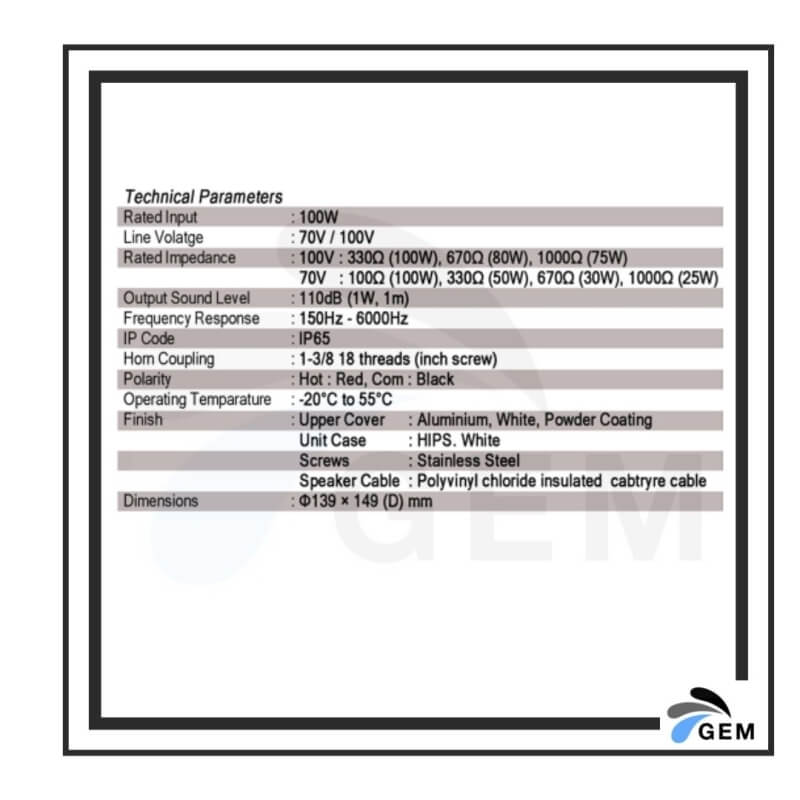

TECHNICAL PARAMETERS

RATED INPUT: 100W

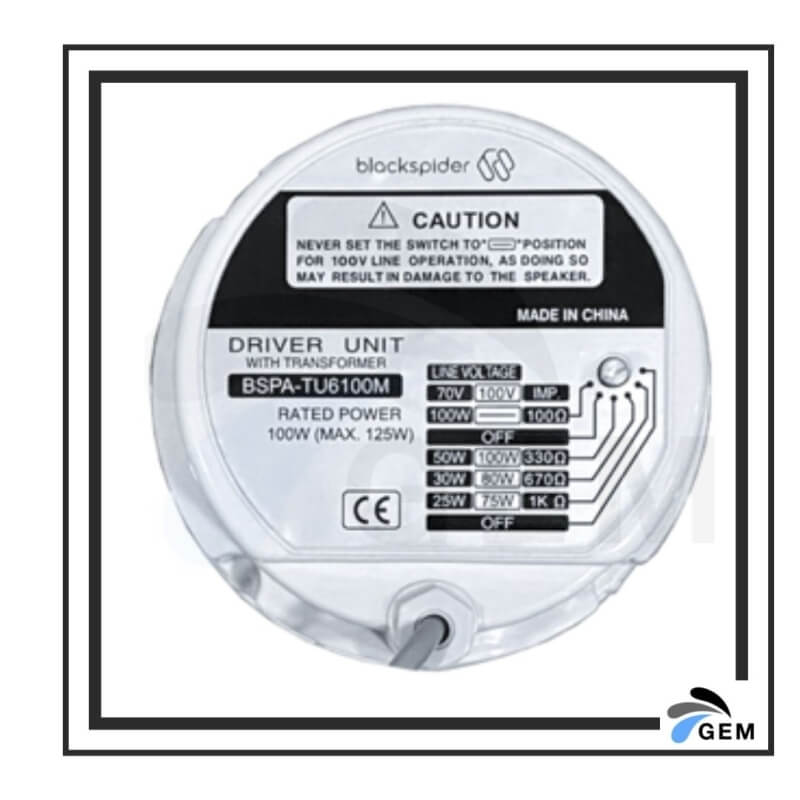

LINE VOLTAGE : 70V/100V

RATED IMPEDANCE: 100V :330Ω(100W),670Ω(80W),1000Ω(75W),70V : 100Ω(100W),330Ω(50W),670Ω(30W)1000Ω(25W)

OUTPUT SOUND LEVEL: 110dB (1W,1m)

FREQUENCY RESPONSE : 150Hz-6000Hz

IP CODE: IP65

HORN COUPLING: 1-3/8 18 THREADS( INCH SCREW)

POLARITY : HOT: RED,COM :BLACK

OPERATING TEMPARATURE : 20'C TO 55'C

FINISH: UPPER COVER : ALUMINIUM,WHITE POWDER COATING

UNIT CASE: HIPS.WHITE

SCREWS: STAINLESS STEEL

SPEAKER CABLE: POLYVINYL CHLORIDE INSULATED CABTRYRE CABLE

DIMENSION: Ꝋ139 x 149 (D) mm
