What's in the box:

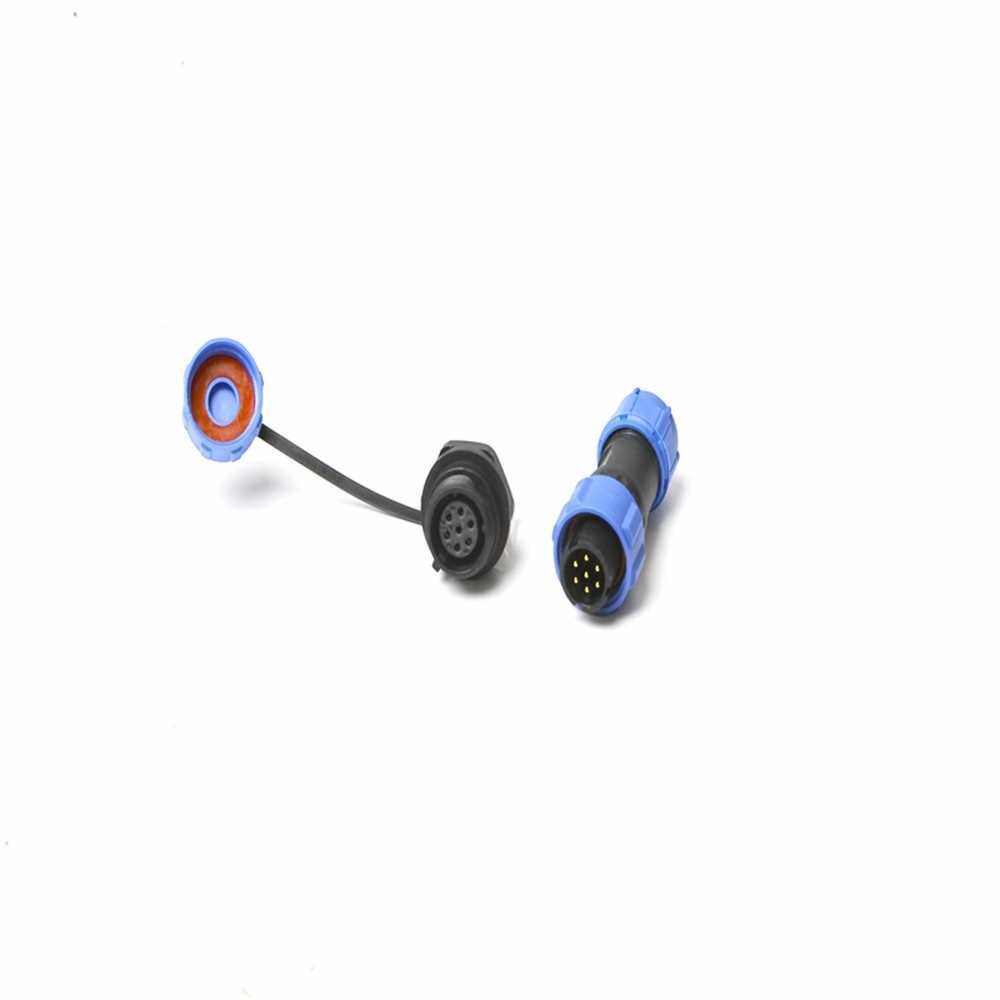

1 X SP13 IP68 Waterproof Connectors Circular Socket 13mm 2Pin 3Pin 4Pin 6Pin 7Pin 9Pin Multipole Plug (7), 7

SP13 is a popular outdoor series. It is plastic with a threaded coupling, its outdoor waterproof IP rating of IP68 makes it outstanding among other products. With a small panel hole cutout size of 13mm, it is available for various option from 2 to 9 pins.

Features:

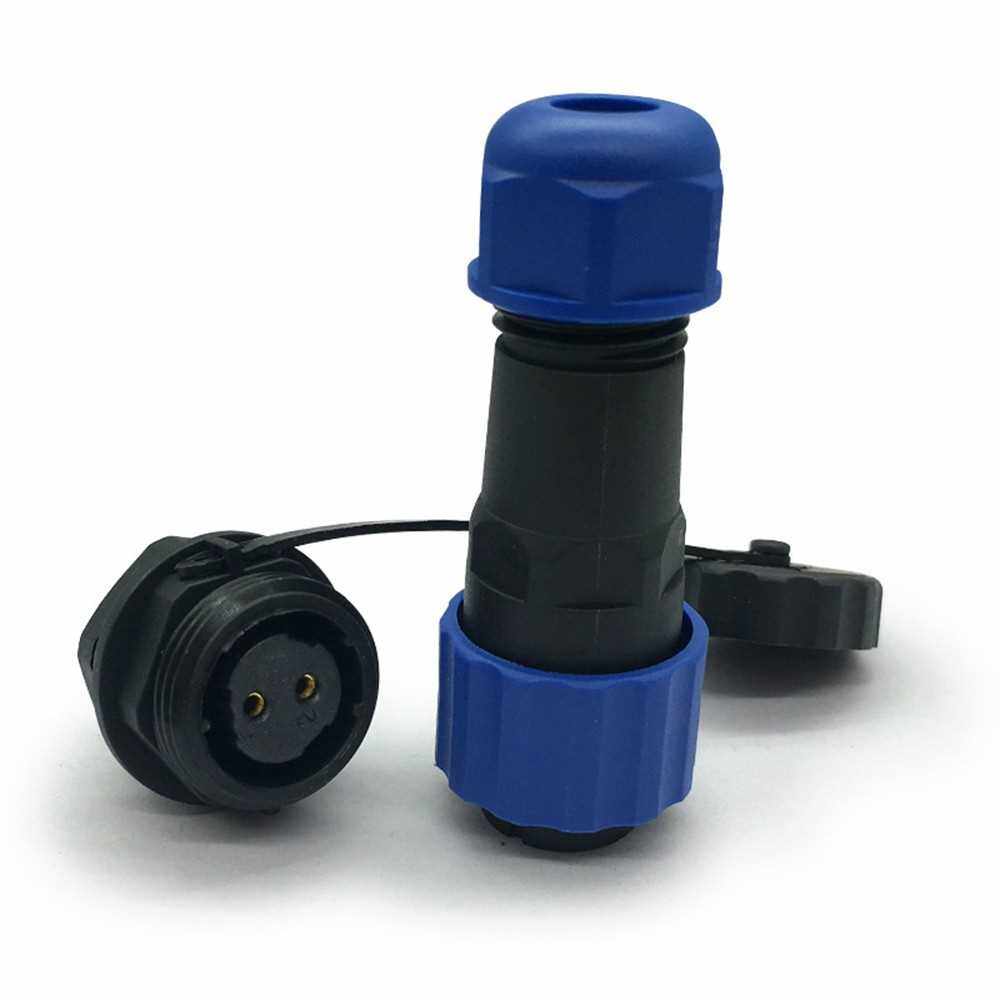

Aviation connector plug + socket, SP13 waterproof, gold plated brass connect, solder termination.
IP68 connector for indoor and outdoor use.

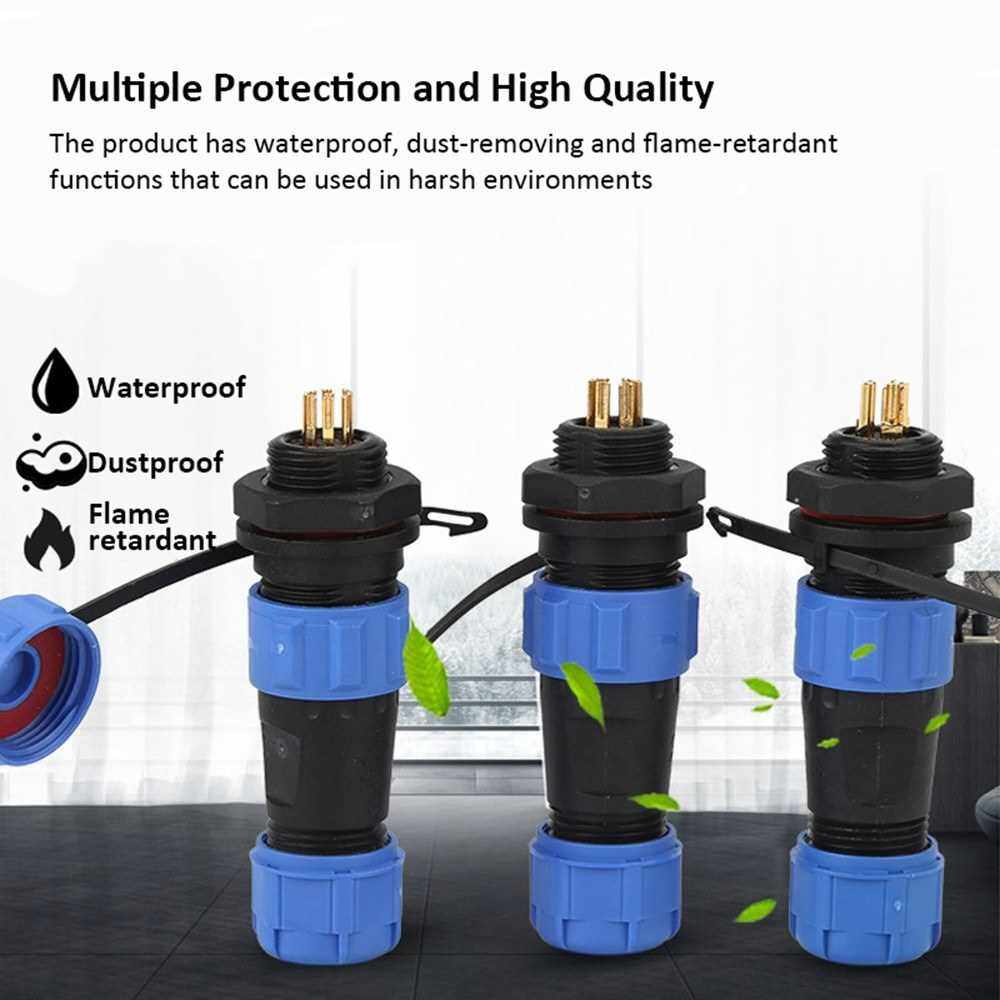

Insulated flame retardant plastic casing, anti-oxidation and no rust, good sealing.
Feature with one side is pin aviation, the other side is cable gland, it with waterproof cap.
With a small panel hole cutout size of 13mm, it is available for various option from 2 to 9 pins.

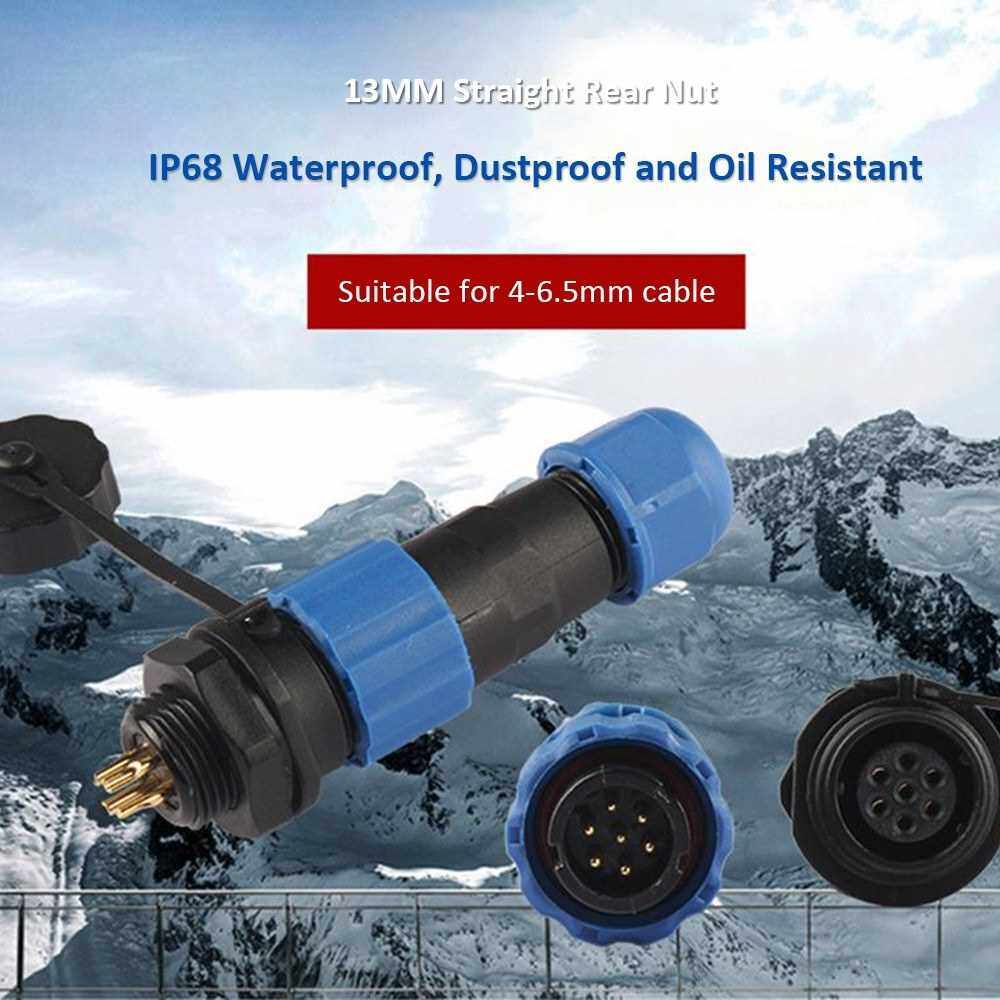

The cable diameter must be within the specified range of 4mm to 6.5mm.

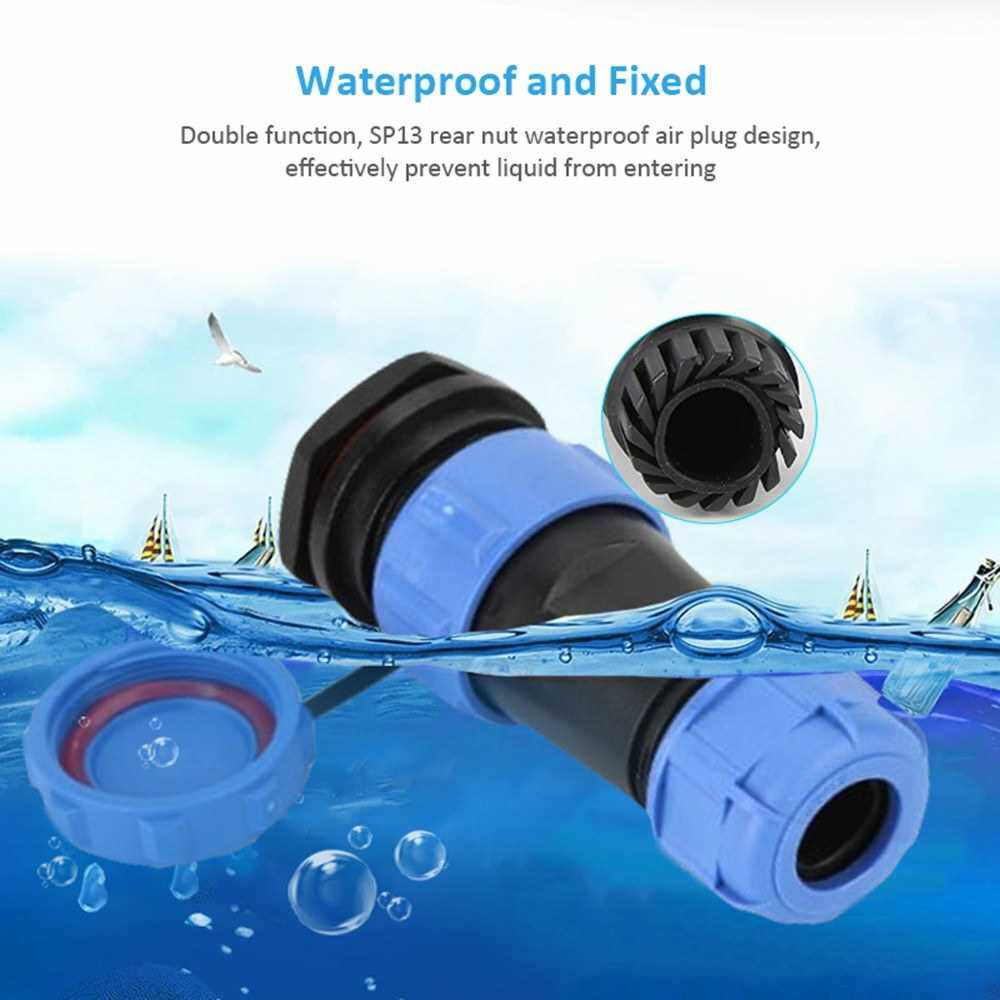

The socket head has a waterproof cover to prevent water and dust from entering the jack when not connected.
Pure copper gold-plated connectors for better conductivity, corrosion resistance, U-shaped design, and more convenient for soldering cables.
The tail lock nut is easy to use, and the hole is curved to prevent damage to the wire.

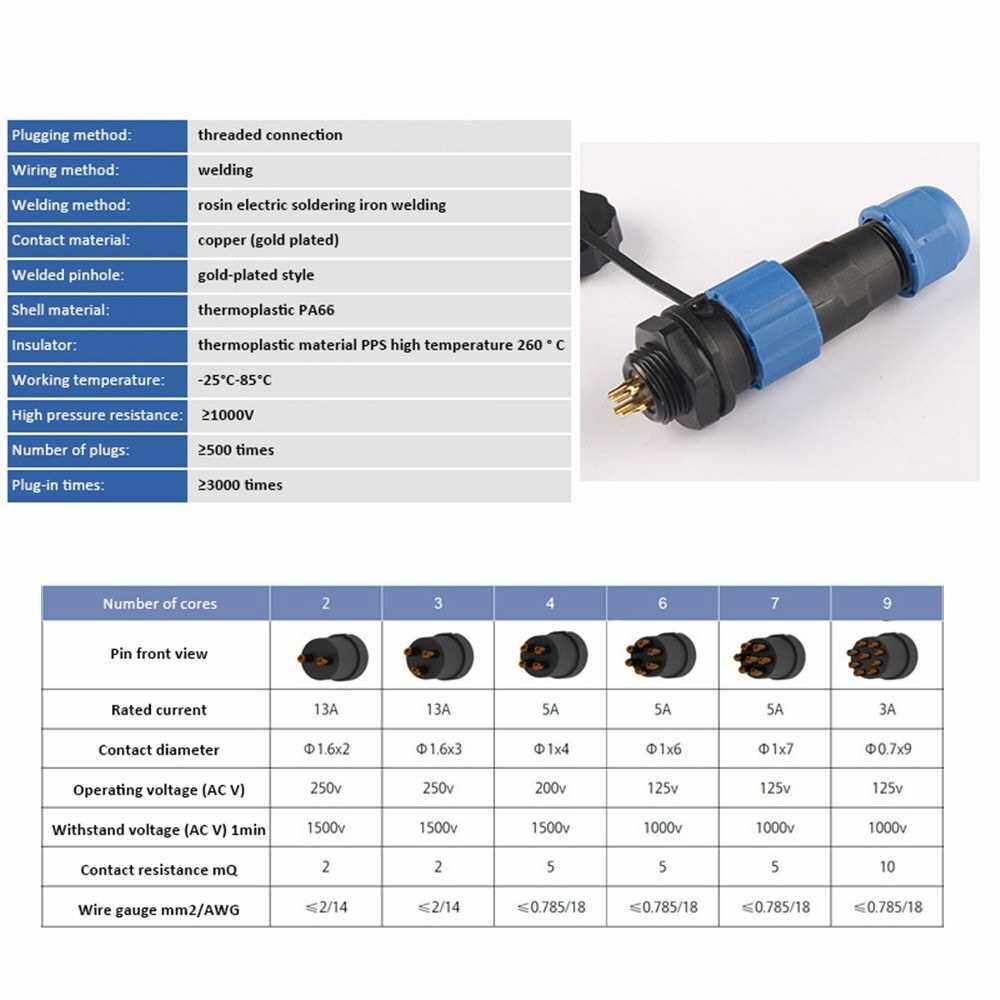

Specifications:
Material: Plastic
Pins: 2Pin 3Pin 4Pin 6Pin 7Pin 9Pin (Optional)

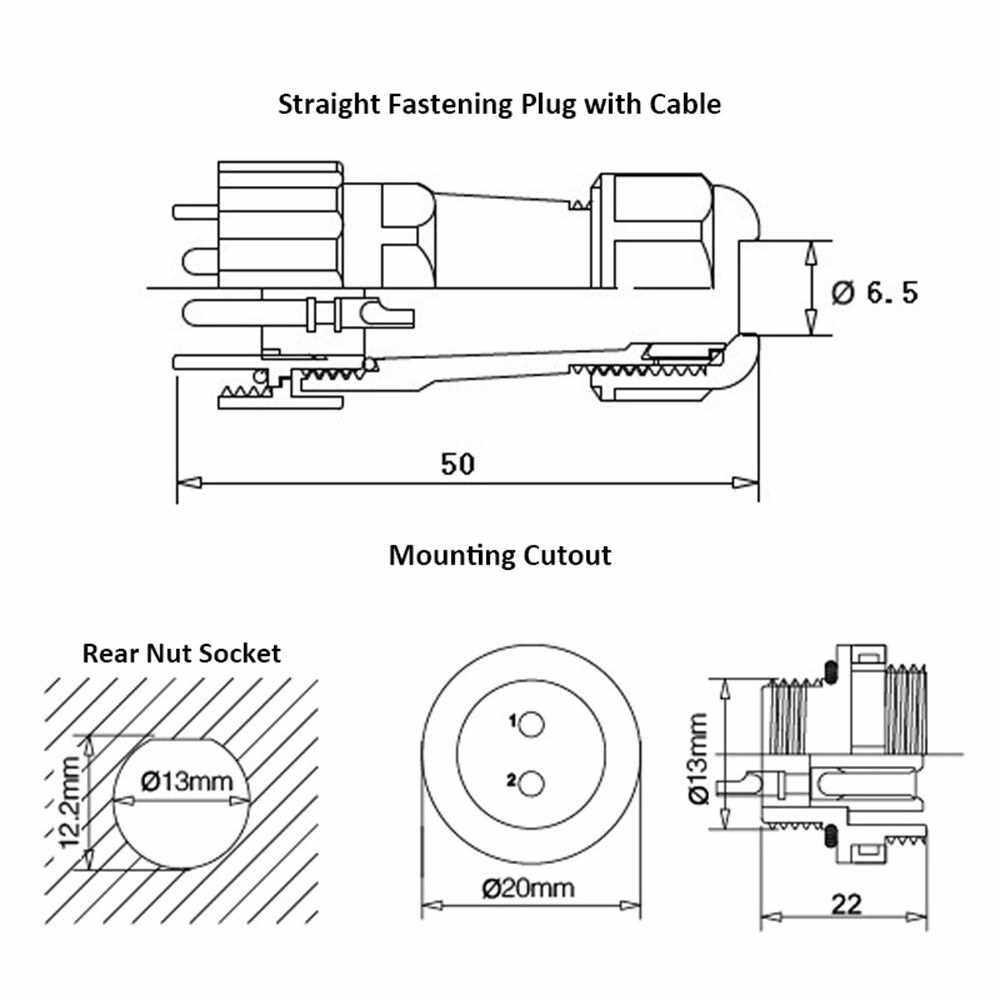

The hole size of panel: 13mm
Maximum thickness of panel: 4 mm
Plugging method: threaded connection
Wiring method: welding
Welding method: rosin electric soldering iron welding
Contact material: copper (gold plated)
Welded pinhole: gold-plated style
Shell material: thermoplastic PA66
Insulator: thermoplastic material PPS high temperature 260 C
Working temperature: -25C-85C
High pressure resistance: 1000V
Number of plugs: 500 times
Plug-in times: 3000 times
Waterproof: IP68
Relative humidity: 90%-95% (402C)
Salt spray: 48H in 5% NAC1 mist
Seal ring: silicone
Insulation resistance: 500MO under normal conditions
Contact power: less than 5 ohms
Working current: f1.8 contact: 10A, f1 contact: 5A
Working resistance: f2 contact: 2MO, f1 contact 5MO
Operating voltage: 250V (AC) Withstand voltage: 1500V (AC)
Use wire diameter: f4.0-6.5mm
Package weight: 14g
Package size: 7.5*6*2cm/2.95*2.36*0.78in

Note:
To comply with the IP68 standards the cable diameter must be within the specified range of 4mm to 6.5mm.

Packing list:
1* SP13 IP68 Waterproof Connectors
