What's in the box:

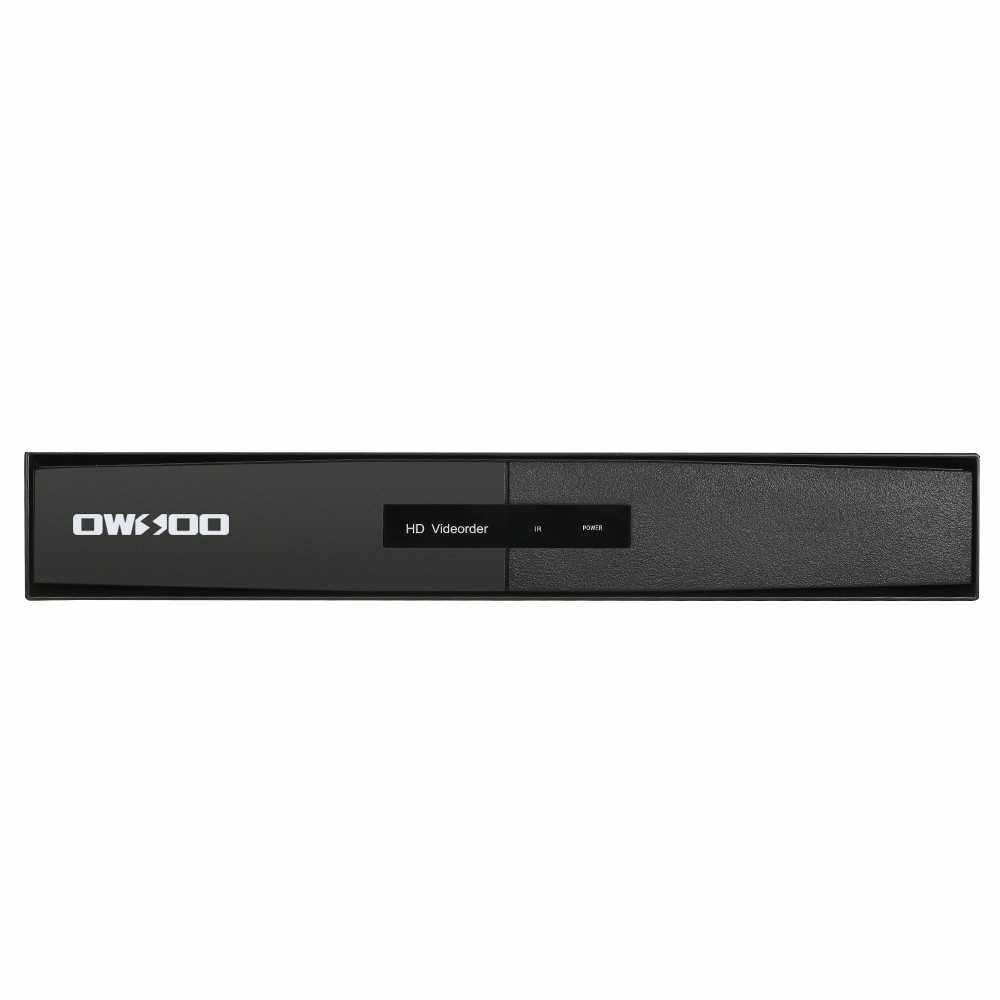

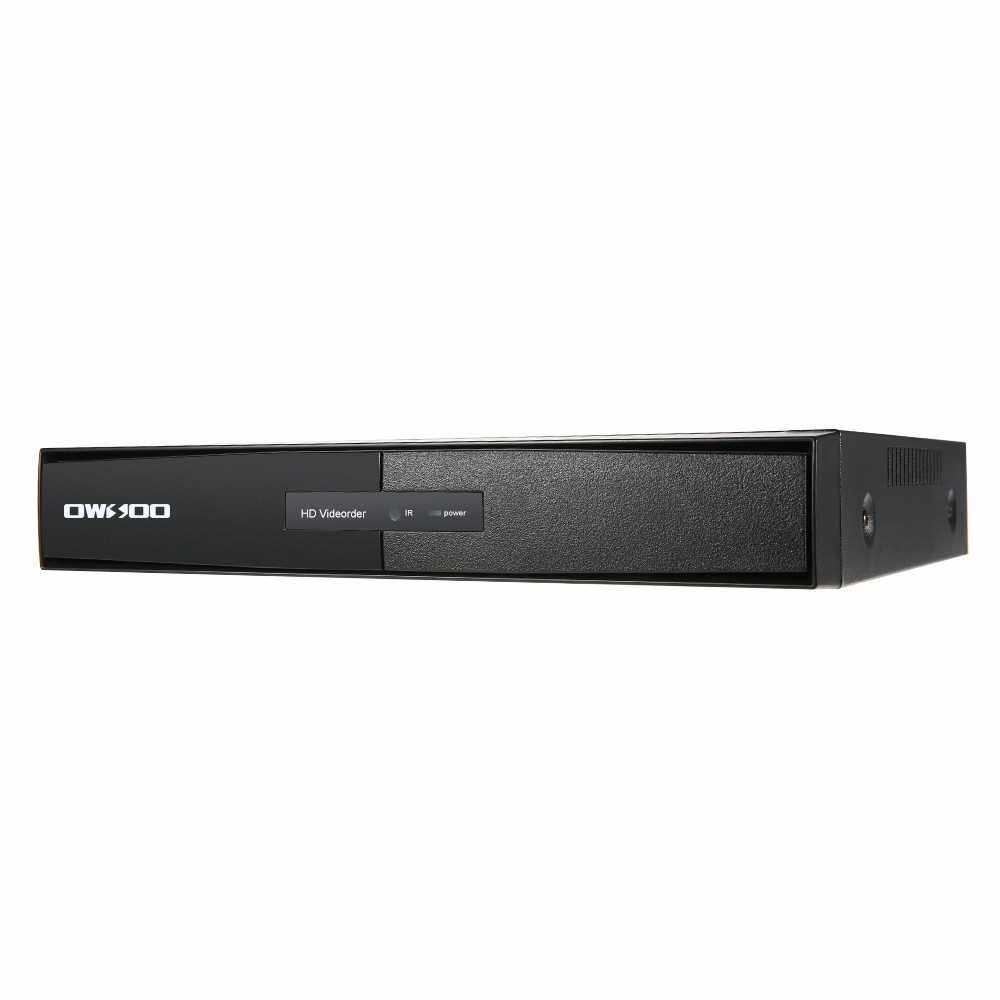

OWSOO 8CH H.264 AHD 1080P P2P Network DVR CCTV Security Support for Android/IOS APP Control Motion Detection Onvif DVR 5IN1 PTZ for CCTV Security Camera Surveillance System (Eu)

Note: 2.5in/3.5in SATA HDD not included (HDD Supported: Max. 3.5in 6TB SATA HDD). If you need download the software or more detailed information, you can download it by the link on the user manual.

Overview:
This 8ch 1080P network DVR video recorder features in H.264 video compression, NVR CVI TVI HVR AHD 5-in-1, PTZ, P2P cloud function, supporting for Android/IOS devices remote view anywhere at anytime. You can choose scheduled recording, set motion detection or watch the video on your computer and smart phone. DVR also provides digital zoom, which allows you to get a closer view of record clips. Meanwhile, our home security system DVR have many uses: the security detection of public places, monitoring for unattended store and warehouse protection, the park and rides security record and observation, safety monitoring for cottages and residential areas, and other surveillance needs for outdoor/indoor. Easy installation and easy operation.


Features:
*Support 8-ch 1080P AHD cameras input and 4-ch sync playback.
*NVR CVI TVI HVR AHD 5-in-1 function, support both 1080P AHD camera and 1080P IP camera input.
*PTZ function: pan/tilt/zoom, to ensure that the tracking object appears in the middle of the monitoring area, provide with wide viewing angle.
*Onvif protocol standards, compatible with various Onvif IP cameras.
*P2P cloud service for Android/IOS mobile devices remote view anywhere at anytime.
*H.264 video compression, higher definition image and lower bit rate.
*Motion detection record. The DVR will be triggered to record when detect something moving. NO trigger, no record, more intelligent and space-saving.
*Alarm notification. When motion detection is triggered, the DVR will automatically send out buzzer sound and push alarm notifications to your phone.
*Multiple ways to access on the PC, phone and pad, can be viewed by PC client, Phone APP and IE browser.
*This DVR default VGA resolution is 1280*1024, so we suggest you to use the monitor with 1280*1024 or higher resolution for normal use.
*Widely used at home, shopping market, office and other surveillance needed places.


Specifications:
Main Processor: Hi3521A
Operating System: Embedded Linux System
Power Supply: 12V 2A
Menu Display: 1/4/8/9 Screen
Video Compression: H.264
Record Resolution: 1920*1080
Signal System: PAL/NTSC

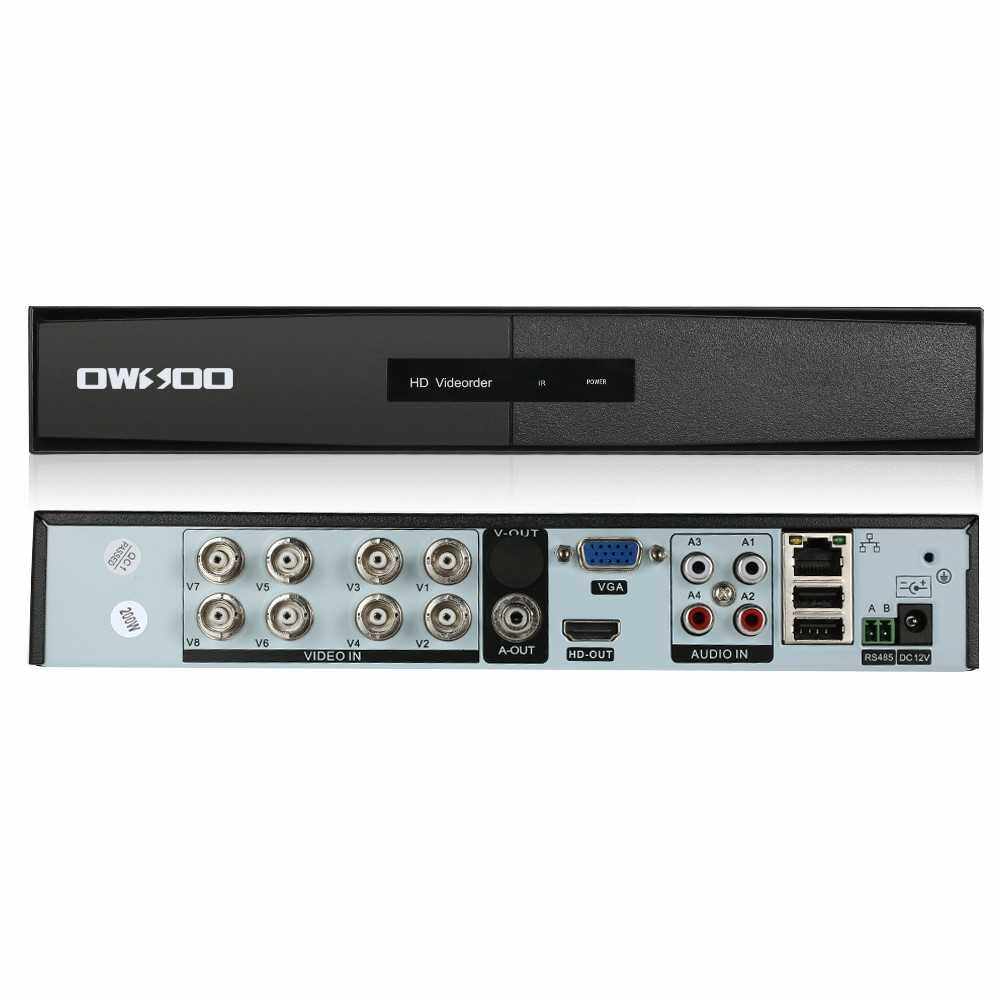

Video Input: 8ch BNC; Video Output: 1ch VGA,1ch HD
Audio Input: 4ch RCA; Audio output: 1ch RCA
Digital Zoom: support; Dual Stream: Support
Recording resolution: Main-stream: 1080P / 720P / 960H / D1
Max Synchronous Playback: 4-ch
Preview ability: 8*1080P
Encode ability: 8*1080N/8*1080P@12fps
Decode ability: 8*1080N/4*1080P@12fps
Analog Input: 8*1080P (analog) ; 8*1080N (analog)
Hybrid Input: 4*1080P (analog) + 4*1080P (IPC)
Network Input: 8*1080P(IPC)+8*960P (IPC); 4*3M (IPC); 4*5 M (IPC)
Record Mode: Manual > Alarm > Motion Detection > timing
Alarm Linkage: Record, buzzer and message push
Search Mode: Time / Date search, Fact retrieval, Channel retrieval
Backup Mode: Network, USB hard disk, USB burner, SATA burner
Network interface: RJ45 10M/100M adaptive Ethernet Interface
PTZ control: 1*RS485, Support kinds of PTZ protocols
USB: 2* USB 2.0 ports

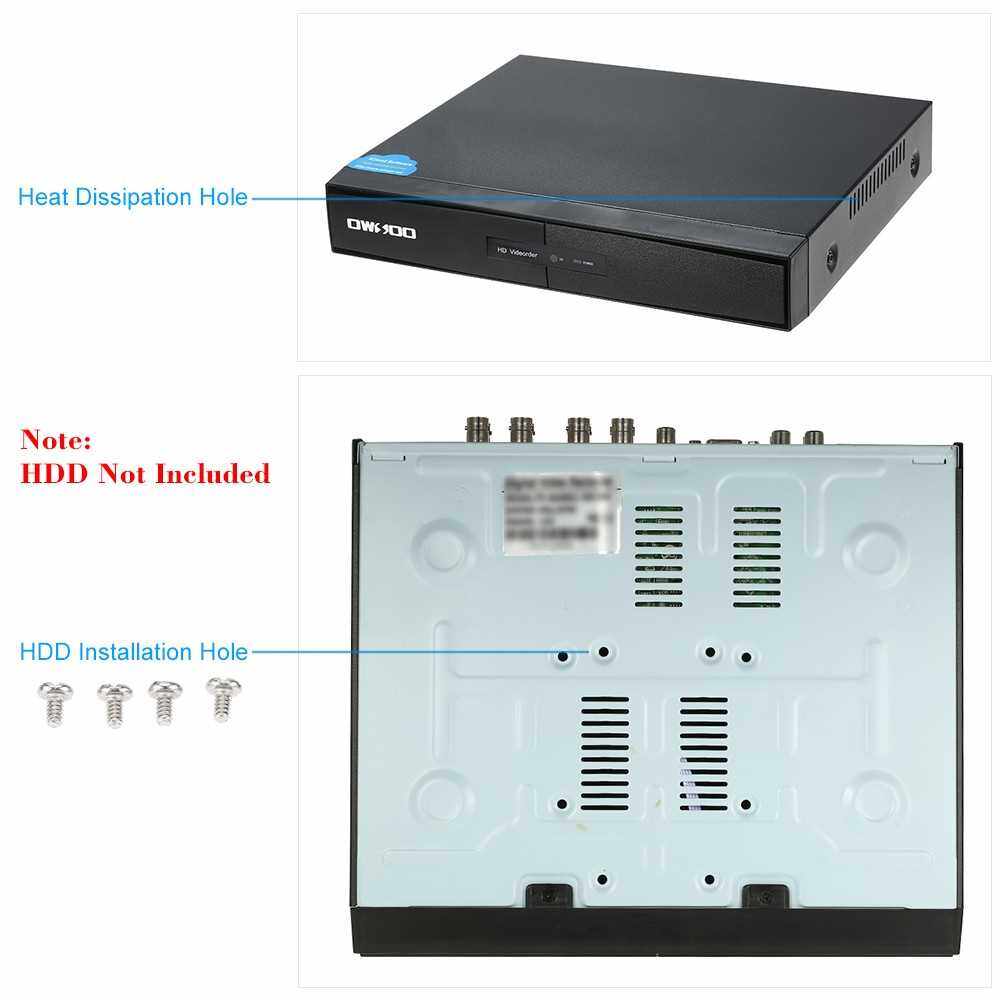

HDD: 1*SATA ports, Max. 3.5in 6TB SATA HDD (not included)
OSD Language: English, French, Turkish, Italian, Japanese, Polish, Romanian, Portuguese, Spanish, etc.
VGA Resolution: 1920*1080, 1440*900, 1280*1024 (default), 1280*720, 1024*768
Phone/Pad APP: Support for Android/IOS
APP Name: MYEYE (can download on APP store or for Google Play)
PC Software: Support Win7, Win8, Win10, XP etc.
Browser: Support IE, Safari, Chrome, Firefox, etc.
DVR Size: 25.5*21.8*4.3cm / 10.04*8.58*1.69in
DVR Weight: 777g/27.41oz


Package Information:
Package Size: Approx.35*27.5*7.7cm / 14.96*10.63*3.35in
Package Weight: 1219g/42.99oz


Package list:
1 * 8CH 1080P DVR (NO HDD)
1 * US Power Adapter
1 * USB Mouse
1 * Bag of Screws for HDD Installation
1 * User Manual
