Product Information
What's in the box:

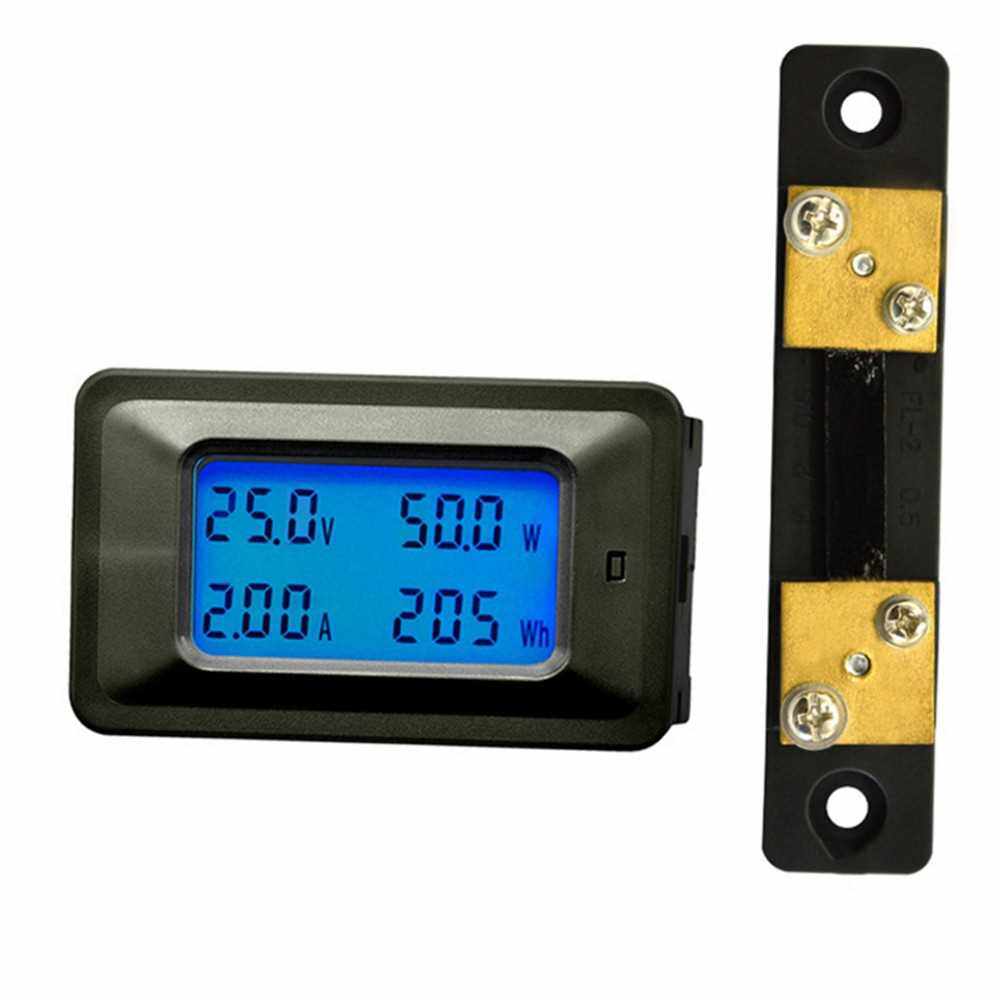

1 X Multi-functional 100V 50A LCD Backlight Display Digital Meter Voltage/Current/Power/Energy Tester Monitor Multi-meter Ammeter Voltmeter with External Shunt (04), 04
It is a compact, lightweight and functional multi-meter, which can be used to measure direct voltage, direct current, power and energy of most electrical appliances. With large-screen LCD display, it can display voltage, current, power and energy at the same time.
Features:
Used to measure direct voltage, direct current, power and energy of most electrical appliances.

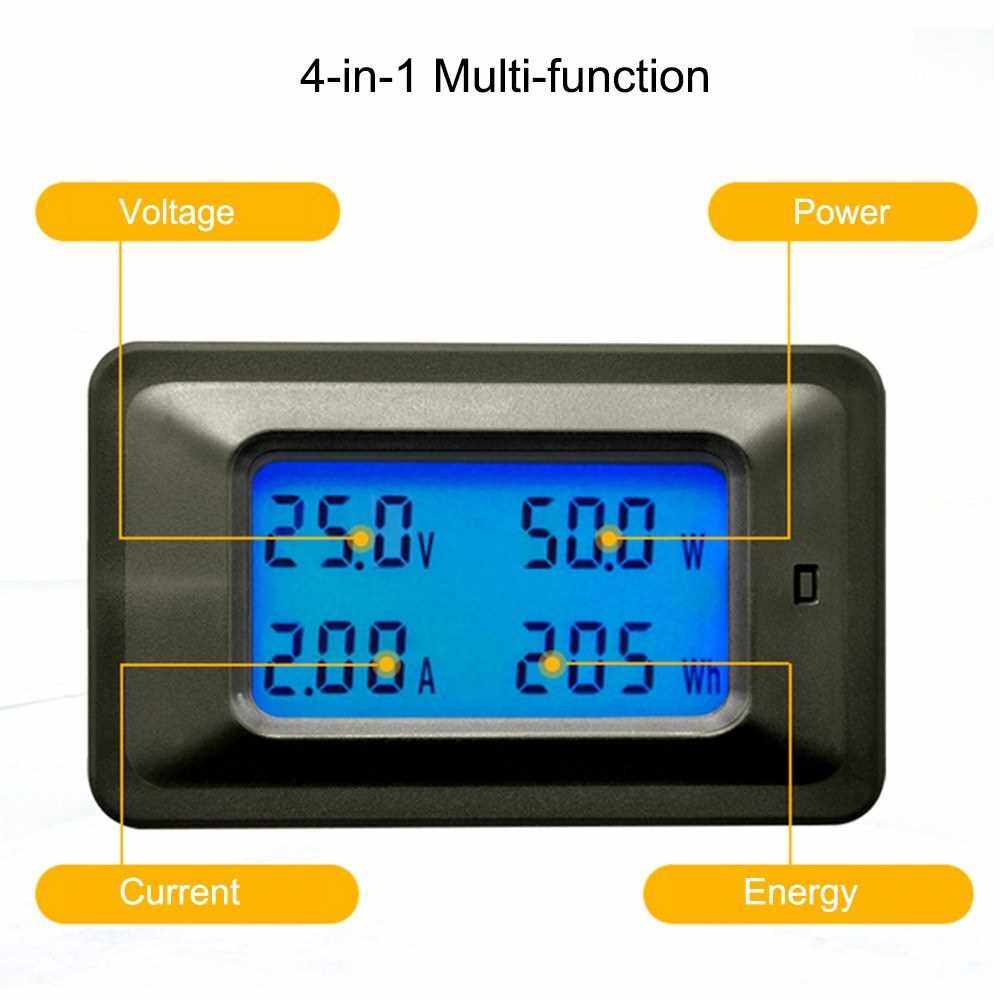

High accuracy. Large and clear LCD display, showing voltage, current, power and energy at the same time.

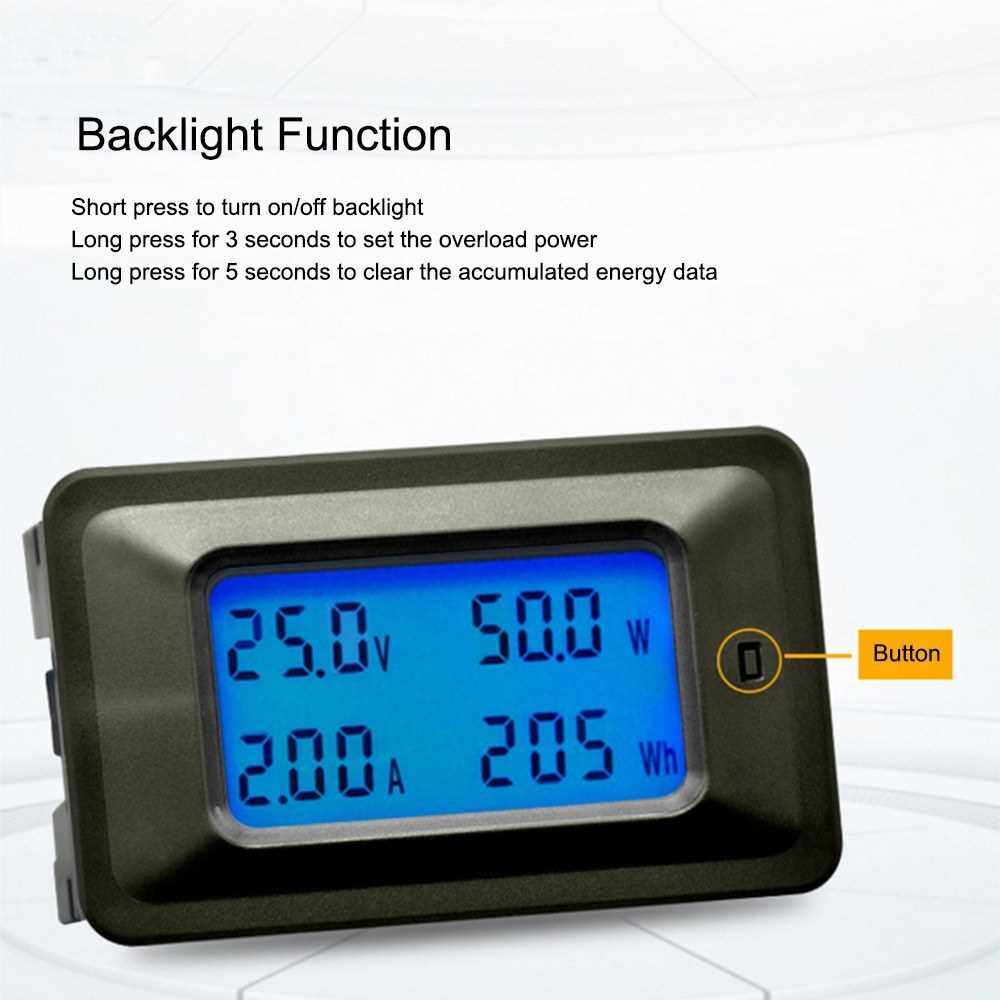

Backlight function allows you to view the data clearly even in the dark area.
The backlight can be turned on/off manually through the switch.
Power alarm threshold preset function, can set up their own power alarm threshold.
Data storage function when power off, and the accumulated energy data can be reset.
Specifications:
Model: 100V 20A
Working Voltage: DC 8.0V~100V
Voltage Measuring Range: DC 8.0V~100V
Current(Max): 20A
Power(Max): 2KW
Voltage Measuring Range: DC 8.0V~100V
Current(Max): 20A
Power(Max): 2KW
Measuring Accuracy: 1%

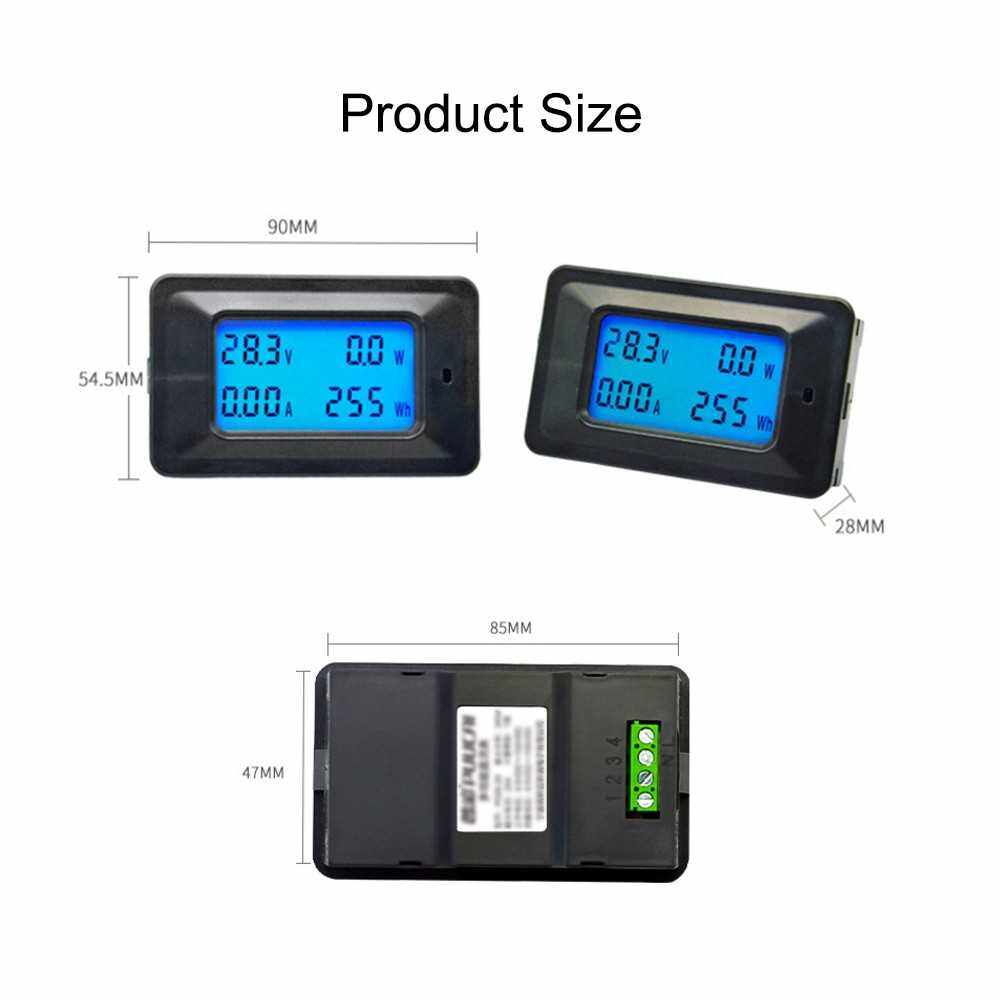

Panel Size: 90 * 54.5mm / 3.54 * 2.15in
Product Size: 85 * 47 * 28mm / 3.35 * 1.85 * 1.10in
Package Size: 100 * 80 * 30mm / 3.94 * 3.15 * 1.18in
Package Weight: 110g / 3.88ounce
Notes:
1. Applied load should not exceed the rated power.
4. Far away from children and fire.
2. Wiring order can not be wrong.
3. No waterproof function, only used in dry indoor environment.4. Far away from children and fire.
Package List:
1 * Electricity Meter
