What's in the box:

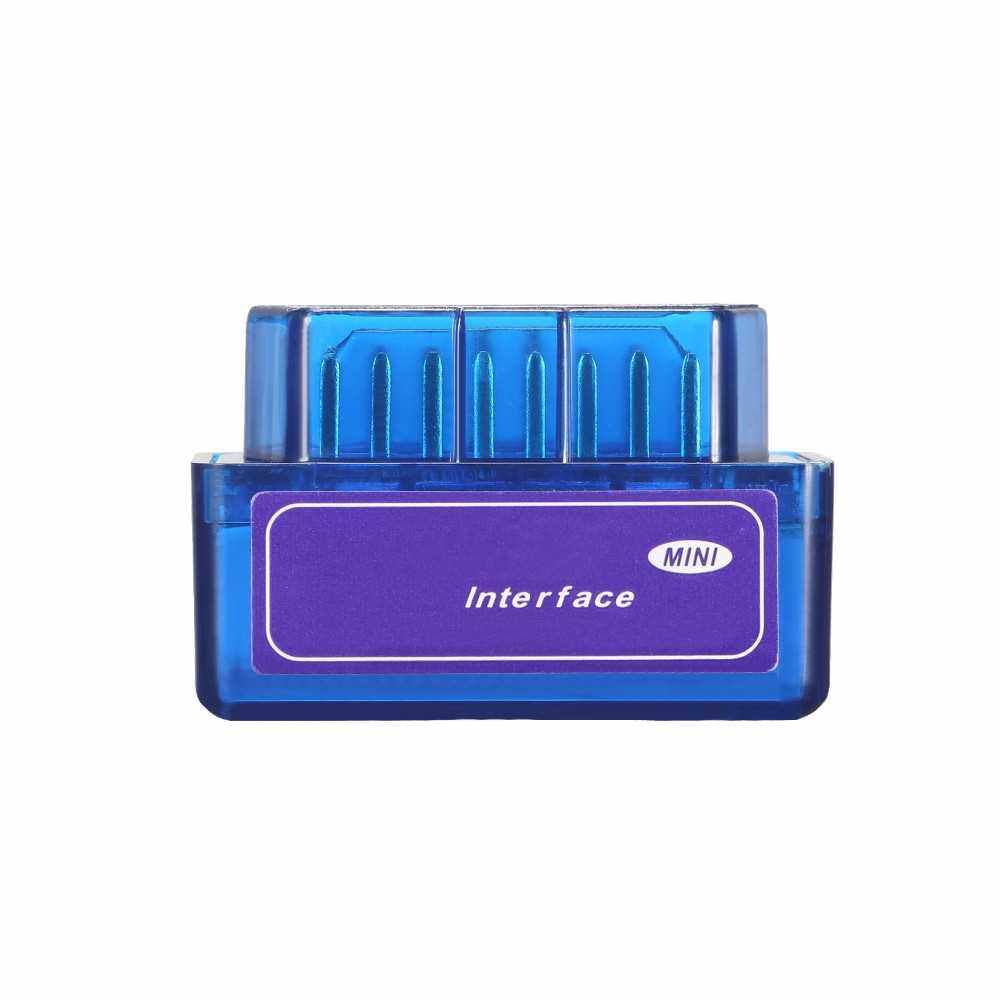

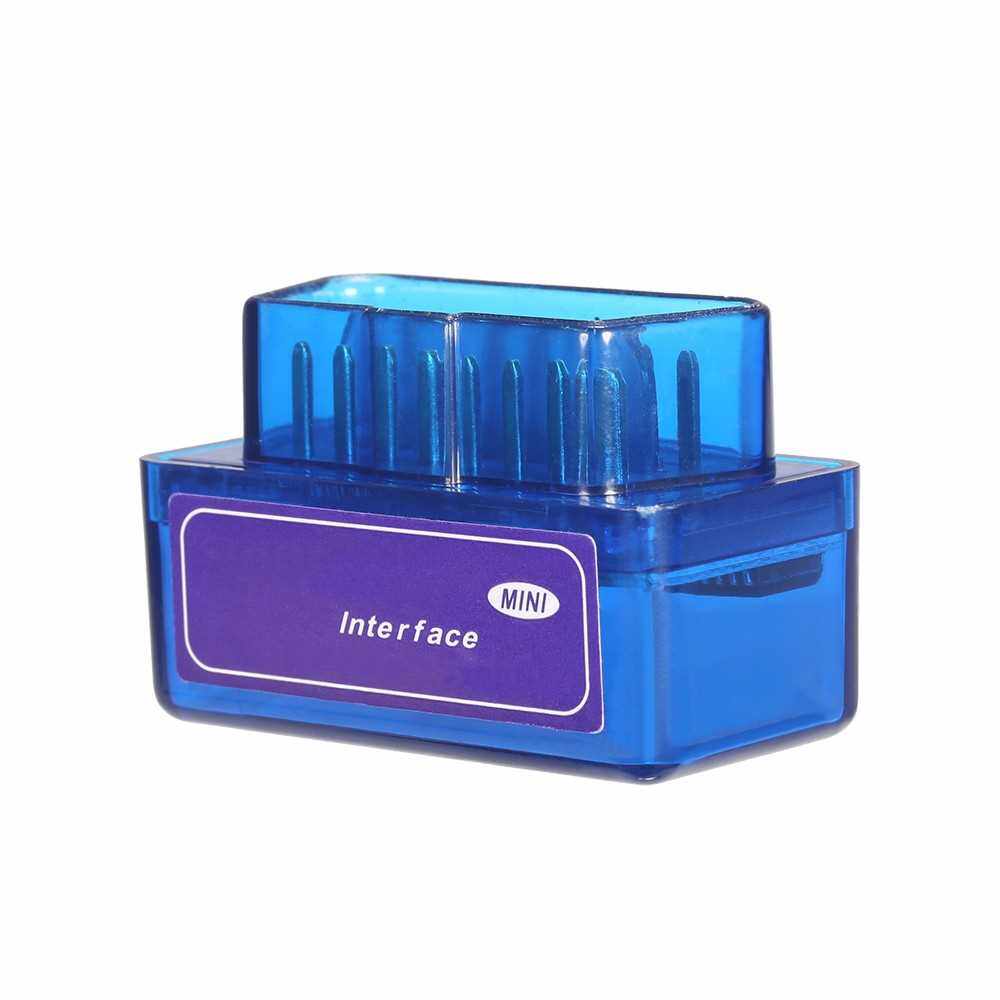

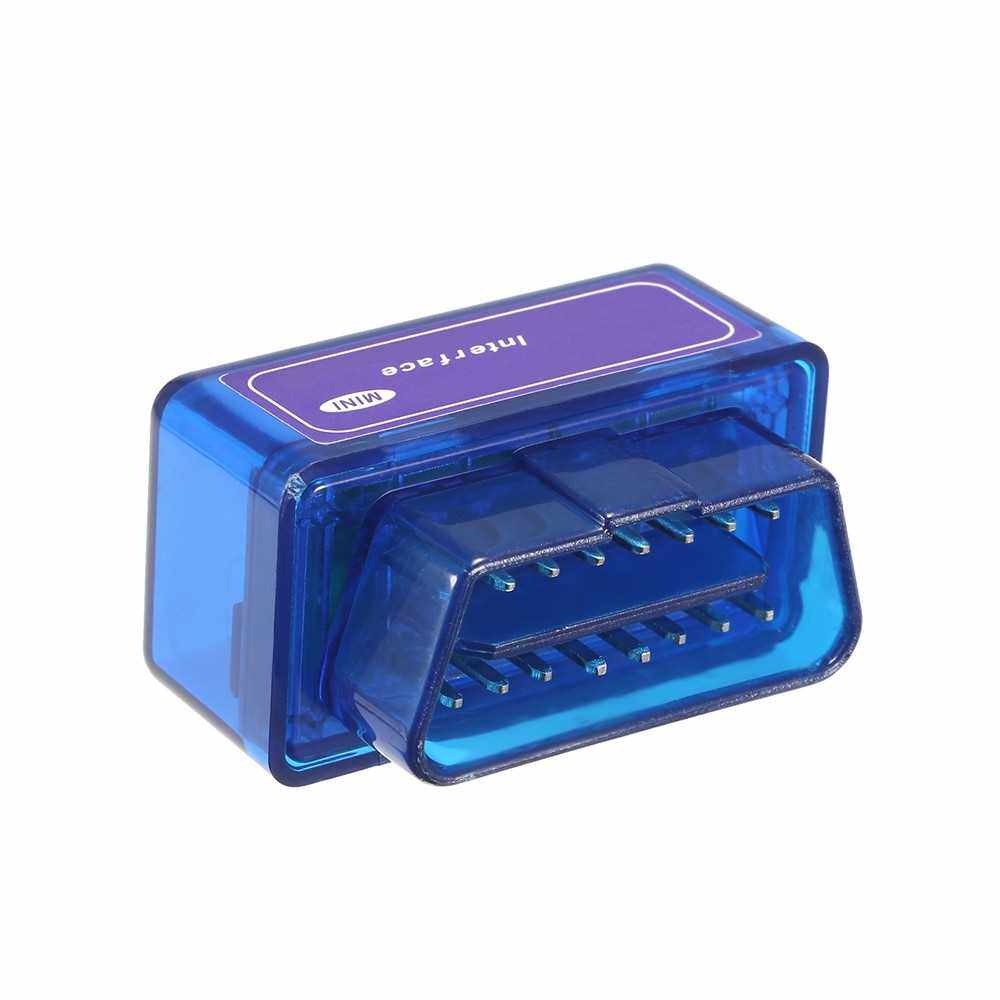

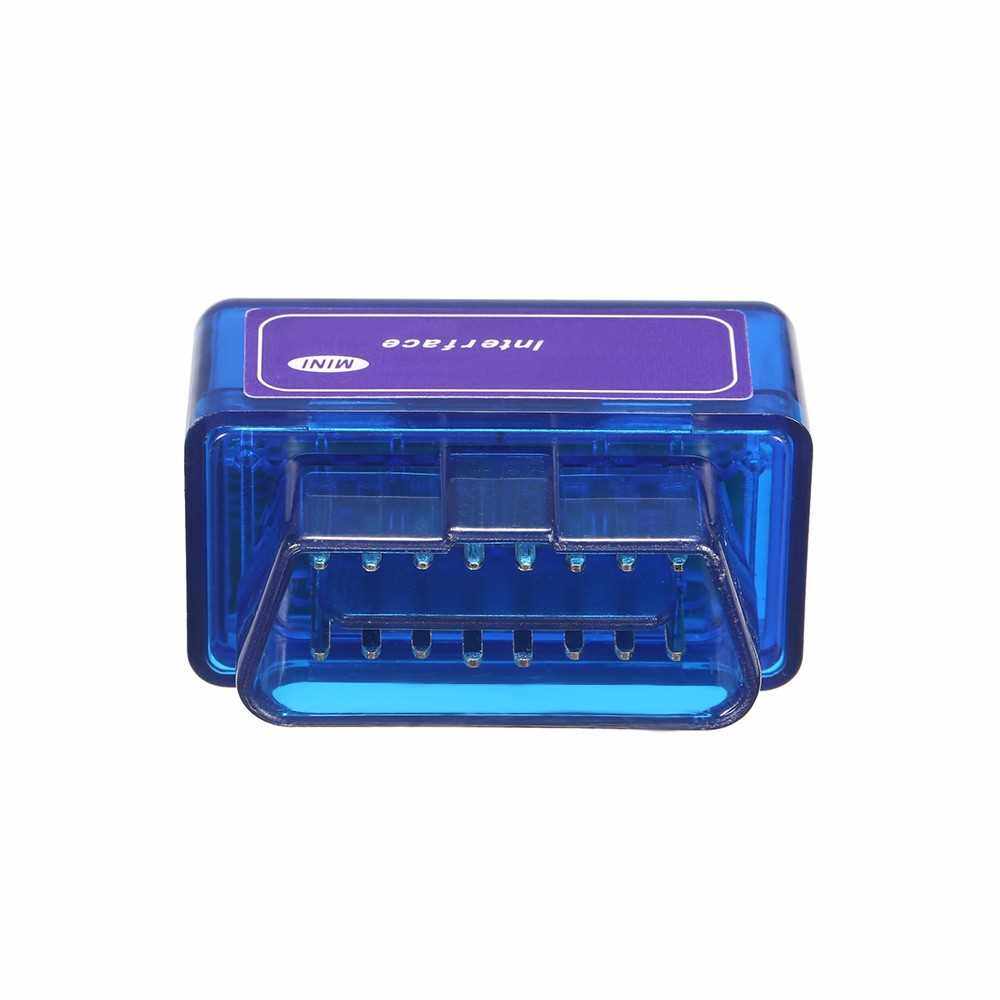

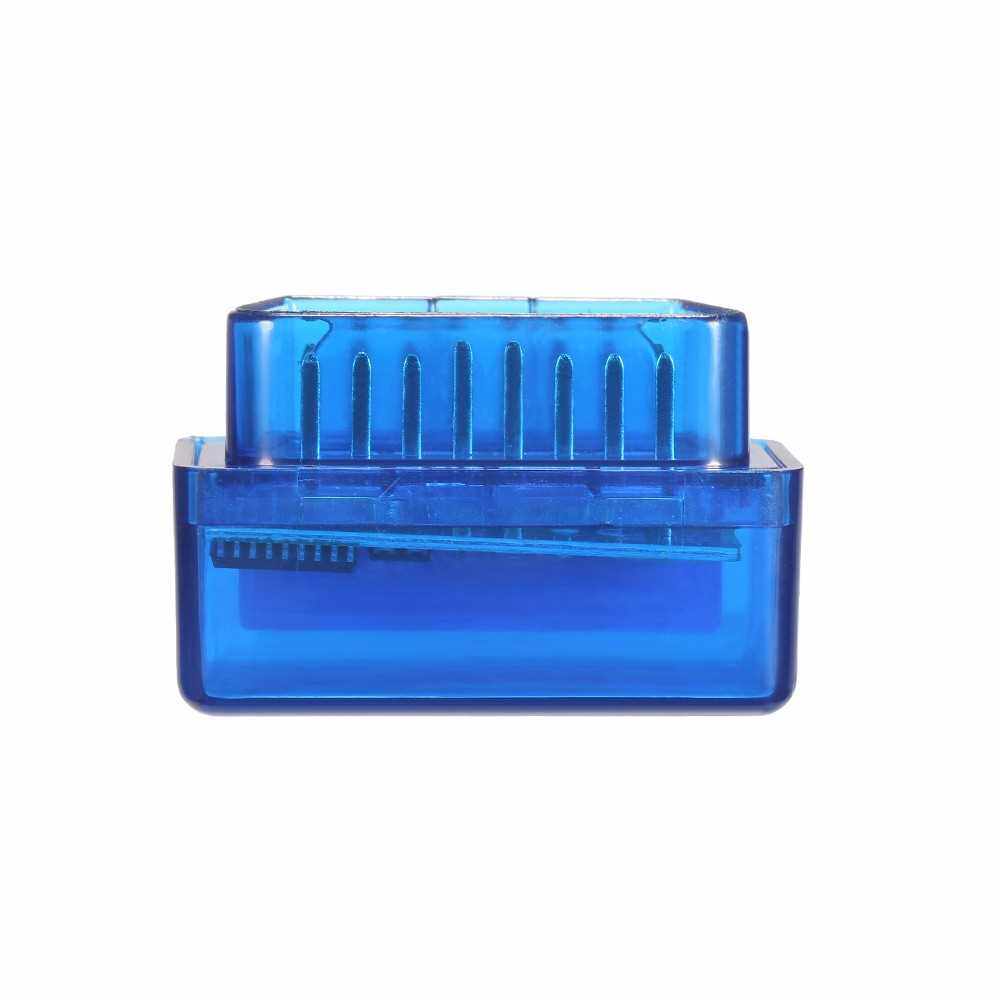

1 X Mini Blue OBD OBD? Scanner Tool Detector with BT Connection for Android Windows Service (Standard), Standard

Description

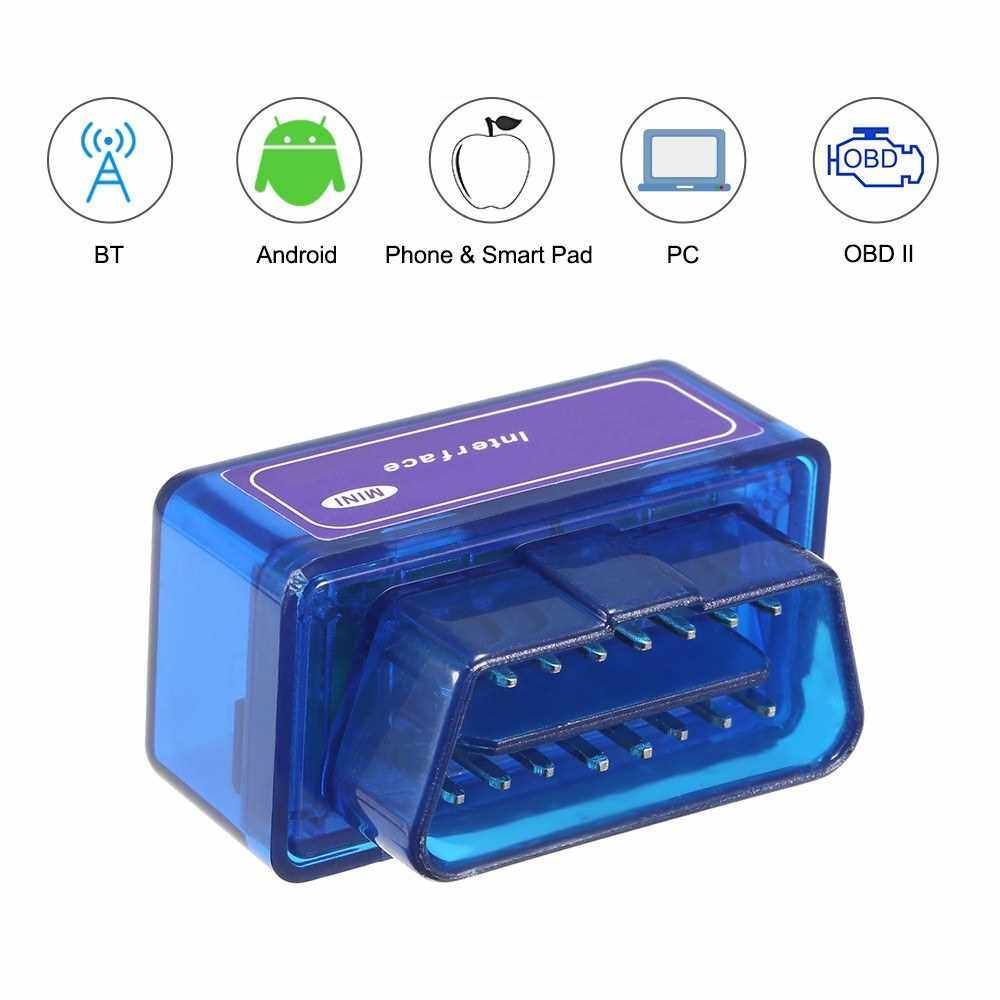

This item suport TORQUE software for android system cell phone, OBD scope software for symbian system cell phone, PPC(Windows Mobile) system cell phone, scan master-ELM for PC etc. Project BT password: 1234.

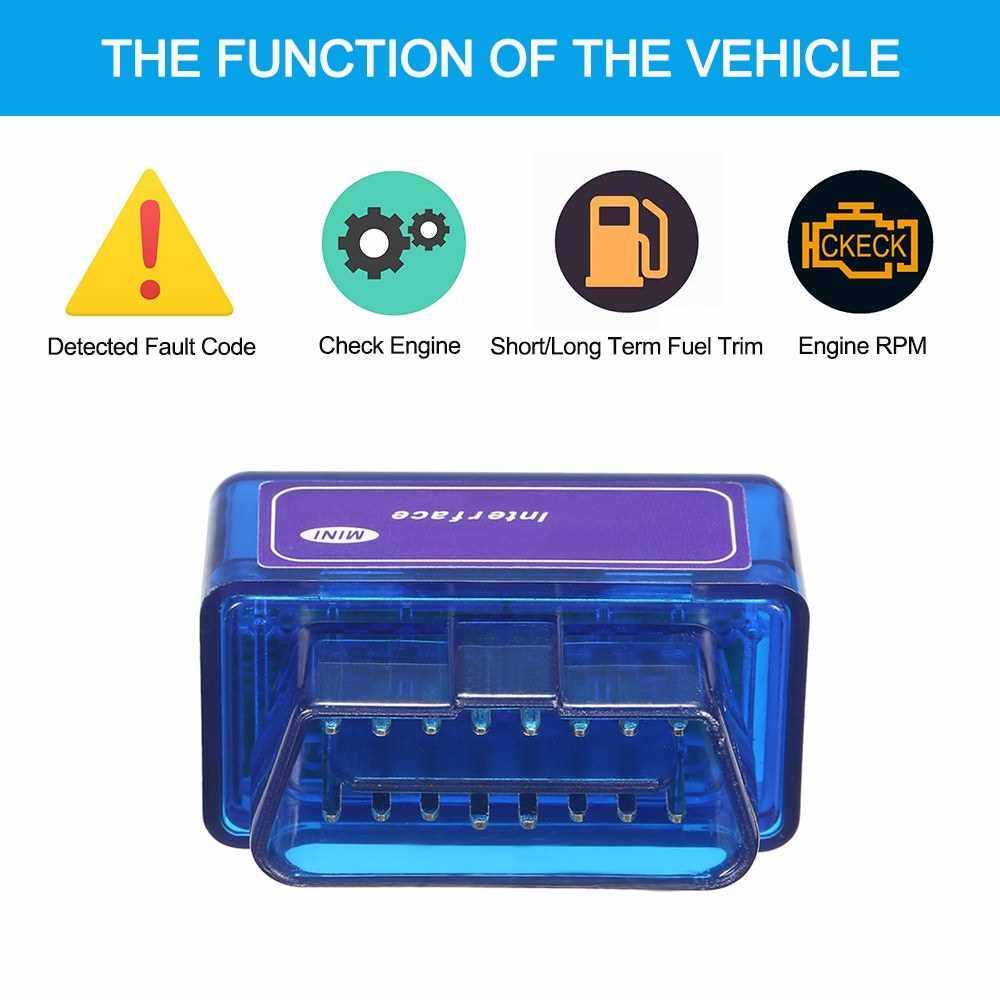

Features
Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

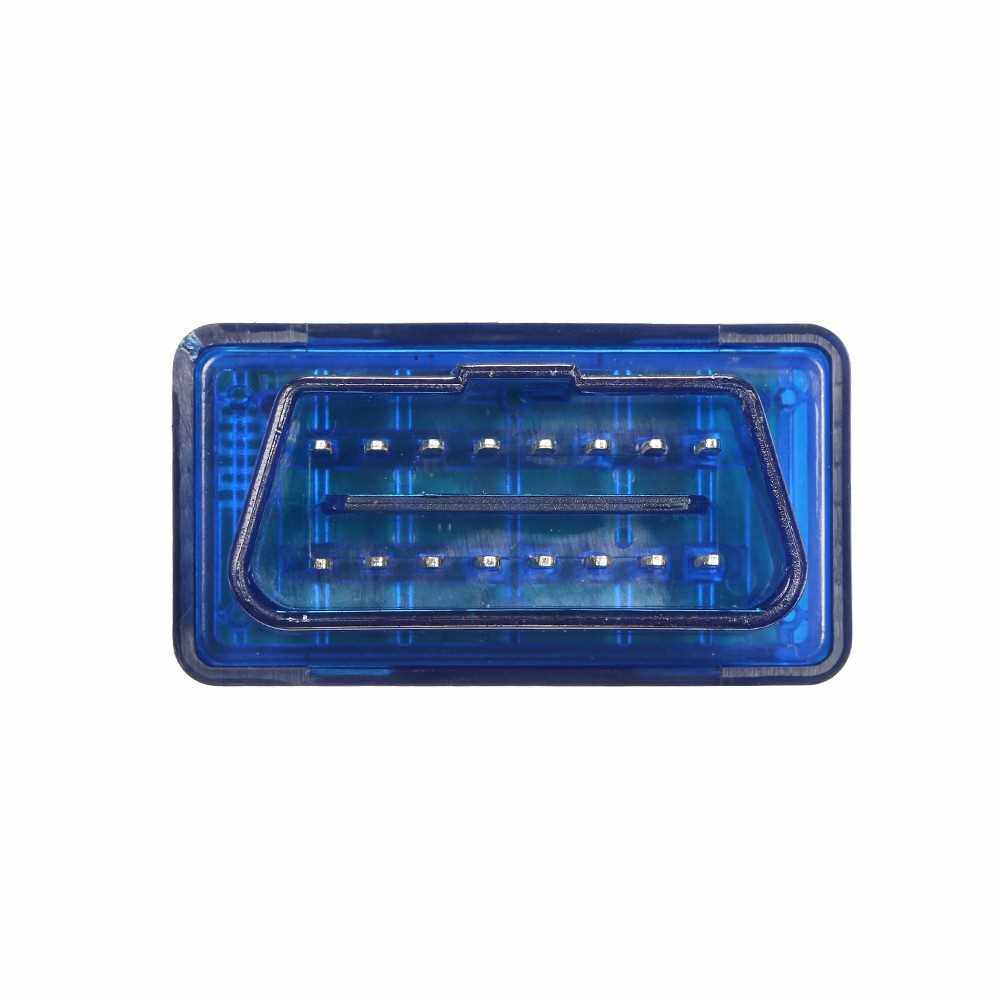

Super mini OBD? auto car diagnostic interface scanner with BT, easy to take.
Clear trouble codes and turn off the MIL ("Check Engine" light).
Works with all OBD? compliant vehicles & Wireless (BT) 5~10m.
Scan the sensor data, including engine RPM, calculated load value, coolant temperature, fuel system status, vehicle speed, short term fuel trim, long term fuel trim, intake manifold pressure, timing advance, intake air temperature, air flow rate, absolute throttle position, oxygen sensor voltages/ associated short term fuel trims, fuel system status, fuel pressure.

Specifications
Condition: New
Color: Black
Material: Plastic
Type: OBD? Detector
Output protocol: RS232 Serial Port
BT Connection: Support
Baud Rate: 38400
Working Voltage: 9-16V
Working Current: 45 mA
Operating Temperature: -40~100 Deg Celsius
Fit: For Android Windows Service
Package Weight: 30g/1.06oz

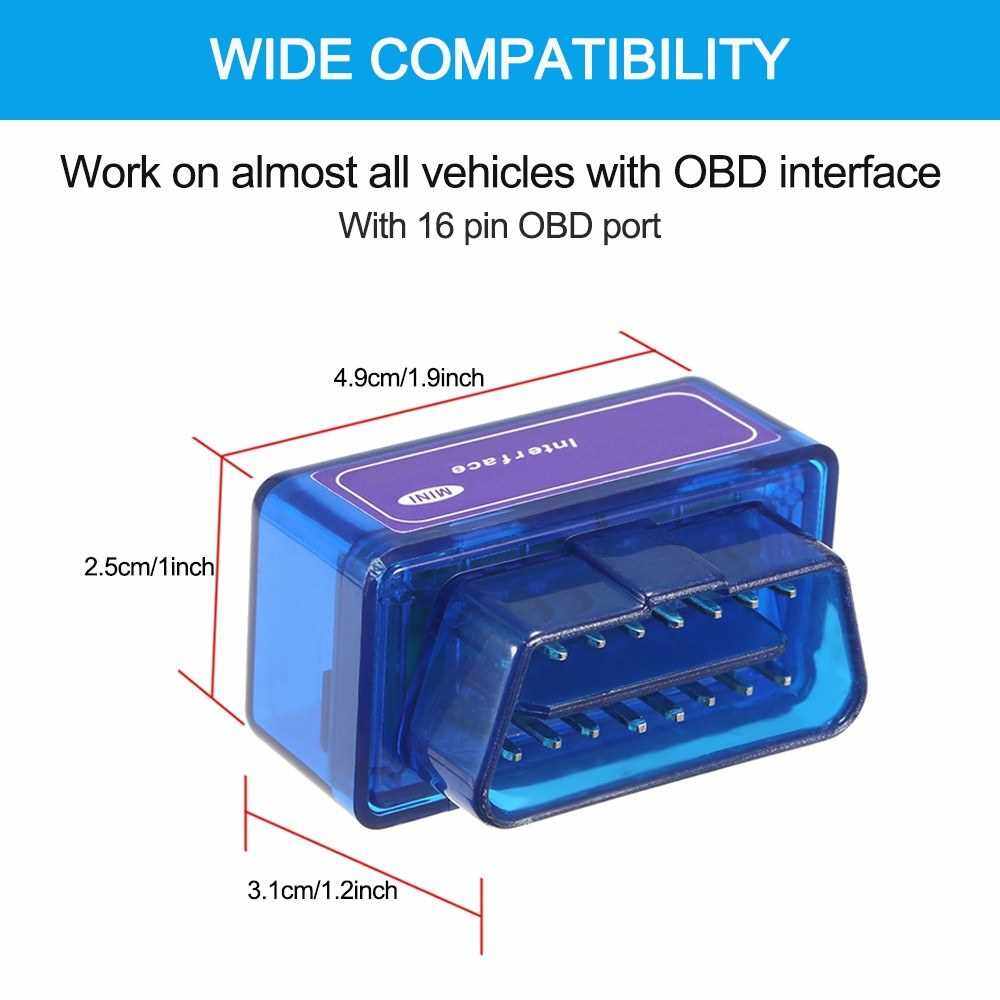

Package Size: 11*6.5*2.5cm/4.3*2.6*0.98inch

This Detector is capable of communicating with vehicles which adopt following protocols:
ISO9141-2(5 baud init,10.4Kbaud)
ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (fast init, 10.4 Kbaud)
ISO15765-4 CAN (11bit ID, 500 Kbaud)
ISO15765-4 CAN (29bit ID, 500 Kbaud)
ISO15765-4 CAN (11bit ID, 250 Kbaud)
ISO15765-4 CAN (29bit ID, 250 Kbaud)
SAE J1939 CAN (29bit ID, 250*Kbaud)
USER1 CAN (11*bit ID, 125*Kbaud)
USER2 CAN (11*bit ID, 50*kbaud)

Package List:
1* Car Auto Diagnostic Interface Scanner
