What's in the box:

KWS-MX18 10 in1 Digital LCD Display USB Tester Voltage Current Tester Power Meter Timing Ammeter USB Charger Tester Detector Voltmeter (White)

Features:

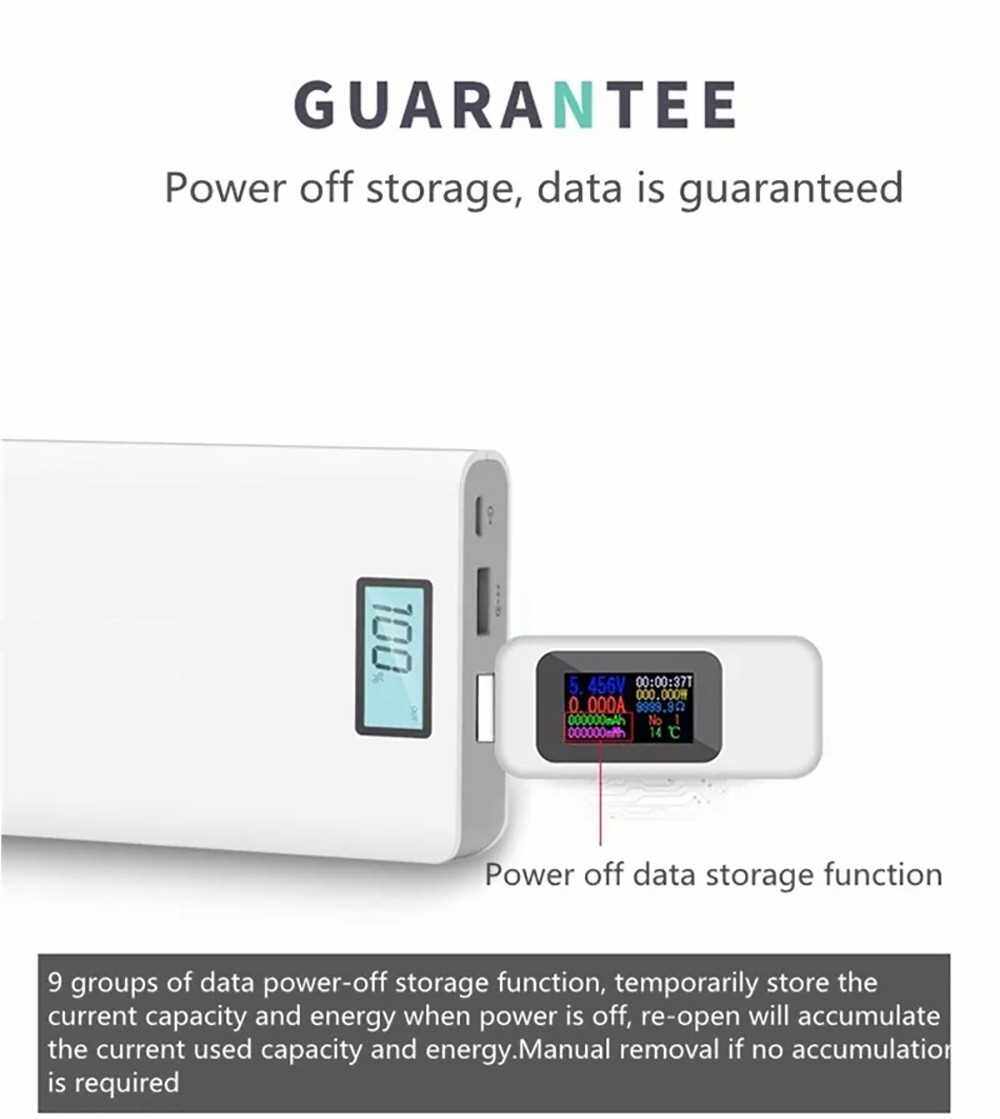

Contains 9 sets of power outage saving functions.
Temporarily store current capacity and energy when power is off.
Reopen the opportunity to accumulate the current capacity and energy used.
Manual removal if no accumulation is required.
Voltage current and capacity display on the same LCD screen, no need for cumbersome operations, only need to connect to the USB interface, you can monitor the phones charging status in real time.
Intelligently memory charging capacity, can save the mAH input from 9 sets of charging devices after power off. Easy to view and check whether the charging devices capacitance is true.
U disk current detection, the working current of the u disk is between 50-100mA, when is exceeds 100mA, the u disk may be faulty.
USB interface voltage detection, the external voltage of the USB interface on the computer is 5V5%, the output current is relatively constant, generally 500mA, and the notebook computer only has 100mA.

Directions for use:
1: Click the button to view 1-9 sets of charging data.
2: Long press the button for 3 seconds to remove a set of charging data.
3: Double-click the button to rotate the screen to view.
4. Long press the button and insert the USB interface to enter the voltage calibration:
For example:
(1) If display (5.526V) Then double click button quickly
(2) If display(5.528V), then you can click the button to increase the display voltage.
(3) Double click button quickly, if display(5.528V),then you can click the button to decrease the display voltage.
(4) Then double click button quickly again, if display(5.526V),then click the button one more times, the screen will display Current Calibration!
The system automatically performs current calibration and will automatically return to the function home page after calibration is completed.

Specifications:
Material: ABS
Color: White, Black
Current: 0-5A
Voltage: 4-30V
Timing: 0-99 hours
Power: 0-150W
Capacity: 0-999999mAh
Inner temperature: 0-80?
Divide into groups: 0-9 group
Charging resistance: 0-999.9O
Positive voltage: 0-10V
Negative voltage: 0-10V
Item size: 56.6*24.7*11.2mm
Item weight: 13.9g
Package size: 14.7*9.4*1.2cm/5.78*3.70*0.47in
Package weight: 17.3g

Note:
If the output voltage exceeds the allowable charging voltage range of the electronic product, please stop using the charger or mobile power supply.

Packing list:
1 x USB Test Meter
