KKmoon -20?~+550? Handheld IR Infrared Thermal Imager 2.8-inch Color Screen Infrared Thermometer with 16G Storage Card High Accuracy Thermal Imaging Camera Support External PC Display (Standard)

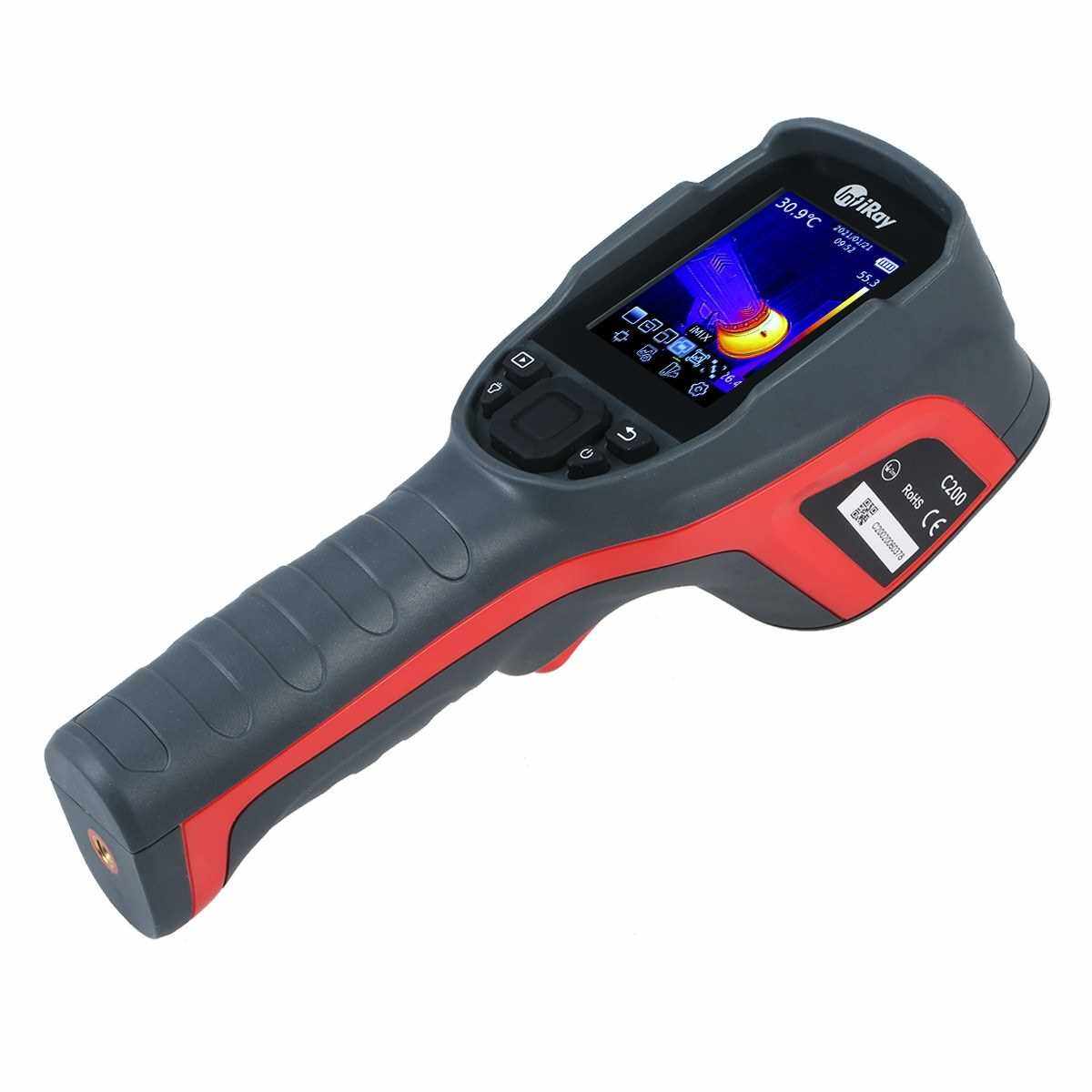

This handheld temperature measuring thermal imager, with nearly 50000 pixels of infrared detector, features the characteristics of wide temperature measuring range (-20?~+550?), infrared & visible light, 7 color palettes & 5 image modes, 11 working hours, IP54 protection level, 2m drop resistance, etc., which greatly meets the application requirements of various electrical diagnosis, mechanical / equipment maintenance, building detection, property / household use. Easy to use, professional and efficient.

Features:

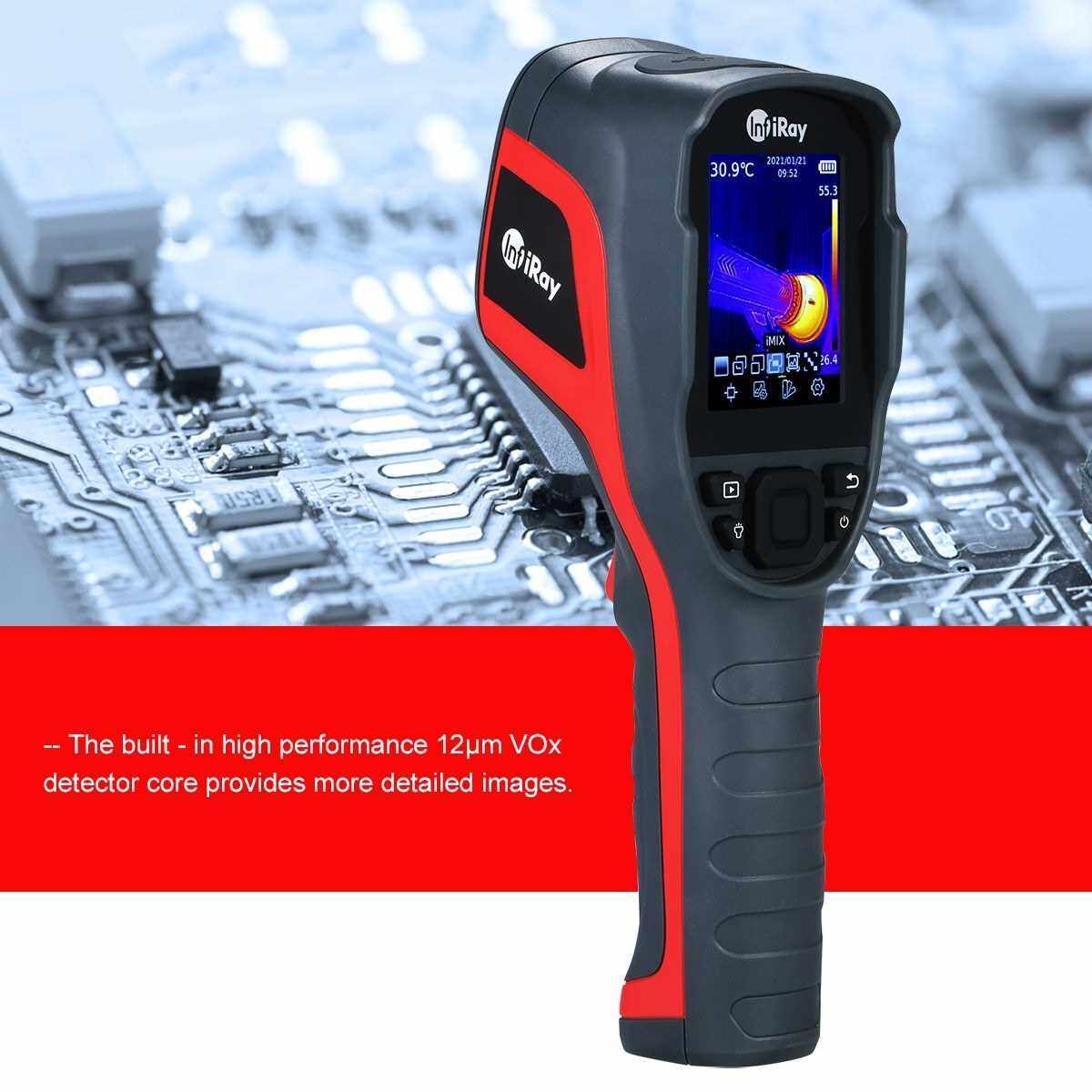

[High Precision Sensor] The built-in high performance 12m VOx detector core provides more detailed images.

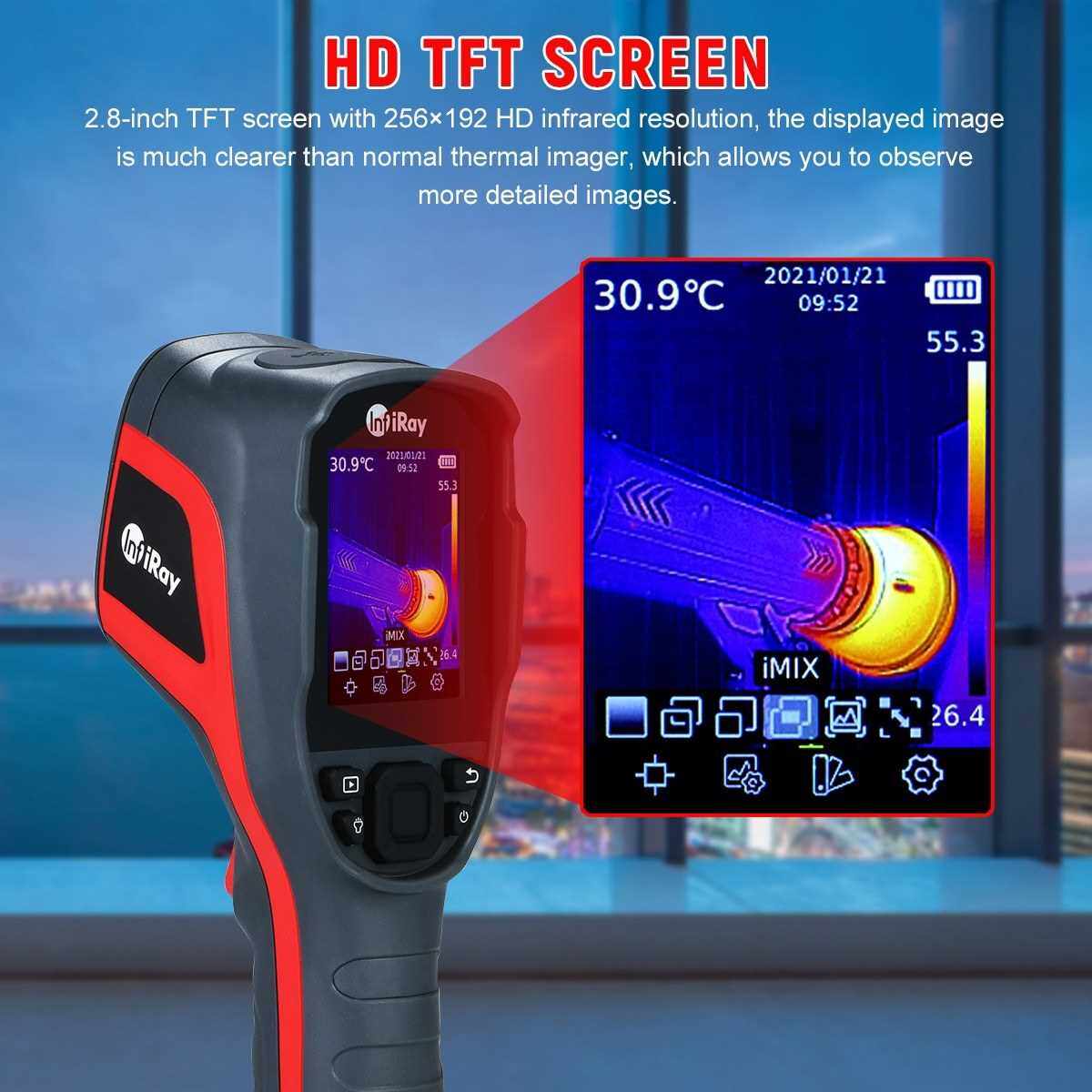

[HD TFT Screen] 2.8-inch TFT screen with 256192 HD infrared resolution, the displayed image is much clearer than normal thermal imager, which allows you to observe more detailed images.

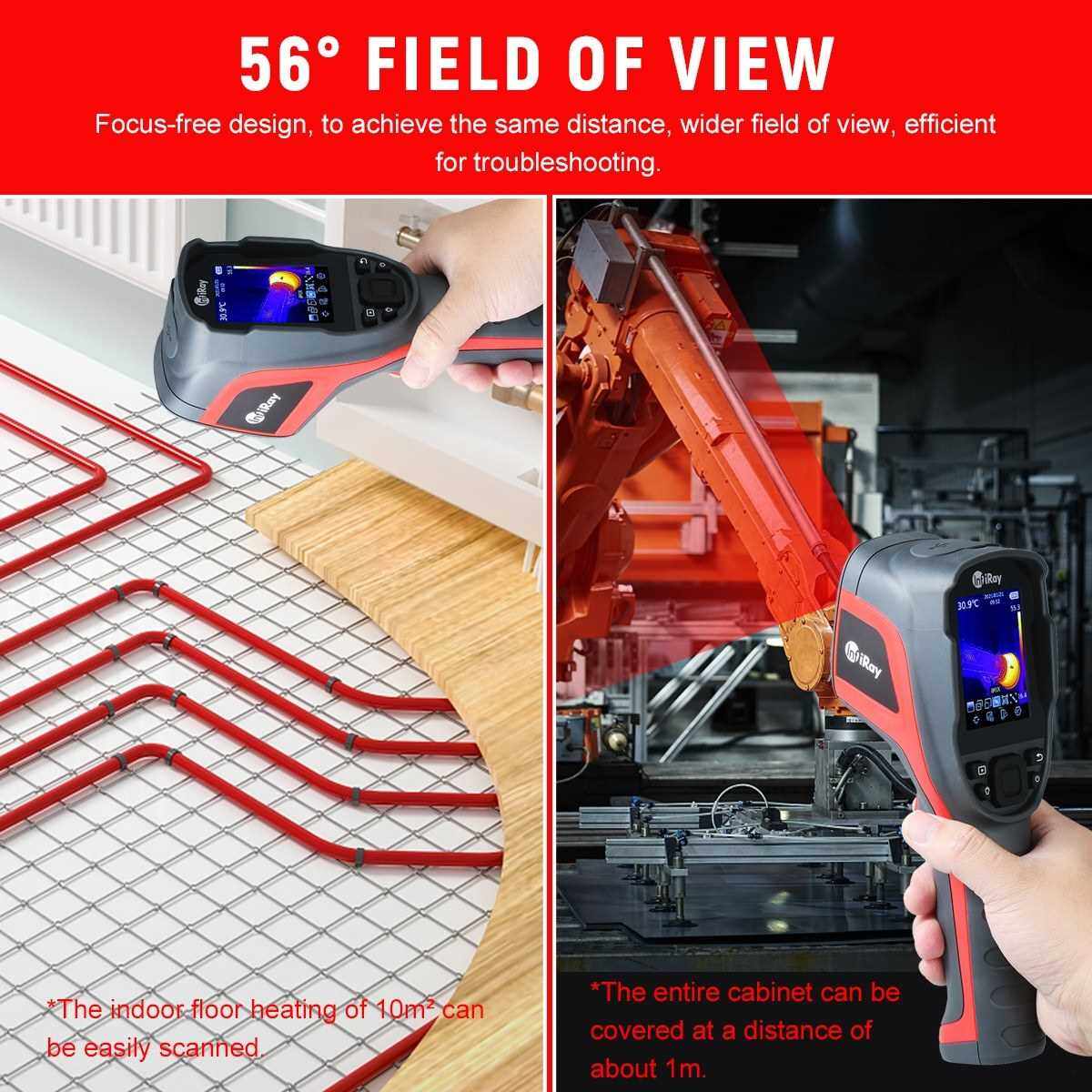

[56 Field of View] Focus-free design, to achieve the same distance, wider field of view. The entire cabinet can be covered at a distance of about 1m, and the indoor floor heating of 10m2; can be easily scanned, efficient for troubleshooting.

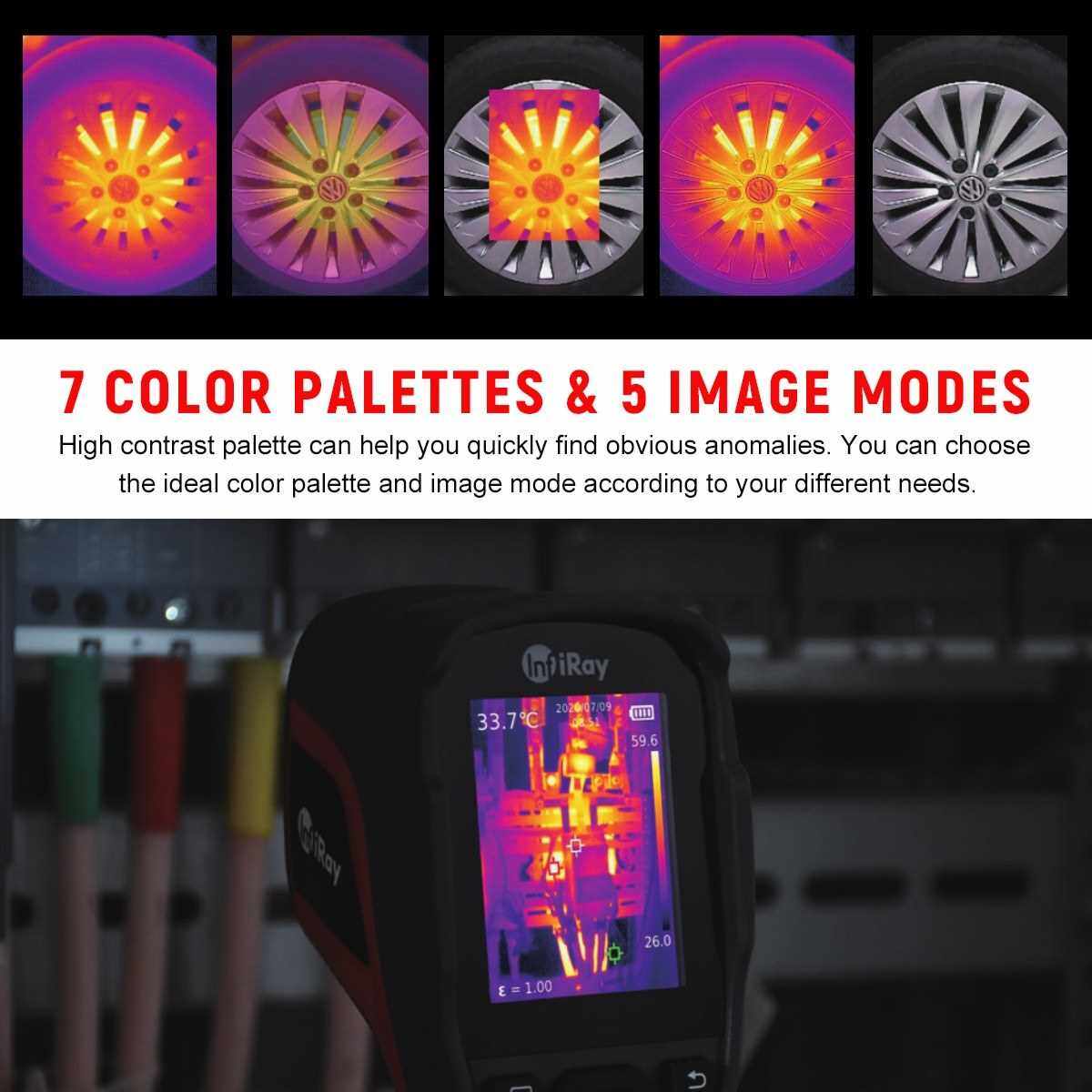

[7 Color Palettes & 5 Image Modes] High contrast palette can help you quickly find obvious anomalies. You can choose the ideal color palette and image mode according to your different needs.

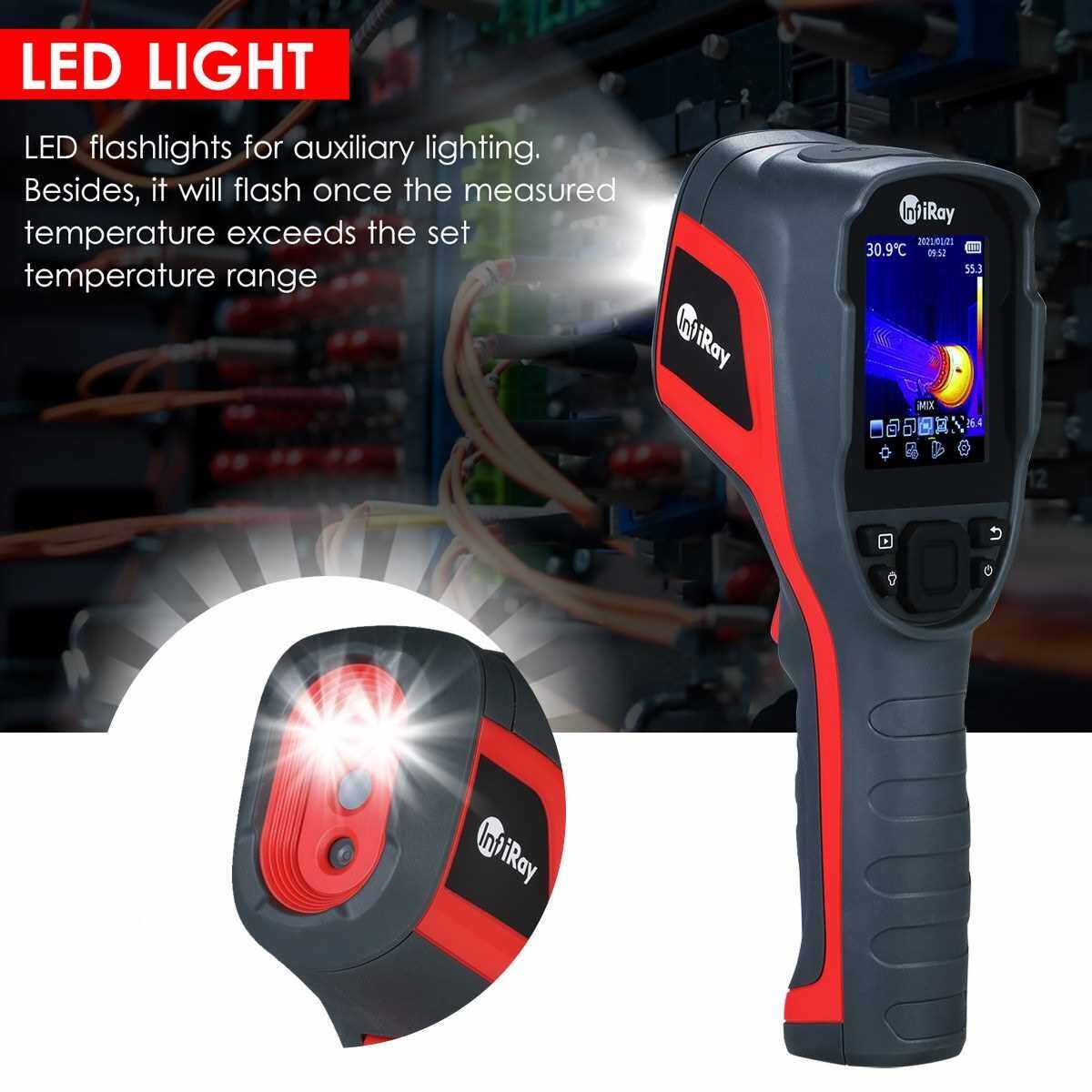

[LED Lights] LED flashlights for auxiliary lighting; besides, the lights will flash when the measured temperature exceeds the set temperature range.

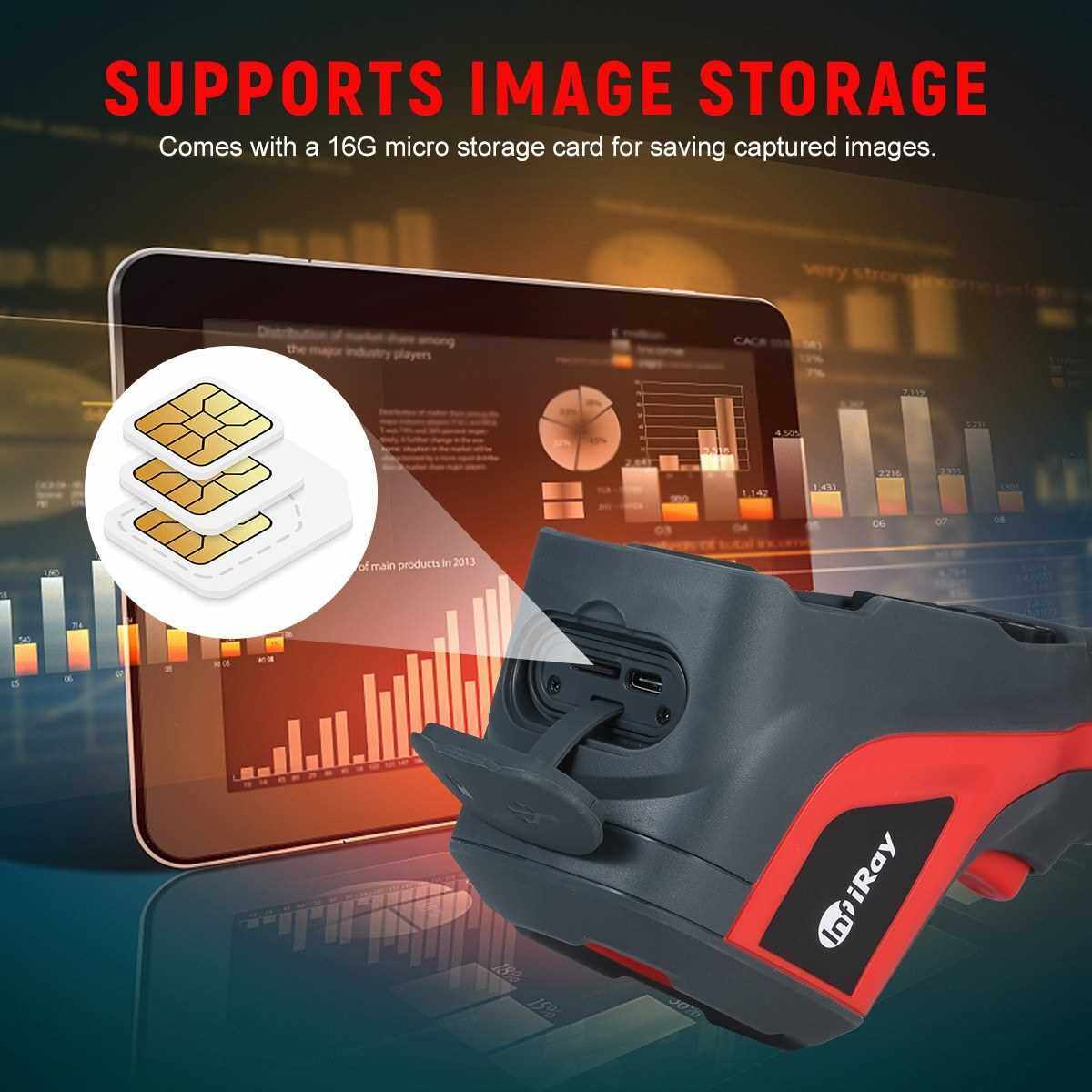

[Supports Image Storage] Comes with a 16G micro storage card for saving captured images.

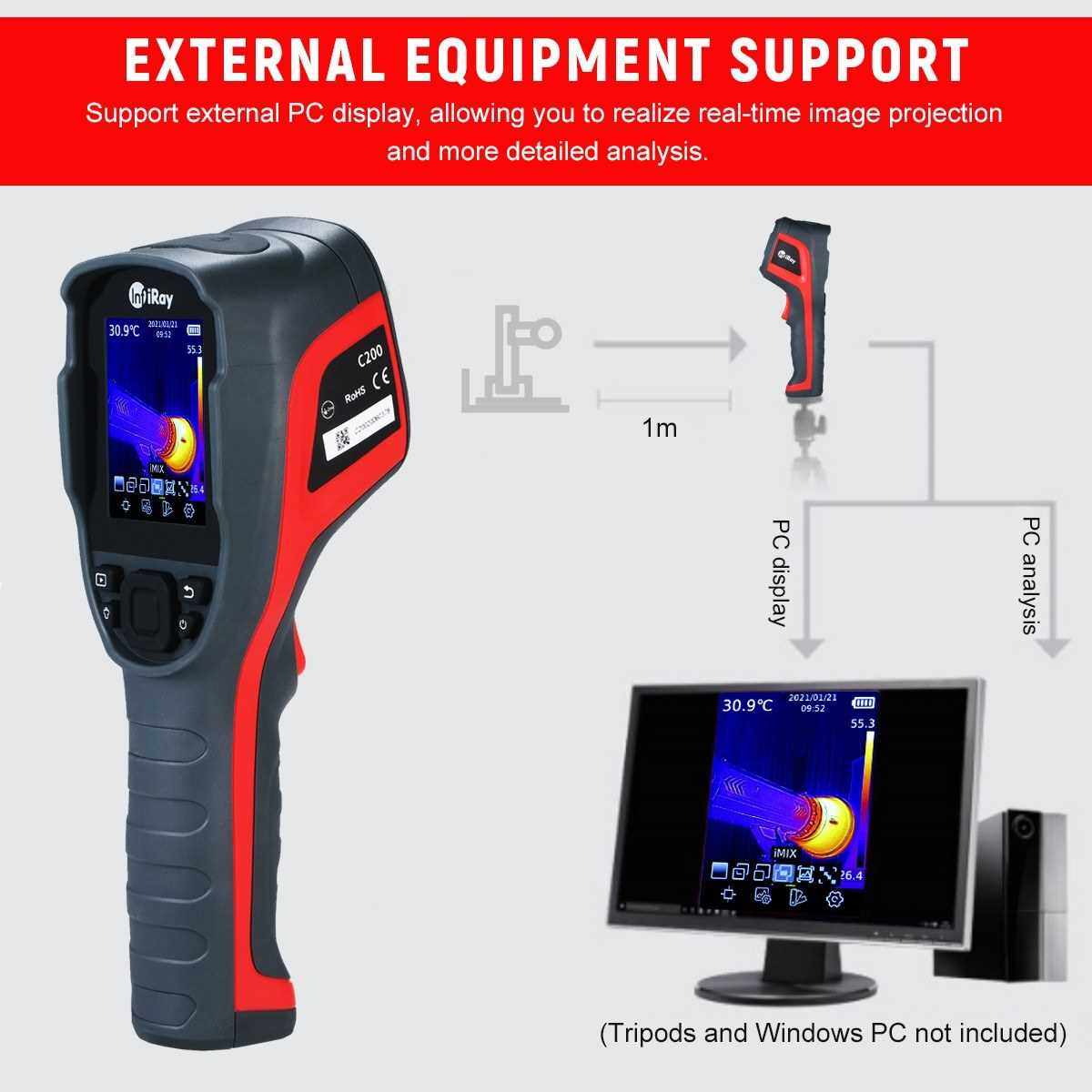

[External Equipment Support] Support external PC display, allowing you to realize real-time image projection and more detailed analysis.
[Dual Mode] Suitable for both handheld and tripod use. You can mount the thermal imager on a tripod due to the 1/4" tripod mounting hole at the bottom of the handle to free your hand and ensure the stability during measurement.
[Built-in Li-ion Battery] The rechargeable battery provides up to 11 hours of battery life after full charged for 4 hours. You can connect it with PC or charge via the included Type-C USB cable.

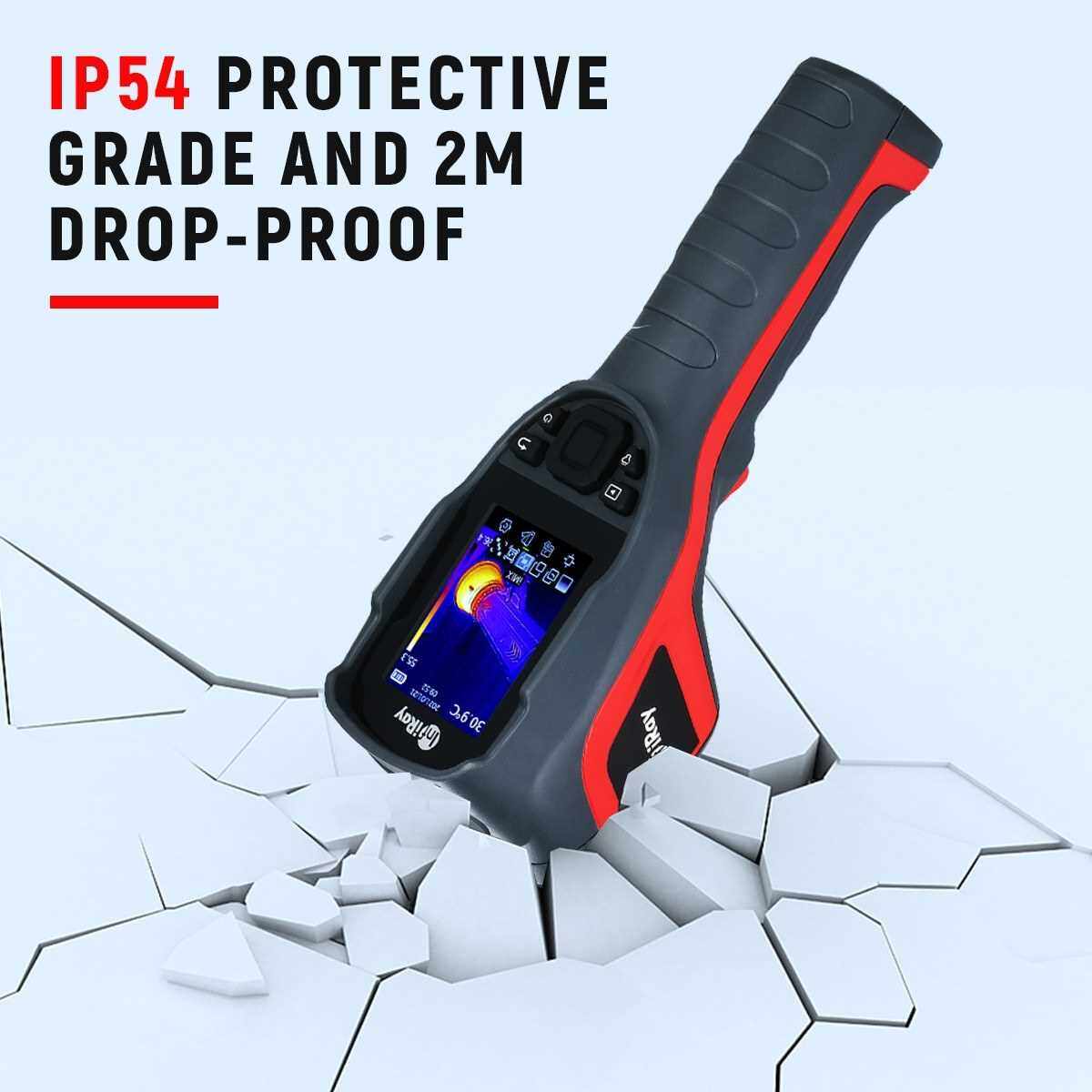

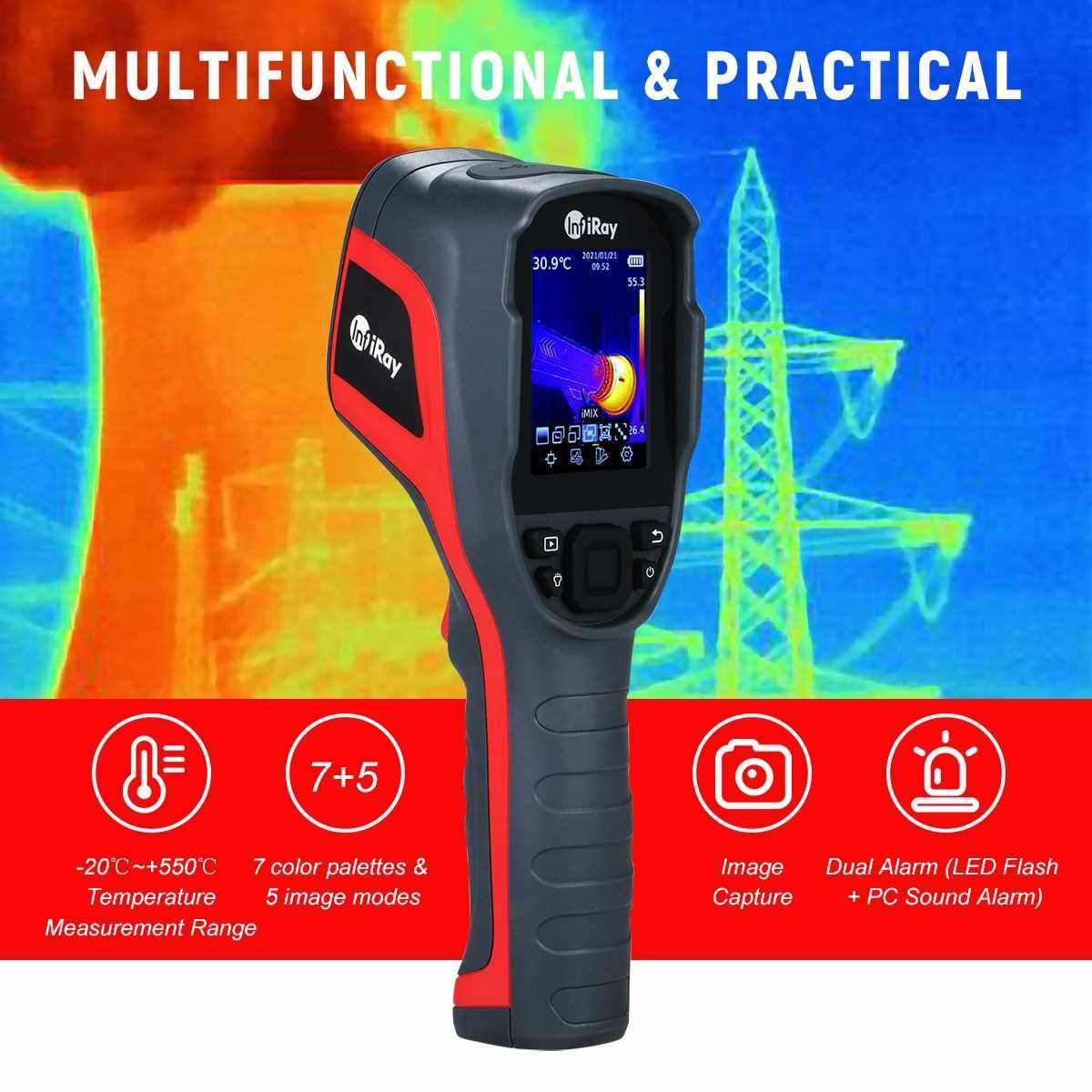

[Additional Features] -20?~+550? temperature measurement range, ?/? unit switchable, image capture, dual alarm (LED flash + PC sound alarm), IP54 protection and 2m drop proof, much more practical.

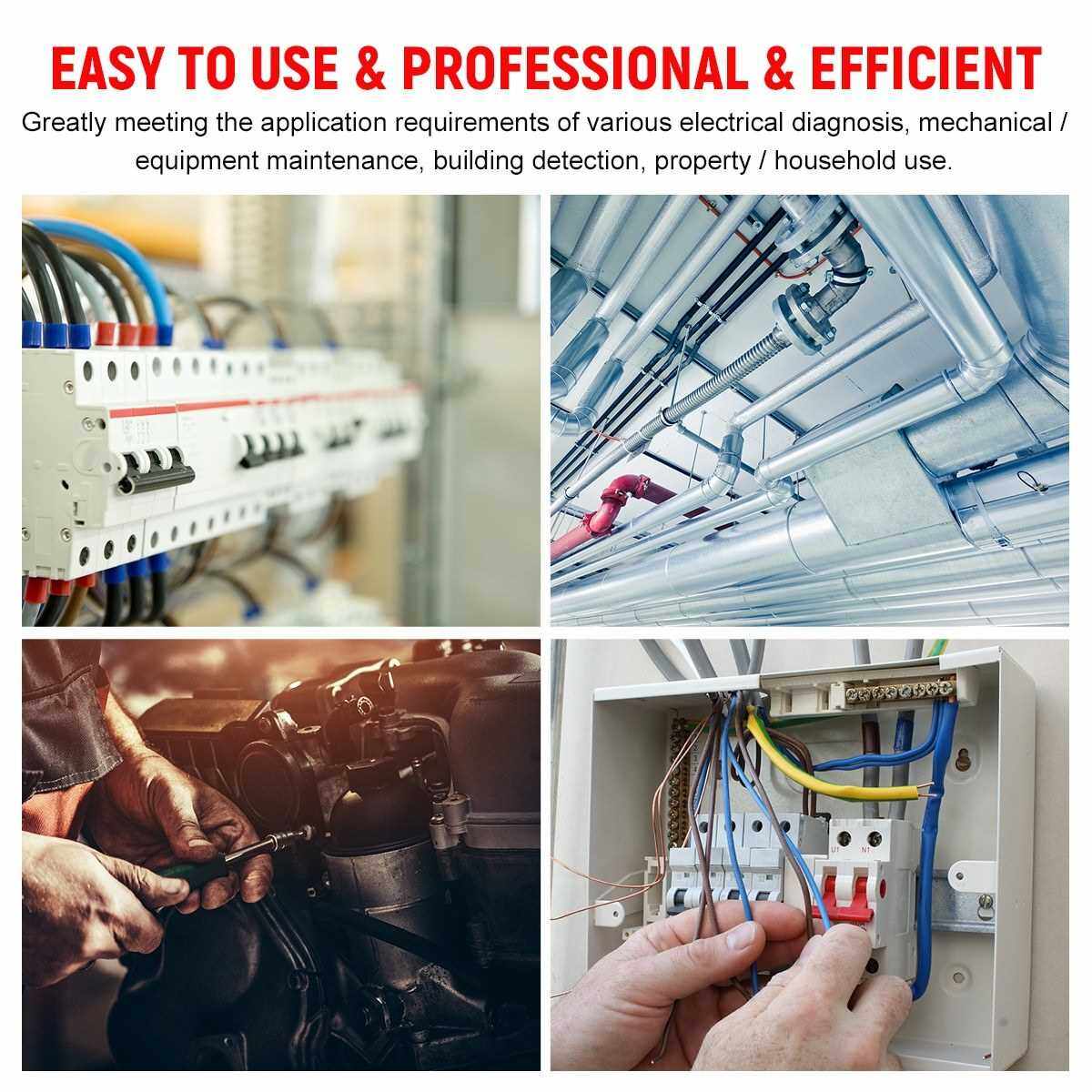

[Wide Application] Greatly meeting the application requirements of various electrical diagnosis, mechanical / equipment maintenance, building detection, property / household use. Easy to use, professional and efficient.

Specifications:
Material: ABS
Color: Black&Red
Power Supply: Rechargeable lithium battery (Type-C interface)
Charging Time: About 4h
Battery Life: About 11h
Measuring Range: -20?~+550?
Measuring Accuracy: 2?
Measuring Resolution: 0.1?
IR Resolution: 256192
Emissivity Correction: 0.01~1.0 (adjustable)
Response Wave Band: 8~14m
Pixel Pitch: 12m
NETD: <50mK> Frame Frequency: 25Hz
Lens: 3.2mm
Field of View (FOV): 5642.2
Spatial Resolution (IFOV): 3.8mrad
Focusing: Fixed
Digital Camera Resolution: 640480
Display: 2.8" LCD (320240)
Image Mode: Thermal, Dual Optical Fusion, PIP (picture-in-picture), iMIX, Visible Mode
Image Storage: 16G Micro storage card
External PC Display: Support
Operating Temperature: -10?~+50?
Storage Temperature: -20?~+60?
IP Rating: IP54
Drop Test: 2 meters

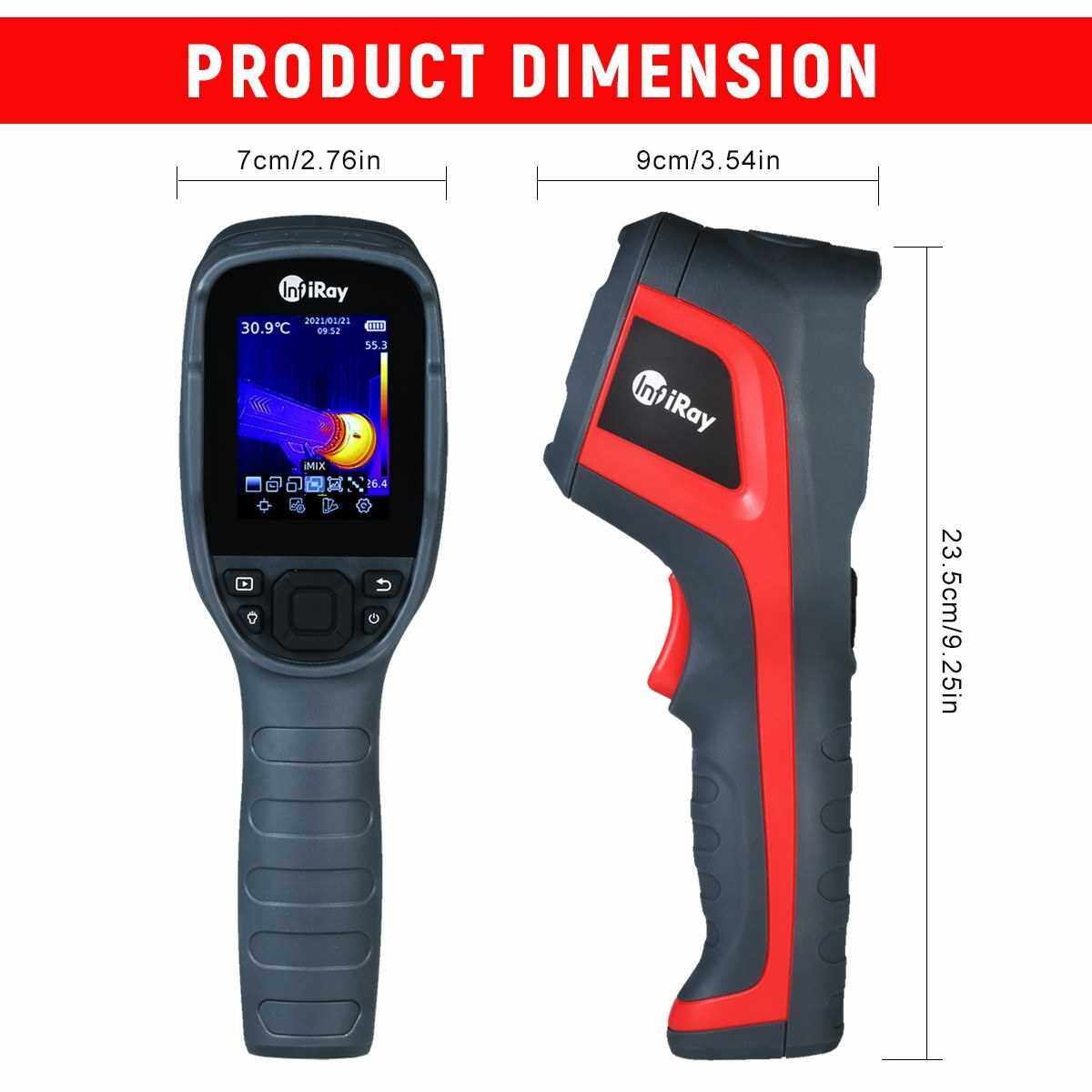

Item Size: Approx. 7*9*23.5cm / 2.76*3.54*9.25in
Item Weight: Approx. 522g / 18.41oz
Package Size: Approx. 28*16.5*11.7cm / 11.02*6.5*4.61in
Package Weight: Approx. 1129g / 39.82oz

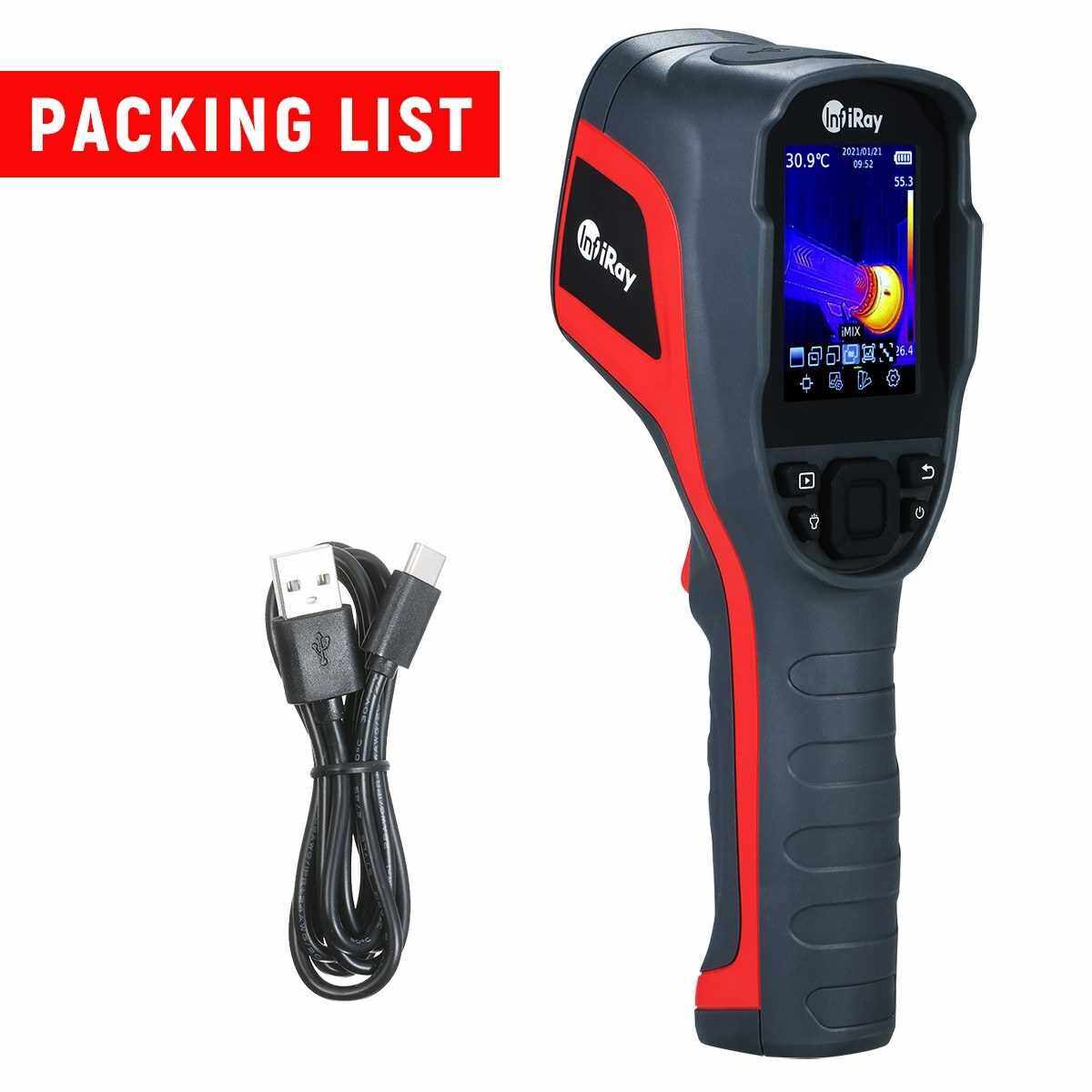

Packing List:
1 * Thermal Imager
1 * 16G Data Storage Card
1 * Type-C USB Cable
1 * Users Manual(English)
