Product Information
What's in the box:
1 X Digital Paint Coating Thickness Gauge Handheld Coatings Thickness Tester with Color LCD Fe Probe Car Detector Automotive Coating Refinishing Cars Paint Tester Meter (0~1800um) (1), 1

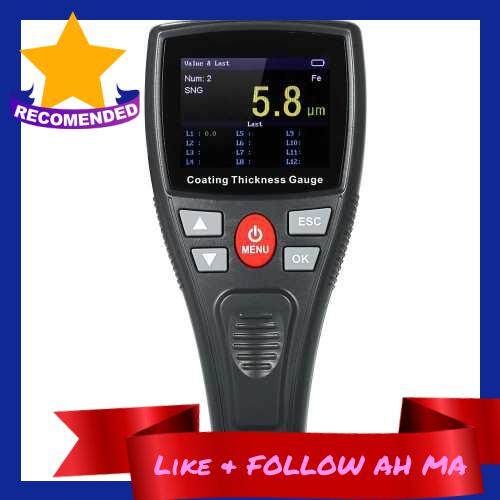

This product is a color-screen portable coating thickness gauge with high-definition display. It can quickly, non-destructively and accurately measure the thickness of non-magnetic coating (such as paint, electroplate, thin film, etc.) on magnetic metal substrates. It is widely used in manufacturing, metal processing, chemical industry, commodity inspection and other testing areas.
Features:
Quickly measure the thickness of paint coating with wider measuring range: 0~1800um/0~70.9mil/0~1.8mm and menu operation.
Non-magnetic coating thickness measurement on magnetic metal substrate surface with symbol Fe for magnetic substrate.
Automatically power off and measure with metric/imperial of m/mil/mm units switchable.
2 measurement methods: single measurement & continuous measurement. 3 calibration modes: basic, offset, zero calibration.
With charge protection, multi-interface displays & screen brightness selection.
With Max, Min, Average, Difference value, High limit & Low limitdisplay.
360 screen rotation for easy data reading and V-Groove on probe for small cylindrical parts.
Large color HD LCD display with max 15 store data and bright backlight, easy for you to read the results clearly.
Portable and streamline form design with special handheld anti-skid treatment, light weight, small and fitted size for your palm.
Widely used in manufacturing industry, metal-processing industry, chemical industry, commodity inspection area, and also able to work steadily in the laboratory, workshop and outdoor.
Specifications:
Model: WT2100 / WT2110 (Optional)
Material: ABS Plastic
Sensor Probe Type: Fe
Working Principle: Magnetic Induction(Fe)
Range: 0~1800um, 0~70.9mil, 0~1.8mm
Units: m, mil, mm
Accuracy: 5um(150um), (3%H+1um)(>150um)
Resolution: 0.1um(<100um>
Package List:
Minimum Diameter of Magnetic Metal Substrate: 12mm
Minimum Thickness of Magnetic Metal Substrate: 0.5mm
Minimum Radius of Curvature for Magnetic Convex Substrate: 2mm
Minimum Radius of Curvature for Magnetic Concave Substrate: 11mm
Data Storage: 15 Groups
Function: Single Measurement, Continuous Measurement, LCD Backlight Display, Low Battery Indicator, Zero Calibration, Offset Calibration, Basic Calibration, Auto Power Off, Max/Min/Average/Difference Value, High limit & Low limit, Data Hold, Unit Selection, Screen Rotation
Operation Temperature: 0~50?
Power Supply: 3 Kinds
1. USB DC 5V 1A Power Adapter
2. 3 * Rechargeable 1.2V 800mAh NI-MH Batteries(Not Included)
3. 3 * 1.5V AAA Batteries(Not Included)
Storage Box Size: 250 * 190 * 65mm / 9.8 * 7.5 * 2.6in
Item Size: 70 * 35 * 150mm / 2.0 * 1.2 * 4.7in
Item Weight: 100g / 3.5oz
Package Size: 27 * 19.5 * 6.5cm / 10.6 * 7.7 * 2.6in
Package Weight: 694g / 24.5oz
Warning: The charging function is only for rechargeable batteries. Disposable batteries are prohibited from charging!
Package List:
1 * Coating Thickness Gauge
1 * USB Charging Cable
1 * Iron Substrate
1 * Storage Box
6 * Thickness Calibration Foil
1 * User Manual
