What's in the box:

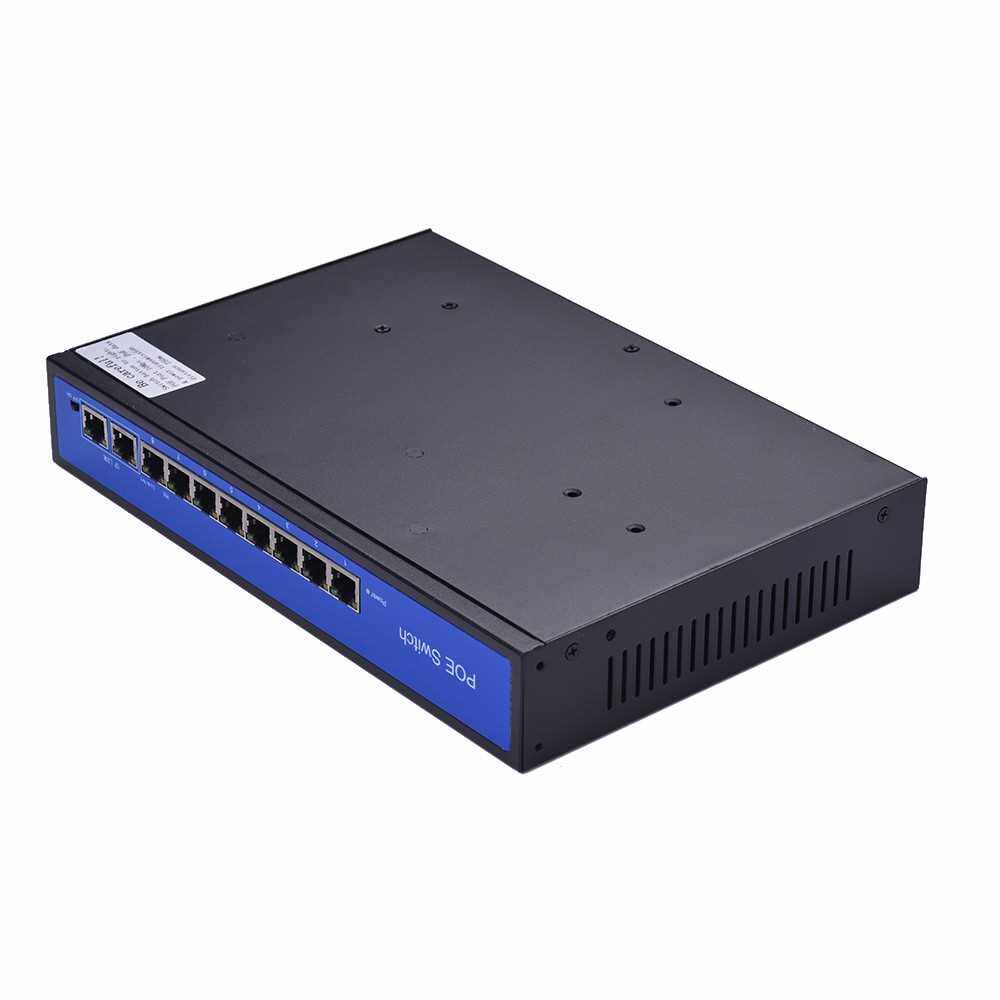

8+2BZDN PoE Switch Power 8 Ethernet Port 2 Uplink Ethernet Port 2.0Gbps over Ethernet IEEE 802.3 48V 3A for Cameras AP VoIP (Black)
Description
This 8+2BZDN PoE Switchwith 8Ethernet Port 2Uplink Ethernet Port 2.0Gbps over Ethernet IEEE802.348V3A,
provides an easier installation way for PoE devices, such as IP cameras, wireless AP, Access control system.
Features
8+2BZDN PoE Switch Powercan detect your PoE devices according to PoE standard.Therefore the PoE switch will compatible well with their PoE devices.

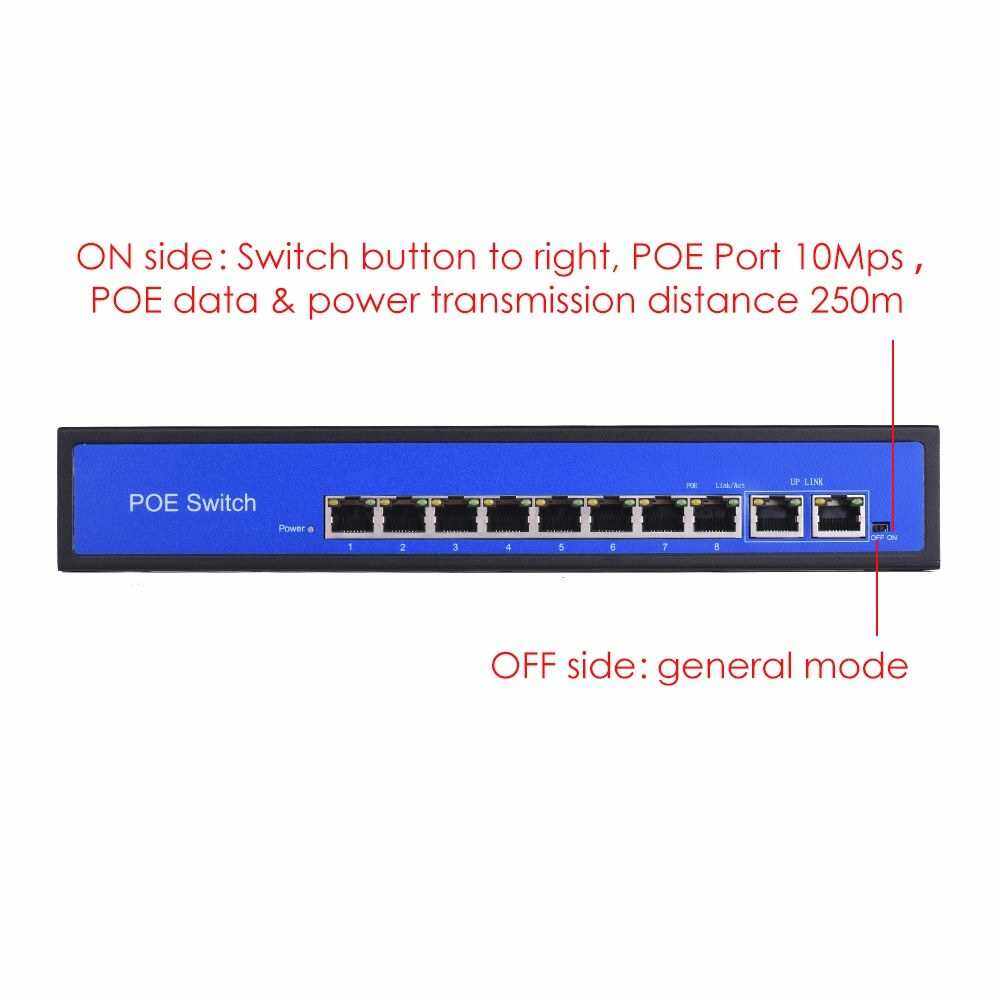

8Ethernet Port and 2 Uplink Ethernet Port can be connected with different equipment, one button to achieve intelligent run.
The max transmission distance is 200 meters with 2.0Gbps.Ideally, shorter cable would reduce the power degradation overthe cables with high quality cables also can reduce power loss.
Plug and play design make the installation super simple, users do not need any configuration.
This PoE switch is a great choice for IP cameras, wireless AP, VoIP users, access control system, for Most devices which support PoE switch.
8+2PoE Switch Parameter
| Product | 8+2PoE Switch |
| Model | 8+2BZDW |
| PoE Switch Port | 1-8 Port support IEEE802.3af/at(15.4W/30W)Network Power Supply |
| SEPPort | Non Support |
| PoE Switch Output Power | 15.4W/30WIEEE802.3af/at |
| PoE Switch Wire Core | 1/2+?3/6-Pair(4/5+?7/8-pair)Optional |

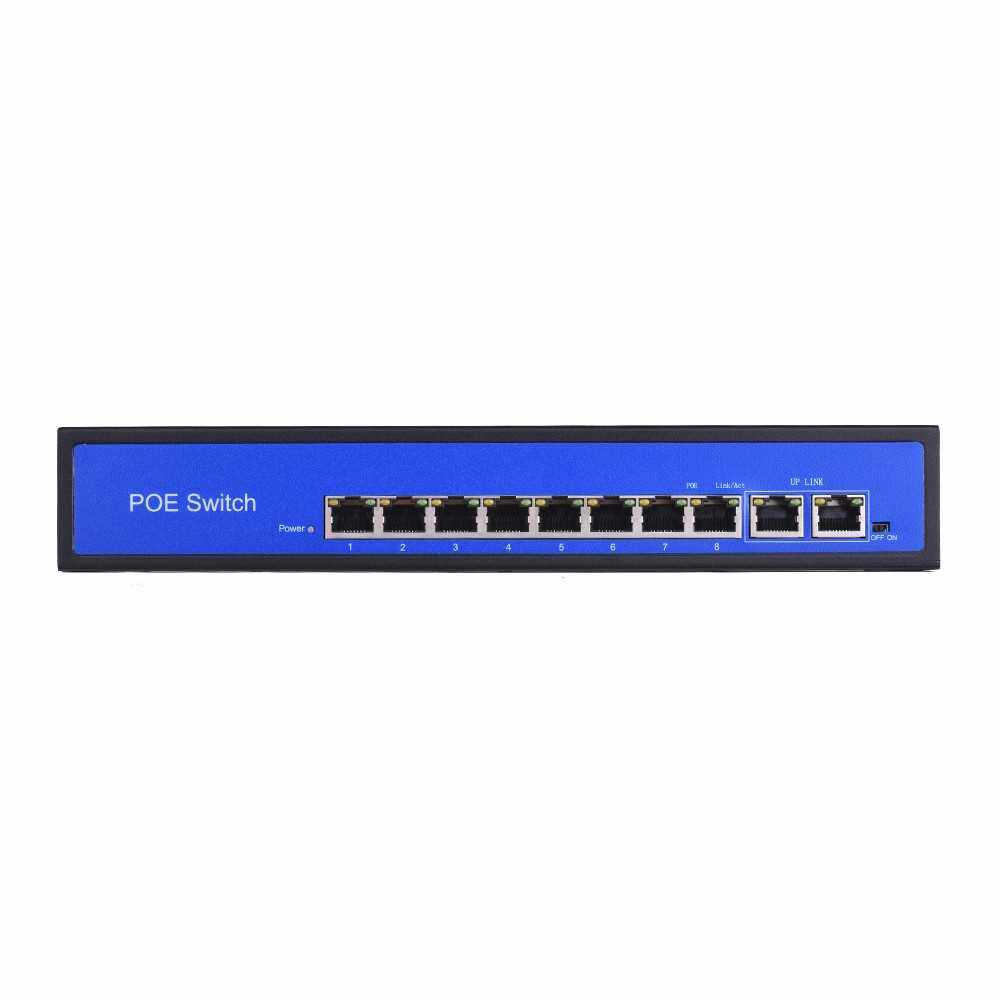

| Port Description | 8 Ethernet Port;2Uplink Ethernet Port |
| PoE Switch Connection Standard | IEEE802.3af/IEEE802.3at |
| PoE Switch Transmission Distance | 200m |
| PoE SwitchType | End Bridging Method |
| Network Standard | IEEE802.3?IEEE802.3u?IEEE802.3x?IEEE802.3af/at |
| Network Medium | 5 Category and above unshielded twisted pair |
| Network Signal Distance | transfer120M |
| Back plan Width | 2.0Gbps |
| Forwarding way | Storage forwarding |
| Forwarding Rate | 10Base-T:14880PPS/port |
| MACAddress | 2KMAC |
| Port Function | Power supply priority mechanism, fast and forwarding, MAC automatic learning and aging IEEE802.3 x full duplex flow control and back pressure half duplex flow control |
| Indicator | Each port has1Link/Actand PoE Switch indicator Each equipment has 1Powerindicator |
| Work Temperature | 0?~40? |
| Storage Temperature | 40?~70? |
| Work humidity | 10%~90%RH(no condensation) |
| Storage humidity | 5%~90%RH(no condensation) |

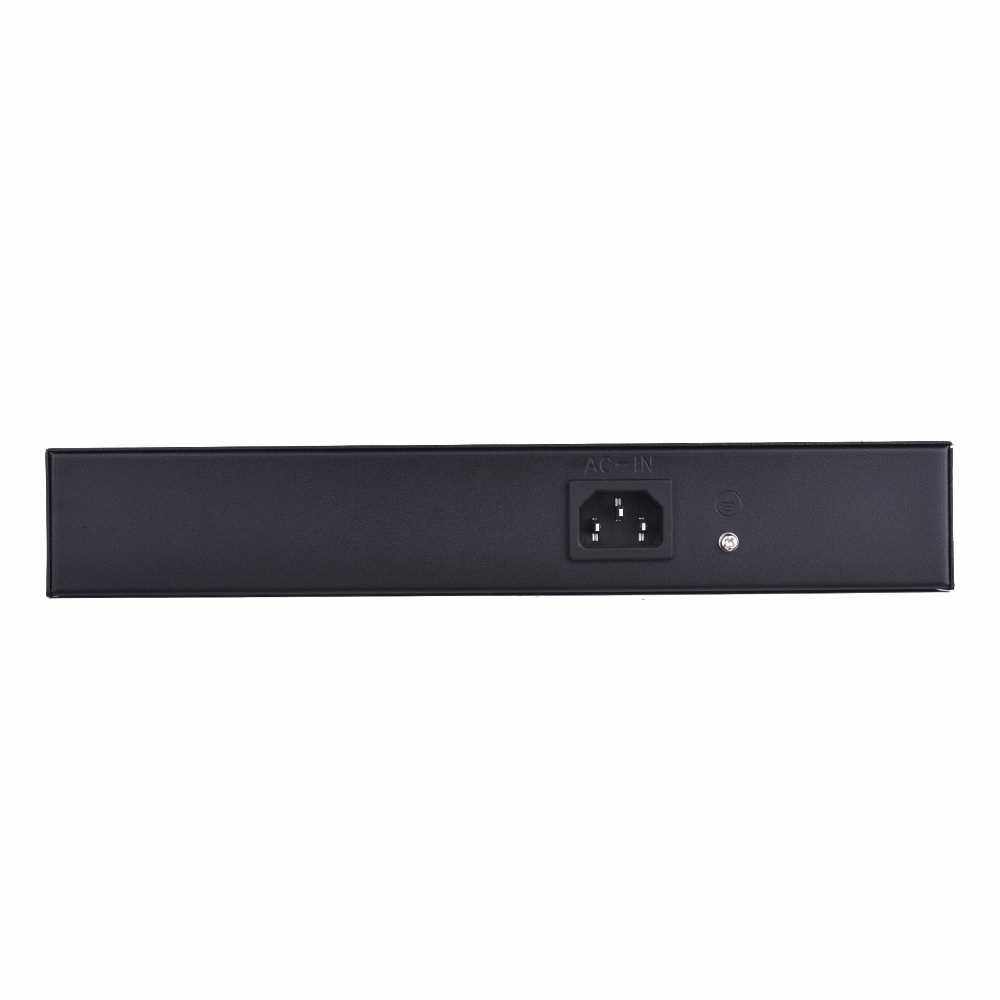

| Power supply | Power adapter(AC220Vinput, 48V3Aoutput) |
| Overall power consumption | 130W |

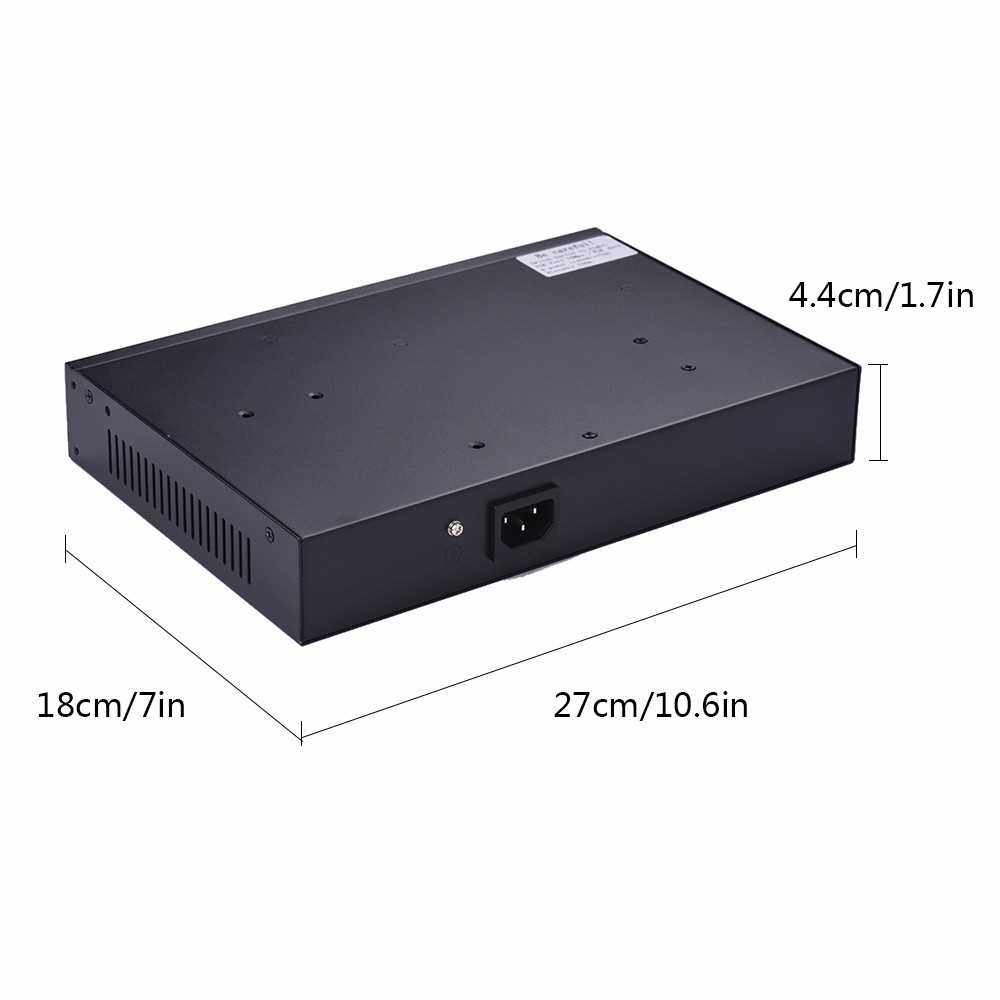

| Product Size/ Cable lengt | 27cm*18cm*4.4cm/10.6*7*.7in,115cm/45in |
| Product weight | 900g/23oz |
Whats Contain
1 * 8+2BZDN PoE Switch Power

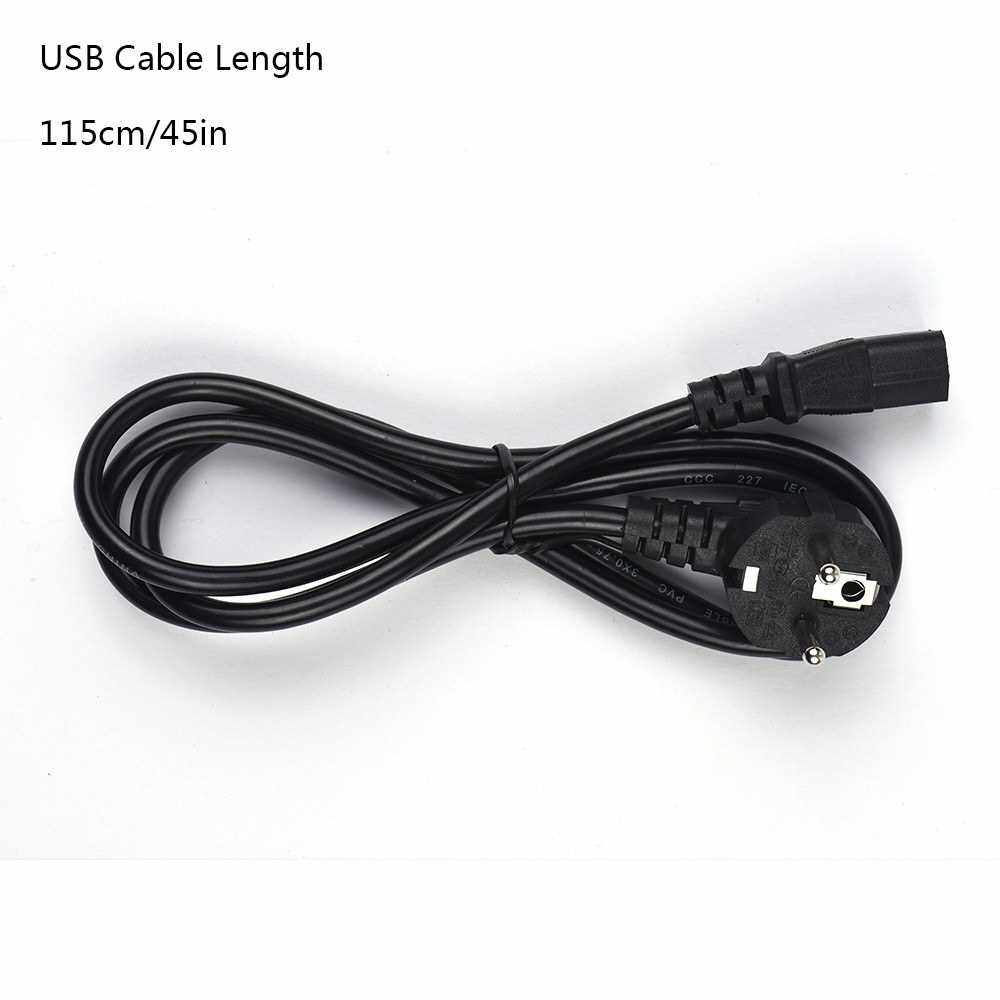

1 * Charging Cable
