BEST SELLER Wireless Outdoor CPE Bridge Outdoor AP Router WDS Network Bridge 2KM Directional Antenna 300Mbps 5.8G 12dBi Wireless Access(A+B) (Standard)

Wish List

Ask Seller

Bulk

RM 287.57

Quantity

–

+

Brand

NO BRAND

Status

Available Now

Delivery

Usually ships within 2-4 days

Delivery Fee

FREE Shipping

Rewards

287 Points

What's in the box:

Wireless Outdoor CPE Bridge Outdoor AP Router WDS Network Bridge 2KM Directional Antenna 300Mbps 5.8G 12dBi Wireless Access(A+B) (Standard)

Especially designed for elevator monitoring and control.

Features:

High Performance with 300Mbps, 680MHz and 64M.

Long-range transmitting distance of 2KM. Provide you with wifi signal with high transmission efficiency.

Stability has been improved by 80% with 9344 chip. Point-to-point connection makes transmission smoother, signal more stable and having more advantages in monitoring.

The mainboard core has passed industrial processor. All parts are new and use AR9344 industrial chip with high transmission efficiency and high data throughput.

Convenient installation. Plug & Play. Wireless access(A+B) automatically.

Widely compatitble with Windows7,Windows8,WindowsXP,Windows2000,Mac OS X,Linux and so on.

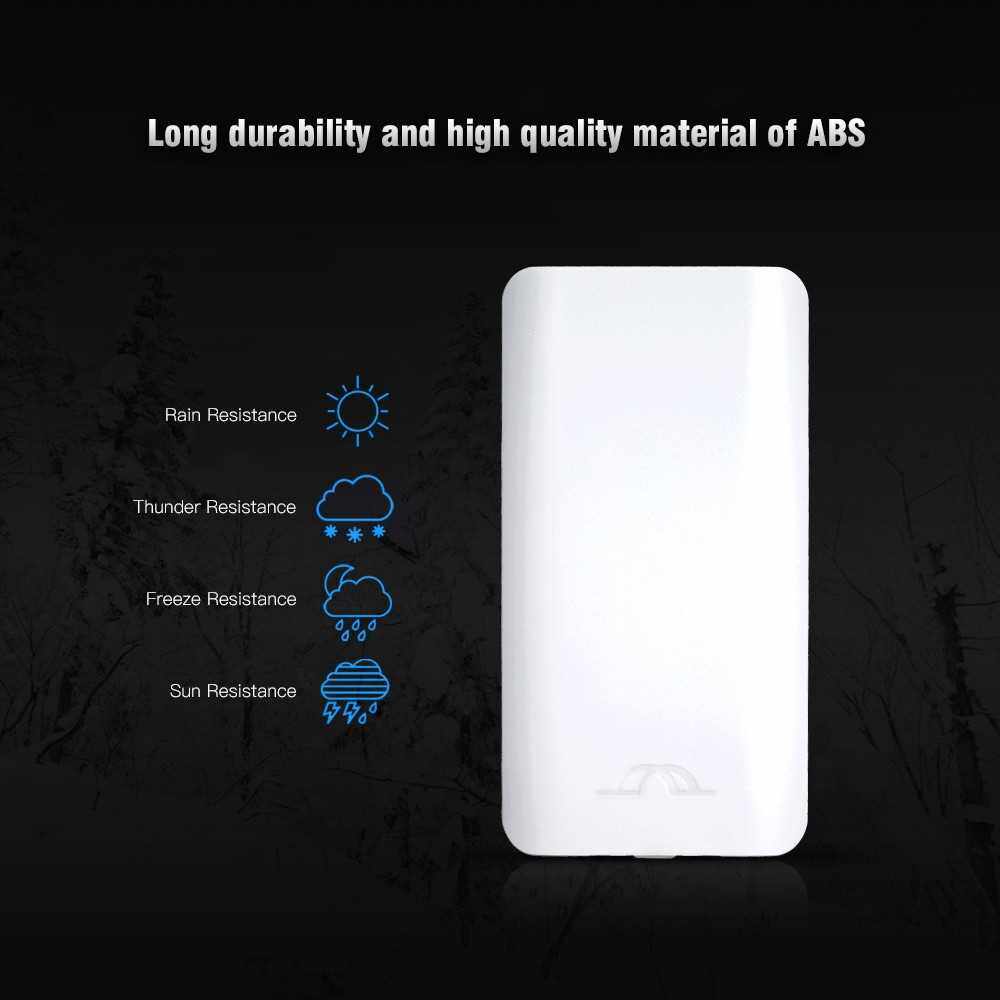

Long durability and high quality material of ABS lead to rain resistance, thunder resistance, freeze resistance and sun resistance.

Specification:

Chipset	AR9344
DRAM	DDR2 64MByte
Interface	10/100Mbps LAN*2
Modulation Mode	OFDM/BPSK/QPSK/CCK/DQPSK/DBPSK
Protocol	CSMA/CA,TCP/IP,IPX/SPX,NetBEUI,DHCP,NDIS3,NDIS4,NDIS5
Frequency Range	49006100MHz
Power Consumption	3W
Standard	IEEE802.11n,IEEE802.11a ,IEEE802.3u
Flash	8MByte
Power Supply	POE 24V 0.5A
Antenna Spec	frequency range	51805825MHz
	Polarization direction	Vertical(horizontal 60/ Vertical 30)
	Gain	12DBi
Management & Security	Telnet	Support
	Serial	Support
	Management based on WEP	Support
	Encryption	WEP encryption 64/128bits,WPA,WPA2,802.1x
Work / Storage environment	working temperature	-3065
	Storage temperature	040
	Humidity (not concentrated)	95%

frequency range	2.4GHz frequency range2.4~2.4835GHz
Spread frequency technique	DSSSDirect sequence spread spectrum
Data Modulation	11a11a:54M,48M,36M,24M,18M,12M,9M,6Mbps
	11n:7.2M,14.4M,21.7M,28.9M,43.3M,57.8M,65M,72.2M,14.4M, 28.9M,43.3M,57.8M,86.7M,115.6M,130M,144.4Mbps
Transmission Power @252dB	802.11a	HT20	MCS 0-3	232dBm
			MCS 4	212dBm
			MCS 5	202dBm
			MCS 6	202dBm
			MCS 7	192dBm
		HT40	MCS 0-3	212dBm
			MCS 4	212dBm
			MCS 5	202dBm
			MCS 6	192dBm
			MCS 7	182dBm
Receiving sensitivity	802.11a	802.11n HT20	802.11n HT40
	-6Mbps 92dBm	MCS 0 -86	MCS 0 -83dBm
