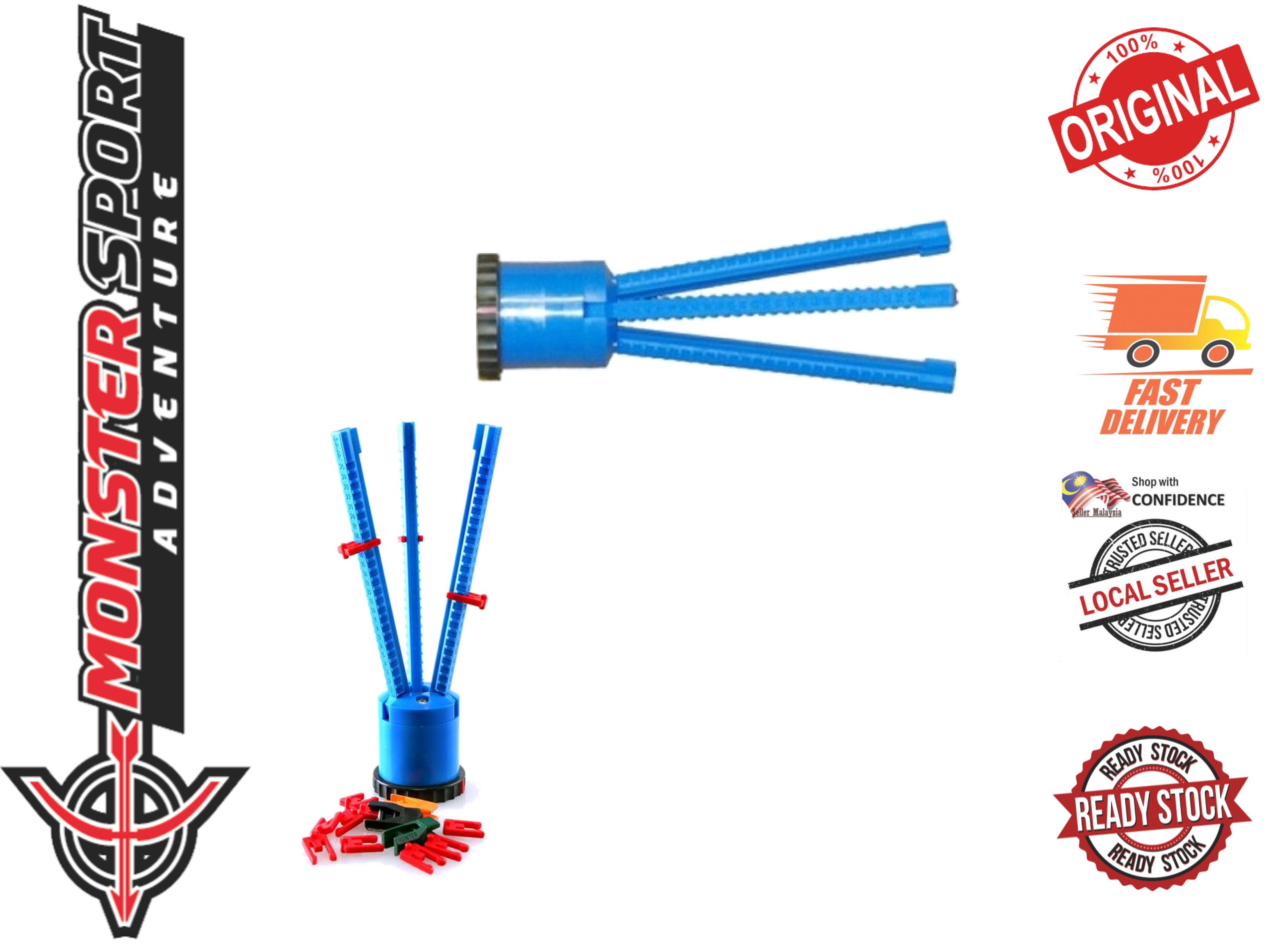

The Beiter Tri Liner is used to mark the exact position of Kurly Vanes on all arrows up to 7.2mm diameter (9/32") Nock-Out-Diameter.

With the Beiter Tri Liner, you draw lines exactly in the position you need. An exact orientation of nock and vanes is possible thanks to the adjusting ring on the back and the tabs on the ruler.

You decide the nock and vane position, as well as where to start and end drawing the lines.

The Tri Liner works for both RH or LH, Recurve or Compound archers.

What you get in the pack...

• • Beiter Tri Liner
  • Nockadapter #1
  • Nockadapter #2
  • 12 Tabs

Instructions:

Open the 3 Rulers and insert the shaft with an installed nock and the related nockadapter in your Beiter Tri Liner. Pay attention that the Beiter logo on the nockadapter and the red indicator on the adjusting ring are on the same side.

Determine the exact nock position by turning the adjusting ring and the correct position of the vanes by installing the red tabs in the desired location.

Press one single ruler per time on the arrow shaft: this will center and position itself thanks to a prisma on the inner side of the ruler.

Now you can draw the line from tab to tab with a suitable pencil. Repeat this process for all three vanes holding only one ruler per time on the shaft.

Extract the arrow shaft from the Beiter Tri Liner, opening the 3 rulers. Until these are closed, the shaft is axially fixed.

Resume your normal fletching procedure by attaching the Kurly Vanes along the accurately drawn lines your Tri Liner has produced.
