What's in the box:
1 X Asus Routert RT-AX86S

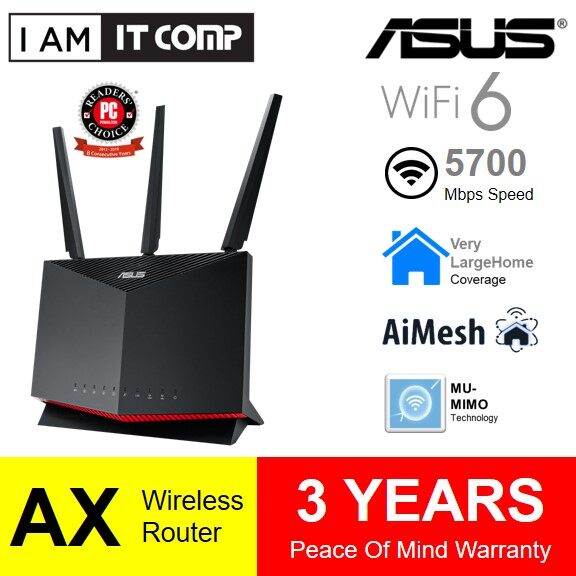

Product details of Asus RT-AX86S Dual Band WiFi 6 Gaming Router supporting Mobile Game Mode , MU-MIMO and OFDMA technology - WiFi 6 , Dual Band
Model Name
RT-AX86U/RT-AX86S
Network Standard
IEEE 802.11a IEEE 802.11b IEEE 802.11g WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) IPv4 IPv6
Product Segment
AX5700 ultimate AX performance : 861+4804Mbps
AX technology
Yes
Data Rate
802.11a : up to 54 Mbps 802.11b : up to 11 Mbps 802.11g : up to 54 Mbps WiFi 4 (802.11n) : up to 450 Mbps WiFi 4 (802.11n) (1024QAM) : up to 750 Mbps WiFi 5 (802.11ac) (1024QAM) : up to 4333 Mbps WiFi 6 (802.11ax) (2.4GHz) : up to 861 Mbps WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps
Antenna
External antenna x 3 Internal PCB antenna x 1
Transmit/Receive
2.4GHz 3x3 5GHz 4x4
Processor
RT-AX86U:1.8GHz quad-core processor RT-AX86S:1.8GHz dual- core processor
Memory
RT-AX86U: 256 MB Flash 1 GB RAM RT-AX86S: 256MB Flash 512MB RAM
Boosts speed
OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth
Operating Frequency
2.4 GHz / 5 GHz
Ports
RT-AX86U: RJ45 for 10/100/1000 BaseT for WAN x 1 RJ45 for 10/100/1000 BaseT for LAN x 4 Five (5) 10/100/1000 Mbps Gigabit Ethernet ports + one (1) 2.5G/1Gbps multi-Gig port (configurable) -- LAN: 4xGbE (2x port aggregation LAN) -- WAN: 1 GbE -- WAN/LAN: 2.5G/1Gbps multi-Gig port (configurable) -- Multi-Gig: Ability to aggregate two Gigabit LAN ports and two Gigabit WAN ports (configurable) concurrently. USB 3.2 Gen 1 x 2 RT-AX86S: RJ45 for 10/100/1000 BaseT for WAN x 1 RJ45 for 10/100/1000 BaseT for LAN x 4 Five (5) 10/100/1000 Mbps Gigabit Ethernet ports -- LAN: 4xGbE (2x port aggregation LAN) -- WAN: 1 GbE -- Multi-Gig: Ability to aggregate two Gigabit LAN ports and two Gigabit WAN ports (configurable) concurrently. USB 3.2 Gen1 x1, 2.0 x1
Button
WPS Button, Reset Button, Power Switch, LED on/off Button
LED Indicator
RT-AX86U: Power x 1 2.4GHz x 1 5GHz x 1 2.5G Port x 1 WAN x 1 LAN x 4 WPS x 1 RT-AX86S: Power x 1 2.4GHz x 1 5GHz x 1 WAN x 1 LAN x 4 WPS x 1 USB x 1
Power Supply
AC Input : 110V~240V(50~60Hz) DC Output : 19 V with max. 2.37 A current / 19.5 V with max. 2.31 A current/ 12 V with max.3 A current
Package content
RT-AX86U: RT-AX86U WiFi router RJ-45 cable Power adapter Quick Start Guide Warranty card RT-AX86S: RT-AX86S WiFi router RJ-45 cable Power adapter Quick Start Guide Warranty card
Product Weight (g)
814.5 g
AiMesh
AiMesh : Yes Primary AiMesh router : Yes AiMesh node : Yes
Router APP
ASUS Router APP : Yes
Game
Game Boost/acceleration : Yes WTFast : No
Alexa
Support Alexa skil : Yes
IFTTT
Support IFTTT : No
AiProtection
AiProtection : AiProtection Pro Router Security Assessment : Yes Malicious site blocking : Yes Two-Way IPS : Yes Infected Device Prevention and Blocking ; Yes
Parental Control
Parental Control : Yes Parental Control Customized Internet schedule : Yes
Traffic Control
Adaptive QoS : Yes Bandwidth Monitor : Yes Bandwidth limiter : Yes Maximum Bandwidth limiter rule : 32 Traditional QoS : Yes Maximum Traditional QoS rule : 32 Traffic Monitor : Yes Real-time traffic monitor : Yes Wired Traffic Monitor : Yes Wireless Traffic Monitor : Yes Traffic Analyzer : Yes Traffic analysis period : Daily, Weekly, Monthly Website history : Yes
Wireless
IPv6 : Yes MU-MIMO : Yes Wi-Fi Encryption : WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support UTF-8 SSID : Yes Guest Network : Yes Maximum Guest Network rule : 2.4GHz x3, 5GHz x3 WPS : Yes Wi-Fi MAC address filter : Yes Maximum MAC filters : 64 Wireless scheduler : Yes Airtime fairness : Yes RADIUS Server : Yes Universal beamforming : Yes Explicit beamforming : Yes IGMP snooping : Yes
WAN
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP Dual WAN : Yes WAN Aggregation : Yes 3G/4G LTE dongle : Yes Android tethering : Yes Port forwarding : Yes Maximum port forwarding rule : 64 Port triggering : Yes Maximum port triggering rule : 32 DMZ : Yes DDNS : Yes NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, PPPoE relay
LAN
DHCP Server : Yes IPTV : Yes LAN Link Aggregation : Yes Manually assign IP address : Yes Maximum manually assign IP address rule : 64
VPN
VPN Client L2PT : Yes VPN Client OVPN : Yes VPN Client PPTP : Yes VPN Server IPSec : Yes VPN Server OVPN : Yes VPN Server PPTP : Yes
USB application
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4 3G/4G LTE dongle : Yes HDD hibernation : Yes Safely Remove disk : Yes AiCloud : Yes Download master : Yes AiDisk : Yes Media Server : Yes Time Machine : Yes Samba Server : Yes FTP Server : Yes Shared Folder privileges : Yes
Administration
Operating mode : Wireless router mode,Access point mode,Media bridge mode,Repeater mode,AiMesh node mode Operating system : ASUSWRT Free OS upgrade : Yes Firewall : Yes Maximum Firewall keyword filter : 64 Maximum Firewall network service filter : 32 Maximum Firewall URL filter : 64 Wake on LAN (WOL) : Yes SSH : Yes Configuration backup and restore : Yes Diagnosis tools : Yes Feedback system : Yes System log : Yes
