• Extended-run battery systems provide flexible runtime to critical Smart-UPS applications.
• Includes: Installation guide, Rack mounting brackets, Warranty card

SRT192RMBP2 Features

Key Features
Rack Height : 3U

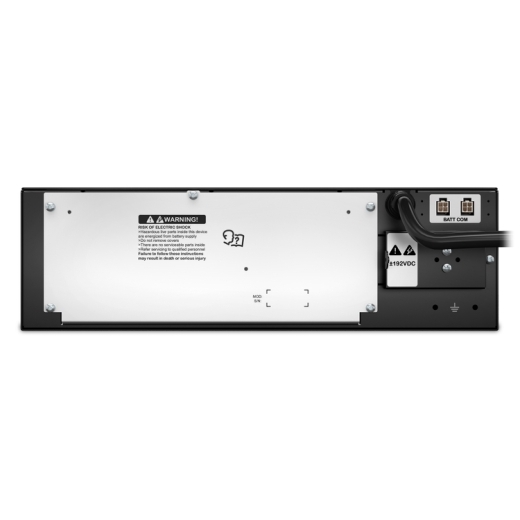

APC Smart-UPS SRT Battery Pack (8kVA & 10kVA) 192V, 1920VAh, rackmount, 3U
Extended-run battery systems provide flexible runtime to critical Smart-UPS applications.
Includes: Installation guide, Rack mounting brackets, Warranty card

Hot-swappable batteries : Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Smart-UPS Battery Systems Features & Benefits

Availability
Advanced battery management included : Embedded monitoring at the cell, module, and cabinet level provides a clear picture of battery runtime and health, with the added benefits of predictable, consistent runtime performance, and stable cell health.
Multiple battery pack configuration : Connect up to 10 battery packs for extended runtime applications.

Technical Specifications

Output
Battery Output Voltage : +/- 192 V

Batteries & Runtime
Battery type : Lead-acid battery
Battery mounting : Stand alone battery stack
Expected Battery Life (years) : 3 - 5
RBC Quantity : 2

Physical
Maximum Height : 130MM, 13.0CM
Maximum Width : 432MM, 43.2CM
Maximum Depth : 683MM, 68.27CM
Net Weight : 91.0KG
Color : Black
Units per Pallet : 1.0

Environmental
Operating Temperature : 0 - 40 °C
Operating Relative Humidity : 0 - 95 (Non-condensing) %
Operating Elevation : 0 - 3048meters
Storage Temperature : -15 - 45 °C
Storage Relative Humidity : 0 - 95 (Non-condensing) %
Storage Elevation : 0 - 15240meters

Conformance
Approvals : OSHPD
Standard warranty : 2 years repair or replace

Sustainable Offer Status
RoHS : Compliant
