• APC Smart-UPS SC is ideal for small and medium businesses looking to protect networking equipment and point-of-sale (POS) devices from power disturbances and outages ...
• Includes: CD with software, Smart UPS signalling RS-232 cable, User manual

SC620I Features

Key Features
Output power capacity : 390 Watts / 620VA

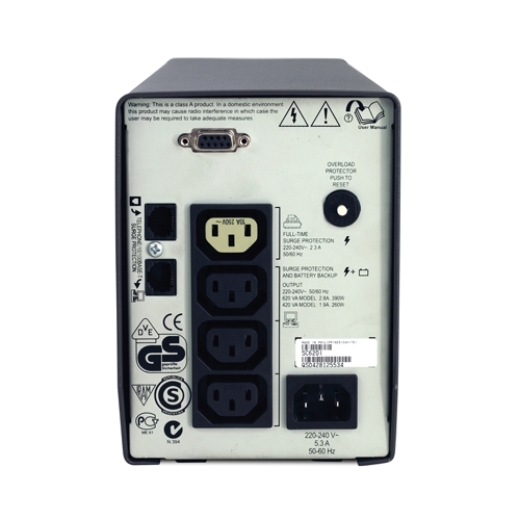

Output Connections : (2) IEC Jumpers (Battery Backup)
                                      (1) IEC 320 C13 (Surge Protection)
                                      (3) IEC 320 C13 (Battery Backup)
Nominal Output Voltage : 230V
Nominal Input Voltage : 230V
Input Connections : IEC 320 C14
Battery-protected and surge-only outlets : Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment

Smart-UPS Features & Benefits

Marketing features
Avoids costly power problems by keeping your IT equipment and data safe and available : Network grade power conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systems
Peace of mind that comes with full equipment compatibility and reliability of a leader : Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.
Low operating and maintenance costs with high efficiency, proven reliability and intelligent battery management : Patented green operating mode achieves efficiencies over 97%. Smart-ups was the first network UPS to be Energy Star certified. Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Dynamic battery replacement date indicator and automatic self tests insure battery reliability and warn in advance of needing replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down. Designed and manufactured by APC for over 23 years, Smart-UPS is the world’s most trusted network UPS with over 25 million units sold.
Smarter productivity with ability to tailor to your specific application needs : Intuitive LCD interface provides clear information with the ability to configure the UPS locally with easy to use navigation keys. Over 15 different programmable settings including switched outlet group control allow for application specific settings, thresholds and notifications.
Save time with easy and convenient remote accessibility : Network manageable via serial, USB or optional ethernet. Includes Powerchute® Business Edition Software for convenient monitoring and control, safe operating system shutdown and innovative energy management capabilities.

Manageability
USB connectivity : Provides management of the UPS via a USB port (not available on all models).
LED status indicators : Quickly understand unit and power status with visual indicators.
Audible alarms : Provides notification of changing utility power and UPS conditions.
Serial connectivity : Provides management of the UPS via a serial port.
Network manageable : Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded.

Serviceability
User-replaceable batteries : Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Hot-swappable batteries : Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Battery failure notification : Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Resettable circuit breakers : Enables a quick recovery from overload events.
Predictive failure notification. : Provides early-warning fault analysis ensuring proactive component replacement.

Availability
Automatic self-test : Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Automatic restart of loads after UPS shutdown : Automatically starts up the connected equipment upon the return of utility power.
Disconnected battery notification : Warns when a battery is not available to provide backup power.
Boost and Trim Automatic Voltage Regulation (AVR) : Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
Power conditioning : Protects connected loads from surges, spikes, lightning, and other power disturbances.
Intelligent battery management : Maximizes battery performance, life, and reliability through intelligent, precision charging.
Temperature-compensated battery charging : Prolongs battery life by regulating the charge voltage according to battery temperature.

Safety
Safety-agency approved : Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Adaptability
Adjustable voltage sensitivity : Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Adjustable voltage-transfer points : Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.

Technical Specifications

Output
Max Configurable Power (Watts) : 390 Watts / 620VA
Output Frequency (sync to mains) : 50/60 Hz +/- 3 Hz Sync to mains
Topology : Line interactive
Waveform type : Stepped approximation to a sinewave
Transfer Time : 2 ms typical

Input
Input frequency : 50/60 Hz +/- 3 Hz Auto-sensing
Input voltage range for main operations : 195 - 265V

Batteries & Runtime
Battery type : Lead-acid battery
Typical recharge time : 5hour(s)
Nominal Battery Voltage : 12 V
Replacement Battery : RBC4
Expected Battery Life (years) : 3 - 5
RBC Quantity : 1
Battery Charge Power (Watts) : 26 Watts
Runtime : View Runtime Graph
Efficiency : View Efficiency Graph

Communications & Management
Interface Port(s) : DB-9 RS-232
Control panel : LED status display with on line : on battery : replace battery and overload indicators
Audible Alarm : Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering
Surge energy rating : 320Joules
Data Line Protection : RJ45 modem/fax/DSL/10-100 base-T protection
Filtering : Full time multi-pole noise filtering : 0.7% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical
Maximum Height : 168MM, 16.8CM
Maximum Width : 119MM, 11.9CM
Maximum Depth : 375MM, 37.5CM
Net Weight : 12.27KG
Color : Grey
Units per Pallet : 12.0

Environmental
Operating Temperature : 0 - 40 °C
Operating Relative Humidity : 0 - 95 %
Operating Elevation : 0 - 3048meters
Storage Temperature : -15 - 45 °C
Storage Relative Humidity : 0 - 95 %
Storage Elevation : 0 - 15240meters
Audible noise at 1 meter from surface of unit : 45.0dBA
Online thermal dissipation : 70.0BTU/hr

Conformance
Approvals : CE, EAC, GOST, VCCI, VDE
Standard warranty : 2 years repair or replace

Sustainable Offer Status
RoHS : Compliant
