• Extended-run battery systems provide flexible runtime to critical Smart-UPS applications.
• Includes: Installation guide, Warranty card

SRTG192XLBP4 Features

Key Features
Rack Height : 3U

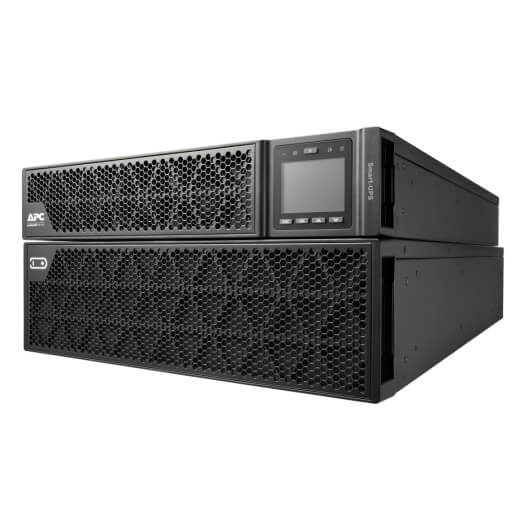

APC Smart-UPS RT Battery Pack 192V, rackmount, 3U
Extended-run battery systems provide flexible runtime to critical Smart-UPS applications.
Includes: Installation guide, Warranty card

Smart-UPS Battery Systems Features & Benefits

Availability
Advanced battery management included : Embedded monitoring at the cell, module, and cabinet level provides a clear picture of battery runtime and health, with the added benefits of predictable, consistent runtime performance, and stable cell health.
Multiple battery pack configuration : Connect up to 10 battery packs for extended runtime applications.

Technical Specifications

Output
Battery Output Voltage : 192 V

Batteries & Runtime
Battery type : Lead-acid battery
Included Battery Modules : 4
Battery mounting : Rack mount, Stand alone battery stack
Expected Battery Life (years) : 3 - 5
RBC Quantity : 2"
Battery Design Life : 2

Physical
Maximum Height : 130MM, 13.0CM
Maximum Width : 440MM, 44.0CM
Maximum Depth : 683MM, 68.3CM
Net Weight : 91.0K
Color : Black

Environmental
Operating Temperature : 0 - 40 °C
Operating Relative Humidity : 0 - 95 (Non-condensing) %
Operating Elevation : 0 - 2011.68meters
Storage Relative Humidity : 0 - 95 (Non-condensing) %
Storage Elevation : 0 - 15240meters

Conformance
Standard warranty : 2 years
