Output
Max Configurable Power (Watts) : 8.0kWatts / 8.0kVA
Output Voltage Note : Configurable for 220 : 230 or 240 nominal output voltage
Output Voltage Distortion : Less than 2 %
Output Frequency (sync to mains) : 50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages : 220 V, 240 V
Topology :Double conversion online

Input
Input frequency : 40 - 70 Hz Auto-sensing
Input voltage range for main operations : 160 - 285V
Other Input Voltages : 220 V, 240 V

Batteries & Runtime
Battery type : Lead-acid battery
Included Battery Modules : 2
Typical recharge time : 4hour(s)
Nominal Battery Voltage : +/- 96 V
Expected Battery Life (years) : 3 - 5
Battery Charge Power (Watts) : 392 Watts
Extendable Run Time : 1
Battery Volt-Amp-Hour Capacity : 1680
Runtime : View Runtime Graph
Efficiency : View Efficiency Graph

Communications & Management

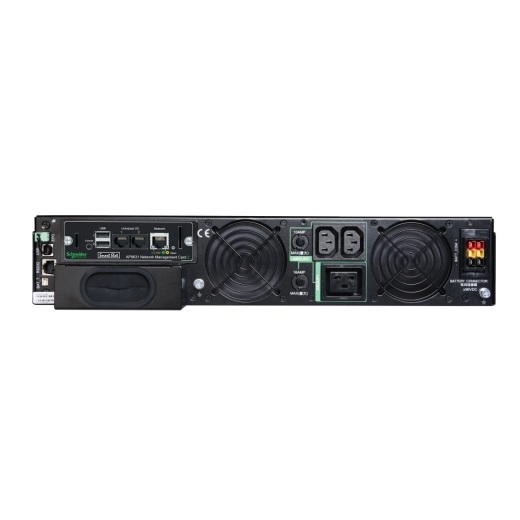

Interface Port(s) : RJ-45 Serial, Smart-Slot, USB
Control panel : LED Status display with on line : on battery, Multifunction LCD status and control console
Audible Alarm : Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency Power Off (EPO) : Yes

Physical
Maximum Height : 217MM, 21.7CM
Maximum Width : 440MM, 44.0CM
Maximum Depth : 620MM, 62.0CM
Net Weight : 81.12KG

Environmental
Operating Temperature : 0 - 40 °C
Operating Relative Humidity : 0 - 95 (Non-condensing) %
Operating Elevation : 0 - 2011.68meters
Storage Temperature : -15 - 45 °C
Storage Relative Humidity : 0 - 95 (Non-condensing) %
Storage Elevation : 0 - 15240meters
Audible noise at 1 meter from surface of unit : 55.0dBA
Online thermal dissipation : 1774.0BTU/hr
Protection Class : IP20

Conformance
Approvals : CE, EN/IEC 62040-1
Standard warranty : 3 years repair or replace (excluding battery) and 2 years for battery
