• High availability, ruggedized power protection for shipboard and other transportation applications.
• Includes: CD with software, Documentation CD, Installation guide, Rack mounting hardware, Smart UPS signalling RS-232 cable, User manual

SURTD2200XLIM Features

Output power capacity : 1.54kWatts / 2.2kVA
Rack Height : 3U

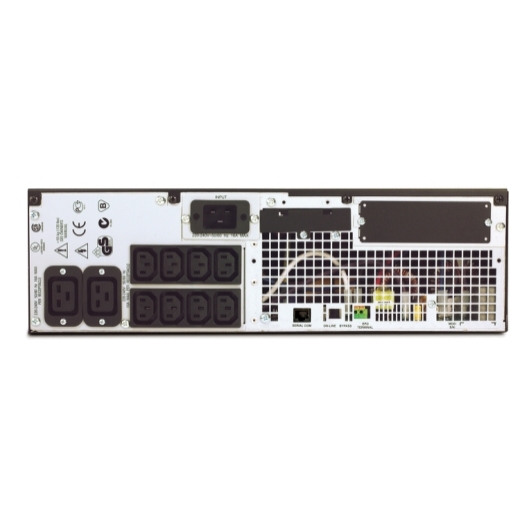

Output Connections : (2) IEC 60320 C19 (Battery Backup)
                                      (8) IEC 60320 C13 (Battery Backup)
                                      (2) IEC Jumpers (Battery Backup)
Nominal Output Voltage : 230V
Nominal Input Voltage : 230V
Input Connections : BS1363A British, IEC 60320 C20, Schuko CEE 7 / EU1-16P
Cord Length : 2.5meters

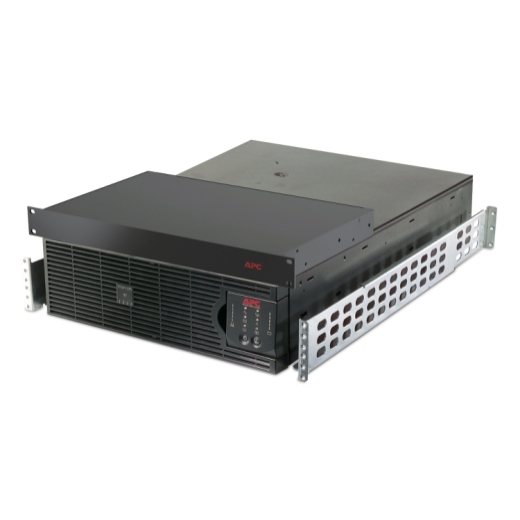

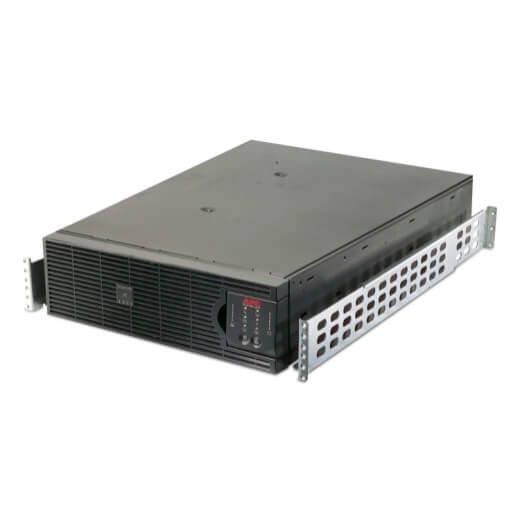

APC Smart-UPS RT 2200VA 230V - Marine
High availability, ruggedized power protection for shipboard and other transportation applications.
Includes: CD with software, Documentation CD, Installation guide, Rack mounting hardware, Smart UPS signaling RS-232 cable, User manual

Advanced electrical features: Excellent power conditioning, very low harmonic distortion through IGBT rectifier, input power factor correction, and high power efficiency
Audible alarms : Provides notification of changing utility power and UPS power conditions
Automatic internal bypass : Pure static bypass switch without bridging contactor securing a fast and reliable transfer to and from bypass, rated for 125% nominal load.
Automatic restart of loads after UPS shutdown : Automatically starts up the connected equipment upon the return of utility power.
Automatic self-test : Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Disconnected battery notification : Warns when a battery is not available to provide backup power.
Double conversion on-line topology : Guarantees a consistently high level of power quality. Any disturbances on the distribution waveform are regenerated via the zero transfer time AC to DC then DC to AC conversion process. The battery is only used as a back-up source.
Excellent footprint : Small UPS footprint provides maximum usage of valuable electrical room floorspace
Fast battery charging capability : Allows for reduced battery recharge time, prevents disturbances on the distribution system by correcting the power factor, protects the battery against damage caused by deep discharge and provides backfeed protection.
Field-replaceable power distribution panel : Ensures compatibility with equipment that has different plug types.
Frequency and voltage regulation : Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
Front-access servicing : Simplifies installation and UPS maintenance while minimizing space requirements.
Generator compatible : Ensures clean, uninterrupted power to protected equipment when generator power is used.
Global safety approvals  : UL60950, CSA60950, IEC60950, EN60950 safety approvals. Meets IEC 61000-4-5 Immunity To Surge, and GR-1089-CORE, Section 4, Lightning and AC Power Faults standards.
High online efficiency : Reduces utility costs, generates less heat.
Hot-swappable batteries : Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Input power factor correction : Minimizes installation costs by enabling the use of smaller generators and cabling.
Intelligent Battery Charging : Microprocessor controlled, 3-stage regulated charging ensures the fastest recharge times without decreasing battery life.
Intelligent battery management : Maximizes battery performance, life, and reliability through intelligent, precision charging.
Intuitive monitoring : Step by step navigation and menu screens for critical system information and data. Information is easy to access and presented in a very intuitive way.
LED Indicators : Provide easy-to-read status of the unit and utility power conditions.
Network manageable : Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded.
Overload protection : Safeguards unit from damage by automatically turning it off in the event of a short circuit or overload.
Power conditioning : Protects connected loads from surges, spikes, lightning, and other power disturbances.
Predictive failure notification. : Provides early-warning fault analysis ensuring proactive component replacement.
Predictive replace battery date : Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Programmable frequency : Ensures compatibility with different input frequencies.
Pure sine wave output on battery : Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Remote UPS management : Enable management of your UPS by connecting it directly to the network.
Safety-agency approved : The UPS is UL1778 Listed
Scalable runtime : Allows additional run time to be quickly added as needed.
Serial connectivity : Provides management of the UPS via a serial port.
Sine wave output : Eliminates humming and heat generated when powering tube lights and fans
Single switched outlet group : Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
Temperature-compensated battery charging : Prolongs battery life by regulating the charge voltage according to battery temperature.
User-replaceable batteries : Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR
Wide input voltage range : Designed for harsh electrical environments to save battery life.

Marine Features & Benefits

Serviceability
User-replaceable batteries : Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Technical support : Our experienced technical support engineers are available to answer your questions, giving you peace of mind knowing the help you need is there when you need it.
Hot-swappable batteries : Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Easy to install : Innovative design allows for fast, easy installation by almost anybody.

Manageability
Intelligent battery management : Maximizes battery performance, life, and reliability through intelligent, precision charging.
SmartSlot : Customize UPS capabilities with management cards.

Serial connectivity : Provides management of the UPS via a serial port.
LED Indicators : Provide easy-to-read status of the unit and utility power conditions.

Availability
Automatic self-test : Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Automatic restart of loads after UPS shutdown : Automatically starts up the connected equipment upon the return of utility power.
Pure sine wave output on battery : Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Power conditioning : Protects connected loads from surges, spikes, lightning, and other power disturbances.
Temperature-compensated battery charging : Prolongs battery life by regulating the charge voltage according to battery temperature.



Technical Specifications

Output
Max Configurable Power (Watts) : 1.54kWatts / 2.2kVA
Output Voltage Note : Configurable for 220 : 230 or 240 nominal output voltage
Output Voltage Distortion : Less than 3 %
Output Frequency (sync to mains) : 50 Hz +/- 0.1 % For 50 Hz nominal Unsynchronised, 50/60 Hz +/- 3 Hz user adjustable +/- 0.1 Hz Sync to mains, 60 Hz +/- 0.1 % For 60 Hz nominal Unsynchronised
Other Output Voltages : 220 V, 240 V
Load Crest Factor : 3 : 1
Topology : Double conversion online
Waveform type : Sine wave
Bypass : Internal bypass (automatic and manual)

Input
Input frequency : 50/60 Hz +/- 5 Hz Auto-sensing
Input voltage range for main operations : 180 - 280V
Number of Power Cords : 1
Other Input Voltages : 220 V, 240 V

Batteries & Runtime
Battery type : Lead-acid battery
Included Battery Modules : 2
Typical recharge time : 2.5hour(s)
Replacement Battery : APCRBC140
Expected Battery Life (years) : 3 - 5
RBC Quantity : 1
Battery Charge Power (Watts) : 382 Watts
Extendable Run Time : 1
Runtime : View Runtime Graph

Communications & Management

Interface Port(s) : RJ-45 Serial, Smart-Slot
Pre-Installed SmartSlot™ Cards : AP9613
Control panel : LED status display with load and battery bar-graphs and on line : on battery : replace battery : overload and bypass indicators
Audible Alarm : Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency Power Off (EPO) : Yes

Surge Protection and Filtering

Surge energy rating : 555Joules
Filtering : Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical
Maximum Height : 432MM, 43.2CM
Maximum Width : 130MM, 13.0CM
Maximum Depth : 660MM, 66.0CM
Net Weight : 54.55KG
Color : Black
Units per Pallet : 6.0

Environmental
Operating Temperature : 0 - 55 °C
Operating Relative Humidity : 0 - 95 (Non-condensing) %
Operating Elevation : 0 - 3048meters
Storage Temperature : 15 - 45 °C
Storage Relative Humidity : 0 - 95 (Non-condensing) %
Storage Elevation : 0 - 15240meters
Audible noise at 1 meter from surface of unit : 55.0dBA
Online thermal dissipation : 609.0BTU/hr
Protection Class : IP20

Conformance
Approvals : CE, DNV, EN 50091-1, EN 50091-2, EN 55022 class A, EN 60950, EN 61000-3-2, KCC
Standard warranty : 2 years repair or replace, optional extended warranties available, optional on-site services available

Sustainable Offer Status
RoHS : Compliant
