Product Information
High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in ...
Includes: Dust filter, Installation guide
E3SUPS20KHB Features
Key Features

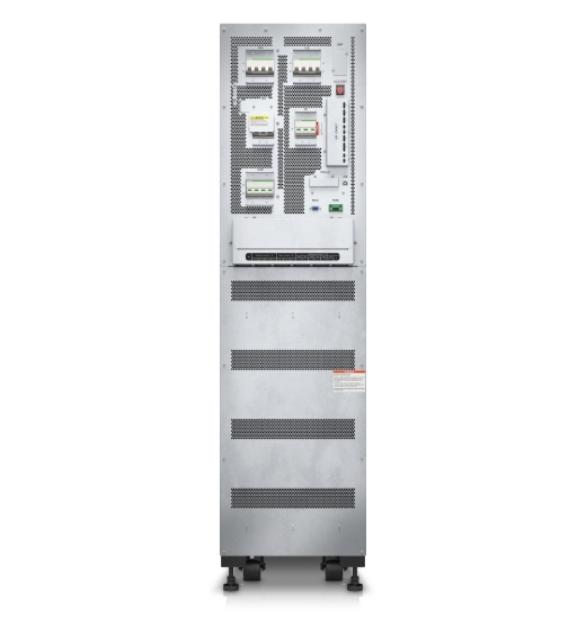

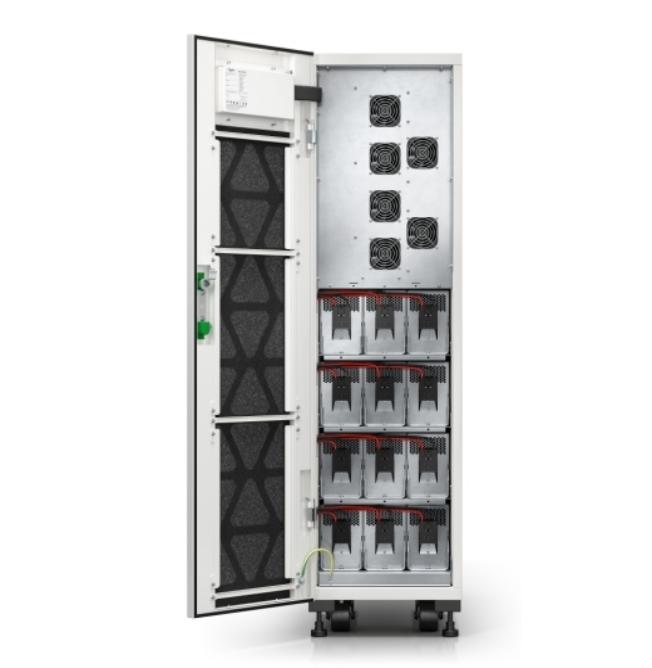

Output power capacity20.0kWatts / 20.0kVANominal Output Voltage400V 3PHNominal Input Voltage400V 3PHMaximum Input Current37.0AEasy UPS 3S 20 kVA 400 V 3:3 UPS for internal batteriesHigh-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 20 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is for internal batteries, but is supplied without batteries, so you can easily customize the battery runtime. For battery runtime details, see the runtime charts published under the Documents tab.Includes: Dust filter, Installation guide
Easy UPS 3S Features & Benefits
Protection
Optional SNMP CardWhen you purchase the SNMP card, you can monitor and manage UPS status remotely through the UPS Web interface or through EcoStruxure IT's cloud-based and on-premise software suites. Click here for more information about EcoStruxure IT.Parallel capabilityMultiple units can be placed in parallel to meet power capacity and redundancy requirementsReplaceable dust filtersprotect the UPS in harsh environments.Wide Input Voltage WindowSaves your battery power for when you really need it - during power cuts!Convenience
Intuitive user interfaceThe intuitive graphical user interface allows for easy system configuration.Easy to install fastQuickly roll the compact and lightweight UPS into position.Straightforward installationIncluding the input, output, and bypass breakers, as well as the Emergency Power Off (EPO) switch, simplifies installation planning and speeds up deployment.ECO ModeOperating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protectionEasy Loop TestVerifies UPS performance before you connect your load, without the need for a load bank.Front-access servicingSimplifies installation and UPS maintenance while minimizing space requirementsOutput
Max Configurable Power (Watts)20.0kWatts / 20.0kVAOutput Voltage DistortionLess than 3 %Output Frequency (sync to mains)50 Hz Sync to mains, 60 Hz Sync to mainsOther Output Voltages380 V, 415 VTopologyDouble conversion onlineOutput Voltage THD< 3% linear loadOutput Voltage Tolerance+/- 1.5 %Input
Input frequency45 - 65 HzInput voltage range for main operations304 - 477VInput Total Harmonic DistortionLess than 3 % for full loadOther Input Voltages380 V, 415 VInput Power Factor at Full Load0.99Batteries & Runtime
Battery typeVRLANominal Battery Voltage240 VBattery Slots Empty3Maximum Available Short Circuit Current10kAmpsEfficiencyCommunications & Management
Interface Port(s)E3S_Parallel, E3S_TempSensorPhysical
Maximum Height1400MM, 140.0CMMaximum Width380MM, 38.0CMMaximum Depth928MM, 92.8CMNet Weight122.0KGColorWhiteEnvironmental
Operating Temperature0 - 40 °COperating Relative Humidity0 - 95 (Non-condensing) %Operating Elevation0 - 1015.9metersStorage Temperature-15 - 40 °CStorage Relative Humidity0 - 95 (Non-condensing) %Storage Elevation0 - 15240metersOnline thermal dissipation900.0BTU/hrProtection ClassIP20Conformance
ApprovalsCE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCMStandard warranty1 year on-site repair or replace with factory authorized Start-UpSustainable Offer Status
RoHSCompliant
