• High availability, ruggedized power protection for shipboard and other transportation applications.

• Includes: Installation guide, Mounting hardware, User manual

SURT023M Features
Key Features
Rack Height : 1U

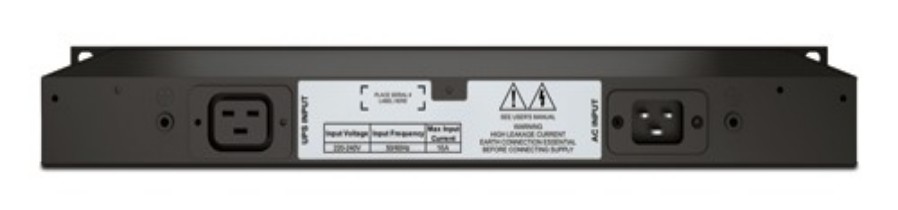

Output Connections : (1) IEC 60320 C19
Nominal Output Voltage : 200V, 208V, 220V, 230V, 240V
Nominal Input Voltage : 208V, 220V, 230V, 240V
Input Connections : IEC 60320 C20
Cord Length : 2.4meters

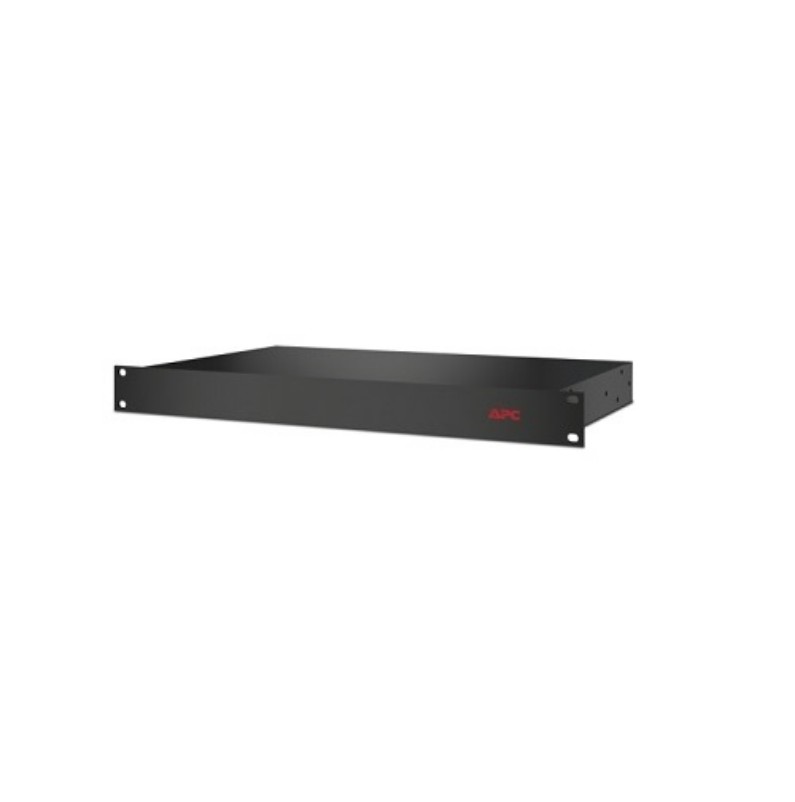

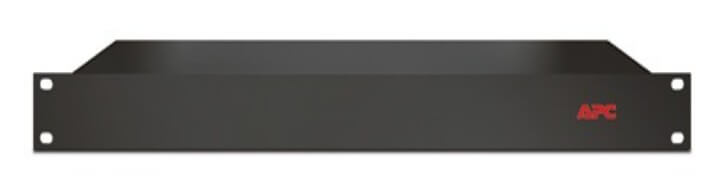

APC 3000VA Filter - MARINE
Hardwire capable : For installations where hard wiring is required or preferred

Marine Features & Benefits
Serviceability
Technical support : Our experienced technical support engineers are available to answer your questions, giving you peace of mind knowing the help you need is there when you need it.
Easy to install : Innovative design allows for fast, easy installation by almost anybody.
User-replaceable batteries : Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Hot-swappable batteries : Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Manageability
Intelligent battery management : Maximizes battery performance, life, and reliability through intelligent, precision charging.
LED Indicators : Provide easy-to-read status of the unit and utility power conditions.
Serial connectivity : Provides management of the UPS via a serial port.
SmartSlot : Customize UPS capabilities with management cards.

Availability
Pure sine wave output on battery : Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Automatic restart of loads after UPS shutdown : Automatically starts up the connected equipment upon the return of utility power.
Temperature-compensated battery charging : Prolongs battery life by regulating the charge voltage according to battery temperature.
Automatic self-test : Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Power conditioning : Protects connected loads from surges, spikes, lightning, and other power disturbances.

Technical Specifications
Output
Other Output Voltages : 208 V, 220 V, 230 V, 240 V
Always on Outlets : 1
Overload Protection : No
Cord Length : 2.4meters
Maximum Total Current Draw : 16

Input
Input frequency : 47 - 63 Hz
Acceptable Input Voltage : 100 - 240VAC
Number of Power Cords : 1
Input Power : 2100 Watts
Load Capacity : 3000VA
Maximum Input Current :16A
Maximum Line Current : 16A
Regulatory Derated Input Current (North America) : 16A

Physical
Maximum Height : 44MM, 4.4CM
Maximum Width : 432MM, 43.2CM
Maximum Depth : 279MM, 27.9CM
Net Weight : 5.09KG
Color : Black
Units per Pallet : 60.0

Environmental
Operating Temperature : 0 - 55 °C
Operating Relative Humidity : 0 - 95 %
Operating Elevation : 0 - 3048meters
Storage Temperature : -25 - 75 °C
Storage Relative Humidity : 0 - 95 %
Storage Elevation : 0 - 15240meters

Conformance
Approvals : DNV
Standard warranty : 2 years repair or replace

Sustainable Offer Status
RoHS : Compliant
