What's in the box:

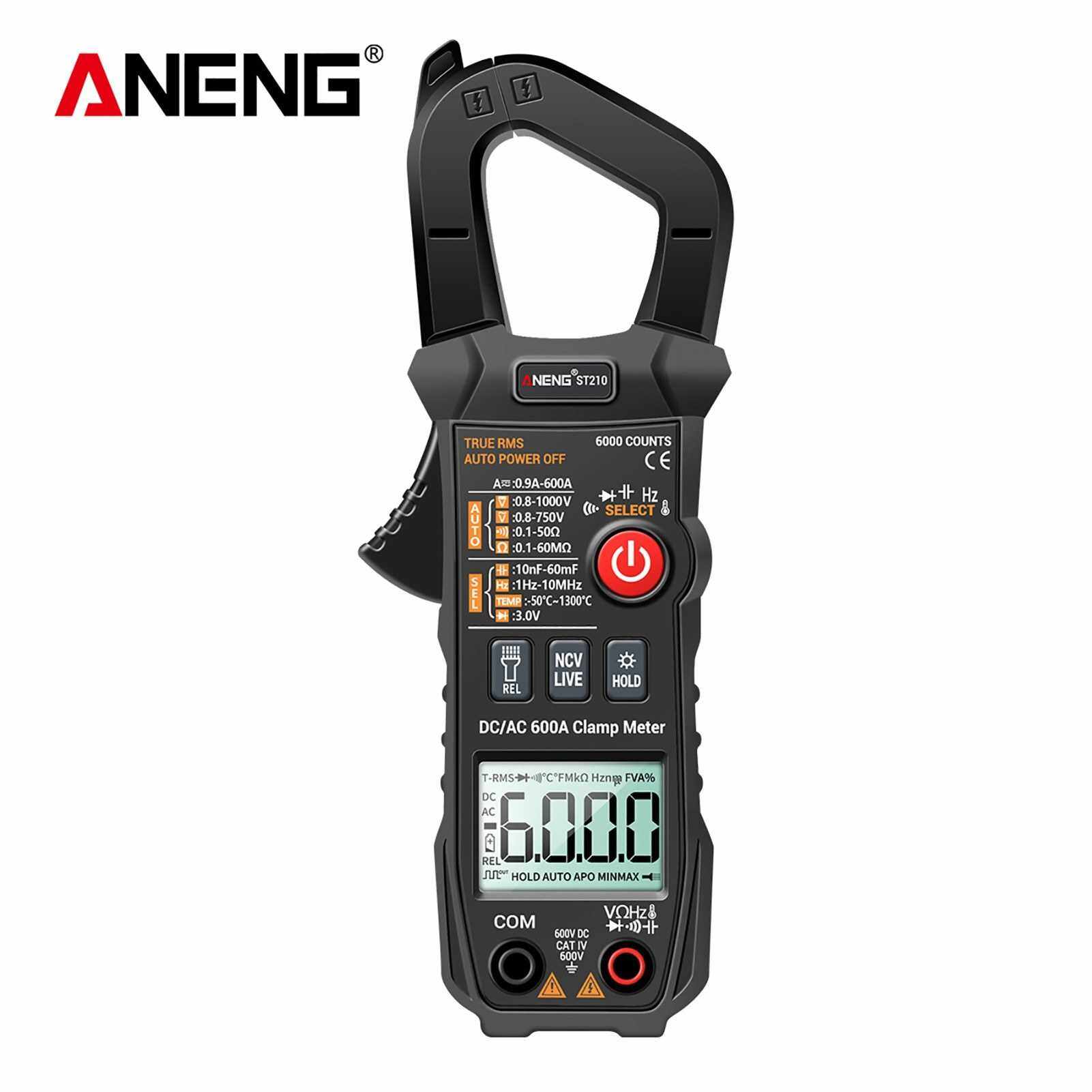

ANENG Digital Clamp Meter AC/DC Current Clamp True-RMS Multimeter Auto-Ranging Multi Tester with Amp Volt Ohm Resistance Capacitance Continuity Diode Temperature Frequency NCV Tests for Automotive Electronic HVAC Tech (Black)

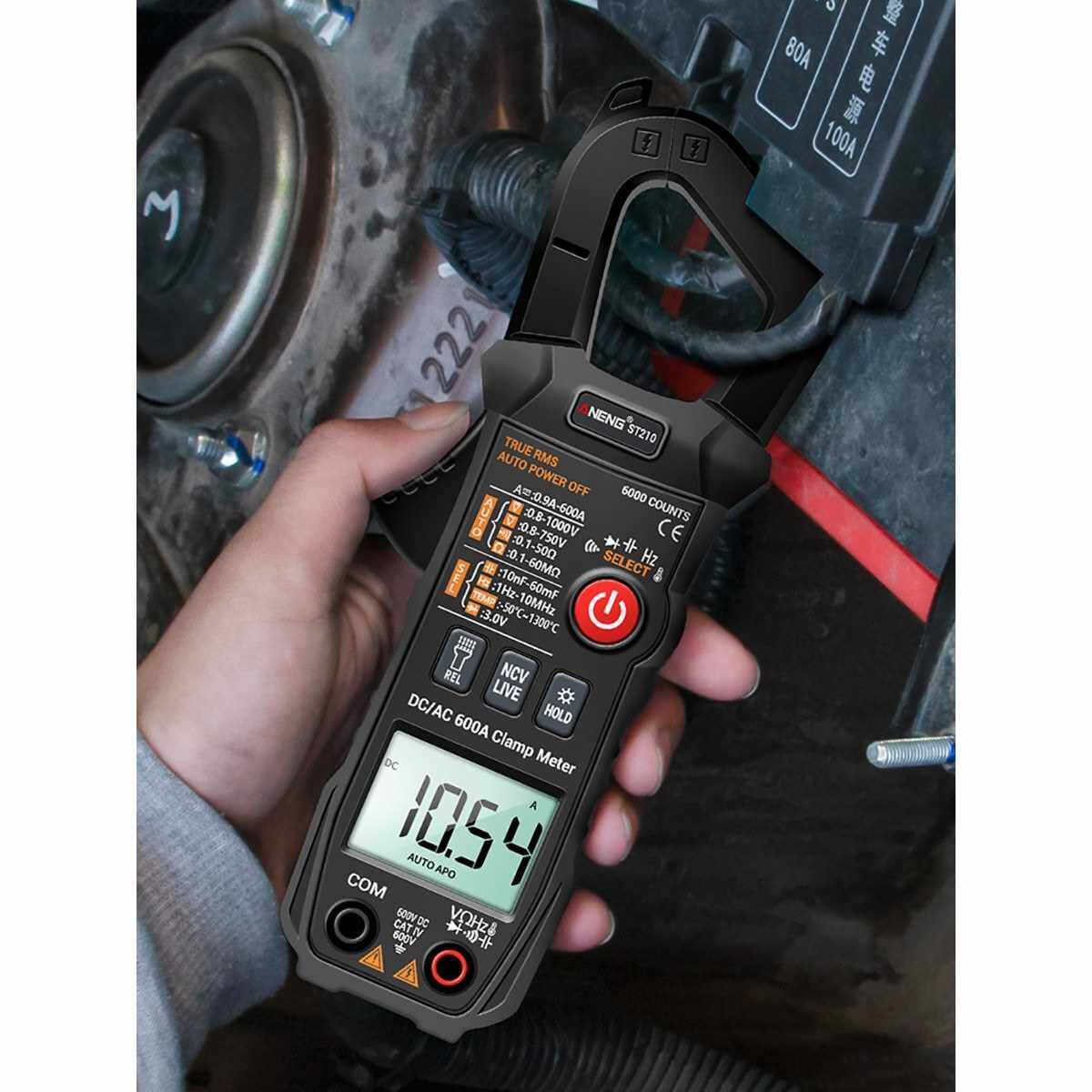

ANENG clamp-on multimeter gives accurate reading on AC and DC current measurement, AC/DC voltage, resistance and more tests. It features loud audible beep for NCV and live line detection, 1.1-inch jaw opening, auto-ranging, true-RMS, 15-minute auto-off, data hold, flashlight, and more.
Features:

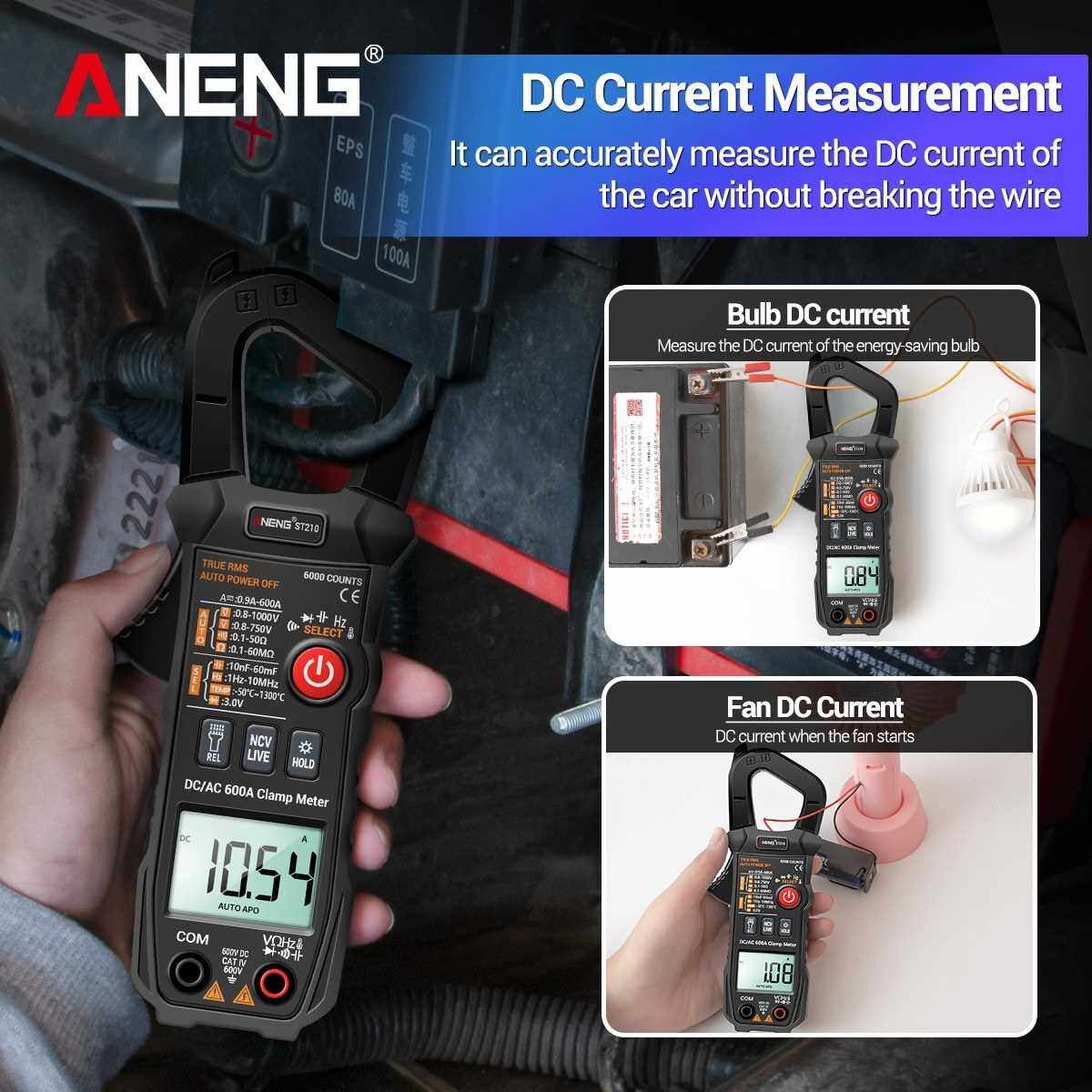

MULTI TESTER: Measures AC/DC current, AC/DC voltage, non-contact AC voltage (NCV) detection, live/zero line detection, resistance, capacitance, continuity, diode, temperature, and frequency.

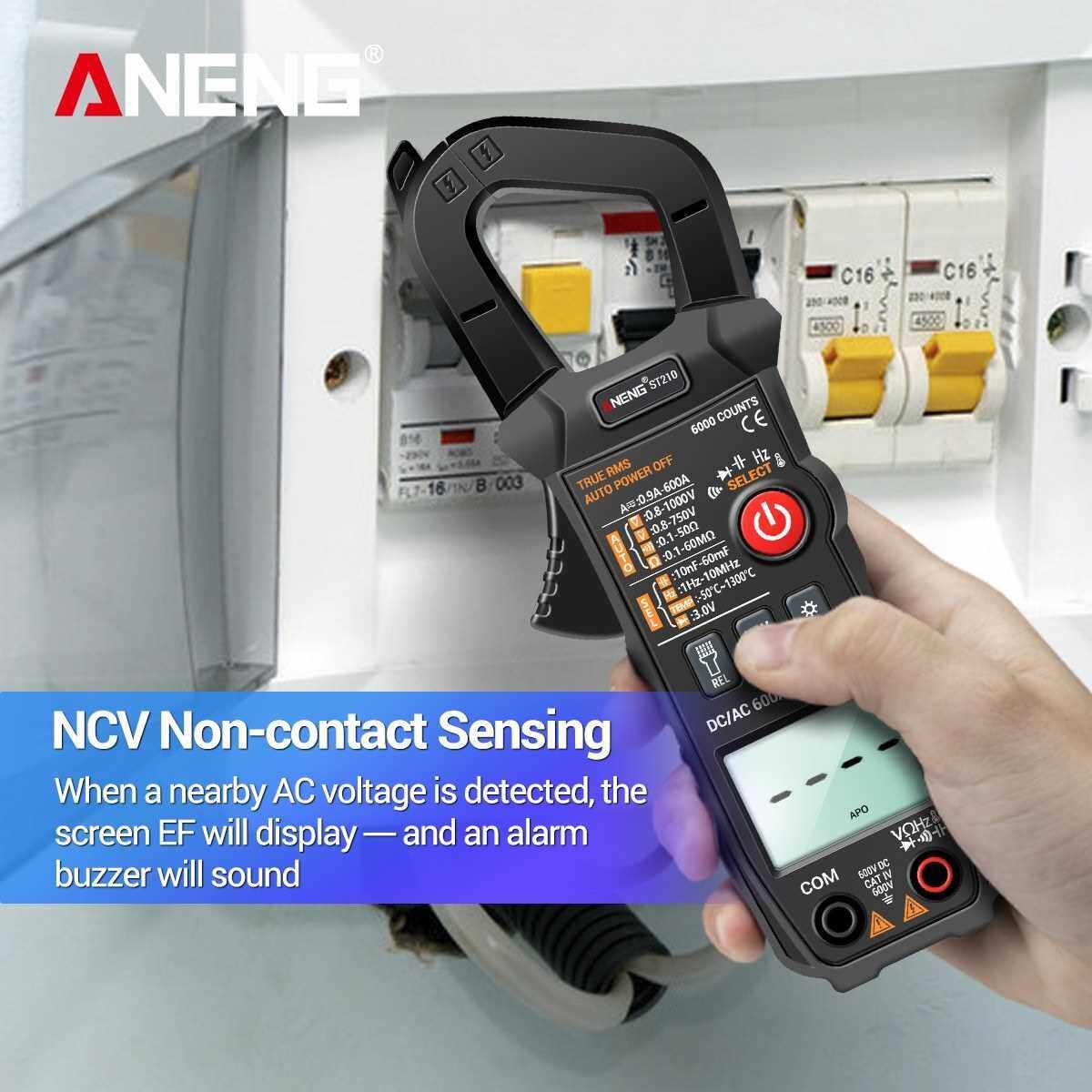

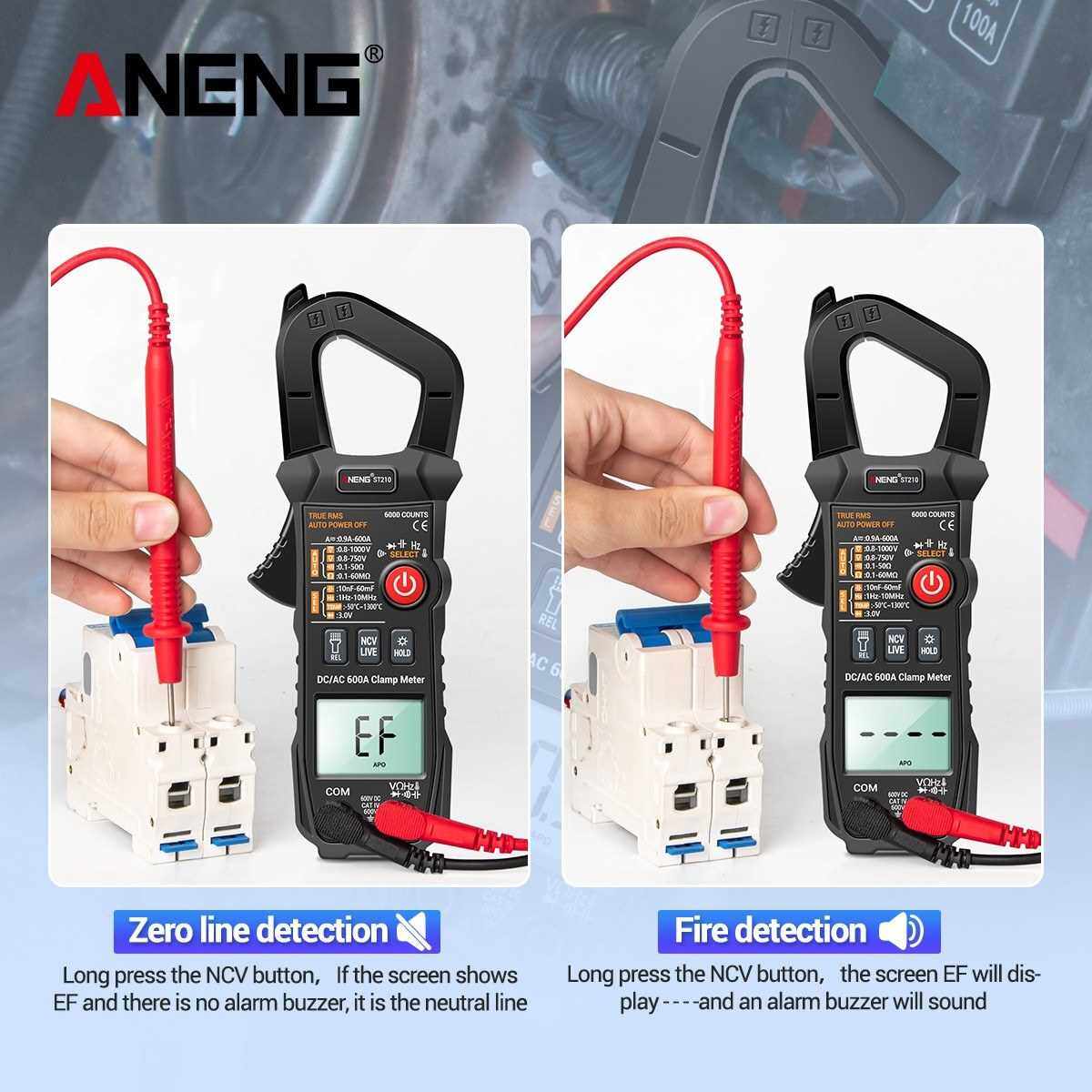

LOUD BEEP: NCV sensor and live/zero line detector send out audible and visual alarm once AC voltage detected.
PRECISION MULTIMETER: Give an accurate reading on home appliances, cars, electronics, HVAC and more.
WIDE JAW OPENING: Up to 1.1 inches(28mm) jaw opening is wide enough to clamp on wire without disturbing circuit.
EASY TO USE: Offers you with auto-ranging and manual ranging mode, extremely simple to use.
SAFE AND RELIABLE: Provided with overload protection and 1000V, 10A test leads, safe and reliable to use.
AUTO-OFF: Automatically shut down if no operation in 15 minutes, and beep when it shut-off.
MORE FUNCTIONS: Features data hold, flashlight, Celsius/Fahrenheit degree, low battery indicator and more.
Note:
*MUST read the user manual carefully before use for safety.
*Batteries not included.
Parameters:
Max. Display: 6000 counts
Auto-ranging: Yes
True-RMS: Yes
| Accuracy/Range | 6000counts | Resolution |
| DC voltage / AC voltage | ||
| DC/AC6V | (0.5%+3) | 0.001V |
| DC/AC60V | 0.01V | |
| DC/700V | 0.1V | |
| AC500V | (0.8%+10) | 1V |
| Resistance | ||
| 600O | (0.8%+5) | 0.1O |
| 6kO | (0.8%+3) | 1O |
| 60kO | 10O | |
| 600kO | 100O | |
| 6MO | 1kO | |
| 60MO | (2.5%+3) | 10kO |
| Continuity/Diode | ||
| ---- | Diode forward voltage drop | Forward DC current is about 1mA, open circuit voltage is about 3V |
| The buzzer sounds long and the resistance of the test is less than (5020) O. | Open circuit voltage is about 0.4V, press "power" for two-speed function switching | |
| Capacitance | ||
| 10nF | (3.5%+20) | 10pF |
| 100nF | 100pF | |
| 1uF | 1nF | |
| 10uF | 10nF | |
| 100uF | 100nF | |
| 1mF | 1uF | |
| 10mF | 10uF | |
| 60mF | (5%+3) | 100uF |
| AC/DC Current | ||
| 60A | (2.5%+30) | 0.01A |
| 600A | 0.1A | |
| Temperature | ||
| (-20-1000 )? | (1.0%+5)<400>?; (1.5%+15)400? | 1? |
| (0-1832 )? | (0.75%+5)<750>; (1.5%+15)750? | 1? |
| Frequency | ||
| 10Hz | (0.1%+3) | 0.01Hz |
| 100Hz | 0.1Hz | |
| 1kHz | 1Hz | |
| 10kHZ | 10Hz | |
| 100kHz | 100Hz | |
| 1MHz | 1kHz | |
| 10MHz | 10kHz | |
Specifications:
Brand: ANENG
Material: ABS
Color: Black / Red (optional)
Max. Display: 6000 counts
Max. Jaw Opening: 28mm / 1.1in
Battery Type: AAA alkaline battery(2pcs)(NOT INCLUDED)
Item Size: 16.8*6.17*3.2cm / 6.61*2.42*1.25in
Item Weight: 166g / 5.85oz
Package Size: 20.5*11.8*4.2cm / 8.07*4.64*1.65in
Package Weight: 352g / 12.41oz

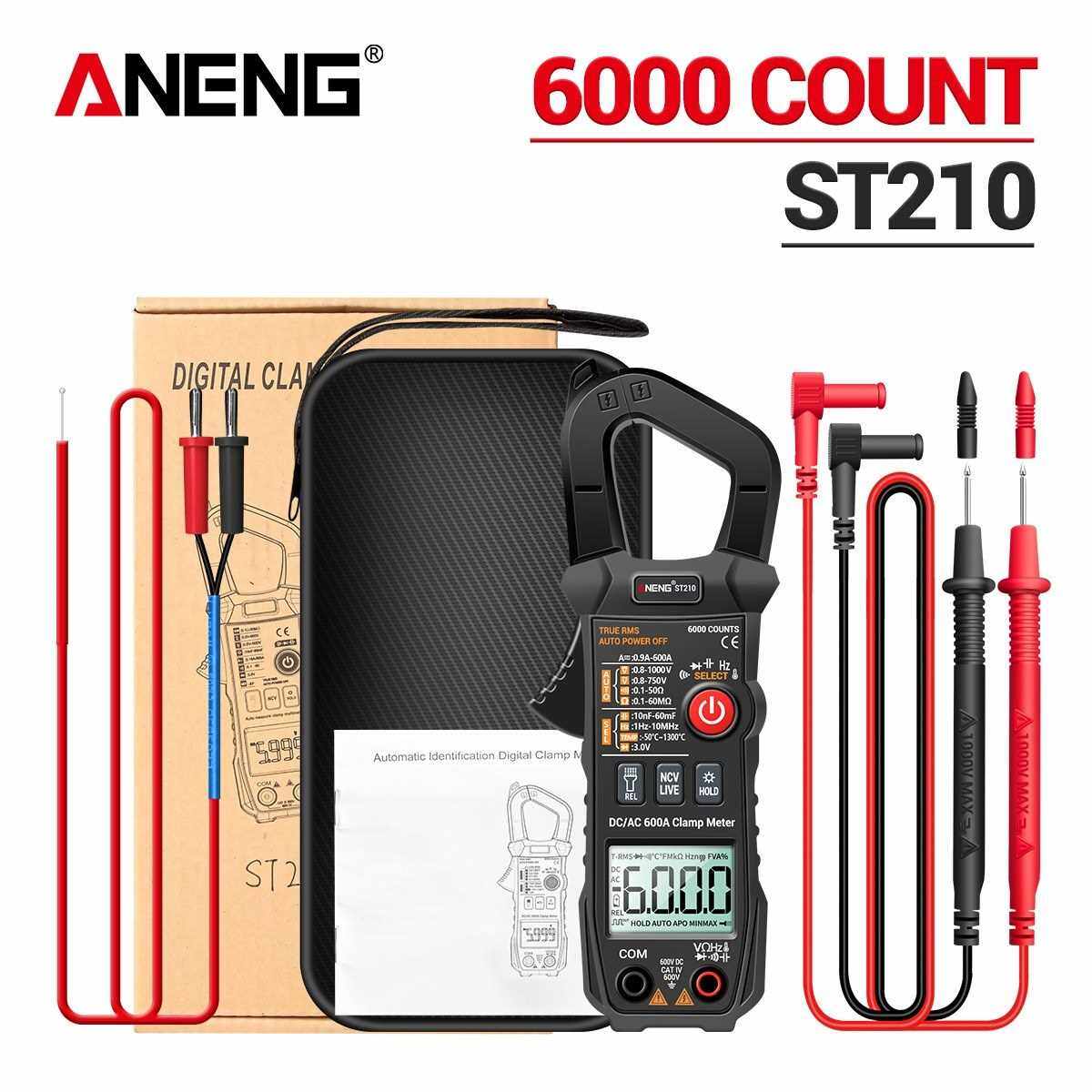

Packing List:
1 * Clamp Meter
1 * Thermocouple
2 * Test Lead
1 * Lanyard
1 * Carrying Case
1 * User Manual
