What's in the box:

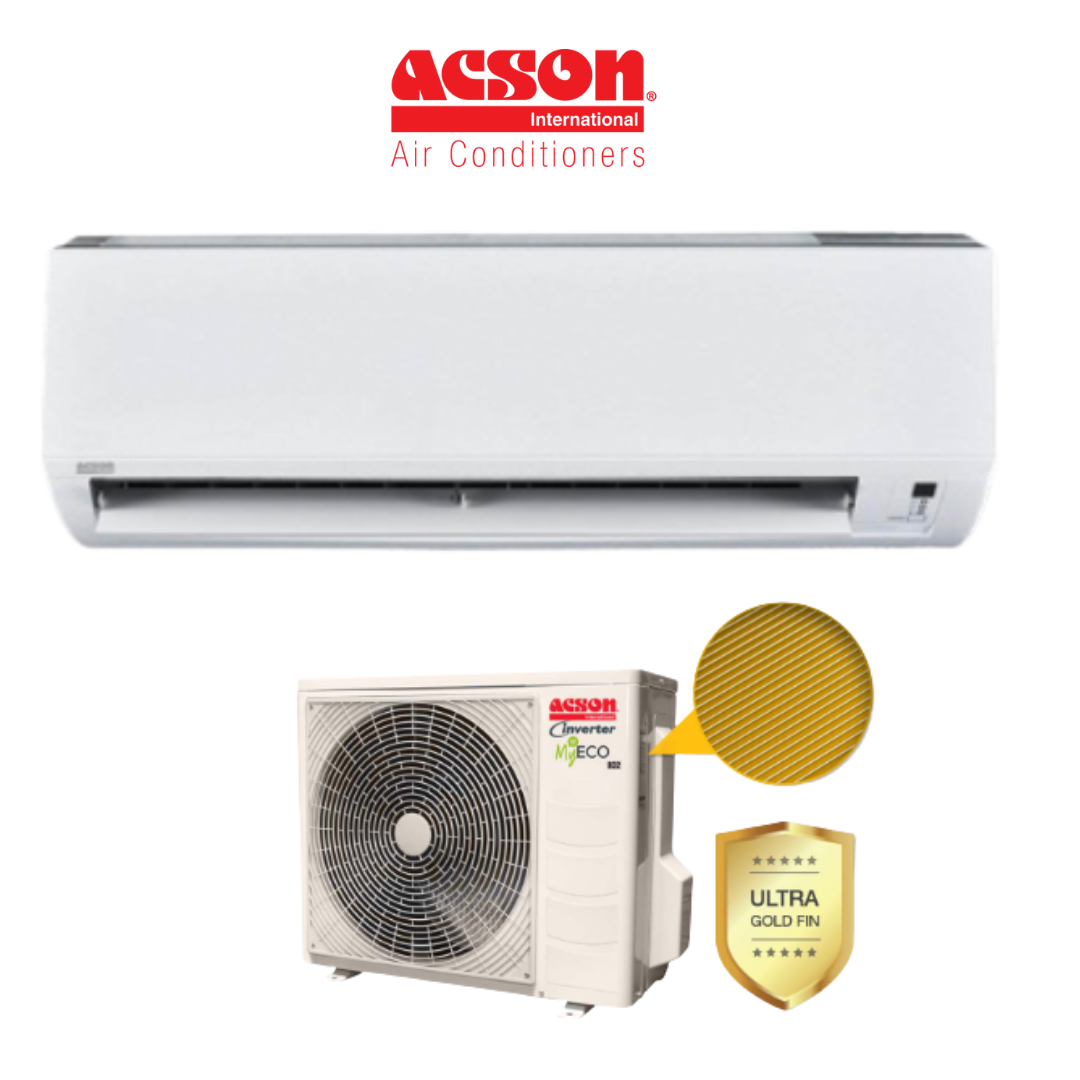

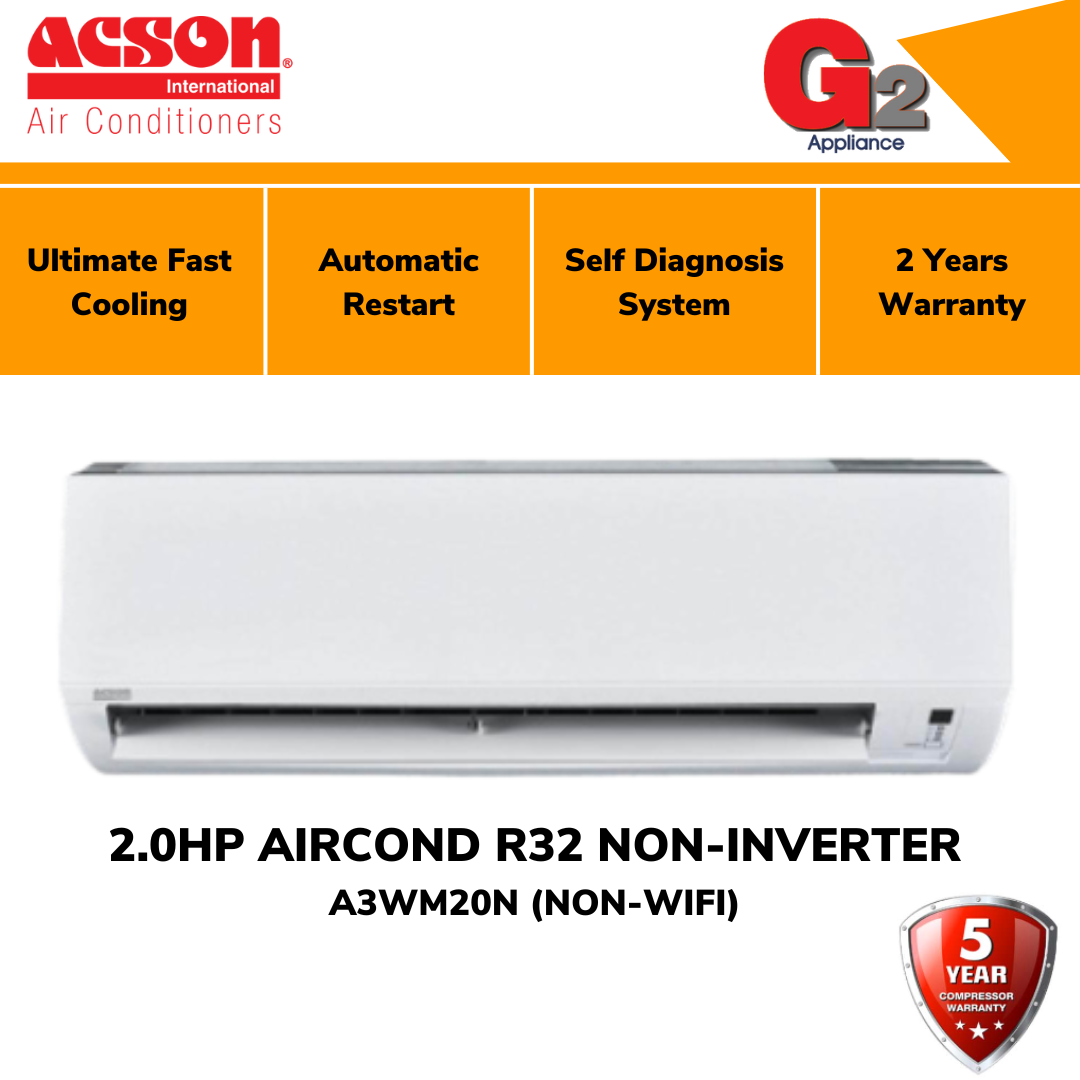

1 X [NEW] ACSON R32 2.0HP (2018) A3WM20N/A3LC20C
Performance
Cooling Capacity (Btu/h)
18,000
22,000
EER (W/W)
2.87
3.13
EER (Btu/h/W)
9.81
10.68
Air Flow Ls / CFM)
Silent
180 / 381
197 / 418
Low
199 / 422
224 / 474
Medium
224 / 474
253 / 537
High
251 / 531
290 / 614
Turbo
280 / 594
303 / 641
Sound Pressure Level (dBA)
Indoor Silent / Low / Medium / High / Turbo
35 / 36 / 39 / 42 / 44
37 / 39 / 43 / 46 / 48
Outdoor
51
52
Electrical Data
Power Source (V / / Hz)
220 - 240 / 1 / 50
Nominal Total Input Power (W)
1,850
2,100
Nominal Operating Current (A)
8.19
9.26

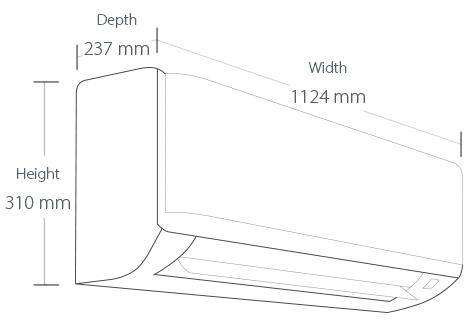

Physical Specification
Indoor Unit Packing Dimension Height = 400mm Width = 1252mm Depth = 333mm Weight = 14 / 30.8 (kg / lb) Outdoor Unit Dimension Height = 651mm Width = 855mm Depth = 328mm Weight =
Technical Information
Refrigerant
R32
Refrigerant Charge (kg / lb)
0.75 / 1.65
0.88 / 1.94
Suction Pipe Size (mm / inch)
9.52 / 3/8
12.7 / 1/2
Discharge Pipe Size (mm / inch)
6.35 / 1/4
Piping Length (Max)
25m
Piping Height (Max)
15m
