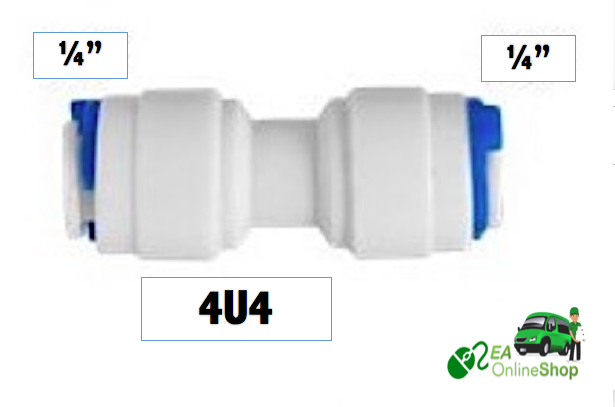

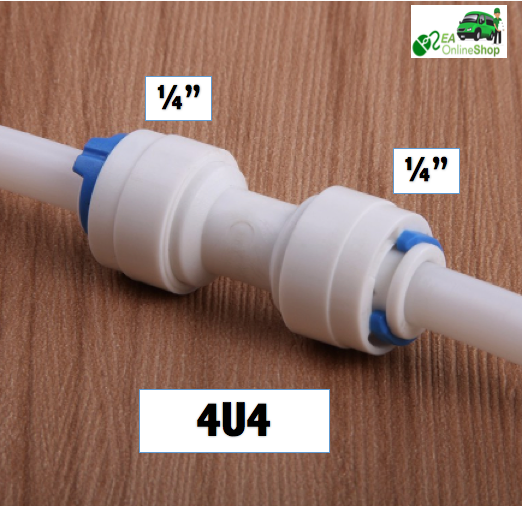

Product description : 4U4

MADE : TAIWAN

Item Package Quantity:1 | Size:1/4 "

Applications: Reverse Osmosis Systems Drinking Water Filtration Systems Water Coolers Coffee Machines RVs Misting Systems Point-of-Use Filtration Systems Beverage Dispensers Ice MakersFood-Grade Quality : Our fittings are produced with food-grade material and can be used in food and drinking water applications

Portable Water Applications:

Our fittings are suitable for potable water applications with a maximum chlorine concentrate of 4 ppm Direct exposure to sunlight will reduce fittings service life and may lead to failure All fittings and tubing should not be used near heart emitting appliances For cold water applications only

Technical Specifications:

Body: made of food-grade Polyacetal and Polyoxy Methylene O-ring: Nitrile (NBR) Collet: Polyoxy Methylene and stainless steel Working Pressure and temperature Range: Maximum 150 psi @ 70F (10.3 bar @ 21C) / 60 psi @ 140F (4.1 bar @ 60C); Minimum 33F (1C)

Installation and Testing:

Fittings and tubing installations should be inspected by pushing and pulling on the connection points and be pressure-tested prior putting into service Fittings should not be exposed to excessive side loads and caution should be taken to prevent undue stress and excessive side loading
