Note: Do not mount the unit in direct sunlight or near heat sources.

Overview:
This product is a anti-pet passive infrared detector, exquisite design, easy installation. Fit for the locations of the balcony, window, door, corridors, outdoor, etc. Imported high-end infrared sensor, SMT chip technology, anti-EMI & anti-RFI design, temperature compensation, pulse count, etc., can be integrated with wireless alarm host.

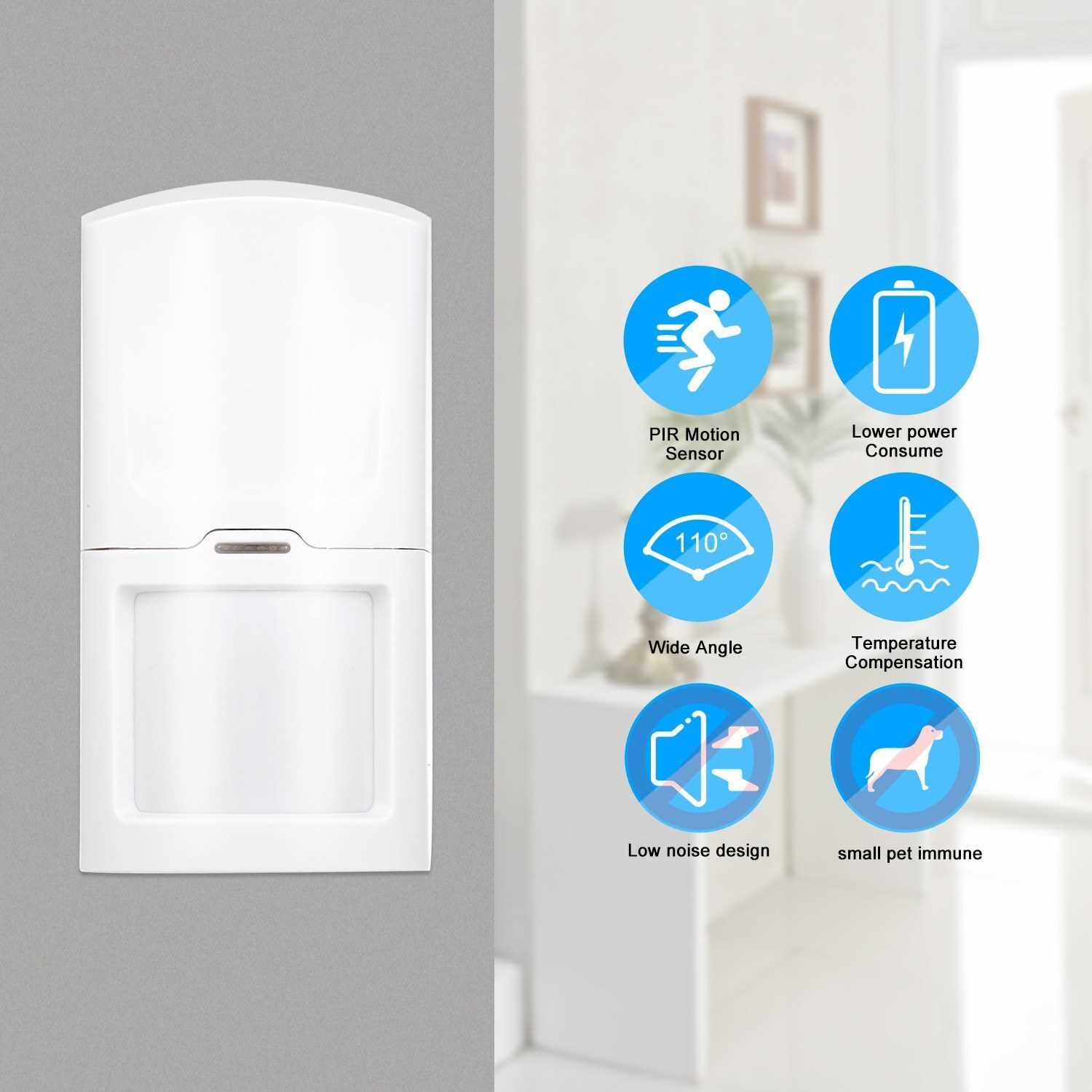

Features:
*MCU technology to prevent all kinds of false alarms. High sensitivity & stability.
*Dual PIR Sensor with anti-pet recognition technology, is under 15kg small pet immune, prevent false alarm when pet passing.

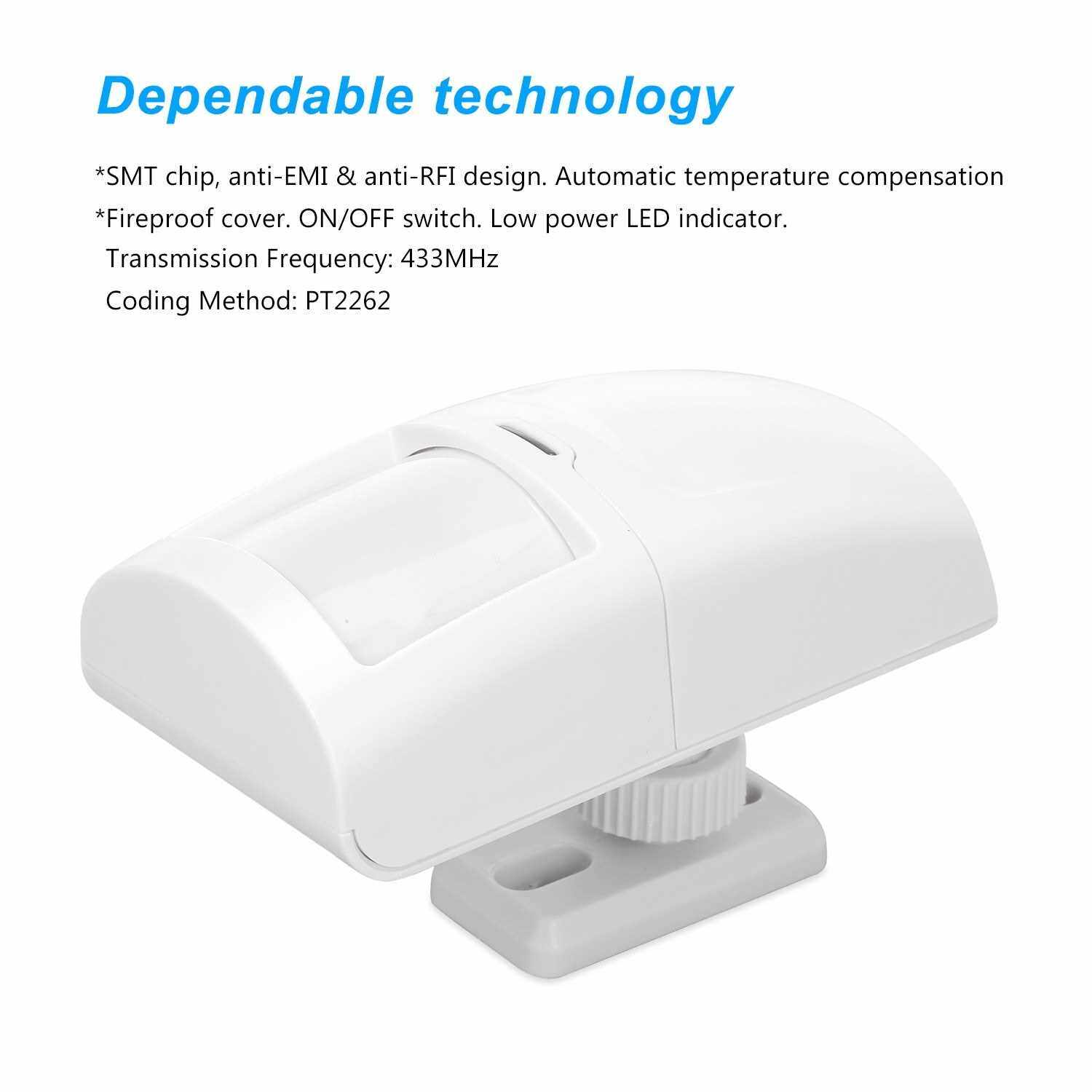

*SMT chip, anti-EMI & anti-RFI design. Automatic temperature compensation
*The PIR sensor is a horizontal 110, vertical 60 wide angle 12mX12m with high catch performance and false alarm immunity.
*Fireproof cover. Low noise design. ON/OFF switch. Low power LED indicator.

Specifications:
Working Voltage: DC6V(4*AAA 1.5V batteries, not included)
Standby Current: 60A
Working Current: 20mA
Transmission Frequency: 433MHz
Pet Immunity: pet under 15kg
Coding Method: PT2262
Wide Detector Angle: horizontal 110, vertical 60
Detection Distance: 12m12m (25?)
Detection Speed: 0.2-3.5m/s
Installation Way: Wall Hanging
Installation Height: 1.1m-3.1m Adjustable
Operating temperature: -10C to 50C
Item Size: Approx. 18 * 6 * 3.5cm
Item Weight: Approx. 116g / 4.1oz

Package Information:
Package Size: Approach. 12.2*8.5*4.2cm/ 4.8*3.3*1.7in
Package Weight: Approach. 154g / 5.4oz

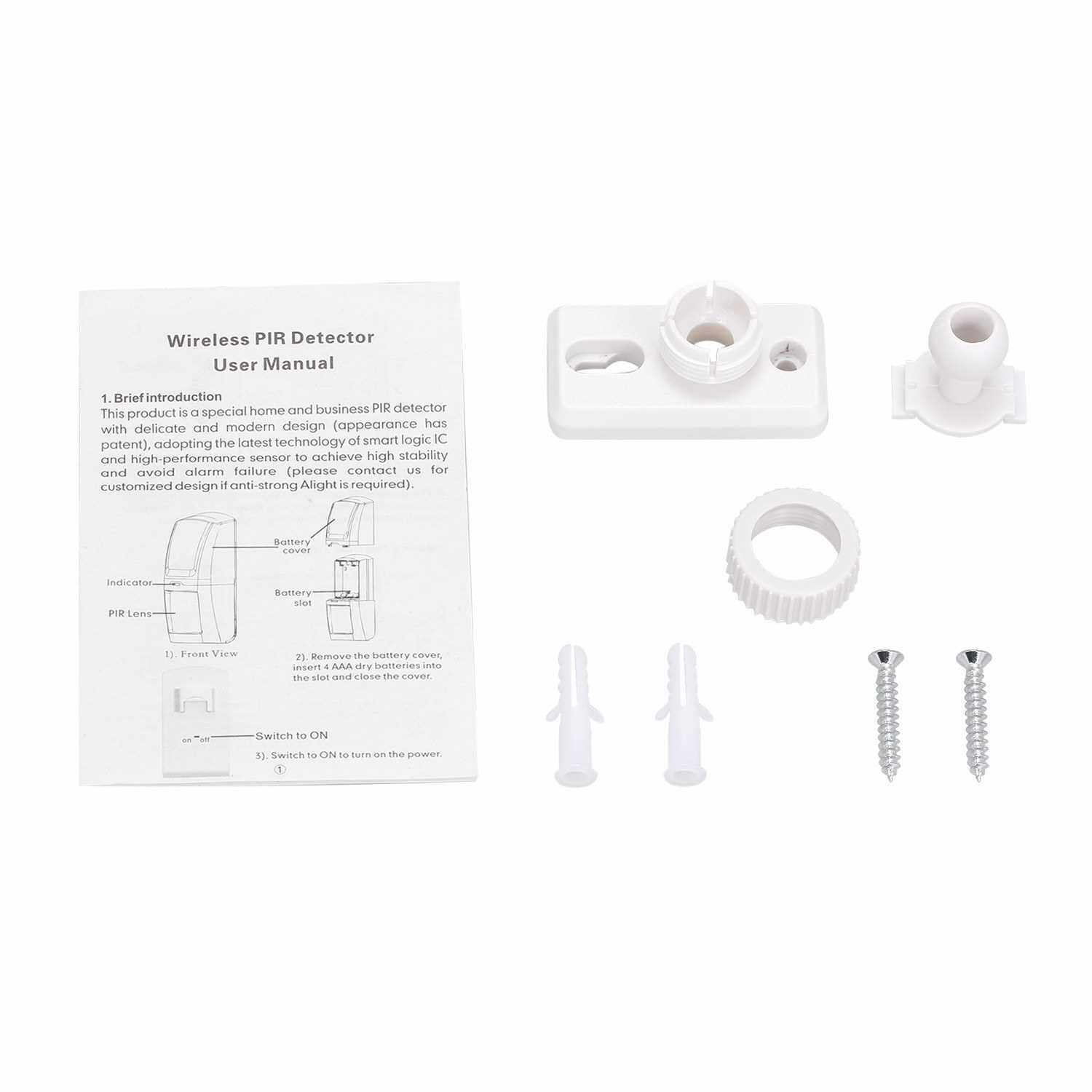

Package List:

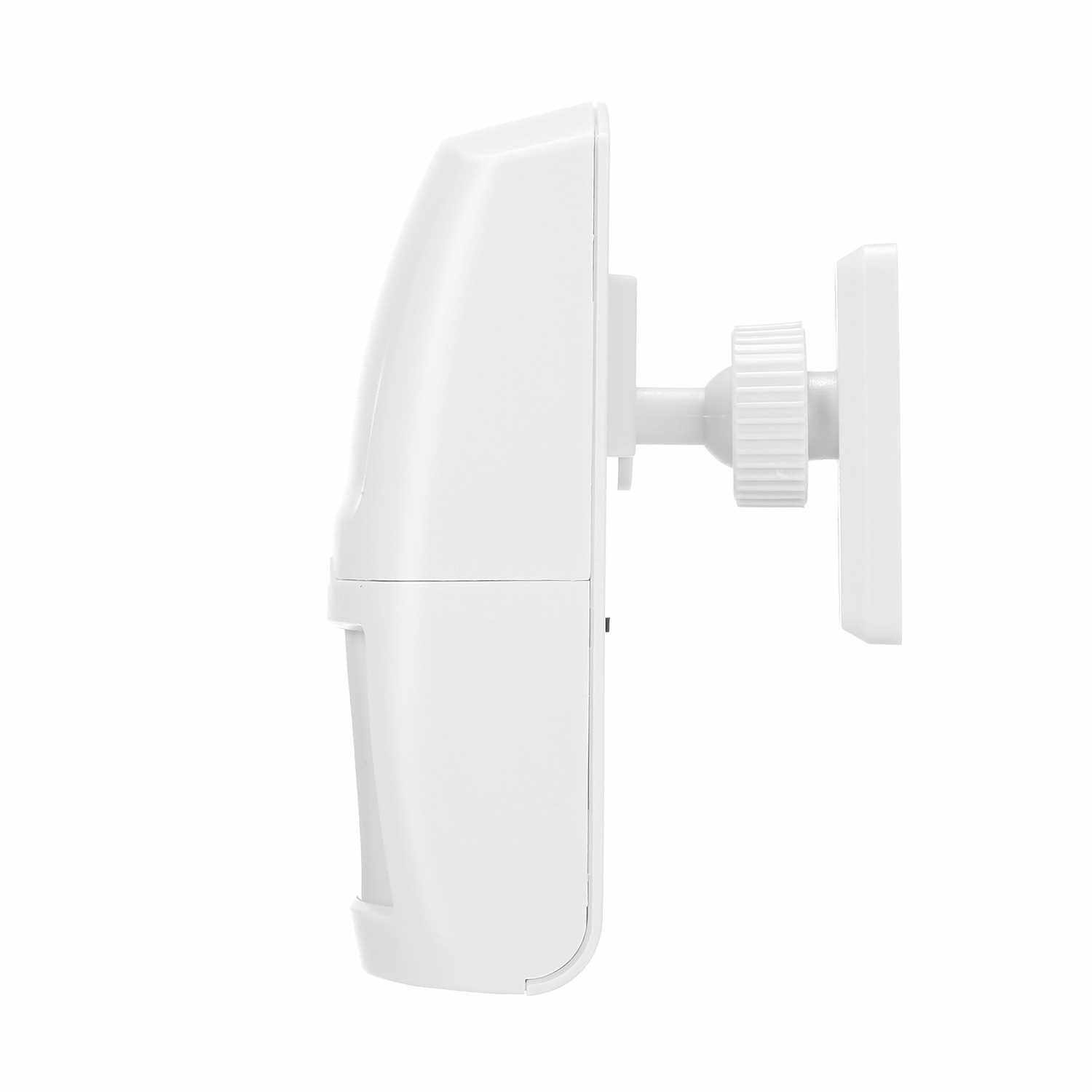

1 * Wireless Anti-pet PIR sensor
1 * Bag of Mounting Screws
1 * Mounting Bracket
1 * User Manual(English)
