What's in the box:

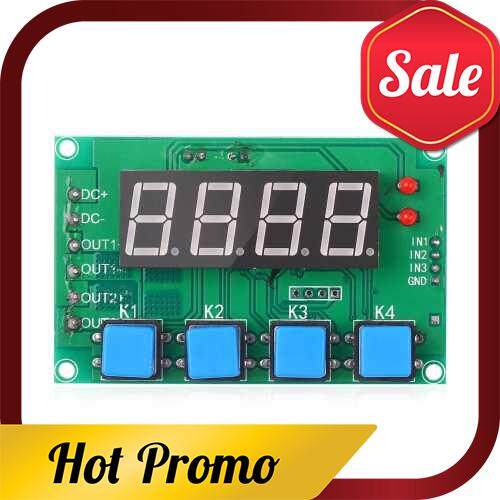

7-27V 2-Channel Time Relay Module Digital Time Cycle Delay Switch Control with 0.01s-999min Timing Range for Smart Home Industrial Control (Standard)
Features:
Wide Timing Range: its timing adjusting range, ranging from 0.01second to 999minutes, available for various application.
Safe to Use: the relay module has an emergency stop function with protection.
Convenient to Use: it covers multiple working modes and enables to separately control 2 channels.
High Quality Material: premium material and electronic parts ensure durability and stable performance.
Use It in: it can be used for the control of relay, motor, pump, light, solenoid valves, etc.
About Working Mode:
P-1: given signal 1, output 1 works and stops at time A; given signal 2, output 2 closes and stops at time B; signal 3 is emergency stop signal.
P-2: given signal 1, output 1 works and stops at time A; output 2 works after B period delay and stops at time C(this function is available when time unit is according).
P-3: electrified, input 1 works to time A to release, wait for C period, input 2 works to time B to release, wait for C period. Input 1 and 2 take turns to work and repeat this cycle.
P-4: given signal 1, output 1 works; given signal 2, input 1 stops working, starts timing to time A in which input 2 starts working; given signal 3, input 2 stops working, starts timing to time B in which input 1 starts working. Repeat this cycle.
P-5: given signal 1, output 1 works; given signal 2, input 1 stops working, starts timing to time A in which input 2 starts working; given signal 3, input 2 stops working. Given signal 1, do this cycle again.
P-6: given signal 1, output 1 works; given signal 2, input 1 stops working; given signal 1 again, input 2 works; given signal 3, input 2 stops working.
About Decimal Point:
X.XX If the decimal point is in the third last, the time range is 0.01-9.99 seconds.
XX.X If the decimal point is in the second last, the time range is 0.1-99.9 seconds.
XXX If there is no decimal point, the time range is 1-999 seconds.
XXX. If the decimal point is in the end, the time range is 1-999 minutes.
About Ports:
DC+: Positive pole of input power, 7-27V
DC-: Negative pole of input power
IN1: Signal input 1
IN2: Signal input 2
IN3: Signal input 3
O1+: Output 1 positive pole
O1-: Output 1 negative pole
O2+: Output 2 positive pole
O2-: Output 2 negative pole
About Button:
After it is electrified, screen display shows "----", meaning standby state.
Press K1, screen display shows P-1; press K2 and K3 to adjust mode.
Press K1 again, screen display shows A001; press K2 and K3 to adjust the time A, press K4 to adjust decimal point(unit of time).
Press K1 at the third time, screen display shows B001; press K2 and K3 to adjust the time B, press K4 to adjust decimal point(unit of time).
Press K1 at the fourth time, screen display shows C001; press K2 and K3 to adjust the time C, press K4 to adjust decimal point(unit of time).
Press K1 at the fifth time, screen display shows "----" meaning standby state.
Specifications:
Material: Electronic Components
Input: 7-27V
Output: 0-10A
Timing Range: 0.01second-999minmuts
Item Weight: 33g / 1.16oz
Item Size: 7.7*4.9*2.5cm / 3.03*1.92*0.98in
Package Weight: 36g / 1.26oz
Package Size: 12*7.5*2.5cm / 4.72*2.95*0.98in
Note:
Time relay module only, other accessories are not included.
Due to manual measurement, there may be deviation.
Due to lighting, the picture and material object may slightly differ in color, please in kind prevail.
Packing List:
1 * Time Relay Module
