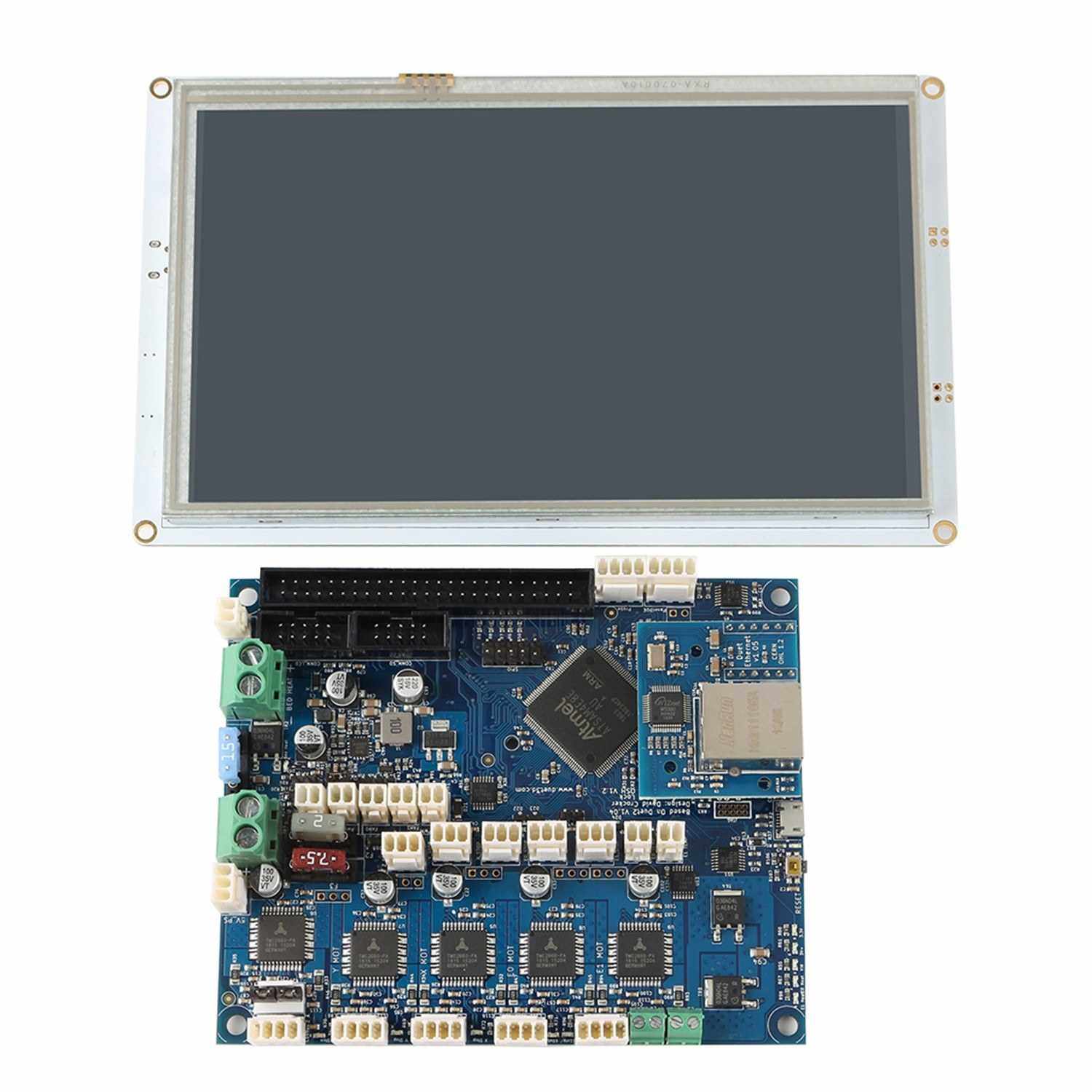

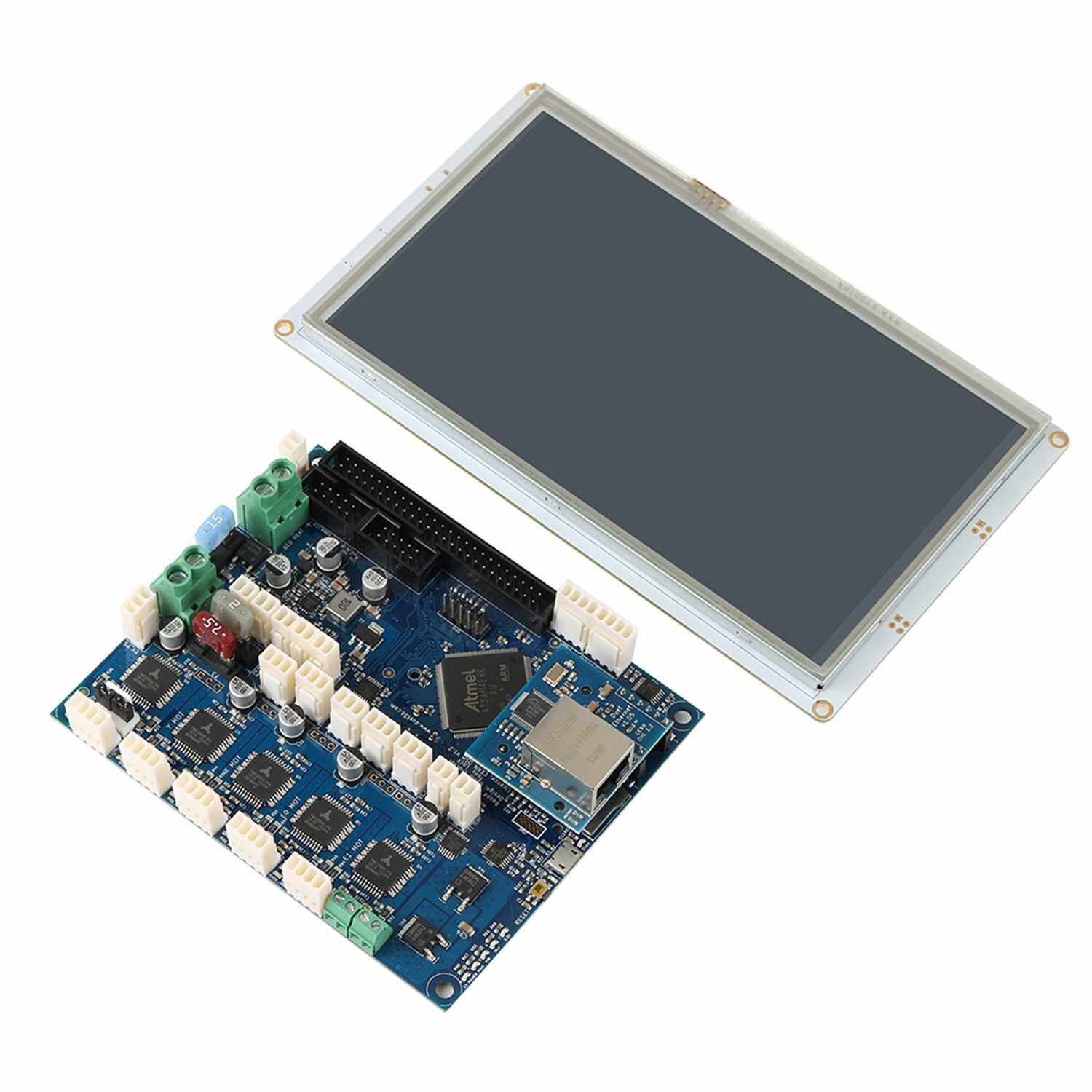

3D Printer Parts Clone Duet 2 Ethernet Advanced 32 Bit Electronics Motherboard with 7 Inch PanelDue 7i Integrated Paneldue Colour TouchScreen Controller (Standard)
Product Information
What's in the box:
3D Printer Parts Clone Duet 2 Ethernet Advanced 32 Bit Electronics Motherboard with 7 Inch PanelDue 7i Integrated Paneldue Colour TouchScreen Controller (Standard)
Features:

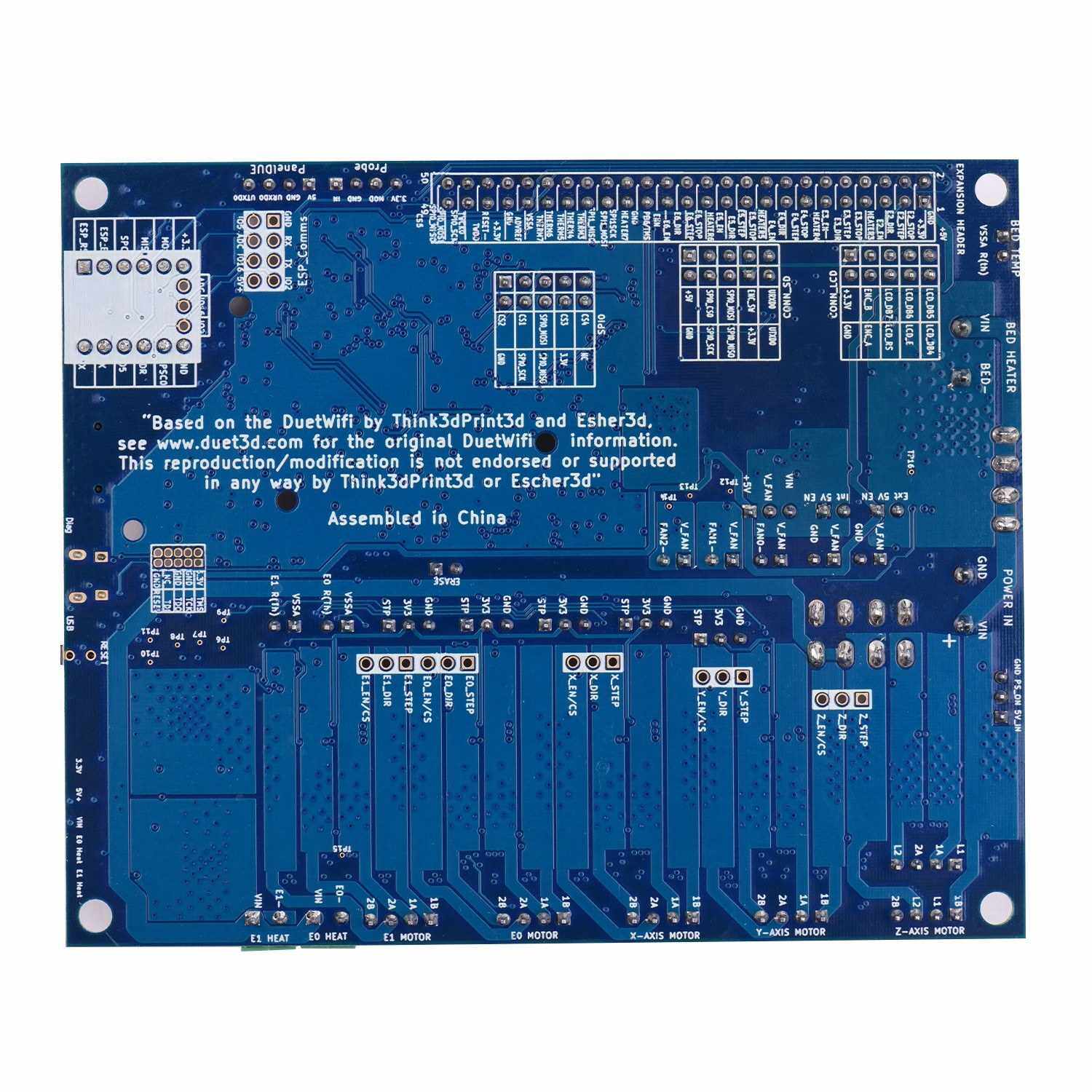

--Duet 2 Ethernet Motherboard
Lots of new exciting features with the Duet 2 Ethernet, including a dedicated ethernet module, higher stepper and heater current ratings, and more accurate temperature control.
Powerful 32 Bit Processor - Atmel SAM4E8E: 120MHz ARM Cortex-M4 microcontroller.
Super quiet TMC2660 stepper drivers - SPI controlled stepper drivers capable of up to 256 microstepping. Current and microsteps can both be changed on the fly for optimum speed and power efficiency. Each stepper driver is rated for up to 2 amps.
Dual extruders - 3 heater/thermistor channels for a heated bed and 2 extruders. 3 PWM controllable and 2 always-on fans. These can be run from either the input voltage, from 5V, or from external power for added flexibility.

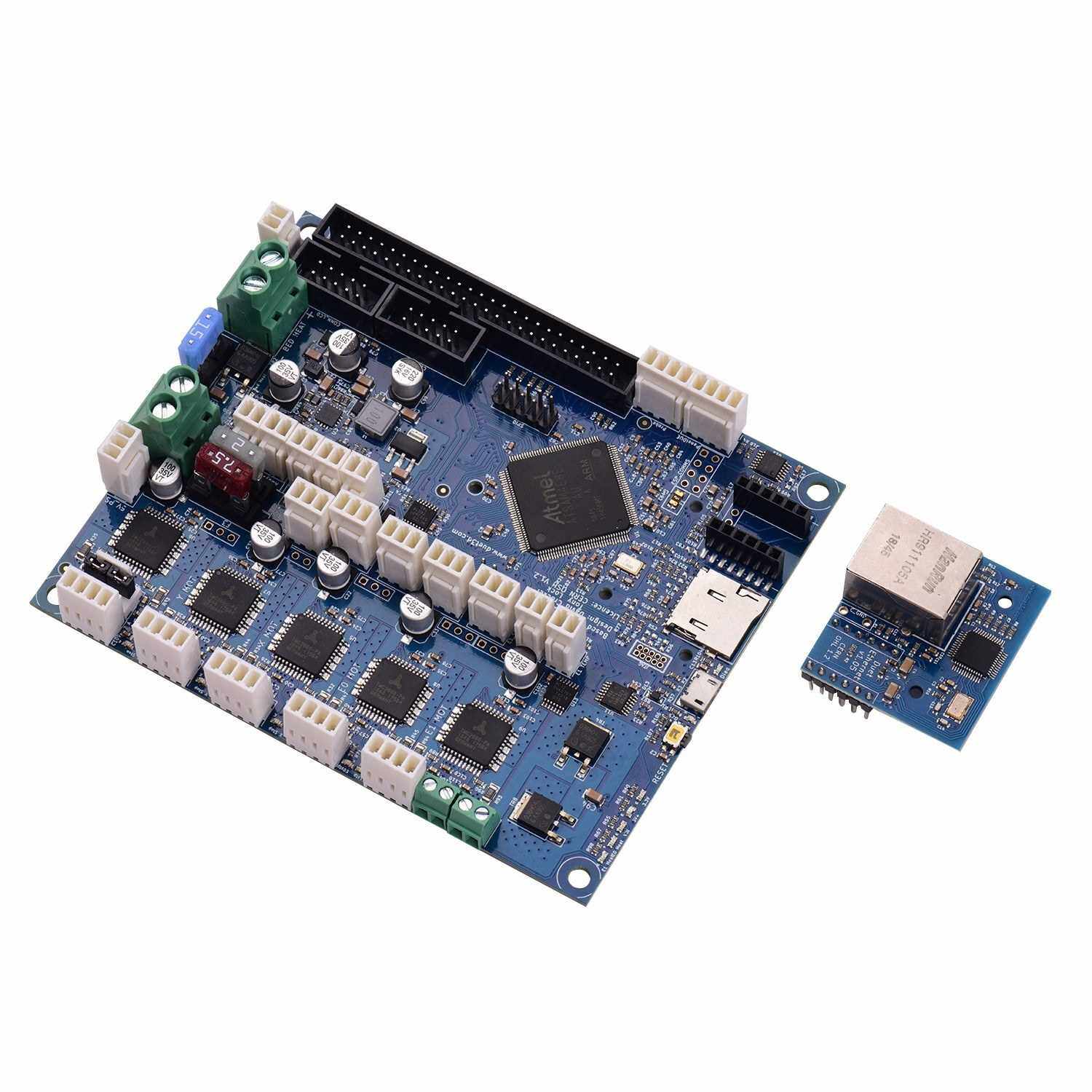

Dedicated Ethernet module - Running the TCP/IP stack on a separate W5500 chip, this leaves the main processor free to do precise stepper pulse timing and implement other advanced features.
Support for the PanelDue: a full colour graphic touchscreen controller.
Up to 7 extruders - Support for a further 5 stepper drivers and heaters on the expansion header. Firmware support for mixing nozzles and remapping axes to use high power external drivers.
Easy to configure - Setup your printer and update the firmware through the web interface. No need to compile your own firmware.

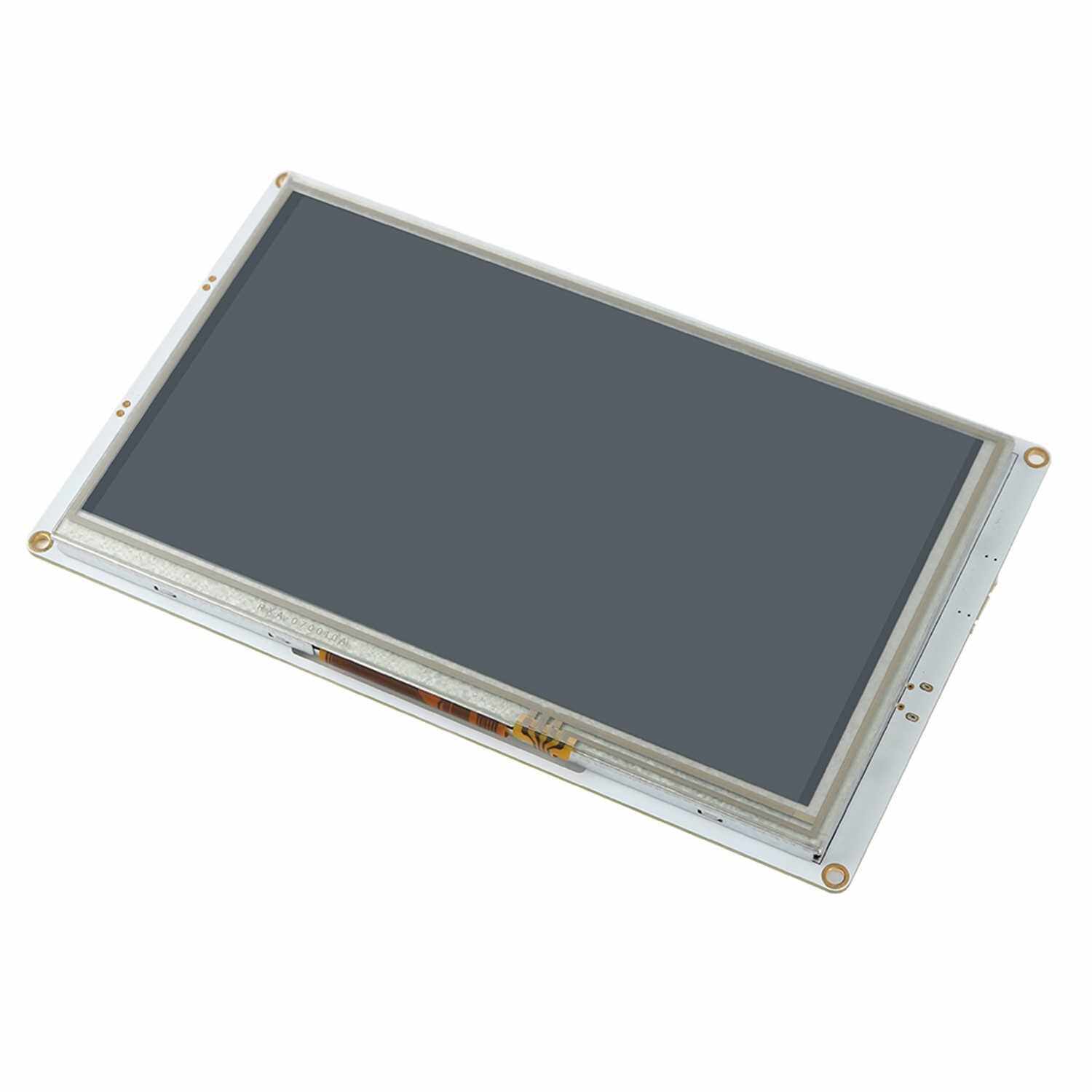

--PanelDue 7i Touchscreen

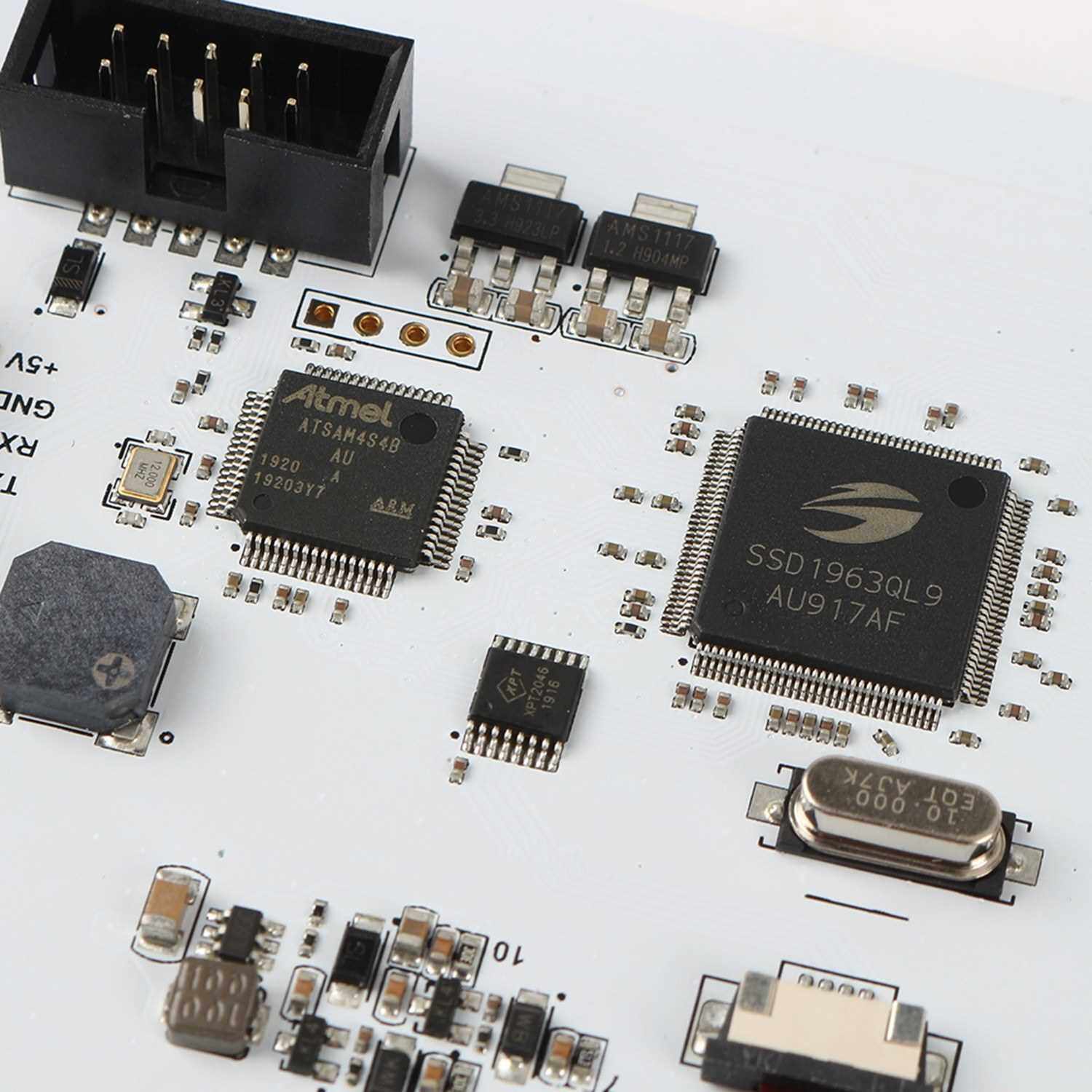

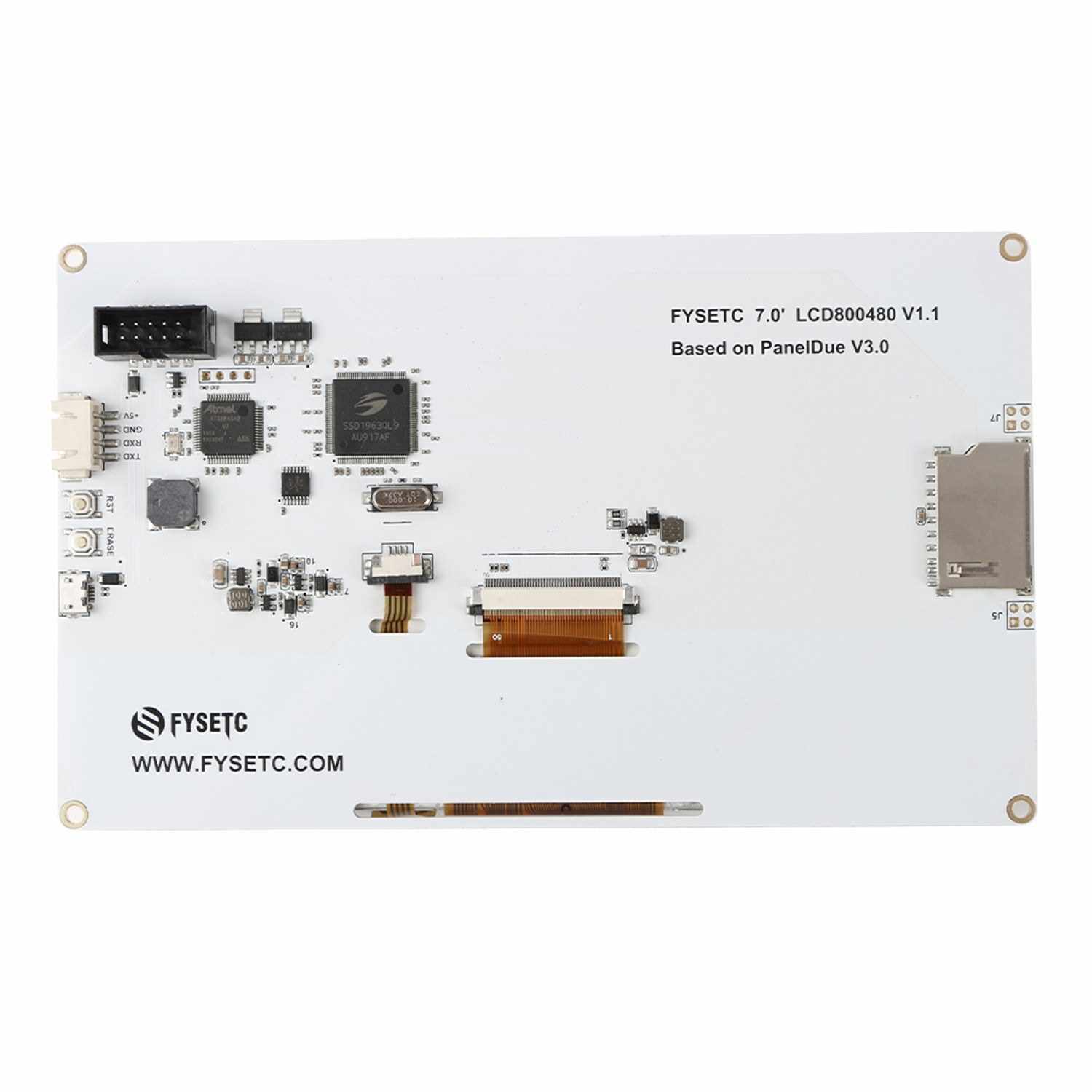

The PanelDue 7i is colour touch-screen controllers for the Duet and other 3D-printing electronics that support it. This integrated version is a custom-made high-quality 7 inch TFT LCD panel from a leading manufacturer.
Features:
Resolution of 800*480 pixels on a 7 inch LCD.
5V power from host 3D printer controller.
2-wire async serial interface with 3.3V signal level (5V tolerant input).
Connections to the onboard card socket as well as the PanelDue serial and power connections are all available via a 10-way ribbon cable. A 300mm long ribbon cable (maximum recommended length) is supplied.
4-wire cable to connect the PanelDue to your controller board for the serial and power connections. This cable is also supplied
Specifications:

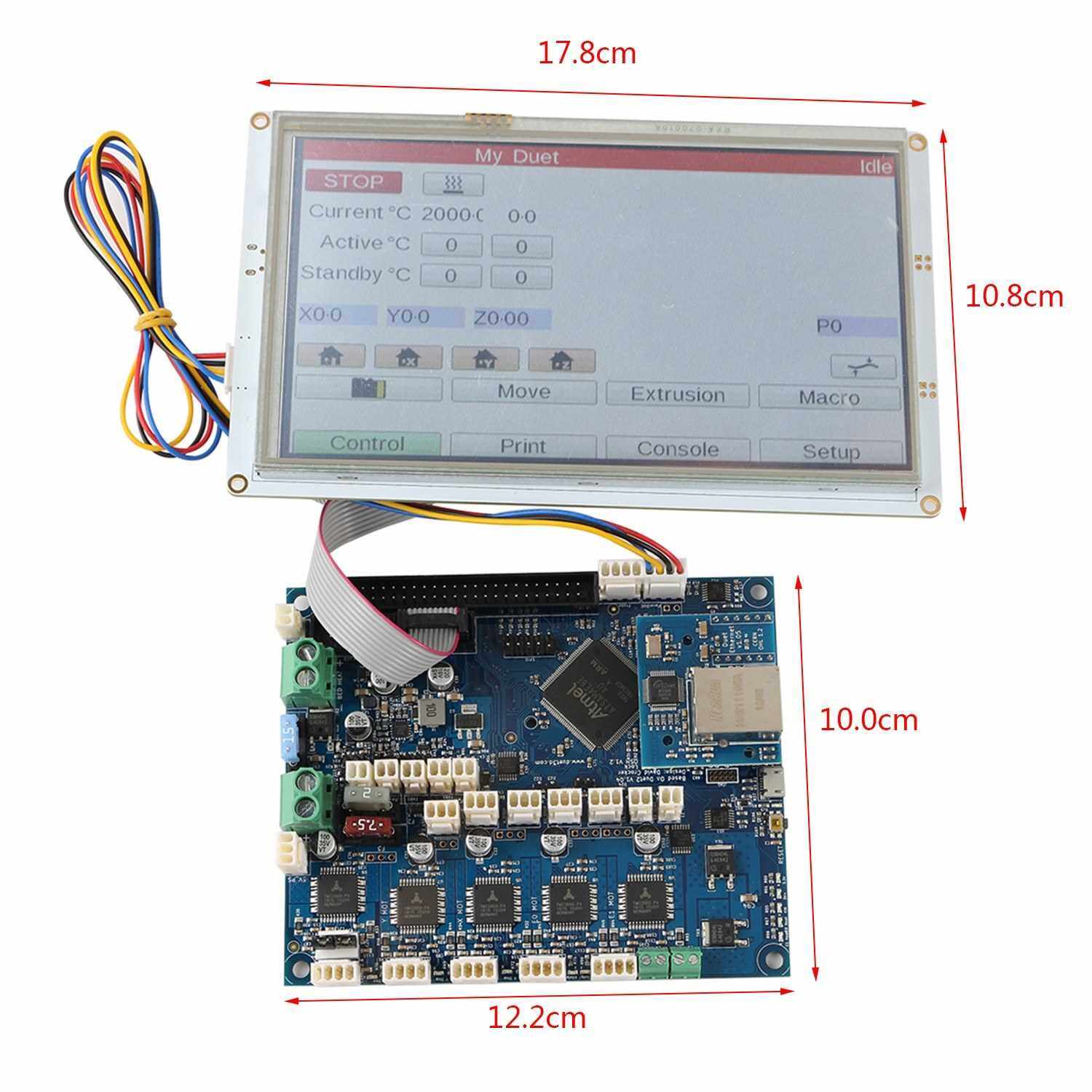

Package Size: 25.1 * 15.2 * 4.0cm / 9.9 * 6.0 * 1.6in
Package Weight: 502g / 17.7oz
Notes:
Light shooting and different displays may cause the color of the item in the picture a little different from the real thing.
1-3mm deviation is normal due to manual measurement.

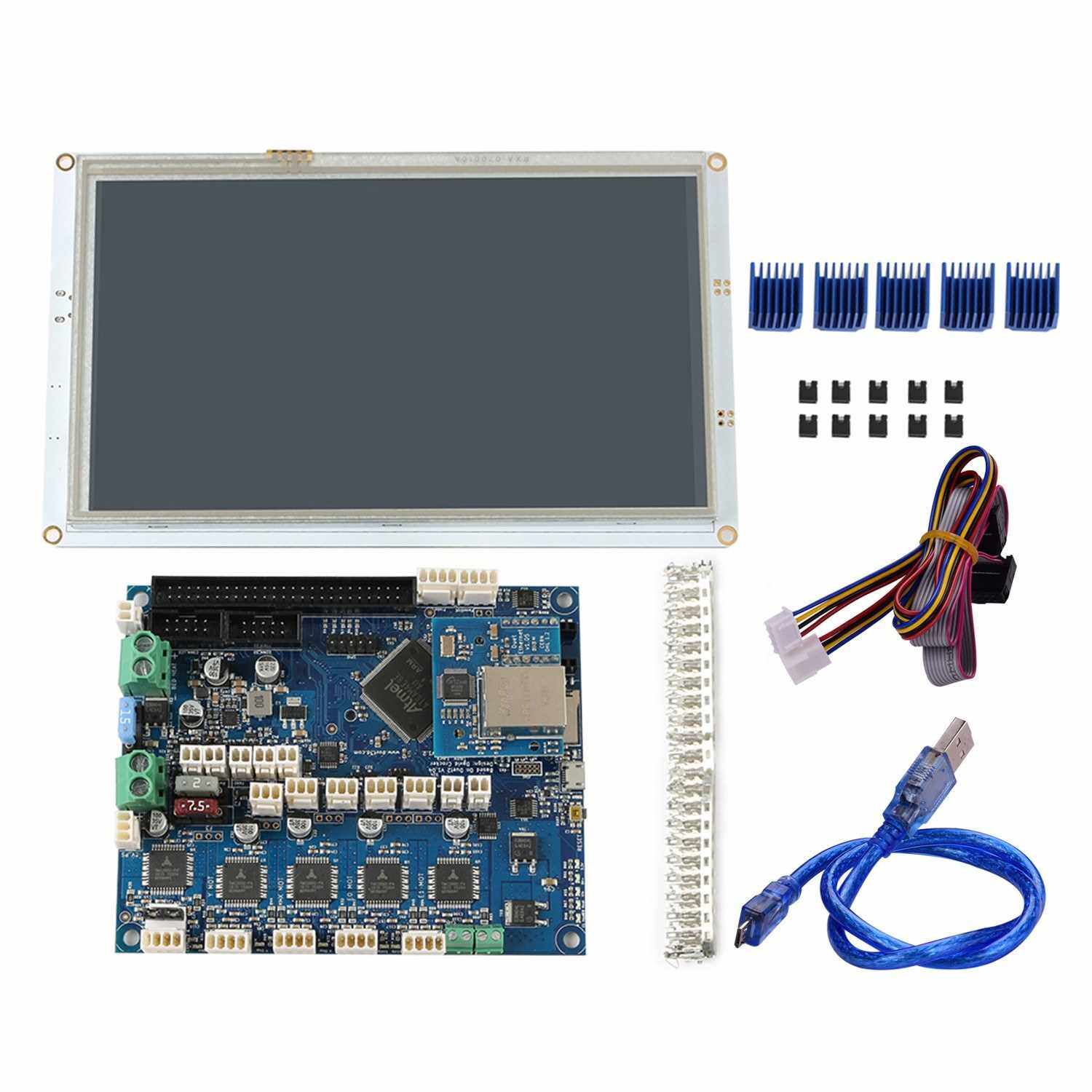

Packing List:
1 xDuet 2 Ethernet
1 xPaneldue Screen-integrated
1 x4pin Cable
1 x10pin Flat Cable
1 xUSB Cable
1 xGadget
5 xHeat Sink
10 xJumper Cap
