3D Printer Hotbed Heating Controller High Current Load MOS Module MOSFET Board Exceed 30A Compatible for CR-10 Ender-3 Prusa TEVO 3D Printer (Standard)

3D Printer Hotbed Heating Controller High Current Load MOS Module MOSFET Board Exceed 30A Compatible for CR-10 Ender-3 Prusa TEVO 3D Printer (Standard)
Click to enlarge






RM 75.20 RM 107.43 30%
Out of Stock
Product Code
2522451897
Model
10310153
Brand
NO BRAND
Sold by
Status
Out of Stock
Delivery Fee
Kindly contact us for further information
Rewards
75 Points
Highlights
  • Functional test has been done for each one.
  • The MOS tube performance is excellent, nominal maximum current is 280A.
  • Maximum current can be up to 30A or more due to extra large heat sink.
  • Can use heatbed output signal of Ramp1.4 and series to control.
  • Can use digital signal of 5-24V to control.
Notify me when ...
price drops.
product is available.
Product Information

What's in the box:

3D Printer Hotbed Heating Controller High Current Load MOS Module MOSFET Board Exceed 30A Compatible for CR-10 Ender-3 Prusa TEVO 3D Printer (Standard)

Features:
Functional test has been done for each one.
The MOS tube performance is excellent, nominal maximum current is 280A.
Maximum current can be up to 30A or more due to extra large heat sink.
Can use heatbed output signal of Ramp1.4 and series to control.
Can use digital signal of 5-24V to control.

Specifications:
Material: PCB
Function: Control Hot Bed, Heated Print Head
Power Supply: 12V-24V
Compatibility: For CR-10/ Ender-3/ Prusa/ TEVO/ BLV/ MGN/ Cube 3D Printer

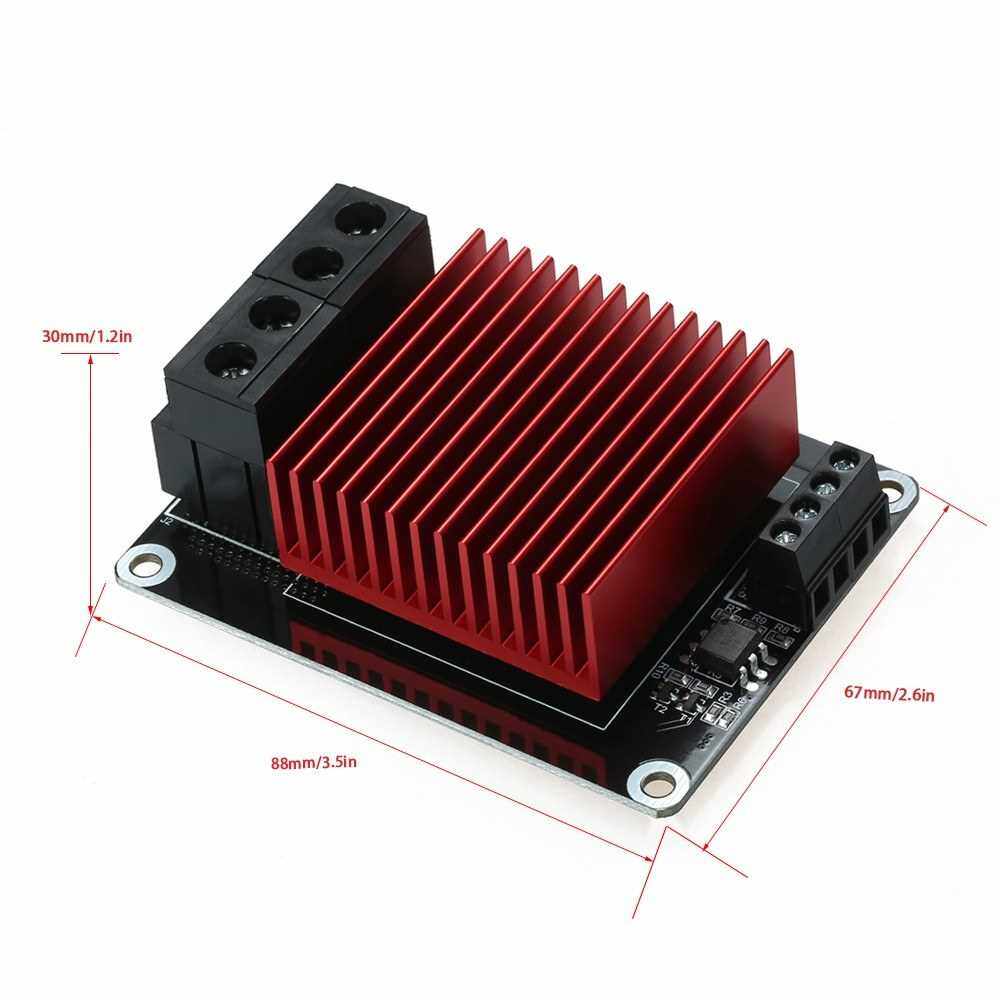

Module Size: 8.8 * 6.7 * 3cm/ 3.5 * 2.6 * 1.2in
Module Weight: 127g/ 4.5oz
Package Size: 15 * 10 * 3.7cm/ 5.9 * 3.9 * 1.5in
Package Weight: 191g/ 6.7oz

Usage:
1. Plug a power supply;
2. Connect to heated bed;
3. Connect digital control signal to GND, D8 of MINI;
4. Connect to the heated bed signal on Ramps1.4 or series controller boards.

Packing List:
1 * MOS Module

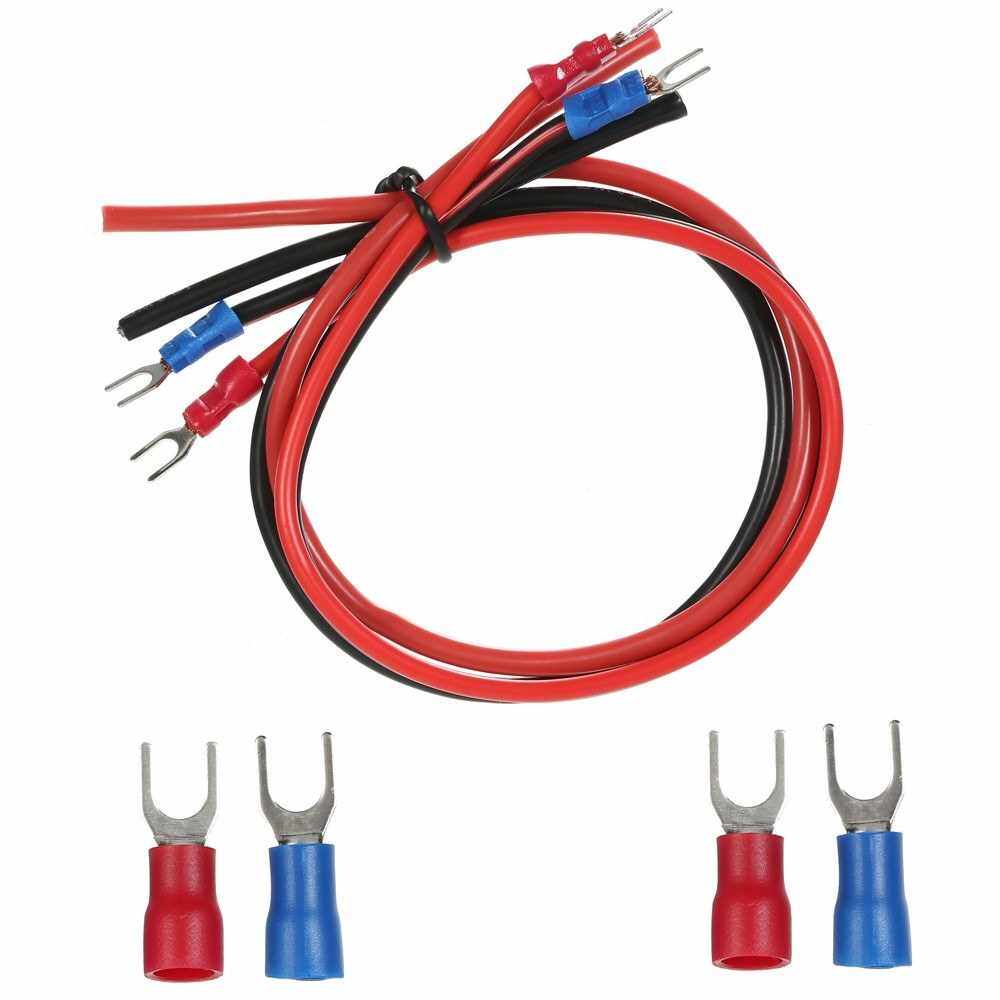

1 * Double Head Power Cord
1 * Red Power Cord
1 * Black Power Cord
1 * Connection Cable with PINS
4 * U-shaped Terminal
