Product Information
|
LPC-524
新版Displayport(公) TO DVI-D(母) 轉接器 L:10cm |
|
DELL / HP / PC / NB / ATI / NVIDIA 獨立顯示晶片皆可用 |
- Compliant with Displayport 1.1 specification for both 1.62 and 2.7 Gbps.
- Support full Displayport link training.
- Compliant with DVI 1.1 specification up to 1.65 Gbps.
- ESD protact : Human Body Mode at 8kV, Machine Mode at 400V, and Charged Device Mode at 2kV.
- PC : VGA, SVGA, XGA, SXGA, AND UXGA.
- HDTV : 480i, 576i 480p, 576p, 1080i and 1080p.
- Standby mode current : 64uA
| Item | Convertor |
| Displayport source input port | 1 |
| Video device output port | 1 |
| Displayport source port connector | Displayport 20 pin (male) |
| Video device port connector | DVI 24 pin (female) |
Video band width (bps) |
2.7G single link |
| Single link range | 1920*1200 (WUXGA) |
| Vertical frequency range | 60Hz |
| Operation temperature | 0 ~50 oC |
| Storage temperature | -20 ~ 60 oC |
| Emission | CE, FCC, C-Tick |
| Enclosure | Plastic |

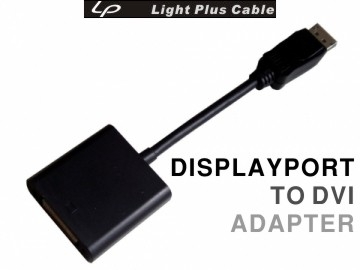

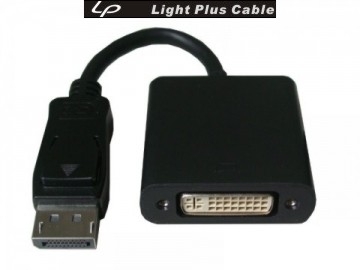

Displayport (DP) Cable TO DVI-D Converter
新版Displayport(公) TO DVI-D(母) 轉接器 L:10cm
輸入 : DISPLAYPORT ( PC主機/NB/顯卡)
輸出 : DVI-D 必須透過 DVI 線 連接到DVI LCD或DVI投影機
(並非DVI-I , 若套上DVI_TO_VGA 轉接頭 , 是沒有訊號的哦)
規格:(本產品單向使用,逆接並無反應)
輸入 : Displayport 公插頭 (接主機)
輸出 : DVI 母座 (接螢幕端 , DVI-D輸出 , 若轉接VGA無訊號)
提醒: Intel 最新 i3 i5 CPU搭配內建 Intel HD Graphic北橋晶片 , 且無獨立顯卡機種之筆記型電腦 , 尤其 Lenovo / Dell / HP 系列筆電 , 必須改用[主動式]轉接器 , 方能正常顯示!! DP主動式DVI轉接器請選此 http://ecshweb.pchome.com.tw/search/v3.2/?q=LPC%20%E4%B8%BB%E5%8B%95%E5%BC%8F%20dvi&scope=all&page=1
- 本商品規格
- 單向使用,逆接無效 輸入 : DISPLAYPORT接主機端(顯示卡/NB) 輸出 : DVI螢幕端(需透過DVI線連接) , 純數位訊號,無法使用DVI轉VGA!!!
