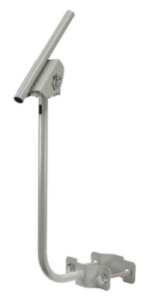

(CERIO)CERIO [OW-PKTB] Outdoor Adjustable Coated Stainless Steel Wall / Pole Mount Bracket Set

RM 204.00 RM 461.00 56%
Quantity
Product Code
S320000519568
Brand
No Brand
Sold by
Status
Available Now
Delivery
Usually ships within 1 to 2 weeks
Delivery Fee
FREE
FREE shipping with a minimum purchase
MY - RM88.00
Rewards
204 Points
Highlights
↙精緻粉烤保護漆,可供需柱掛的戶外 AP 設備輕易調整訊號方向↗

★不鏽鋼可調整方向式柱掛支撐之特性
★戶外應用的粉體烤漆強化防日曬保護
★壁掛與柱掛安裝,安裝簡單且實用
★防水的外型適用於各種氣候的應用
★垂直可左右
Notify me when ...
price drops.
Product Information

OW-PKTBOutdoor Adjustable Coated Stainless Steel Wall / Pole Mount Bracket SetOW-PKTB Outdoor Adjustable Coated Stainless Steel Wall / Pole Mount Bracket Set is designed for pole mount device deployment and easy installation. This powder coated stainless steel mounting bracket supports greater weight capacities, and is ideal for both indoor and outdoor application. OW-PKTB is perfect for simultaneously supporting multiple CERIO access points, outdoor antennas, CCTV IP cameras, and many other pole mountable device. OW-PKTB provides mounting solutions for devices that must maintain a certain distance from the wall (distance between mounting pole and wall is 13.5cm) such as wireless devices and monitoring equipment.










OW-PKTB Outdoor Adjustable Coated Stainless Steel Wall / Pole Mount Bracket Set is designed for pole mount device deployment and easy installation. This powder coated stainless steel mounting bracket supports greater weight capacities, and is ideal for both indoor and outdoor application. OW-PKTB is perfect for simultaneously supporting multiple CERIO access points, outdoor antennas, CCTV IP cameras, and many other pole mountable device.

OW-PKTB provides mounting solutions for devices that must maintain a certain distance from the wall (distance between mounting pole and wall is 13.5cm) such as wireless devices and monitoring equipment. This outdoor coated stainless steel mounting bracket also utilizes a hollow design which provides protection of wires and cabling by allowing them to be fed through the pole itself. M6 screw holes at the top of the mounting bracket support 4x 2.5cm square distances from the center of each hole.

OW-PKTB’s top bracket allows users to mount devices on an adjustable pole that allows for a 180° vertical H-plane turning range from 0° to 180°. The top bracket supports 4 rotations of 110°, which provides full adjustment flexibility to cover a complete 360° rotation along the E-plane. OW-PKTB utilizes a coated stainless steel design to protect against weather damage (sun/water/wind), making it perfect for any type of outdoor environment.


Features


● Stainless steel construction for reliable fixed pole mounting support
● Powder Coating for strengthened protection against weather damage (sun/water)
● Supports both wall and pole mounting through bracket versatility
● Waterproof Exterior for a variety of deployment environments
● 360° Top Bracket device rotation
● 180° Vertically Adjustable Top Bracket (from 0° to 180°)
● Hollow bracket design for wire and cable protection
● Withstands a Rated Wind Velocity of 245km/Hour
● Supports Max weight load of 5kg

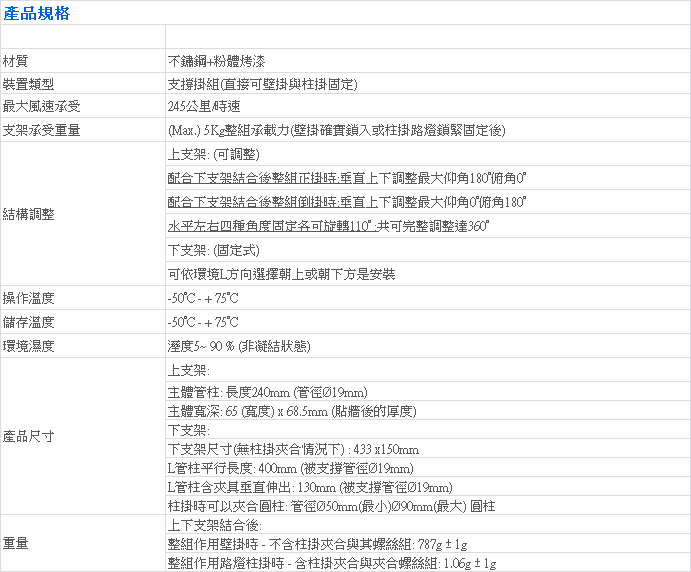

Specifications
Hardware

Material Stainless Steel + Powder Coating
Device Type Support Supports Pole Mountable Devices
Rated Wind Velocity Max wind speeds of 245km/hour
Maximum Weight Support Supports Max weight of 5kg
Adjustable Design Top Bracket Supports 180˚ Vertical Adjustment Range (0˚ to 180˚)
  Top Bracket Supports 4 110˚ Rotations, allowing for complete 360˚ rotation ability
  -50˚C - + 75˚C
Operating Temperature -50˚C - + 75˚C
Storage Temperature 5~90% maximum (non-condensing)
Humidity Top Bracket Pole Length: 240mm (Pole Diameter: 19mm)
Dimensions ( H,W ) Top Bracket Width: 68.5mm (parallel width from mounting base)
  Bottom Bracket Dimension (excluding pole mount clamp): 433x150mm
  L Pole Vertical Length: 400mm (pole diameter : 19mm)
  L Pole Horizontal Length: 130mm (pole diameter: 19mm)
  Max Pole Mount Bracket Diameter: Supports poles and street lights- with a Minimum diameter of 50mm ,maximum diameter of 90mm
Unit Weight Complete OW-PKTB without pole mount clamp/screws: 787g ±1g
Complete OW-PKTB with pole mount clamp and screws: 1060g ±1g


Package Content

OW-PKT Main Unit  x1
OW-PKB Main Unit + OW-PKT Attachment Screws x1
Pole Mounting Bracket & Screw Pack x1
Wall Mounting Screws & Metal Anchor Pack  x1


OW-PKTB
不鏽鋼+粉烤保護 室外型可壁掛/路燈柱掛可調式與固定式柱掛專用上下支撐架組
OW-PKTB室外型可壁掛/路燈柱掛可調式與固定式柱掛專用上下支撐架組,整組使用可被柱掛乘載後具有解決設備方向性的定義與調整,OW-PKTB組利用上支架的組合靈活可調式特性,當結合後整組正掛時最大承載柱掛裝置後可上下仰角 180 °、俯角0 ° 整組倒掛時最大承載柱掛裝置後可上下仰角0 °、俯角 180 °,此組合更可於結合下支架處利用結合固定原理達到四種角度各別110 °旋轉利用四種固定方式以達到上支架完整的水平左右360 °調整,此上下支架結合後的組合完整方便了需支撐的柱掛設備安裝佈署需求。


OW-PKTB室外型可壁掛/路燈柱掛可調式與固定式柱掛專用上下支撐架組,整組使用可被柱掛乘載後具有解決設備方向性的定義與調整,OW-PKTB組利用上支架的組合靈活可調式特性,當結合後整組正掛時最大承載柱掛裝置後可上下仰角 180 °、俯角0 ° 整組倒掛時最大承載柱掛裝置後可上下仰角0 °、俯角 180 °,此組合更可於結合下支架處利用結合固定原理達到四種角度各別110 °旋轉利用四種固定方式以達到上支架完整的水平左右360 °調整,此上下支架結合後的組合完整方便了需支撐的柱掛設備安裝佈署需求。

透過了OW-PKTB組解決了戶外裝置設備需要如無線裝置或監控設備必須與牆面保持一定距離(達13.5cm平行之距離)再支撐柱掛的需求,且柱管支援線路穿入如此方便安裝施工人員將電線或網路線藏穿於內,更是方便施工安裝使用。

OW-PKTB整組採用了適合戶外應用的不銹鋼材質設計,並加上適合戶外應用的粉體烤漆再保護,讓您戶外長期應用下不用擔心日曬雨淋生鏽問題,整組利用下支架可壁掛 (附戶外用金屬壁虎) 或路燈等粗柱掛起來使用,利用此OW-PKTB支架組將可以完美的安裝需要調整角度的柱掛設備如戶外型指向型無線基地台,或需要固定的室外天線,與需要固定柱掛的CCTV IP攝像機。OW-PKTB整組支撐架組可讓更多元設備如無線基地台與外接無線天線甚至戶外其他需要柱掛安裝的設備完美的配合安裝使用。

產品特色
● 不鏽鋼材質給予裝置可調整方向式柱掛支撐之特性
● 適合戶外應用的粉體烤漆強化防日曬保護
● 支援壁掛與柱掛固定安裝,安裝簡單且實用的結構設計
● 防水的外型適用於各種氣候的應用
● 垂直可左右旋轉的安裝特性
● 可整組正掛垂直仰角與倒掛俯角上下角度調整結構設計
● 單體固定後最大支援每小時245KM之風速承受力
● 整組可被柱掛支撐物品承受力達5kg
● 柱管支援穿線進孔與出孔貼心設計
